12x 60W RGBW LED IP65 Linear Wash Effect Fixture with SparkLED Effect, Dual Pixel Strobe Lines, Zoom and Motorized Tilt
FEATURES
IP65 Protected LED Tilt FX Fixture
12x 60W OSRAM RGBW LED with Pixel Control
48x 2W SparkLED™ Effect with Pixel Control

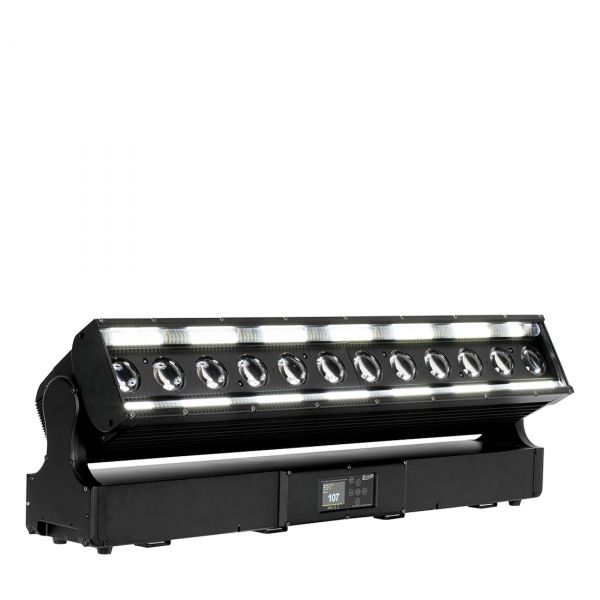

Dual 128x1W Strobe Pixel Line
Extreme Zoom – 6° for mid-air beam to 45° for even washes
Fast and precise 192° Tilt Rotation
12x 60W OSRAM RGBW LED with Pixel Control
48x 2W SparkLED™ Effect with Pixel Control
Dual 128x1W Strobe Pixel Line
Extreme Zoom – 6° for mid-air beam to 45° for even washes
Fast and precise 192° Tilt Rotation
SOURCE
(12) 60W Osram RGBW LEDs
(48) 2W White SparkLED™
(256) 1W Strobe LED
50,000 Hour Average LED Life*
(48) 2W White SparkLED™
(256) 1W Strobe LED
50,000 Hour Average LED Life*
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
11,000 Total Lumen Output (RGBW)
CRI 80
Zoom Range 6° - 45°
Colortemperature SparkLED 4,000K
Colortemperature Strobe Line 6,500K
CRI 80
Zoom Range 6° - 45°
Colortemperature SparkLED 4,000K
Colortemperature Strobe Line 6,500K
EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2,700-8,000K)

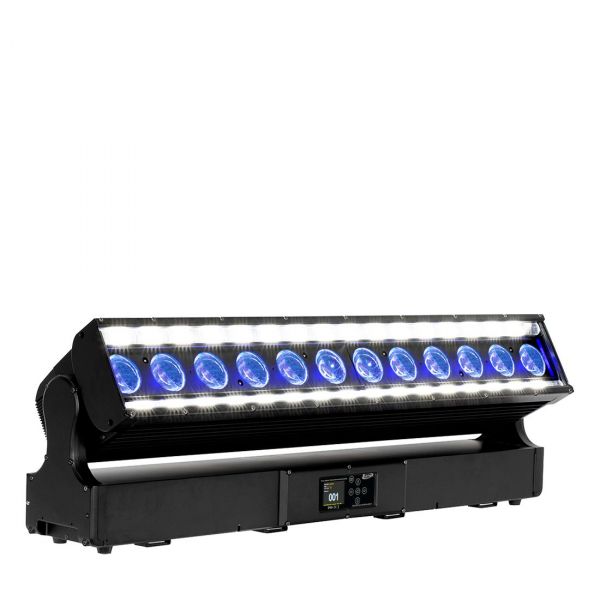

RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect

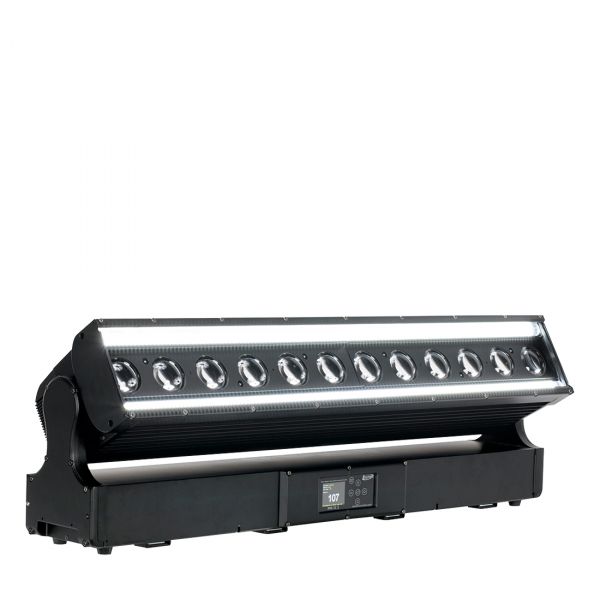

Dual White Strobe Lines (128 pixels per side)
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Linear Color Temperature Presets (2,700-8,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Dual White Strobe Lines (128 pixels per side)
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Tilt Angle: 192°
CONTROL / CONNECTIONS
6 DMX Channel Modes (28/76/140/108/120/188 channels)
Pixel controlled Wash, SparkLED and Strobe LED
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support

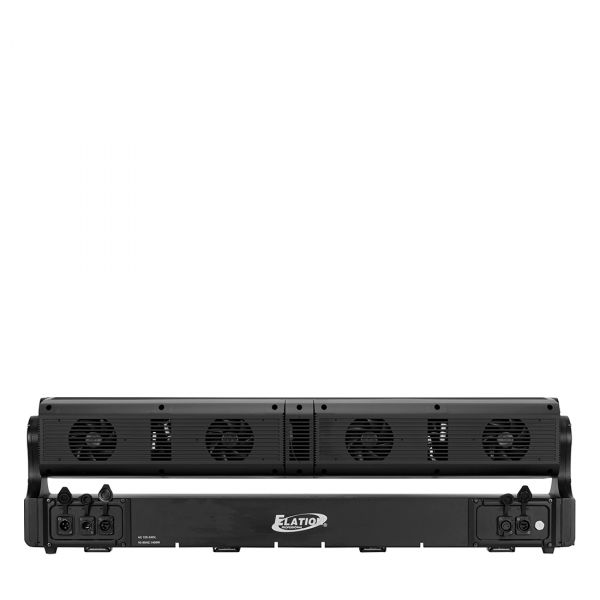

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In
Pixel controlled Wash, SparkLED and Strobe LED
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In
SIZE / WEIGHT
Length: 1004mm (39.5 in)
Width (Base): 194mm (7.6 in)
Width (Head): 155mm (6.1 in)
Height (head up): 336mm (13.2 in)
Height (head 90 degree): 288mm (11.3in)
Weight: 33 kg (72.7 lbs.)
Width (Base): 194mm (7.6 in)
Width (Head): 155mm (6.1 in)
Height (head up): 336mm (13.2 in)
Height (head 90 degree): 288mm (11.3in)
Weight: 33 kg (72.7 lbs.)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
1400W Max Power Consumption
1400W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)
