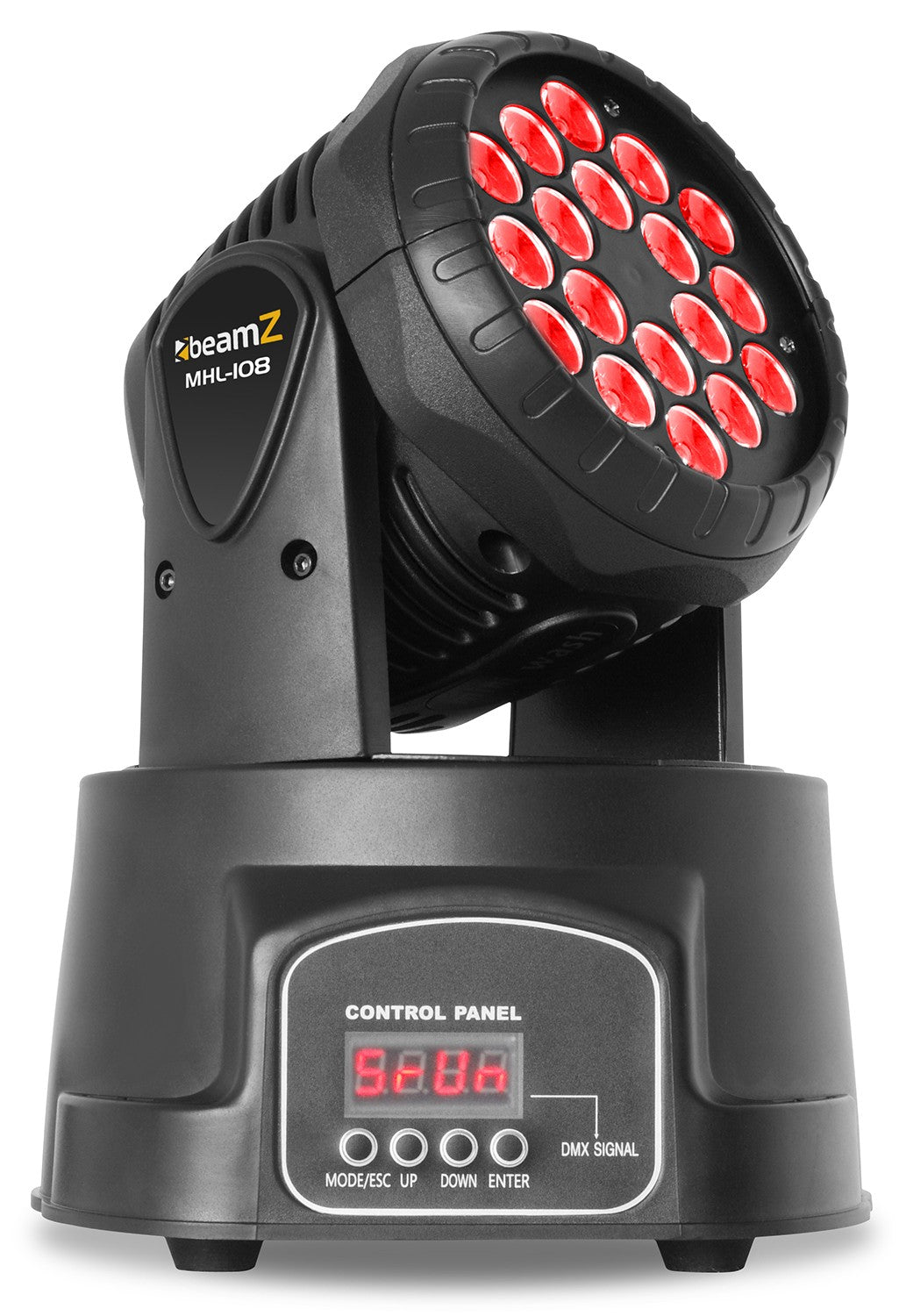

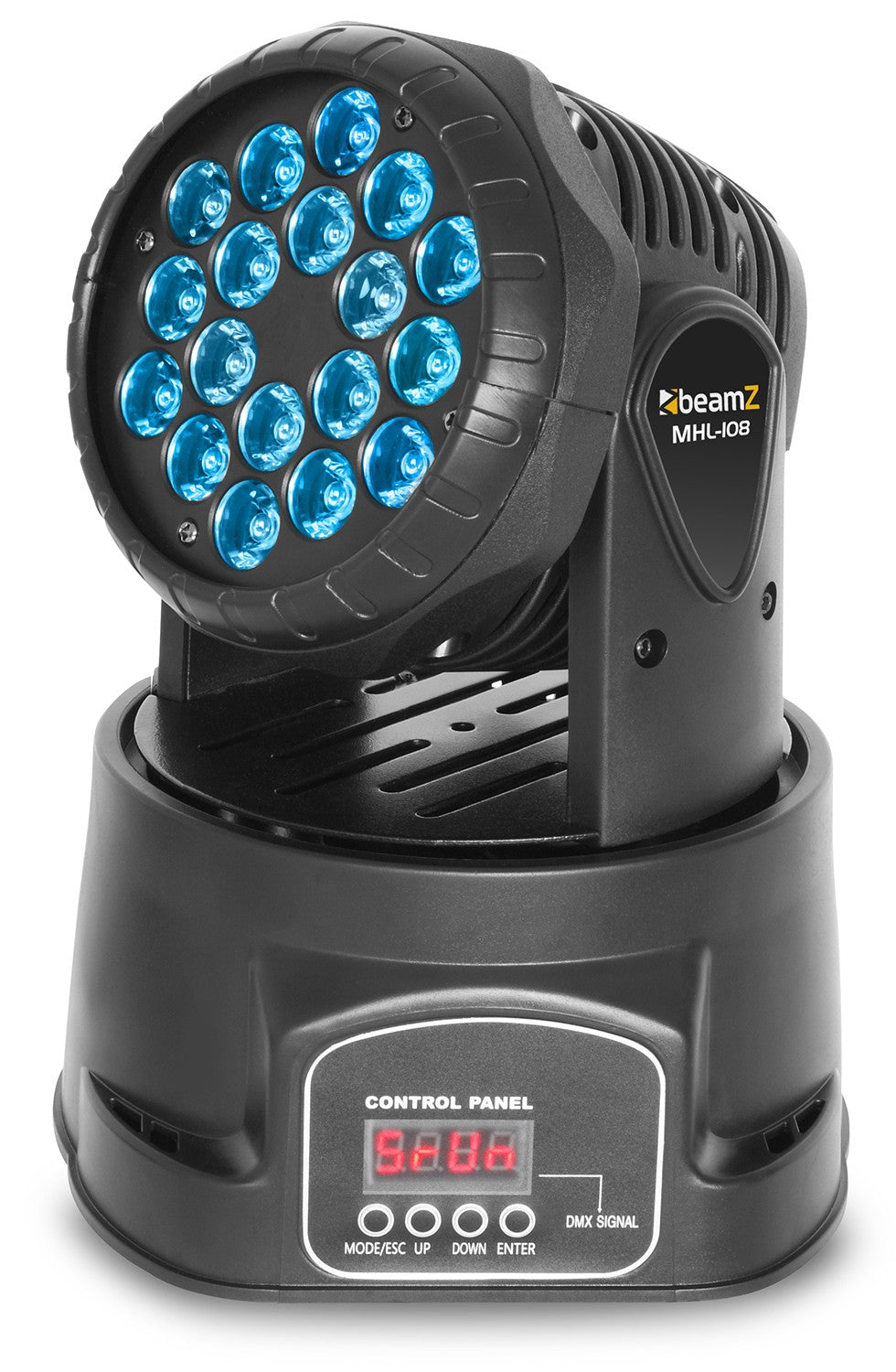

The MHL108MK4 is a 11-channel DMX moving head with 18 powerful 3W LEDs producing a colourful wash effect.
Variable electronic strobe and dimmer, macro programs, advanced feature control, pan/tilt invert option and speed control. Can be used stand alone, master/slave or music controlled.
Features
- 6 or 11 DMX channels
- 18x 3W Bright LEDs (3-in-1 RGB)
- RGB color mixing
- Extensive function control
- Pan → 540 °, Tilt → 270 ° (high resolution)
- Faster pan / tilt speed control
- Macro programs
- Variable electronic strobe and dimmer (0-100%)
- Works as a master / slave, independently, music or DMX controlled
- Reset to factory setting
Specifications
| Brand | beamZ |
|---|---|
| Light source | 3-in-1 LED |
| Colours | Red, Green, Blue |
| LED power | 3W |
| Quantity of LEDs | 18 |
| Beam angle | 15 |
| Head movement: Pan | 540 |
| Head movement: Tilt | 180 |
| Flash rate per second | 0 - 10Hz |
| Modes | Automatic programs, DMX |
| DMX channels | 6, 11 |

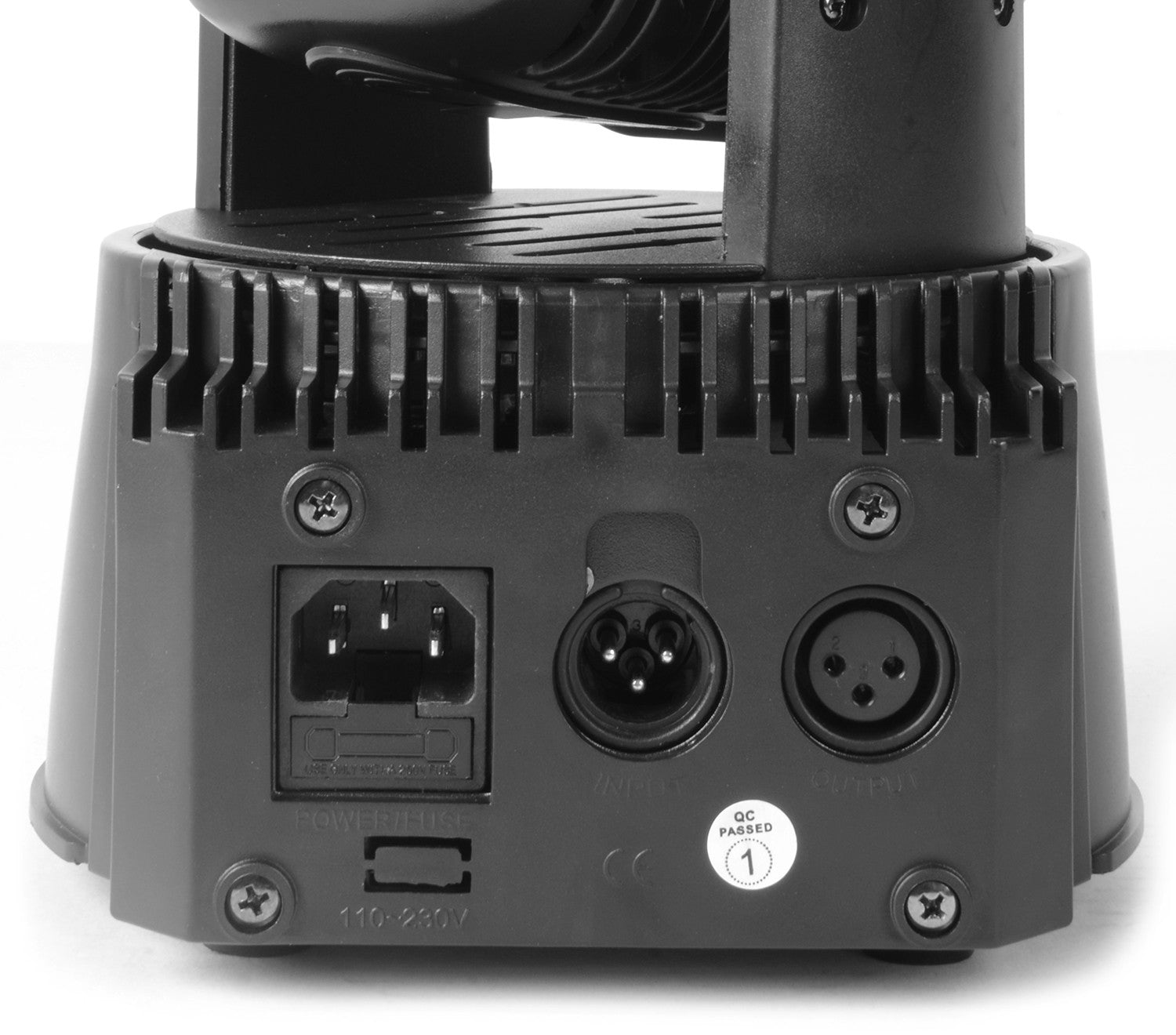

| DMX connection | 3-pin XLR |
| Power plug | IEC |
| Power consumption | 60W |
| Power supply | 220-240VAC 50Hz |
| Dimensions (L x W x H) | 180 x 165 x 240mm |
| Weight (kg) | 3.45 |
