Providing up to 16.000 total lumens from its efficient 380W 6,500K LED engine allows the fixture to be utilized in many applications. Due to its high 91 color rendering index and its whisper quiet operation it is ideally suited for Television, Theater and Corporate Events, or any application where powerful and even coverage is desired. Illuminating objects and people with precise color reproduction is the perfect application for the Artiste Van Gogh.

Providing up to 16.000 total lumens from its efficient 380W 6,500K LED engine allows the fixture to be utilized in many applications. Due to its high 91 color rendering index and its whisper quiet operation it is ideally suited for Television, Theater and Corporate Events, or any application where powerful and even coverage is desired. Illuminating objects and people with precise color reproduction is the perfect application for the Artiste Van Gogh. A 16bit CMY color system with a seamless CTO filter offers the designer a wide color range from subtle pastels to vibrant primaries. A seven position color wheel is provided for additional effects and includes a dedicated UV filter.

Specifications

SOURCE

380W 6500K LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

16,000 Total Output Lumen

CRI 91

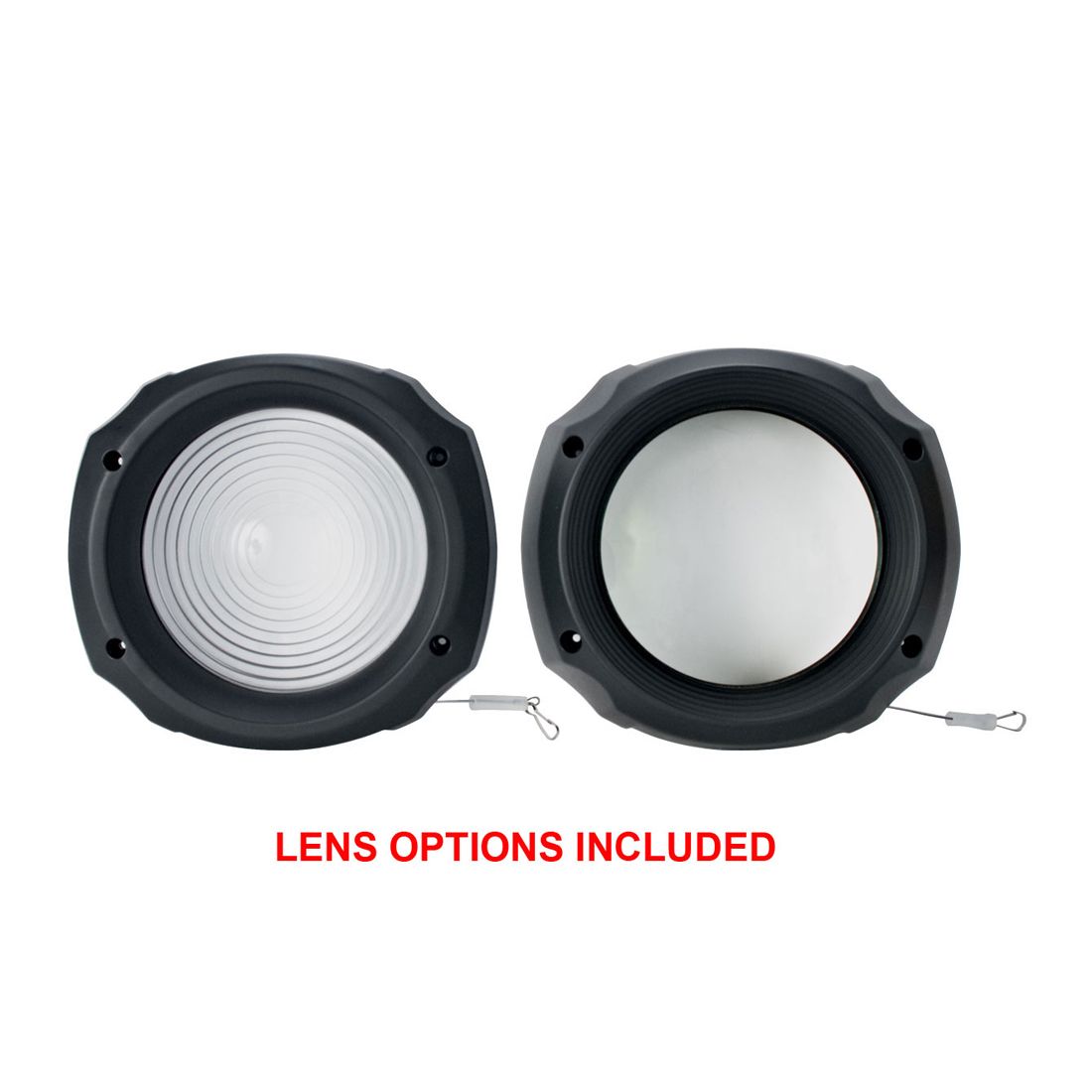

Fresnel Lens
Zoom Range 11° - 66°

Beam Angle 7.5° - 45.2°

Field Angle 16.5° - 68.2°

PC Lens

Zoom Range 7° - 55°

Beam Angle 5.6° - 43.2°

Field Angle 7.1° - 58°

EFFECTS

Motorized Zoom

CMY + CTO Color Mixing

7 Position Fixed Color Wheel including UV

4 Independent Barn Doors

Barn Door Index Adjustment

Frost Filter

Remote Focus Adjustment

Electronic Strobe and Variable Dimming Curves

16-bit Dimming

CONTROL / CONNECTIONS

2 DMX Channel Modes (22 / 36 Channels)

DMX Adjustable Refresh Rate (900 -25000 Hz)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net, sACN Protocol Support

Locking 5pin XLR DMX, RJ45 Ethernet, and Power

USB Connection (Firmware Updates)

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 15.73 in (399.6mm)

Width: 17.61 in (447.3mm) (Fresnel Lens)

Height: 26.34 in (669.mm)

Weight: 62.8 lbs. (28.5kg)

ELECTRICAL

AC 100-240V 50/60Hz

600W Max Power Consumption

BTU/hr (+/- 10%) 2046
