Elation professional Paragon M Hybrid (Spot/Beam/Wash) Moving light fi

Gallery
Apraksts

Apraksts

900W Variable CRI LED IP Framing Profile Fixture with CMY

FEATURES

IP54 rated for indoor and temporary outdoor use
All weather protection through innovative chassis, sealing and cooling construction
Impact resistant lightweight polycarbonate chassis
High Efficiency 6,500K Variable CRI White LED Engine
TruTone remote color fidelity adjustment up to CRI 93
37000 Total Lumen Fixture Output at CRI 80
Flat Field Engine for precise projection
Ultra-fast CMY Array and Variable Linear CTO
6 Dichroic Colors including UV-Filter, Quad Color
Complete FX System featuring Dual Rotating Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
Interchangeable Animation Disc (optional)
Indexable 240° Full Blackout Framing System
Wide Zoom Range from 4.5° to 52°
Interchangeable Fresnel Wash and PC Beam Lens (optional)

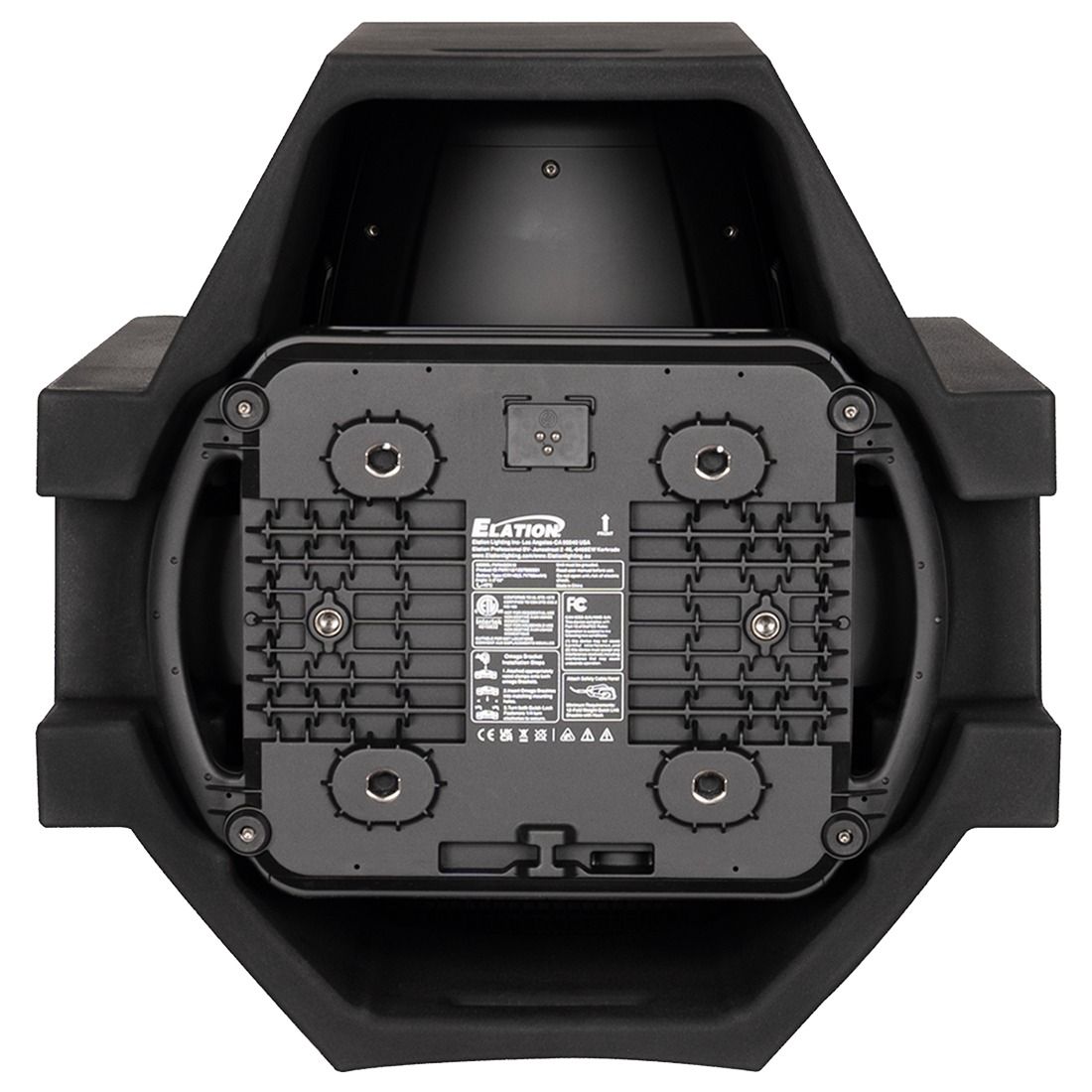

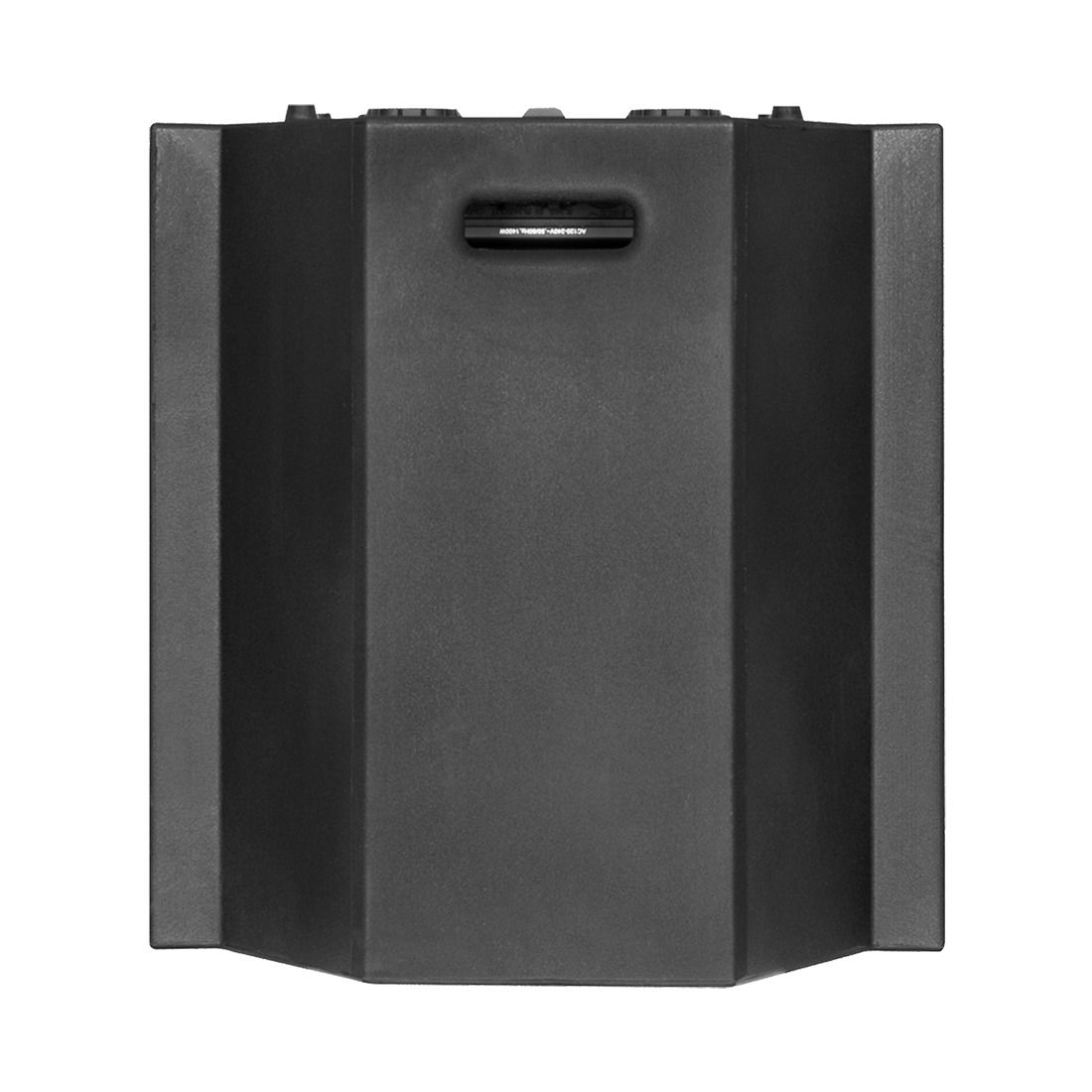

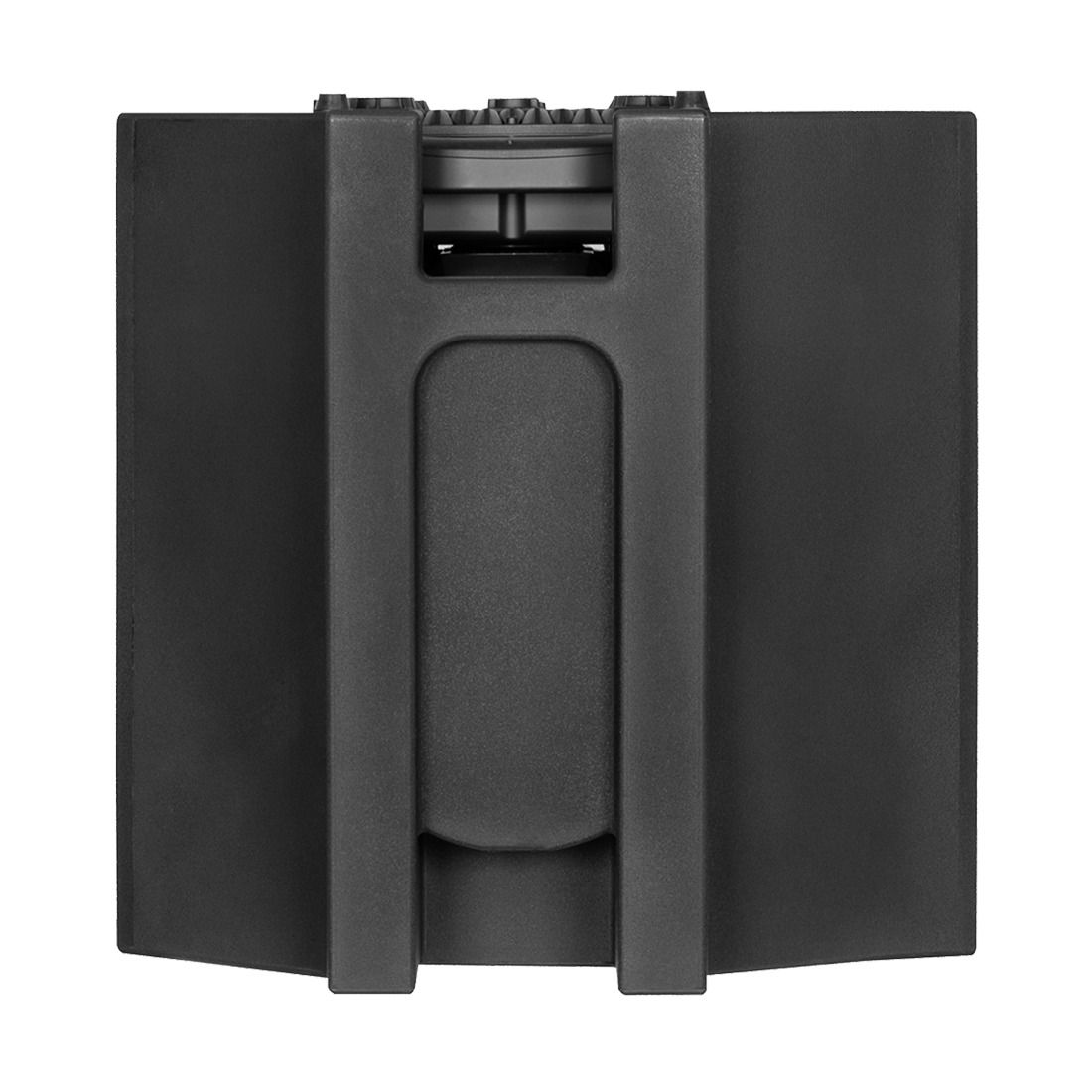

FIL (Foam In Lay) Polyurethane Foam Packaging Included

SOURCE

High Efficiency 900W 6,500K Variable CRI White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

37200 Total Lumen Fixture Output @ CRI 80
TruTone variable CRI up to CRI 93
Front Lens 160mm (6.3")

Profile Lens (standard)
Zoom Range 4.5° - 52°
Beam Angle 4° - 48.6°
Field Angle 4.4° - 52°
Cutoff Angle 4.5° - 54.2°

PC Lens (optional)
Zoom Range 6° - 50°
Beam Angle 3.7° - 44.5°
Field Angle 5.8° - 50.2°
Cutoff Angle 6.7° - 52.1°

Fresnel Lens (optional)
Zoom Range 9° - 55°
Beam Angle 4.5° - 46.8°
Field Angle 8.9° - 54°
Cutoff Angle 13.4° - 60.4°

EFFECTS

Motorized Zoom
4 Full Blackout Framing Blades, +/-45° Index
+/-120° Framing Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 260°

COLOR

CMY Color Mixing
Linear CTO Color Correction 6500K - 2600K
6 Dichroic Colors including UV-Filter, Quad ColorTruTone variable CRI 73-93

GOBOS

2x 7 Rotating / Indexing Interchangeable Glass Gobos

CONTROL / CONNECTIONS

4 DMX Channel Modes (43/65/43/65)
16-bit Pan, Tilt and Dimming Control
5 Fan modes for ultra quiet operation
DMX, RDM, Art-NET, sACN Protocol Support
(4) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
NFC on bottom and front of fixture base
Hibernation Mode (Power Save)
IP65 Locking 5pin XLR In/Out
IP65 Locking RJ45 Ethernet In/Out
IP65 Locking Power In
