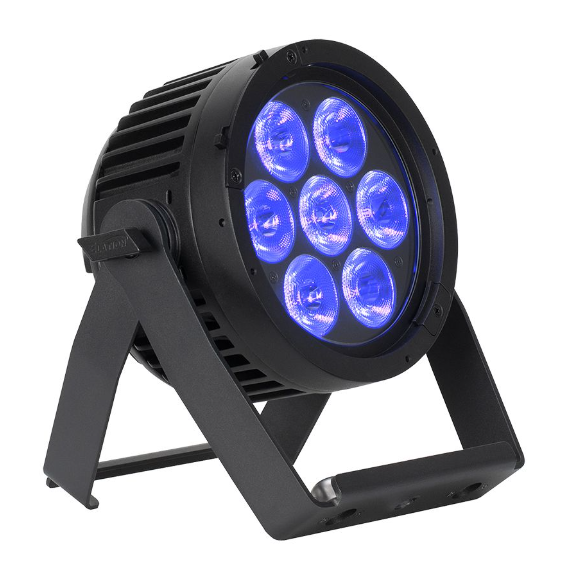

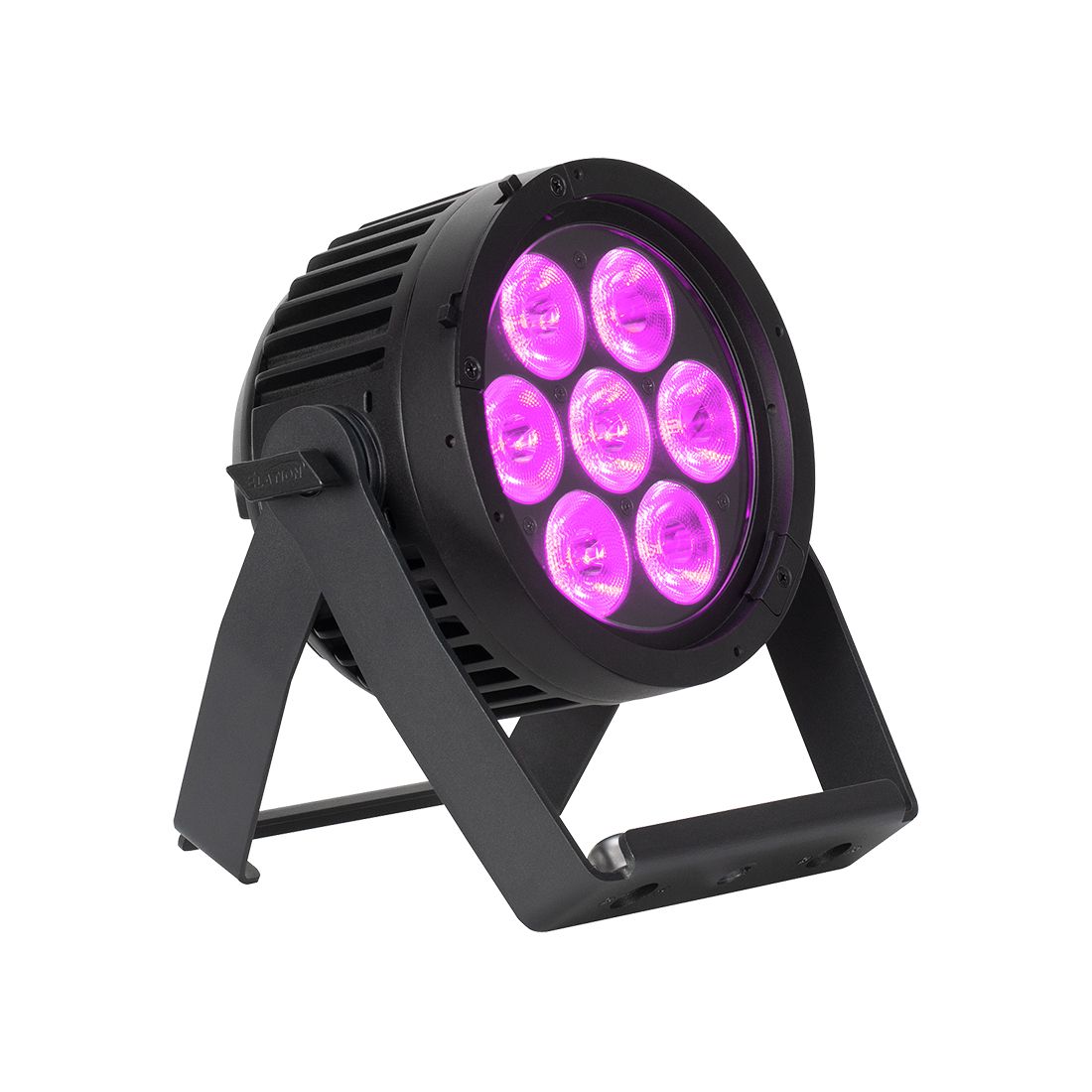

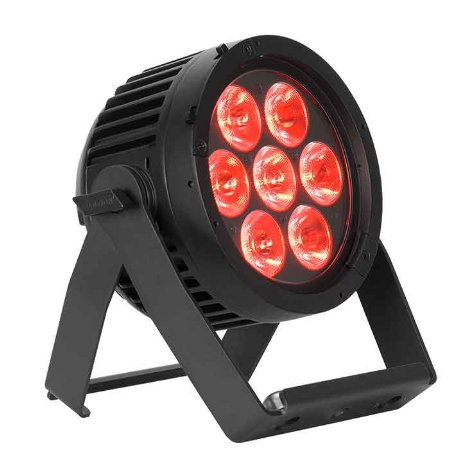

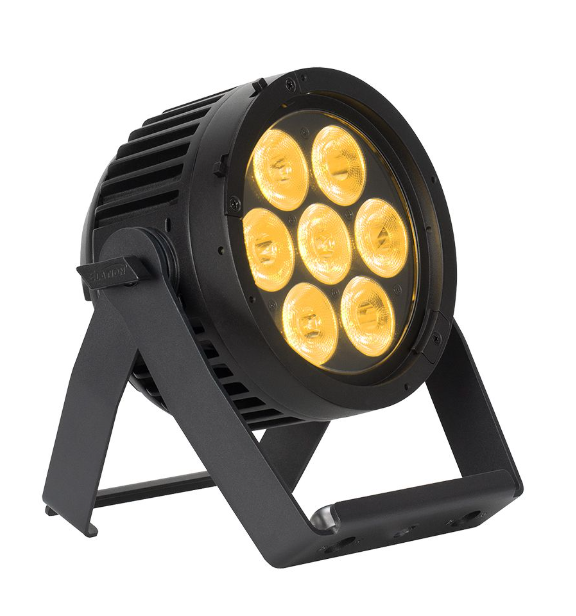

The SIX+ PAR S is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment, and with it's marine grade coating, it's even safe in harsh costal environments. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.
TECHNICAL DATA
FEATURES
(7) 20W RGBLA+UV LED Array
3200 Lumens, 93 CRI
12° Beam Angle, 22° Lens Included
Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 7.5” Accessory Holder
IP65 Rated
SOURCE
(7) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
3200 Total Lumen Output
CRI - 93
EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

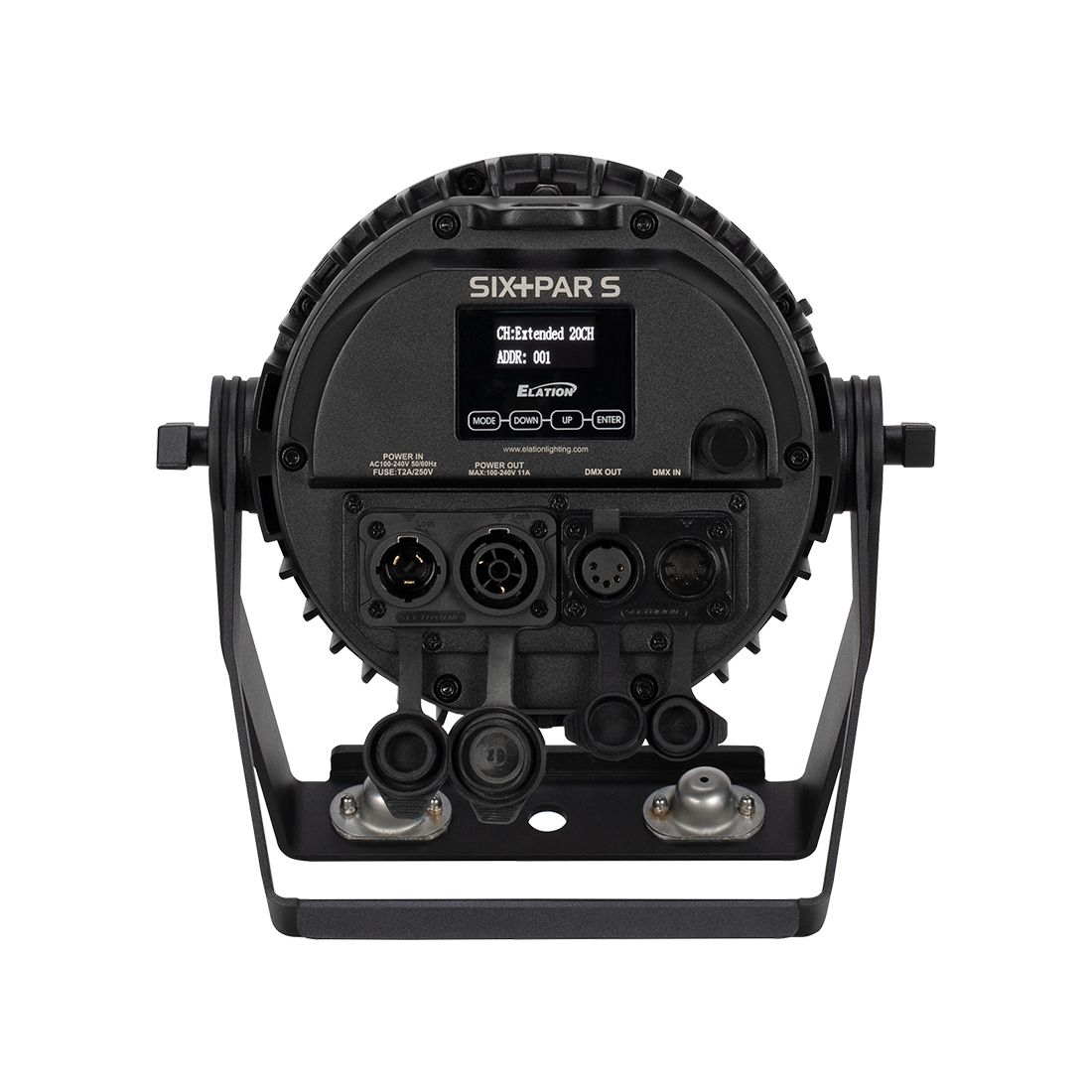

CONTROL / CONNECTIONS
9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 247mm (9.73”)
Width: 202.6mm (7.98”)
Vertical Height: 245.5mm (9.67”)
Weight: 4.30kg (9.48lbs)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
100W Max Power Consumption
Power Thru Capacity: @110V: 12 Units; @240V: 28 Units
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 341
INCLUDED ITEMS
22° Lens
IP65 Locking Power Cable
OPTIONAL ACCESSORIES
60° Lens (SIX+S WFL)
100° Lens (SIX+S XFL)
1°x 40° Lens (SIX+S L140)
10°x 60° Lens (SIX+S L1060)
Gel Frame & Holder Kit (SIX+S GFK)
7.5" Black Barndoor
