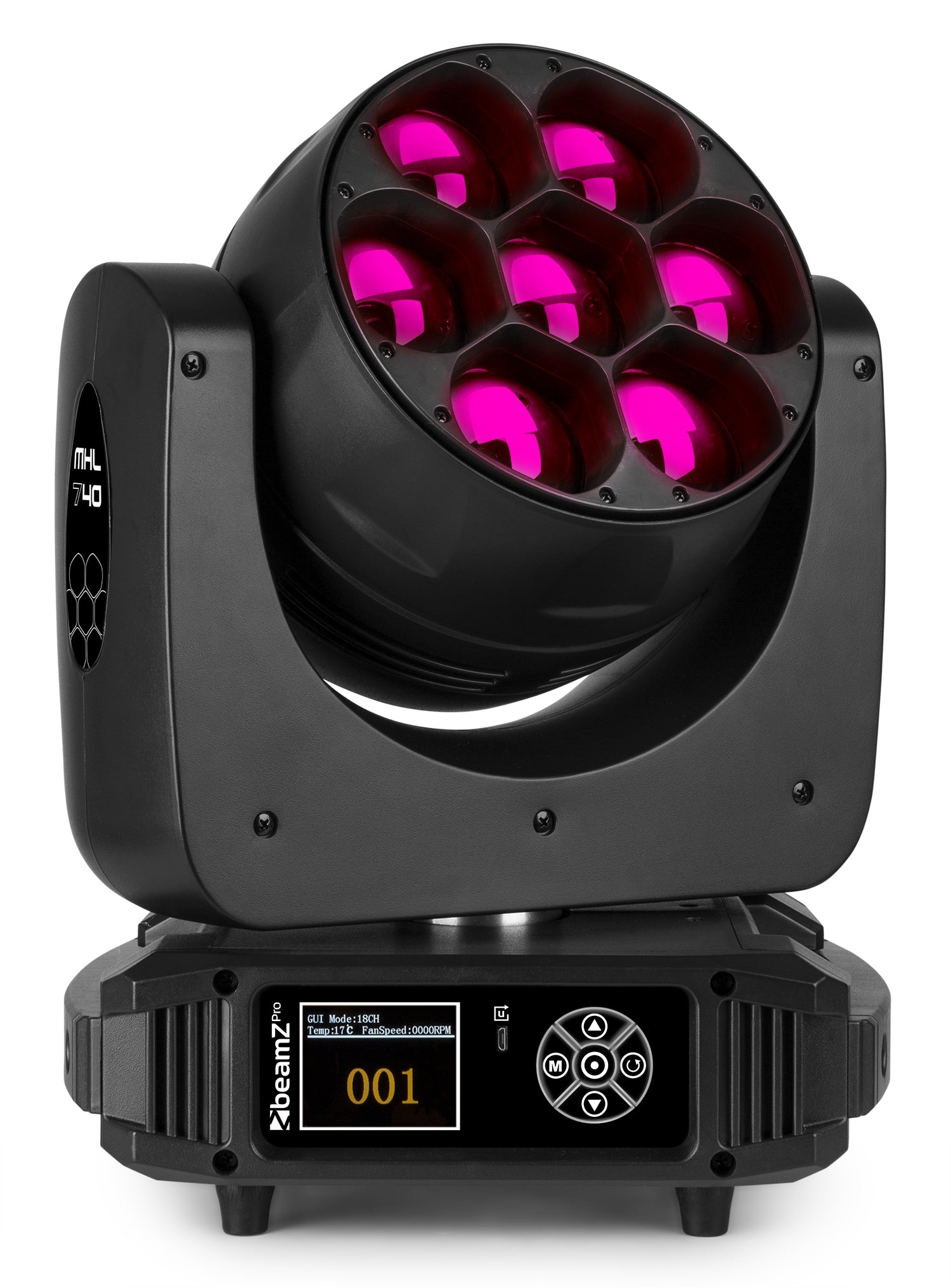

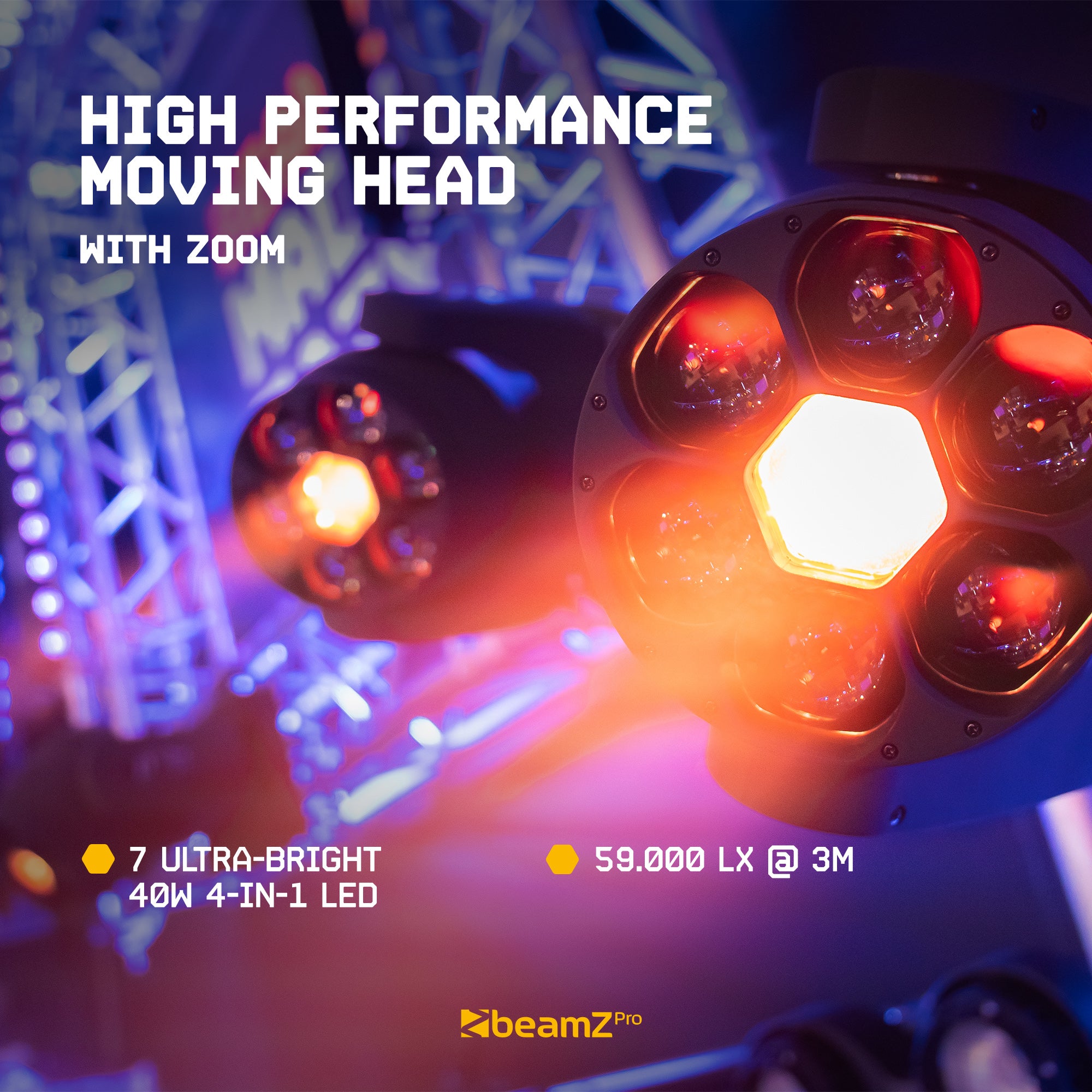

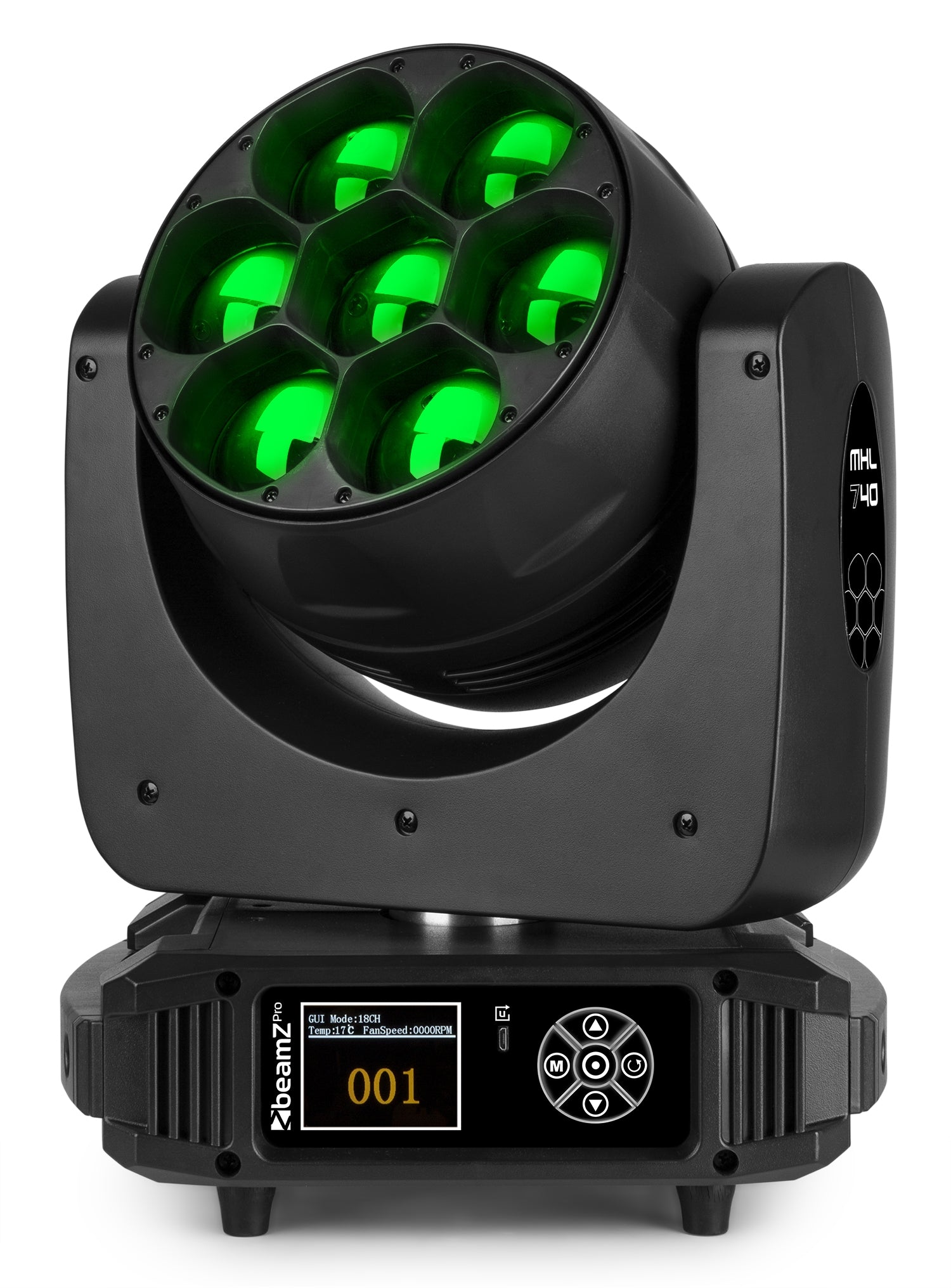

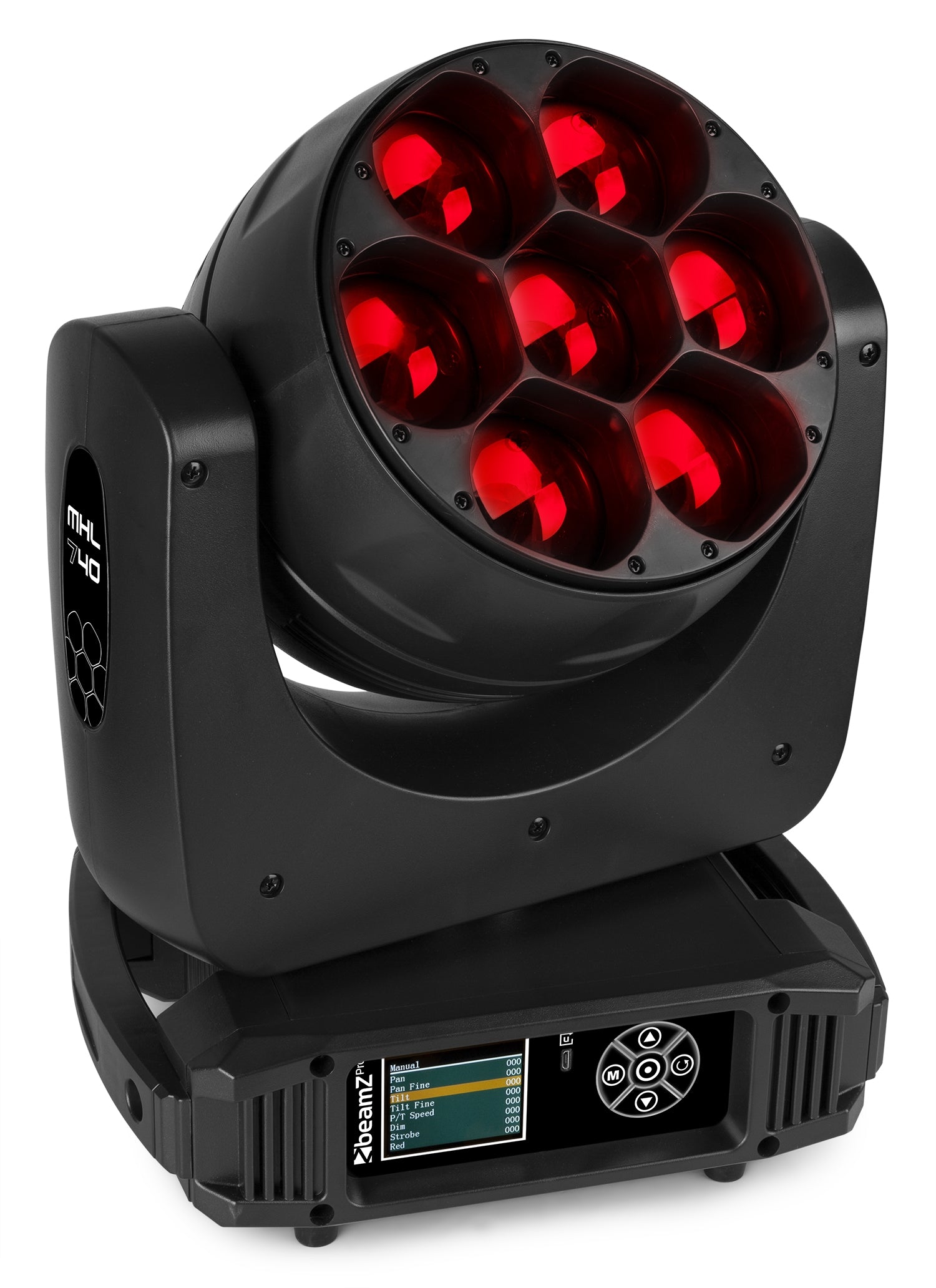

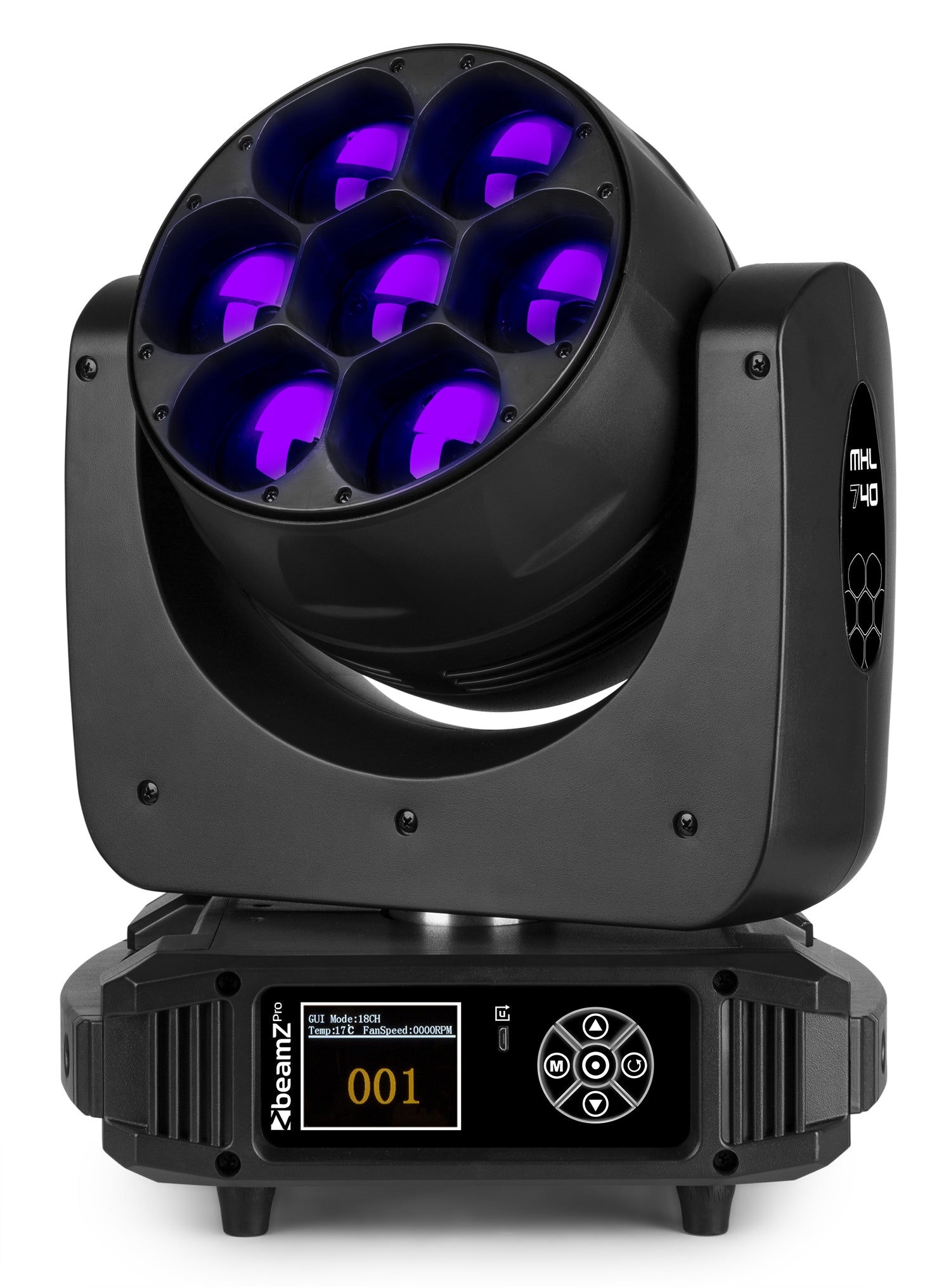

The MHL740 is a wash moving head with a linear motorized zoom equipped with 7 ultra-bright 40 Watt 4-in-1 LEDs according to the latest technology.

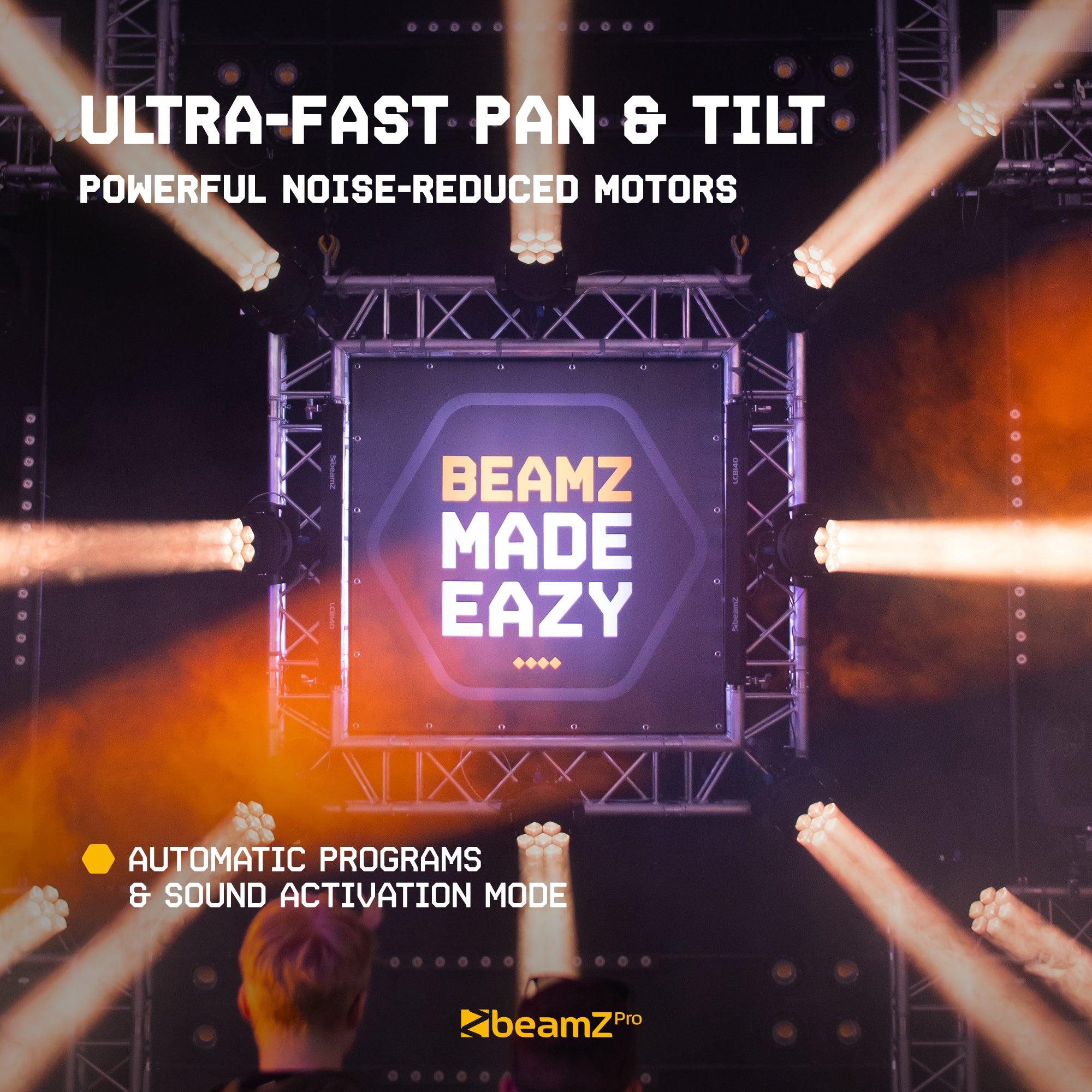

This moving head is setup with extremely powerful noise-reducing motors, enabling ultra-fast pan and tilt movement while keeping the noise to a bare minimum. Perfectly useable for many events and club installs.
Features
- 7x 40W 4-in-1 RGBW LED

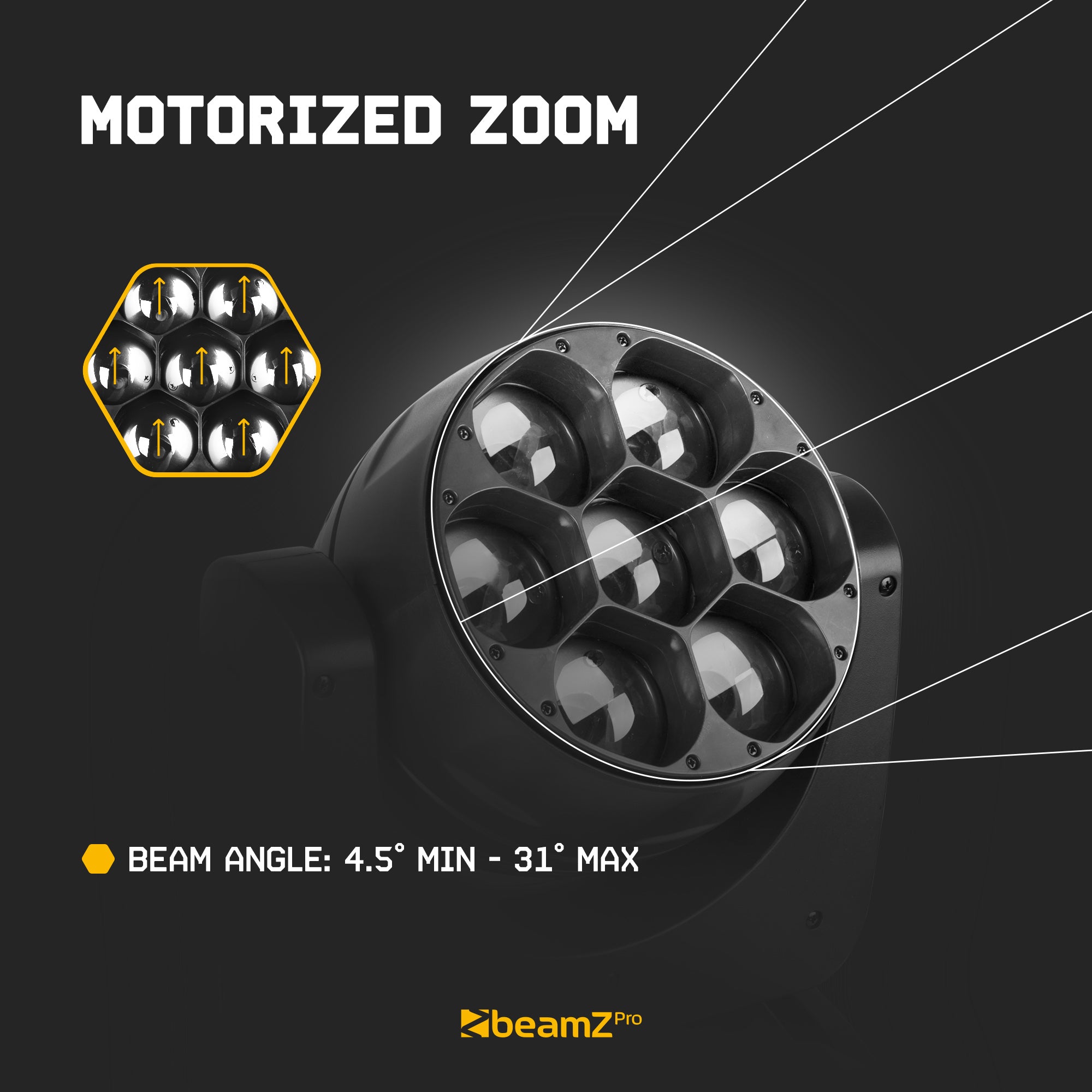

- Motorized zoom
- 11, 17, 18 or 38 DMX channels
- RDM/DMX Protocols
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- 0-100% Electronic Dimmer

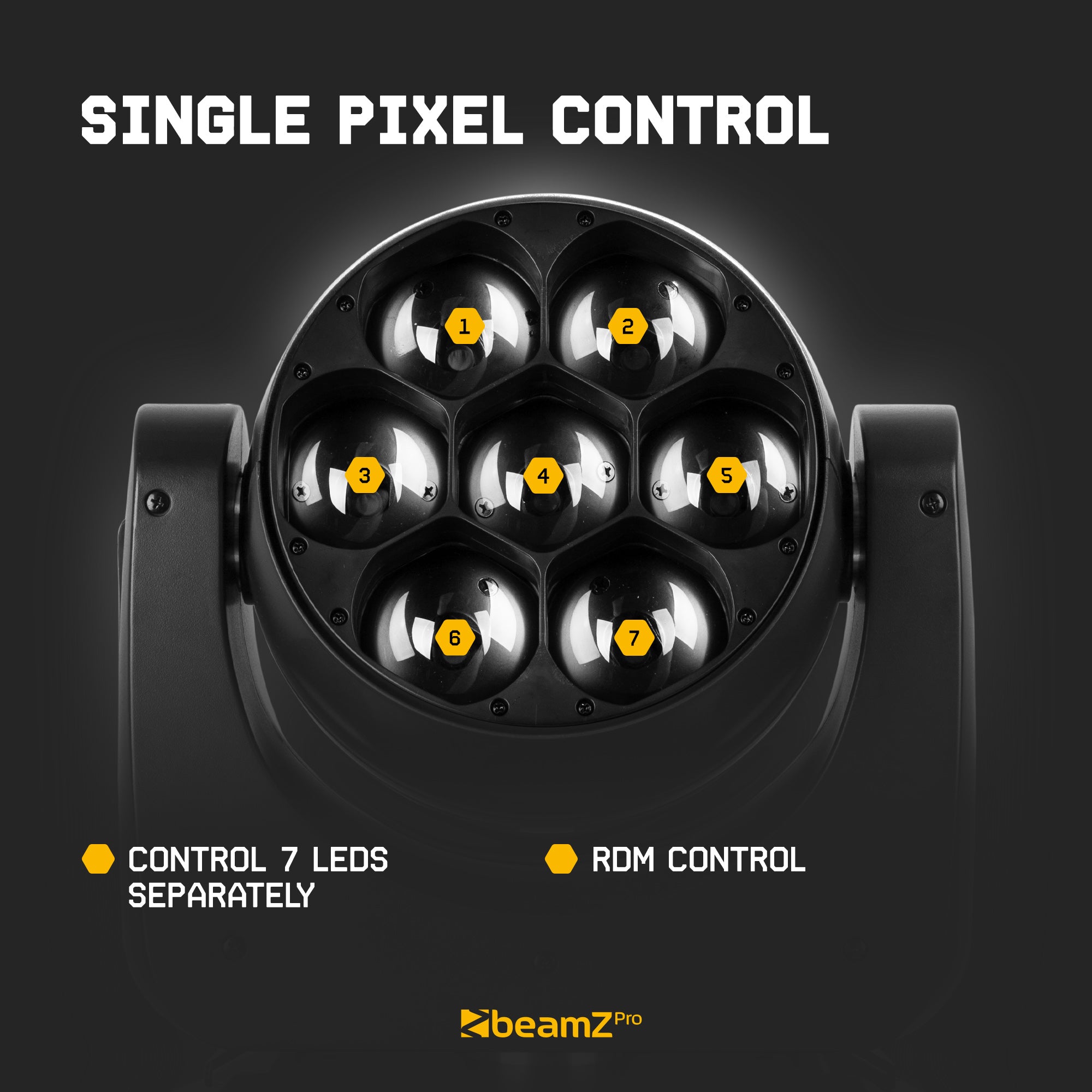

- Single pixel control

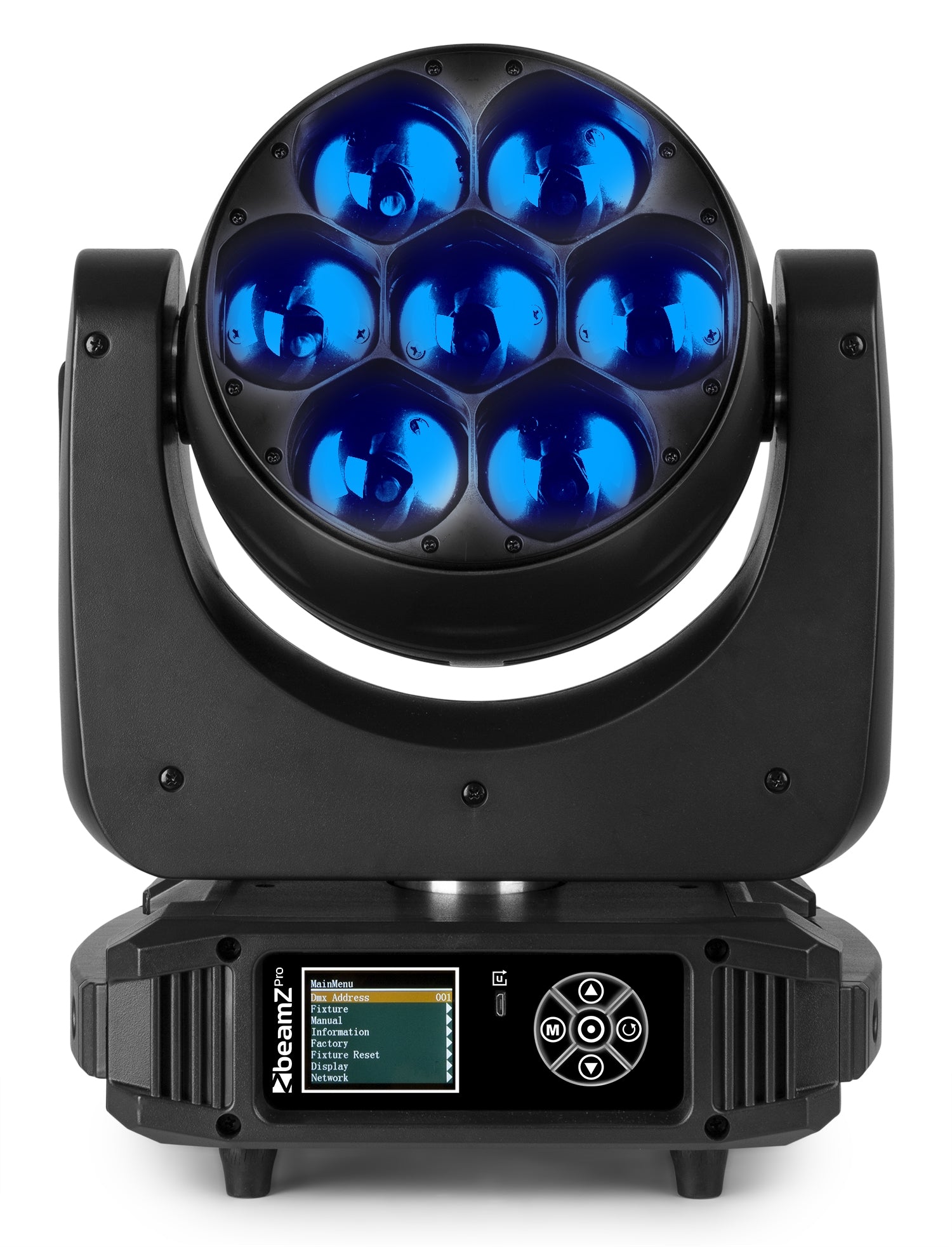

- Controle panel with LCD display

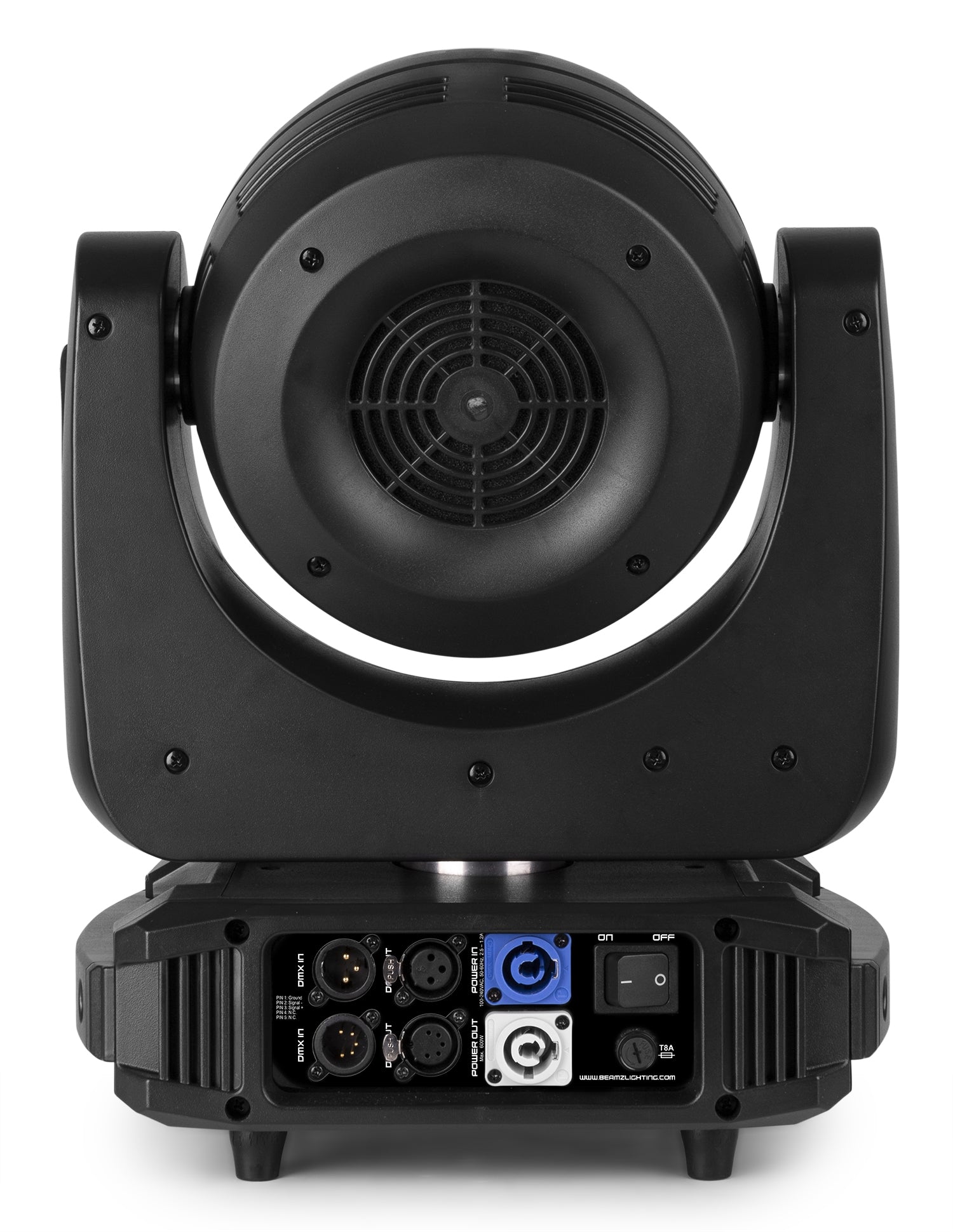

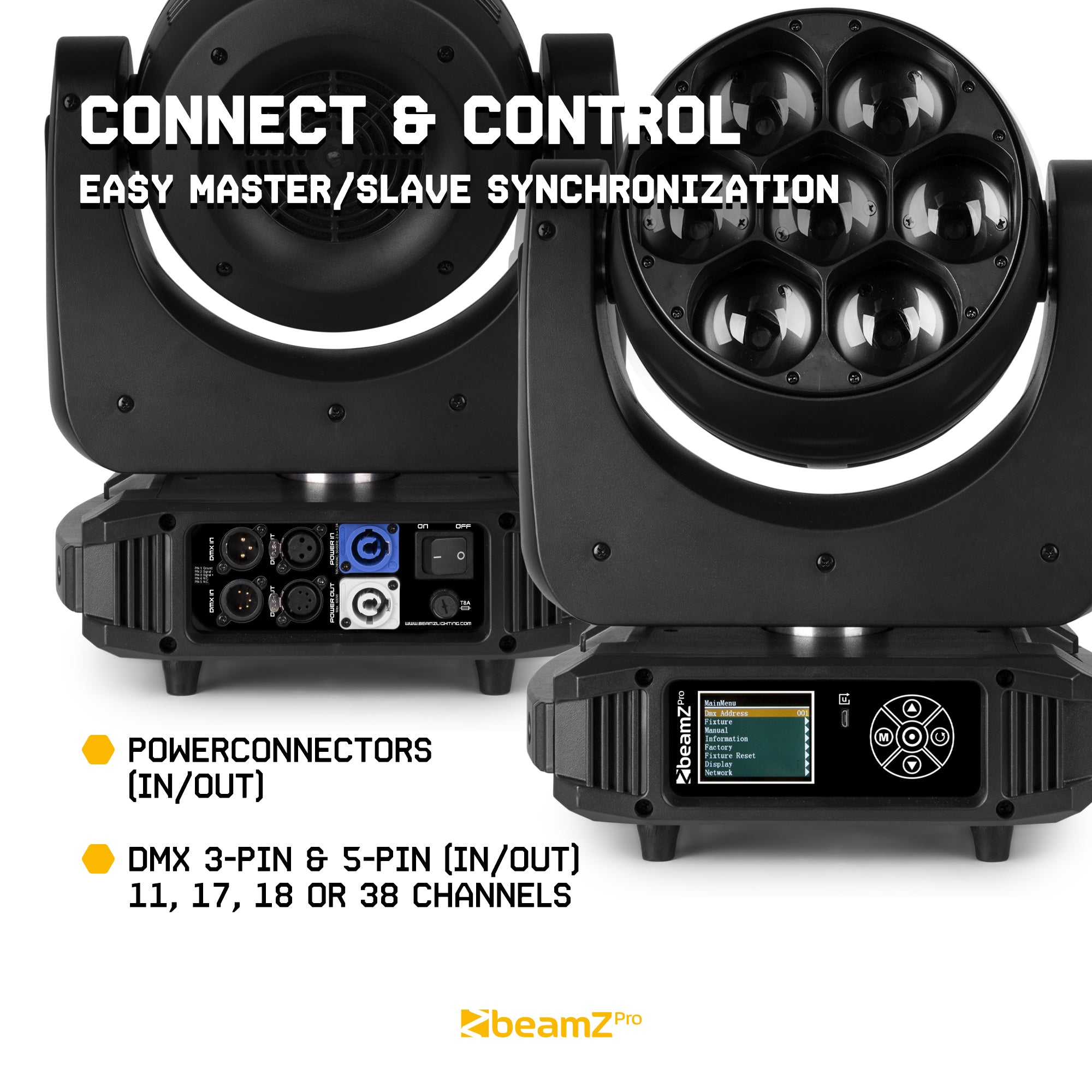

- DMX in/output via 3-pin and 5-pin XLR
- Powerconnector input/output

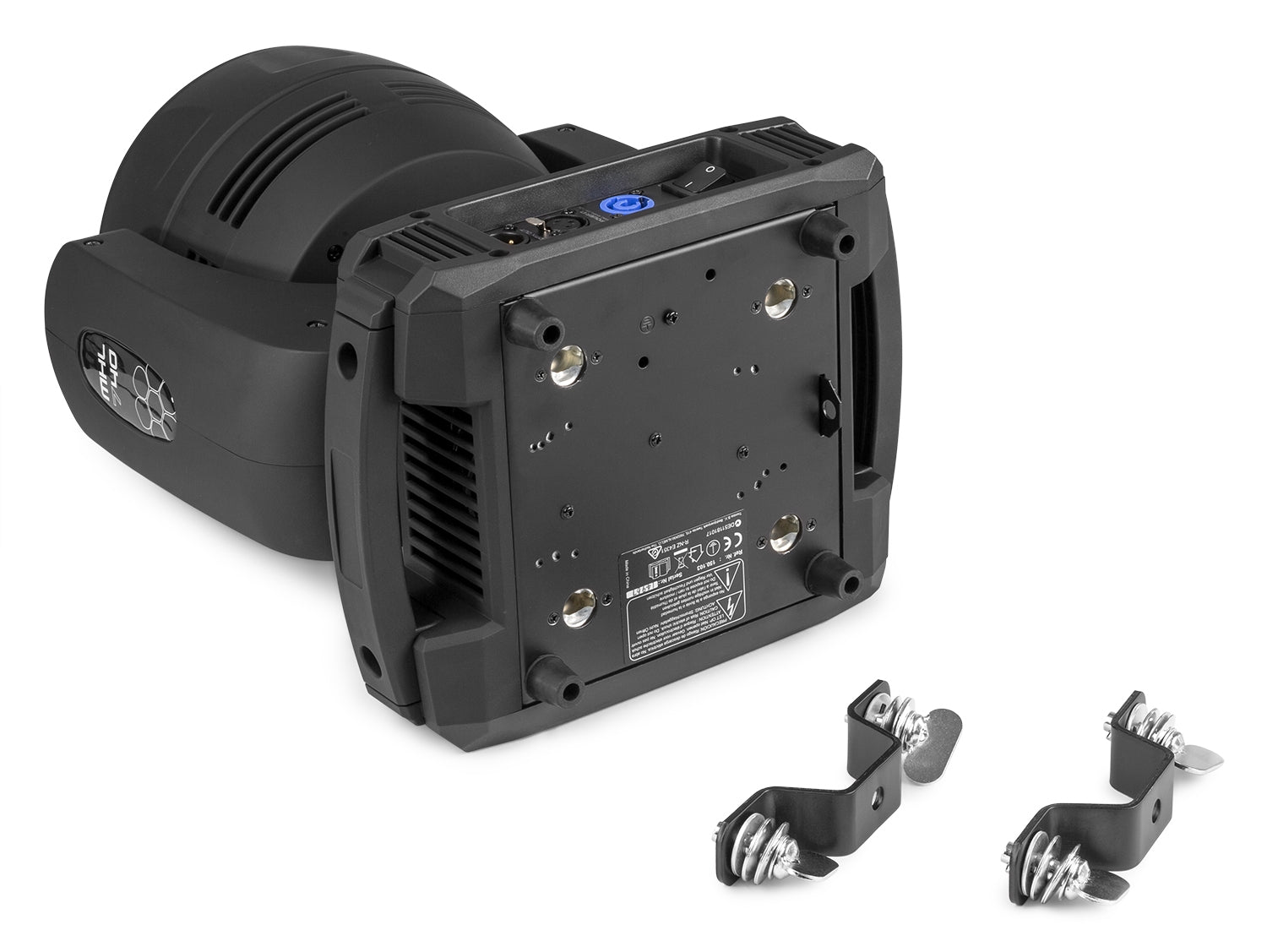

- Quick lock omega clamps included
- DMX cable included
- Powerconnector cable included
Specifications
| Colour temperature | 2800K - 8000K |
|---|---|
| Light source | 4-in-1 LED |
| LED colours | Red, Green, Blue, White |
| LED power (single LED) | 40W |
| Quantity of LEDs | 7 |
| Beam angle: Min | 4.5° |
| Beam angle: Max | 31° |
| Field angle: min | 7° |
| Field angle: max | 48° |
| Zoom | Yes |
| Illuminance | 59.000 lx @ 3m |
| Head movement: Pan | 540° |
| Head movement: Tilt | 220° |
| Flash rate per second | 0 - 18Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to light mode | Yes |
| RDM | Yes |
| DMX channels | 11, 17, 18, 38 |
| DMX connection | 3-pin XLR, 5-pin XLR |
| Display | LCD |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power plug | Power-connector |
| Power consumption | 2.5 - 1.2A |
| Power supply | 240VAC 50Hz |

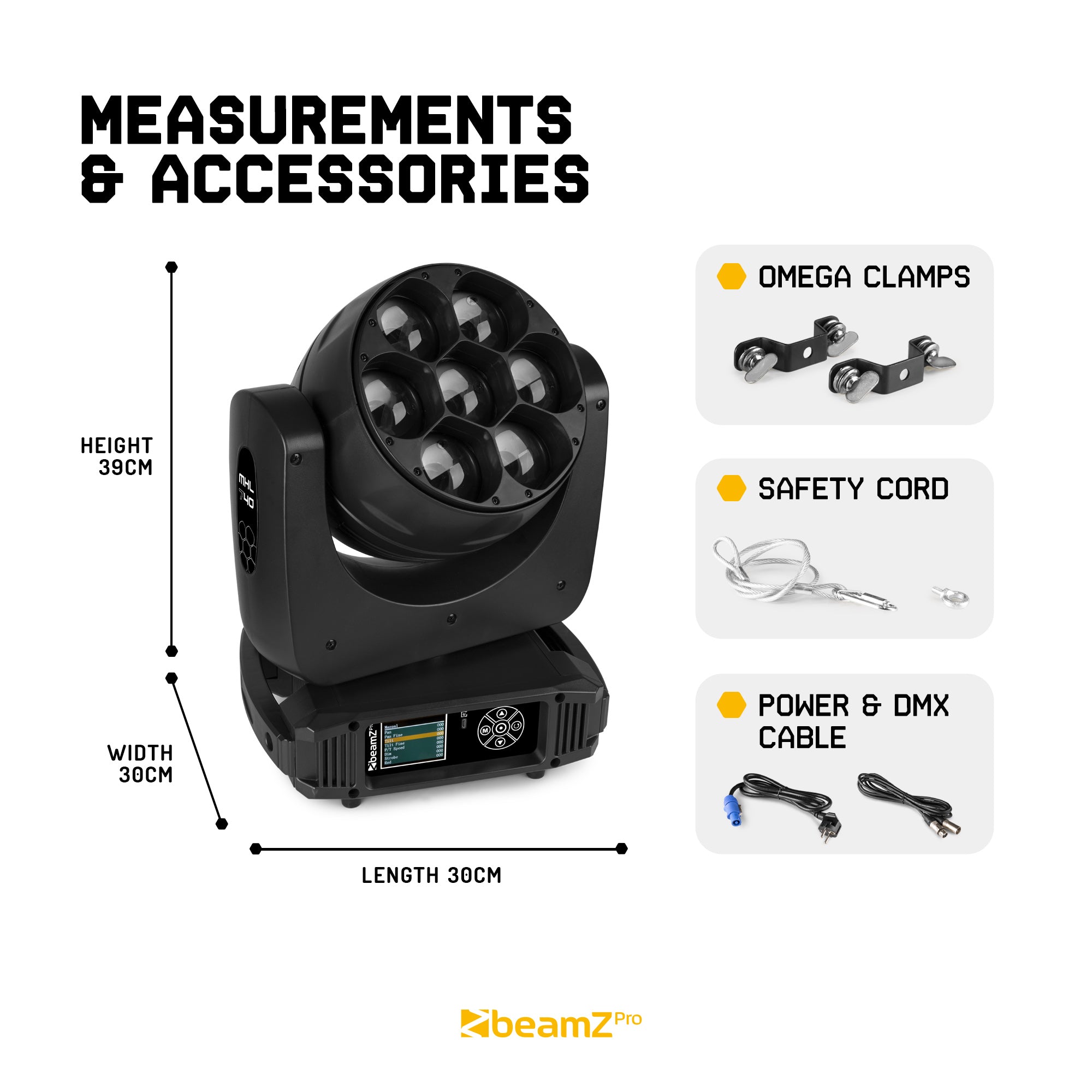

| Dimensions (L x W x H) | 300 x 300 x 390mm |
| Weight (kg) | 9,15 |
| Included accessories | Mounting bracket, Safety cord, Power cable, DMX cable |
