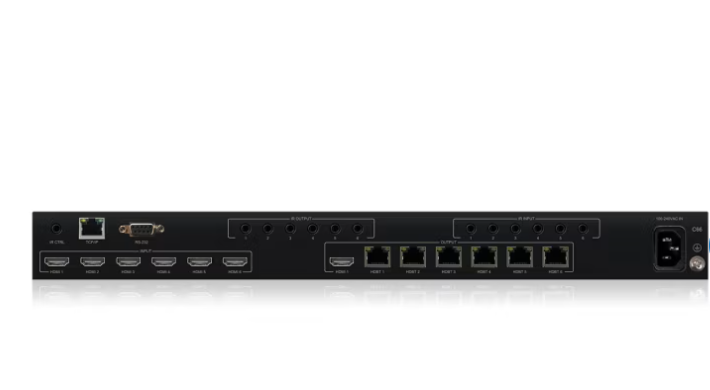

The C66 is a 4K HDCP 2.2 Matrix delivering HDMI, bi-directional IR, and PoC (Power over Cable) up to lengths of 70m over a single CAT cable.

• Video Input Connectors: 6 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connectors
• RS-232 Serial Port: 1 x DB-9, female
• IR Input Ports: 7 x 3.5mm stereo jack
• IR Output Ports: 6 x 3.5mm mono jack
• Rack Mountable: 1U rack height, rack ears included
• Casing Dimensions (W x H x D): 437mm x 44mm x 377mm (without feet)
• Dimensions (W x H x D): 437mm x 53mm x 384mm
• Shipping Weight: 5.0kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: Internal 100-240V AC
