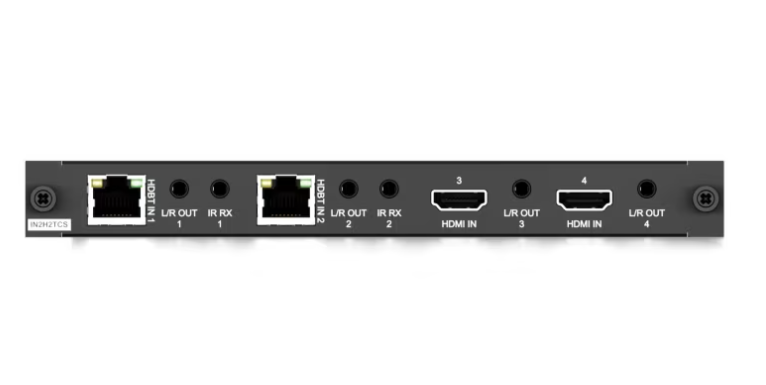

The PRO-IN2H2TCS board features 2 x HDBaseT™ and 2 x HDMI 2.0 inputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K 70m). The four sources can be independently routed to any HDMI / HDBaseT™ output board. The HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter. Each source input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
• Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
• Audio Output Connectors: 4 x Analogue Left/Right audio (3.5mm stereo jack)
• IR Input Ports: 2 x 3.5mm stereo jack
• Card Dimensions (W x H x D): 170mm x 22mm x 182mm
• Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
