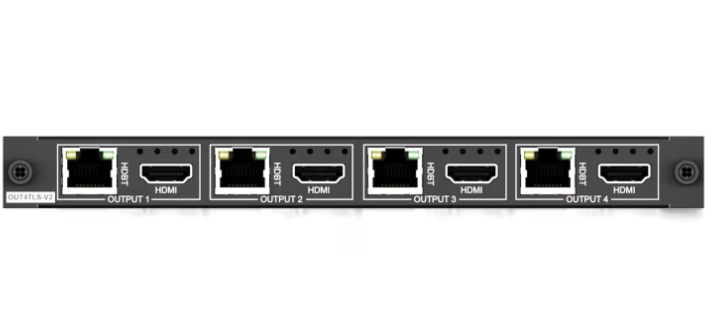

The PRO-OUT4TLS-V2 output board offers 4 x dual HDBaseT™ outputs  for connection to a HDBaseT™ receiver and HDMI display per zone.

The PRO-OUT4TLS-V2 utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 40m (1080p to 70m).

• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
• Card Dimensions (W x H x D):182mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
