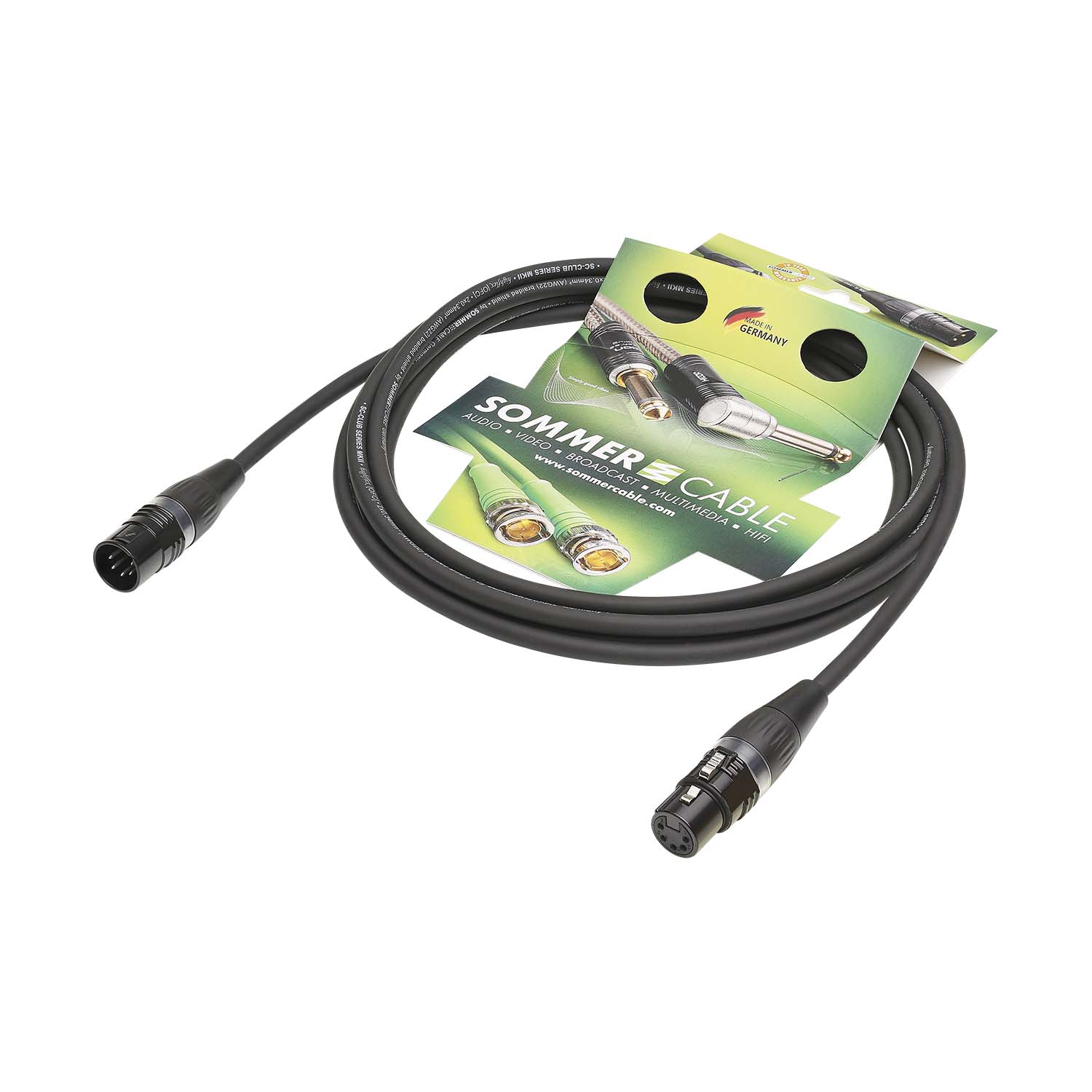

AES / EBU / DMX512 Binary 234 AES/EBU MKII, 2 x 0,34 mm² | XLR / XLR, HICON

These premade cables are outstandingly suitable for transmitting the 110 Ω AES/ EBU 2 DMX-512 data format. Note: Due to loss of data and information (caused by reflections at the cable end which may be due to a faulty line balancing), the use of a standard microphone cable is not advisable. In the lighting sector a loss of data causes a total holdup of signal transmissions, e.g. in a moving lights control system. The very favorable price of this cable should make it easy to switch from a standard microphone cable to a decent AES/EBU cable.

Our AES/EBU cable BINARY 234 AES/EBU MKII with 100 % shielding made of CU spiral and aluminum-coated fleece and a capacitance of 63pF/m (core/core) guarantees error-free data transfer even over longer distances of up to 100 meters.

Configuration:
7,50 m DMX Binary 234 AES/EBU MKII; 2 x 0.34 mm²; PVC Ø 6,20 mm; black (520-0051)
1 x HICON XLR BASIC, 5-pole female, silver-plated contacts, black metal housing, black plastic cap, 3-chuck collet strain relief (HI-X5CF-BLK)
1 x HICON XLR BASIC, 5-pole male, silver-plated contacts, black metal housing, black plastic cap, 3-chuck collet strain relief (HI-X5CM-BLK)
1 x Cardboard packaging for blister hooks, Design Groove+

Article number:    B2P9-0750-SW
EAN:    4049371524452

Technical Data:

- Article number: B2P9

- Name: Binary 234 AES/EBU MKII

- Brand: Sommer cable

- Application: AES / EBU / DMX512

- Inner conductor: 2

- Inner conductor: 0,34 mm²

- AWG: 22

- Connector-Brand: HICON

- Type: XLR

- Type (detailed): XLR 5-pole female

- Type (detailed): XLR 5-pole male
