Price indicated per 1 meter.

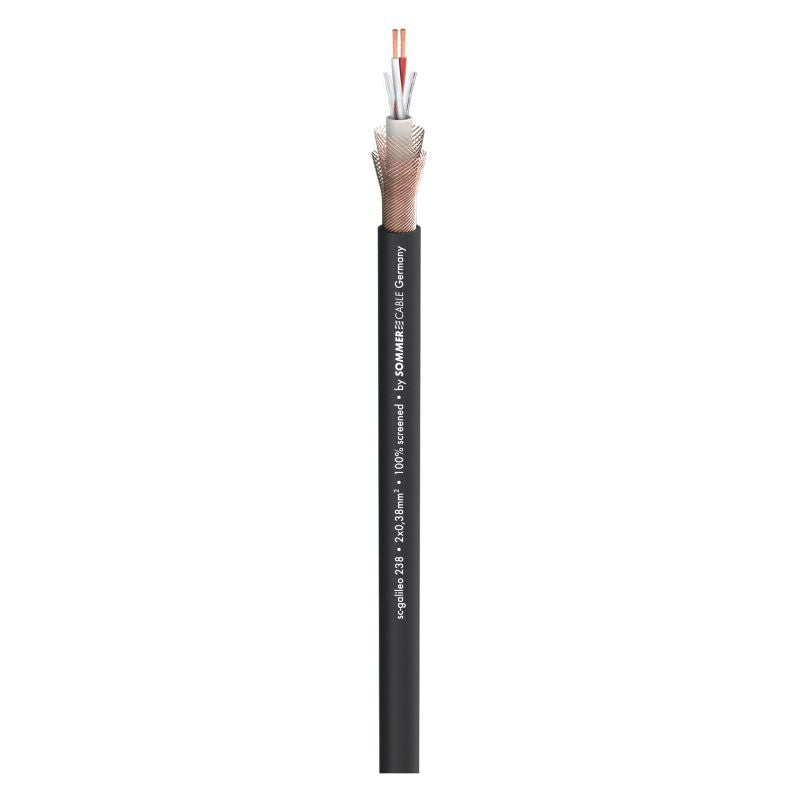

Microphone Cable
Advantages:
- Extreme long life and twist-proof due to the thick jacket and the wire pairs embedded in PVC
- Absolutely neutral and loss-free audio transmission due to the use of fine copper
wires
- Excellent protection due to the dense reverse dual mesh screen
- Very flexible due to the tightly stranded conductors and wires
- Loss-free transmission over long distances due to a large wire gauge of 2 x 0,38 mm²
Application:
- Highly professional studio and stage technology
- Demanding OB van technology for radio and broadcasting
- First-class hifi connection (red and white conductors on pin 1, separate shielding)
Technical Data:
- Article number: 200-0251
- Name: SC-Galileo 238
- EAN: 4049371001212
- Properties: Analog
- Properties: OFC oxygen free copper
- Application area: Stage / live
- Application area: Mobile outdoor / indoor
- Application area: Studio / Broadcast
- Application area: Installation
- Application: Microphone Cable
- Colour: black
- Signal transmission: symmetrical

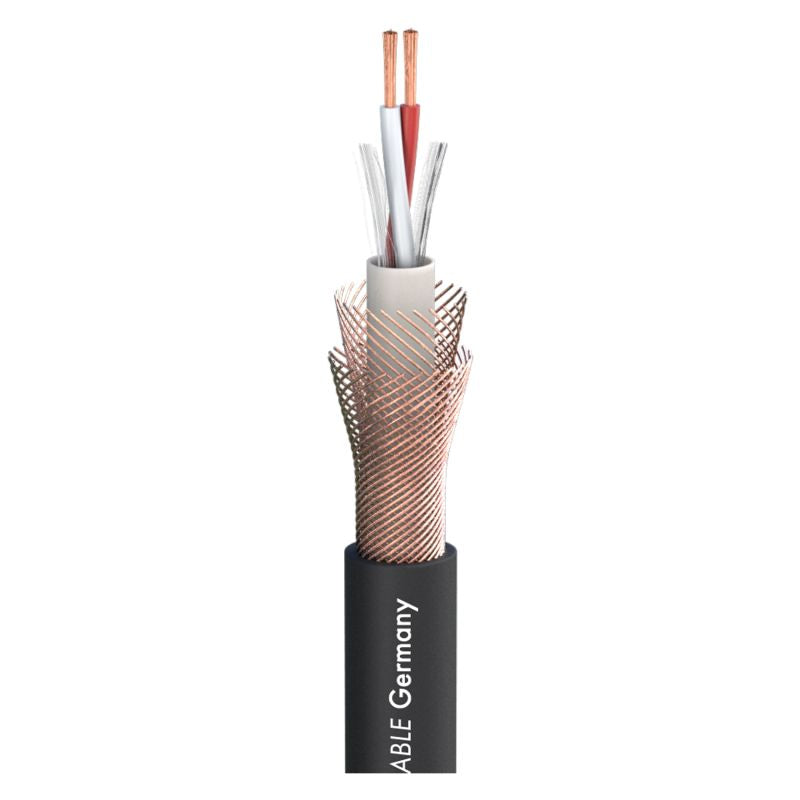

- Construction: (2LI2Y0,38mm²)YDDY
- Jacket material: PVC
- Jacket Ø: 7,00 mm
- Jacket Ø: 0.2756 "
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 0,38 mm²
- Inner conductor (audio): 0.0006 sqin
- Inner conductor Ø (audio): 0,70 mm
- Inner conductor Ø (audio): 0.0276 "
- AWG (audio): 21
- Shielding: Double copper spiral, counter-rotating
- Shielding factor: 100 %
- Copper strands (audio): 48
- Copper strand Ø (audio): 0,10 mm
- Copper strand Ø (audio): 0.0039 "
- Conductor insulation material: PE
- Conductor insulation Ø: 1,55 mm
- Conductor insulation Ø: 0.061 "
- Weight per 1 m: 60 g
- Weight at 1000 ft.: 40.375 lbs
- UV-resistant: yes
- Fire load per m: 0,22 kWh
- Style variant: round
- Packing: 100 m spool
- Temperature min.: -30 °C
- Temperature max.: 70 °C
- Width: 7 mm
- Width: 0.2756 "
- Height: 7 mm
- Height: 0.2756 "
- Capac. cond./cond. per 1 m (audio): 50 pF
- Capacity wire/wire at 1 ft. (audio): 15.24 pF
- Capac. cond./shield. per 1 m (audio): 100 pF
- Capacity wire/electic screen at 1 ft. (audio): 30.48 pF
- Impedance: 38 Ω
- Insulation resist. per 1 km: 1 GΩ
- Insulation resist. per 1000 feet: 0.3048 GΩ
- Insulation resist. per 1 km (audio): 1 GΩ
- Insulation resist. per 1000 feet (audio): 0.3048 GΩ
- Conductor resistance per 1 km: 52 Ω
- Conductor resistance per 1000 ft.: 15.8496 Ω
- Shield. resistance per 1 km: 20 Ω
- Shield. resistance per 1000 ft.: 6.096 Ω
- BPVo-Euroclass: Fca
