Price indicated per 1 meter.

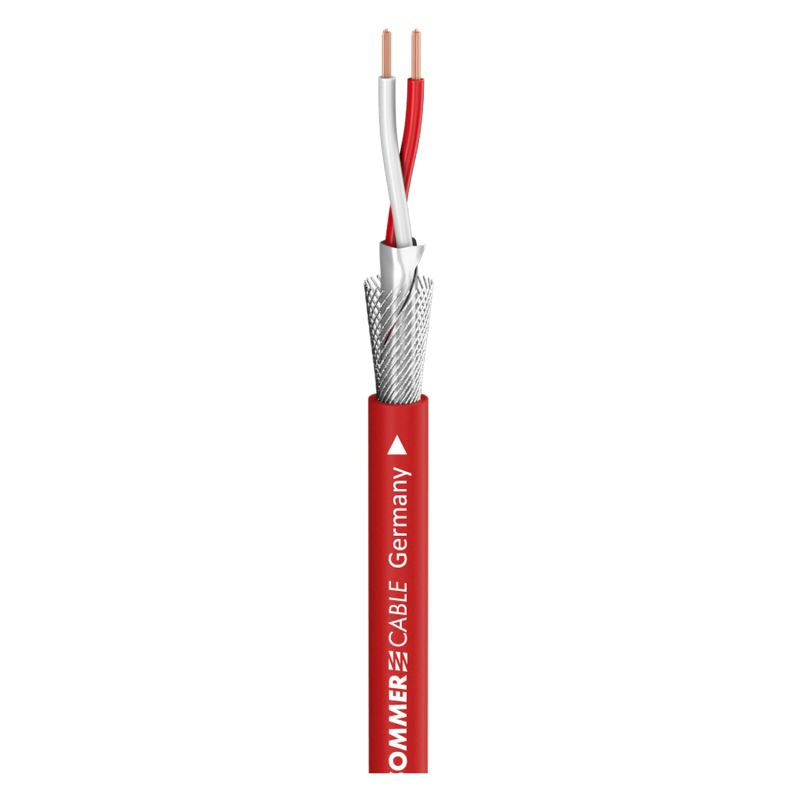

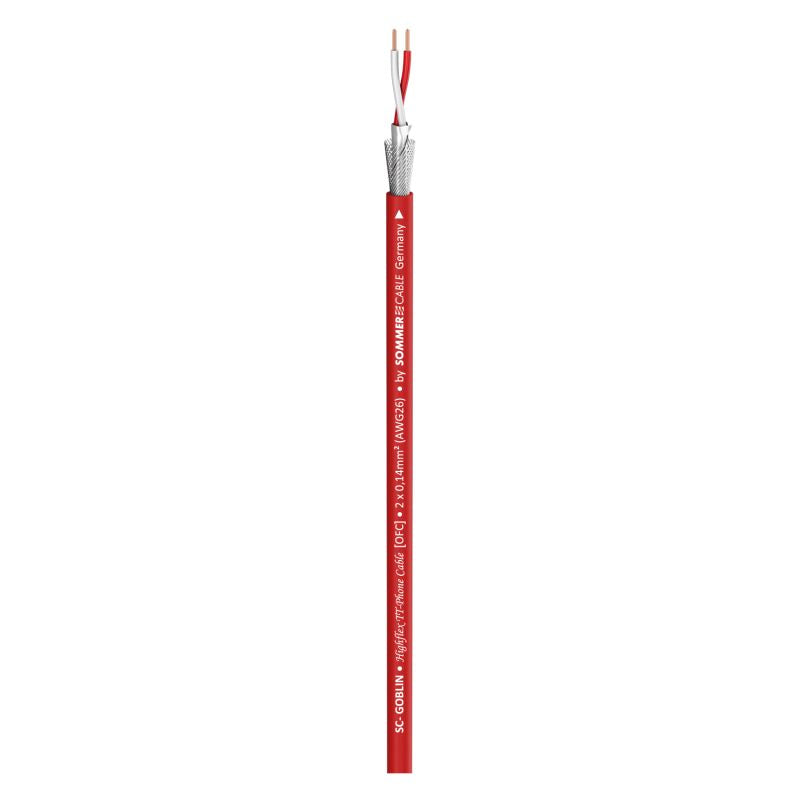

Patch & Microphone Cable
Advantages:
- Ideal for patch cables owing to its small outside diameter of 4.6 mm
- Very good tensile strength due to the dual shielding construction and special
PVC jacket
- Linear sound transmission due to the special-designed conductor pairs and the
copper wire stranding
- 100 % shielding due to a metallised fleece plus additional
helical copper mesh screen
Application:
- Professional studio patch connection
- High-quality mini microphone cable
- High-class phono and RCA connections
- Long-distance MIDI cabling
- Interior rack wiring and connection of audio components and effects devices
Technical Data:
- Article number: 200-0353
- Name: SC-Goblin
- EAN: 4049371004459
- Properties: Analog
- Properties: OFC oxygen free copper
- Application area: Installation
- Application area: Studio / Broadcast
- Application: Patch & Microphone Cable
- Colour: red
- Signal transmission: symmetrical
- Construction: (2LI2Y0,14mm²)(ST)DY
- Jacket material: PVC
- Jacket Ø: 4,60 mm
- Jacket Ø: 0.1811 "
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 0,14 mm²
- Inner conductor (audio): 0.0002 sqin
- Inner conductor Ø (audio): 0,42 mm
- Inner conductor Ø (audio): 0.0165 "
- AWG (audio): 26
- Shielding: Copper spiral sleeve tin-plated + metalic fleece
- Shielding factor: 100 %
- Copper strands (audio): 18
- Copper strand Ø (audio): 0,10 mm
- Copper strand Ø (audio): 0.0039 "
- Conductor insulation material: PE
- Conductor insulation Ø: 1,05 mm
- Conductor insulation Ø: 0.0413 "
- Weight per 1 m: 27 g
- Weight at 1000 ft.: 18.1687 lbs
- Fire load per m: 0,1 kWh
- Style variant: round
- Packing: 100 m spool
- Temperature min.: -25 °C
- Temperature max.: 70 °C
- Width: 4,6 mm
- Width: 0.1811 "
- Height: 4,6 mm
- Height: 0.1811 "
- Capac. cond./cond. per 1 m (audio): 65 pF
- Capacity wire/wire at 1 ft. (audio): 19.812 pF
- Capac. cond./shield. per 1 m (audio): 120 pF
- Capacity wire/electic screen at 1 ft. (audio): 36.576 pF
- Insulation resist. per 1 km: 0,2 GΩ
- Insulation resist. per 1000 feet: 0.061 GΩ
- Insulation resist. per 1 km (audio): 0,2 GΩ
- Insulation resist. per 1000 feet (audio): 0.061 GΩ
- Conductor resistance per 1 km: 140 Ω
- Conductor resistance per 1000 ft.: 42.672 Ω
- Shield. resistance per 1 km: 30 Ω
- Shield. resistance per 1000 ft.: 9.144 Ω
- BPVo-Euroclass: Fca
