Price indicated per 1 meter.

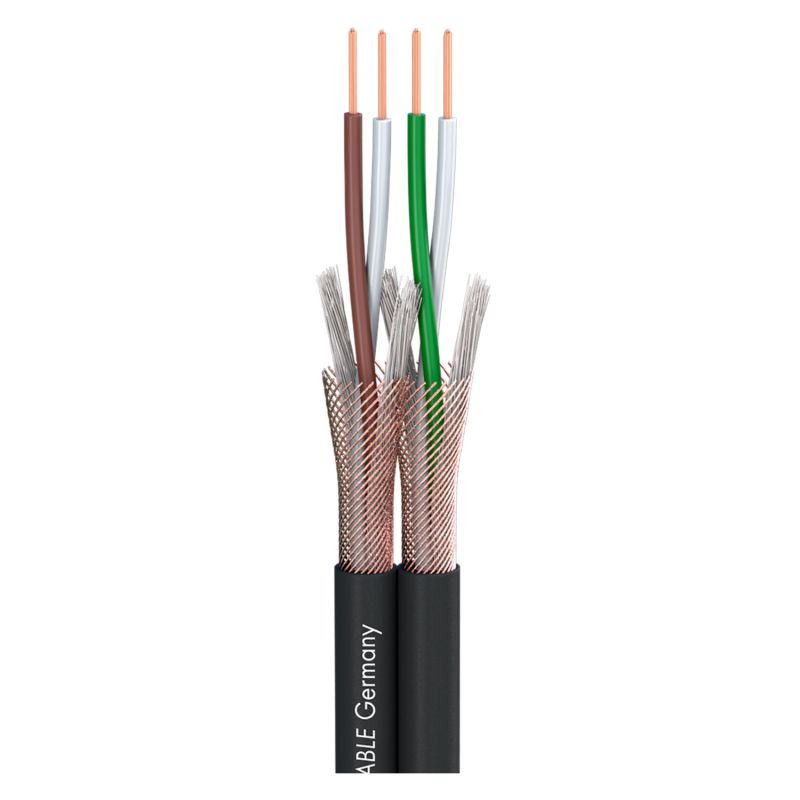

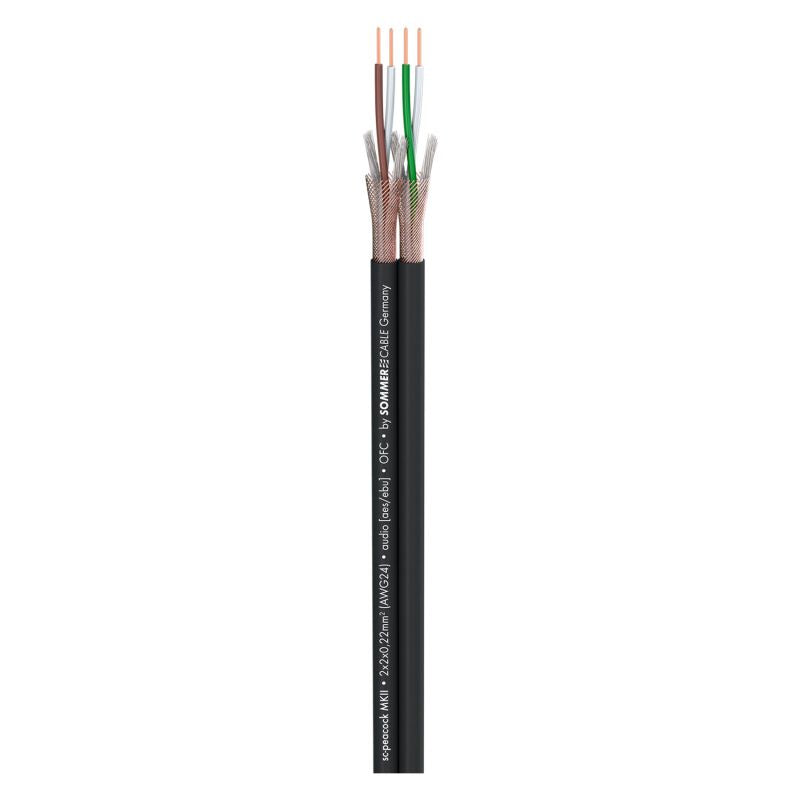

Patch & Microphone Cable
Advantages:
- Highly flexible due to the use of a cold-resistant and soft PVC jacket
- Multiple applications, as the individual wires can be separated anytime
Application:
- Wiring of stereo microphones
- Assembly of insert cable
Technical Data:
- Article number: 200-0551
- Name: SC-Peacock MKII
- EAN: 4049371000512
- Properties: Analog
- Properties: Digital 110 Ω AES / EBU
- Properties: OFC oxygen free copper
- Application area: Studio / Broadcast
- Application area: Stage / live
- Application area: Installation
- Application: Patch & Microphone Cable
- Colour: black
- Signal transmission: symmetrical

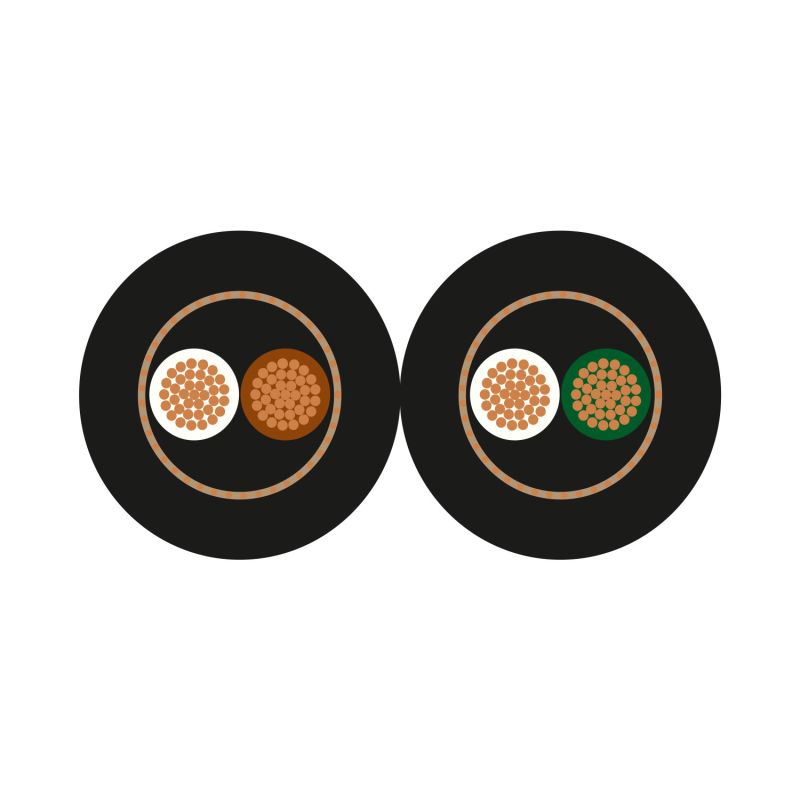

- Construction: [2(2LI2Y0,22mm²)DY]Y
- Jacket material: S-PVC
- Number of Channels (AES/EBU, DMX): 2
- Inner conductor (AES/EBU, DMX): 2
- Inner conductor (AES/EBU, DMX): 0,22 mm²
- Inner conductor (AES/EBU, DMX): 0.0003 sqin
- Inner conductor Ø (AES/EBU, DMX): 0,53 mm
- Inner conductor Ø (AES/EBU, DMX): 0.0209 "
- AWG (AES/EBU, DMX): 24
- Shielding: Copper spiral sleeve
- Shielding factor: 95 %
- Copper strands (AES/EBU, DMX): 28
- Copper strand Ø (AES/EBU, DMX): 0,10 mm
- Copper strand Ø (AES/EBU, DMX): 0.0039 "
- Conductor insulation material: Foam / Skin-PE
- Conductor insulation Ø: 1,30 mm
- Conductor insulation Ø: 0.0512 "
- Weight per 1 m: 53,6 g
- Weight at 1000 ft.: 36.0683 lbs
- UV-resistant: yes
- Fire load per m: 0,18 kWh
- Style variant: twin
- Packing: 100 m spool
- Temperature min.: -30 °C
- Temperature max.: 70 °C
- Width: 9,2 mm
- Width: 0.3622 "
- Height: 4,5 mm
- Height: 0.1772 "
- Capac. cond./cond. per 1 m (AES/EBU, DMX): 70 pF
- Capacity wire/wire at 1 ft. (AES/EBU, DMX): 21.336 pF
- Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF
- Capacity wire/electic screen at 1 ft. (AES/EBU, DMX): 38.1 pF
- Impedance: 110 Ω
- Insulation resist. per 1 km: 0,5 GΩ
- Insulation resist. per 1000 feet: 0.1524 GΩ
- Insulation resist. per 1 km (AES/EBU, DMX): 0,5 GΩ
- Insulation resist. per 1000 feet (AES/EBU, DMX): 0.1524 GΩ
- Conductor resistance per 1 km: 90 Ω
- Conductor resistance per 1000 ft.: 27.432 Ω
- Shield. resistance per 1 km: 36 Ω
- Shield. resistance per 1000 ft.: 10.9728 Ω
- BPVo-Euroclass: Fca
