Specifications in detail
Overview
- Number of Microphone Preamps1
- Phantom PowerYes
- Instrument Inputs1
- Line Inputs1
- Air ModeYes
- Line Outputs2
- Headphone Outputs1
- LoopbackYes
- ConnectivityUSB Type-C
- ProtocolUSB 2.0
- Form FactorDesktop
- Simultaneous I/O4 x 2 (including Loopback inputs)
- A/D Resolution24-bit/192 kHz
- Bus PoweredYes (900mA)
Dimensions
- Height46.5mm
- Width143mm
- Depth96mm
- Weight0.382kg
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
- Frequency Response20-20kHz ± 0.06dB
- Dynamic Range113dB (A-Weighted)
- THD+N-100dB @ minimum gain
- Noise EIN-127dBu (A-Weighted)
- Maximum Input Level9.5dBu
- Gain Range57dB
- Impedance3kΩ
Line inputs
- Frequency Response20-20kHz ± 0.05dB
- Dynamic Range113dB (A-Weighted)
- THD+N-100dB @ minimum gain
- Maximum Input Level22dBu
- Gain Range57dB
- Impedance60kΩ
Instrument inputs
- Frequency Response20-20kHz ± 0.15dB
- Dynamic Range112dB (A-Weighted)
- THD+N-80dB @ minimum gain
- Maximum Input Level12dBu
- Gain Range57dB
- Impedance1MΩ
Line outputs (Balanced)
- Frequency Response20-20kHz ± 0.02dB
- Dynamic Range120dB
- THD+N-109dB
- Maximum Output Level16dBu
- Impedance200Ω
Headphone outputs
- Frequency Response20-20kHz ± 0.1dB @ 33Ω / 300Ω
- Dynamic Range112dB @ 33Ω
115dB @ 300Ω - THD+N-97dB @ 33Ω
-102dB @ 300Ω - Maximum Output Level2.5dBu into 33Ω
10dBu into 300Ω - Maximum Output Power32mW into 33Ω
22mW into 300Ω - Impedance50Ω
Analogue to Digital Converter
- THD+N-110dB
- Dynamic Range120dB
Digital to Analogue Converter
- THD+N-115dB
- Dynamic Range130dB (A-Weighted)
Power
- USB900mA
What's in the box

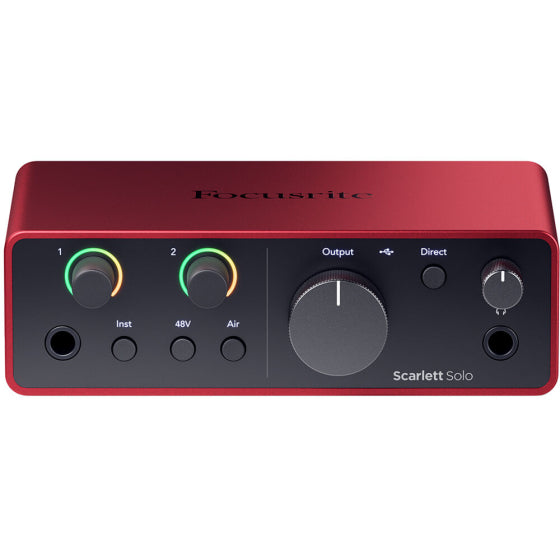

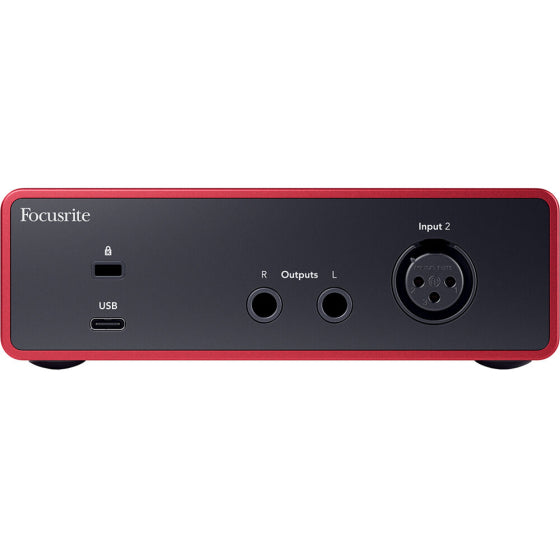

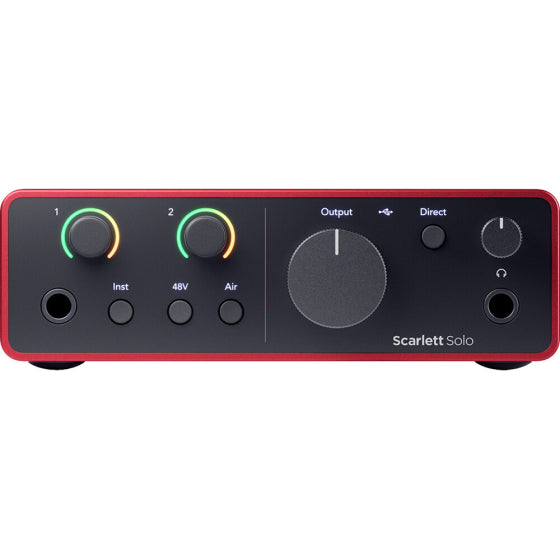

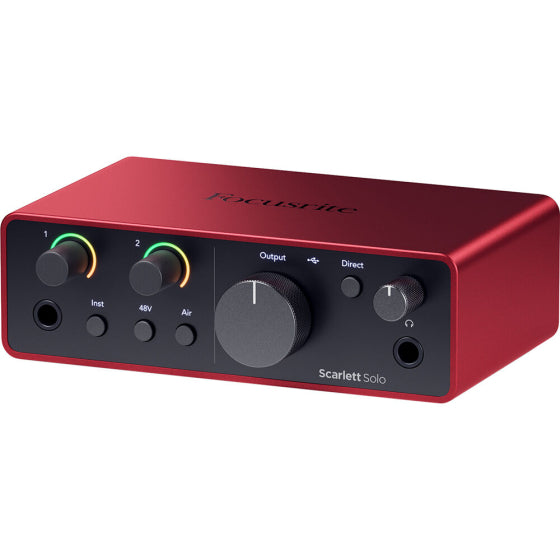

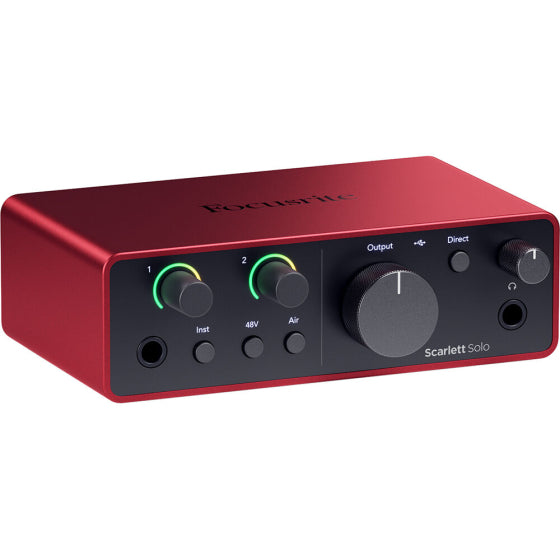

- Scarlett Solo audio interface
- 1m USB-C to USB-A cable
