FEATURES
180W RGBMA LED Array
Ultra-efficient assymetrical reflector design
Replaceable Lens
Fanless heat management
Low profile housing
Up to 4 control segments

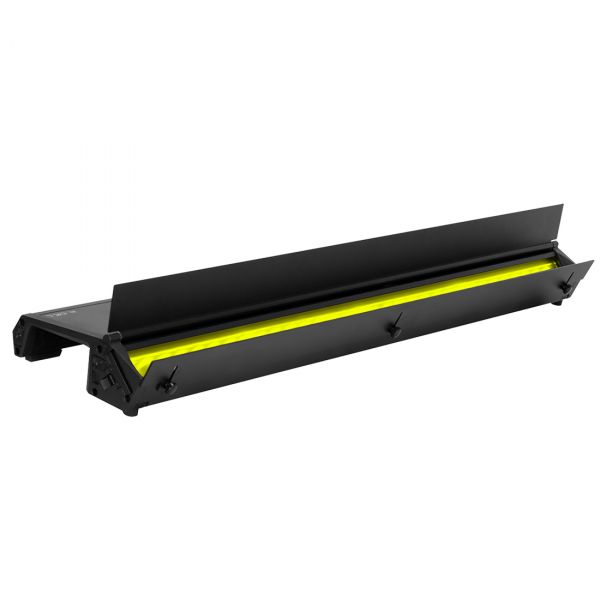

EdgeLight safety feature

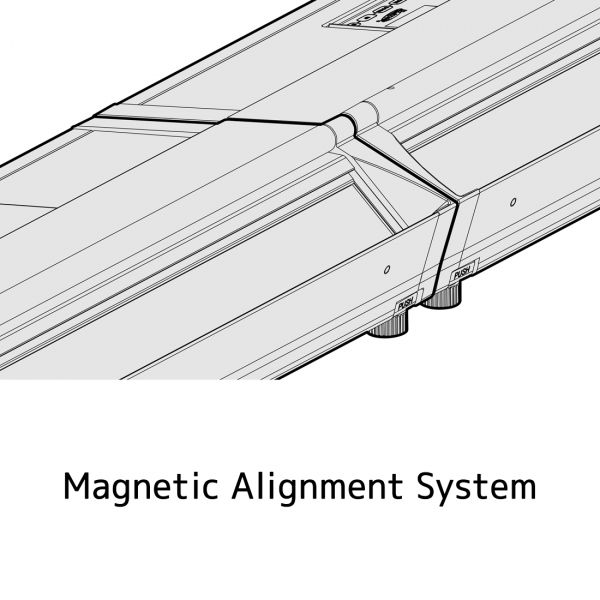

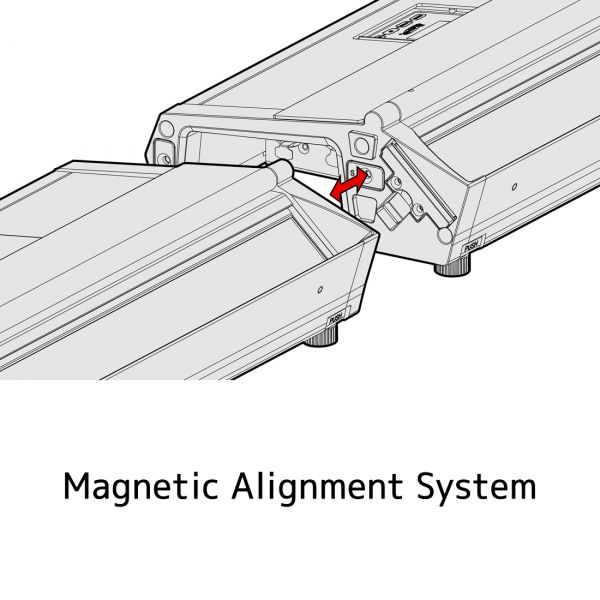

Magnetic fixture alignment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
DMX, Art-net and sACN support

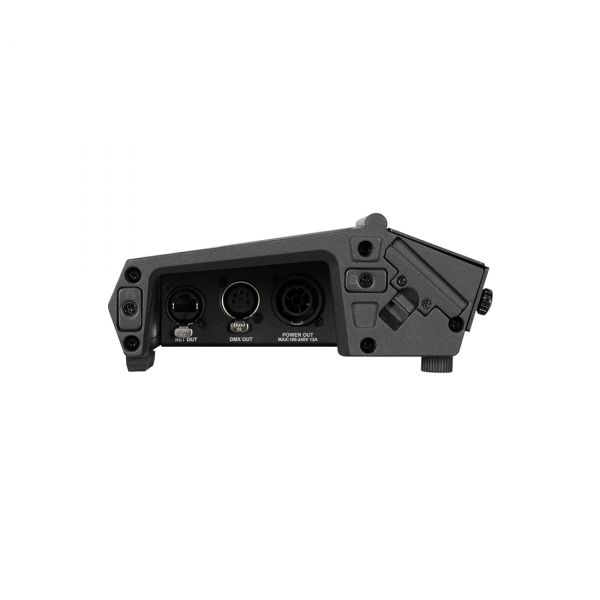

Power and Data passthrough
SOURCE
180W RGBMA LED Array
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
9,249 (Integrating Sphere)
8,606 (Goniometer)
CRI 96.5
TLCI 88
Filter
Beam Angle: 40° x 90°
Field Angle: 85° x 160°
No Filter
Beam Angle: 25° x 75°
Field Angle: 80° x 125°
EFFECTS
EdgeLight Safety Feature
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBMA Color Array
Up to Four Control Segments
CMY, RGB Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 11ch, 12ch, 13ch, 16ch, 19ch, 20ch, 31ch, 32ch, 56ch)

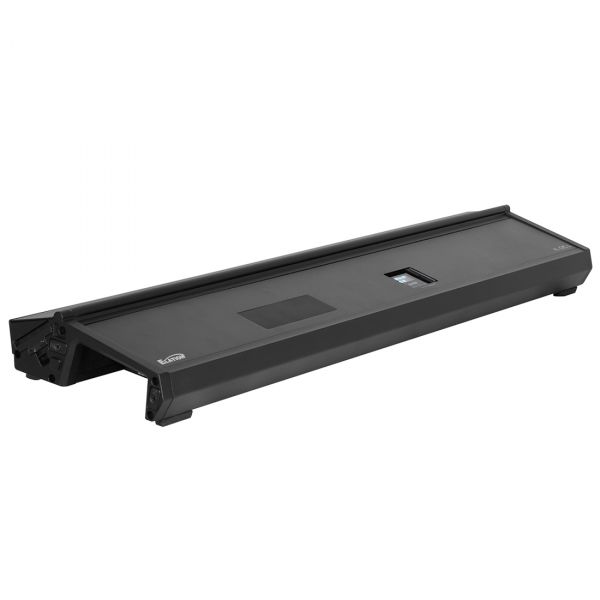

4 Button Control Panel, LED Display
RDM (Remote Device Management)

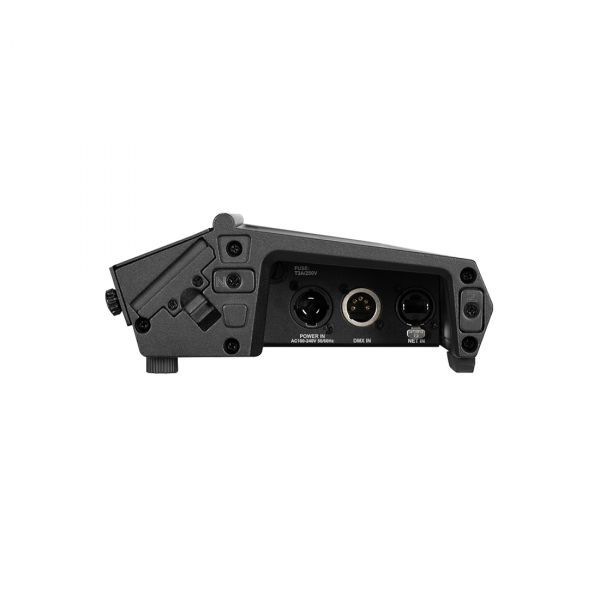

5pin DMX In/Out
RJ45 Locking Ethernet In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 962 mm (37.9")
Width: 206.3 mm (8.1")
Height: 85.2 mm (3.4")
Weight: 7.3 kg (16 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
196W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
INCLUDED ITEMS
2x Omega Bracket
1x Frost Filter
1x Barndoor
IP65 Locking Power Cable
FIRMWARE UPDATES
Current firmware can be found here (login required)
