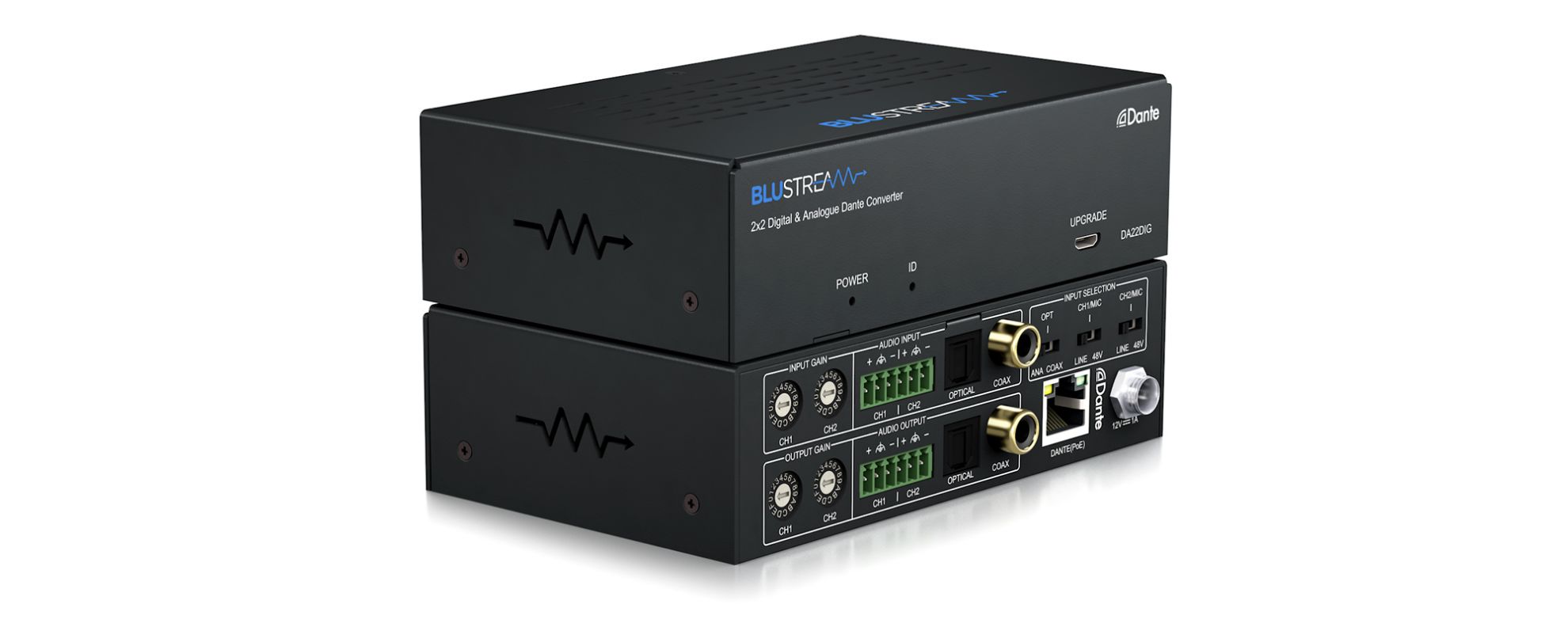

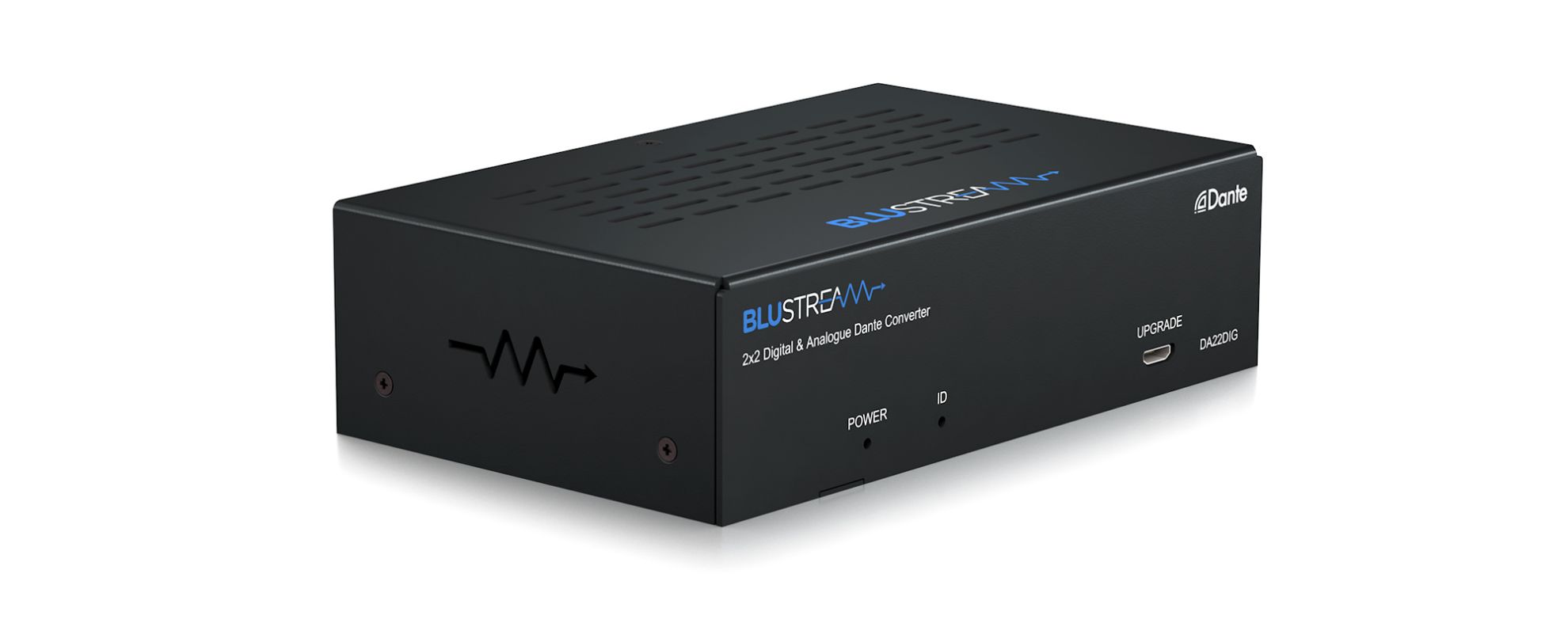

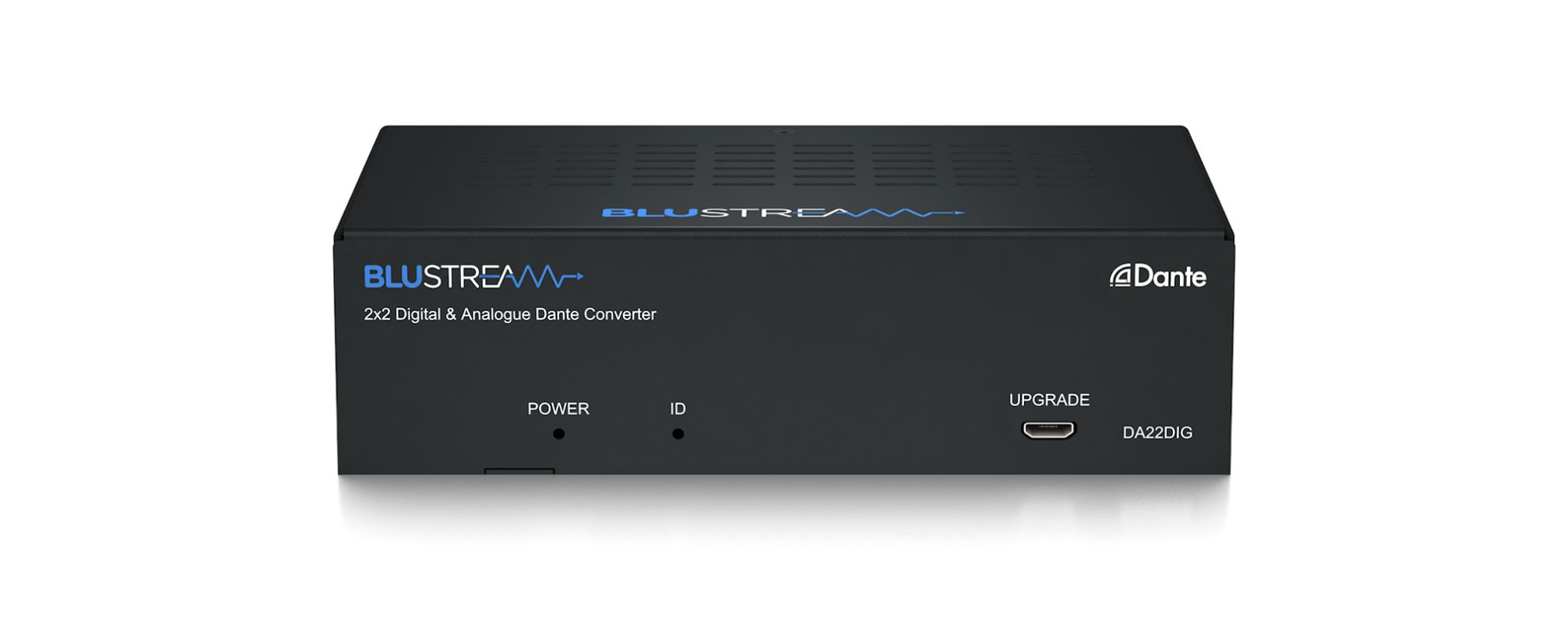

Our DA22DIG has been designed to both encode 2ch analogue or digital audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch analogue and digital audio.

The DA22DIG features both analogue audio and digital audio connections, selectable via dip-switch and is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply.

Key Features

• Encodes 2ch analogue audio or digital audio to Dante® digital signal
• Decodes a Dante® digital signal to 2ch analogue audio and digital audio
• Selectable digital audio between optical toslink and coaxial RCA inputs
• Configurable MIC audio input with 48V/0.5mA phantom power
• Independent sensitivity control for input channels, and gain control for output channels
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 3 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (supplied) for when network switch does not support PoE

Specifications

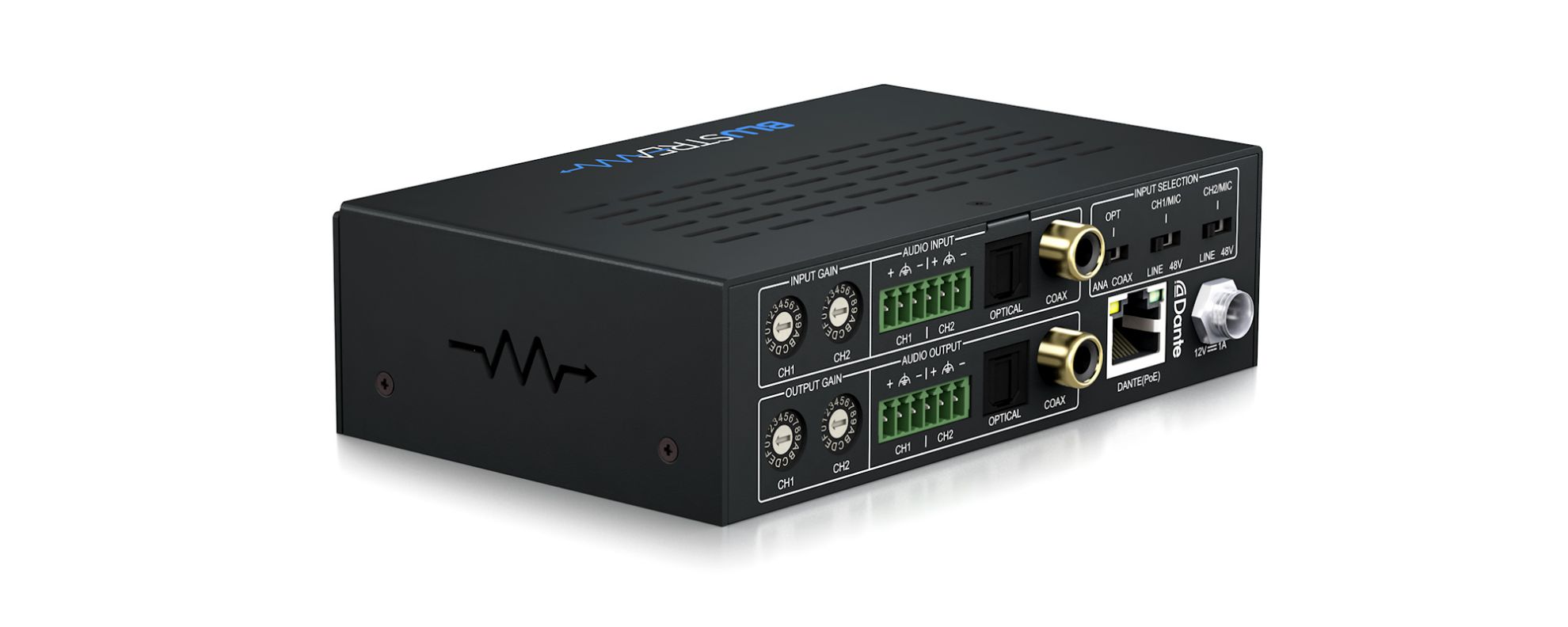

• Audio Input Connectors: 2 x Analogue Balanced/Unbalanced, 6-Pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)
• Audio Output Connectors: 2 x Analogue Balanced/Unbalanced, 6-pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)
• Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
• Configuration Switches: 4 x 16 Level Rotary Dials, 3 x 3-Position Switch
• Casing Dimensions (L x W x H): 135mm x 80mm x 38mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 3 IEEE 802.3af POE PD or 12V/1A DC, Screw Type Connector
