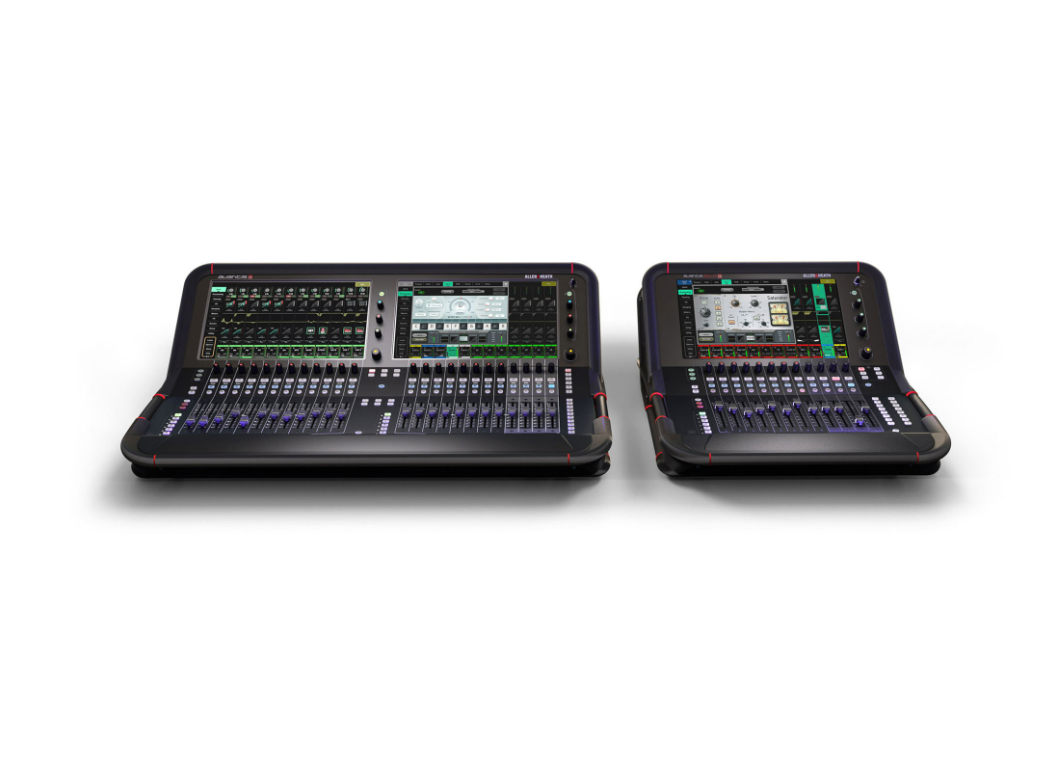

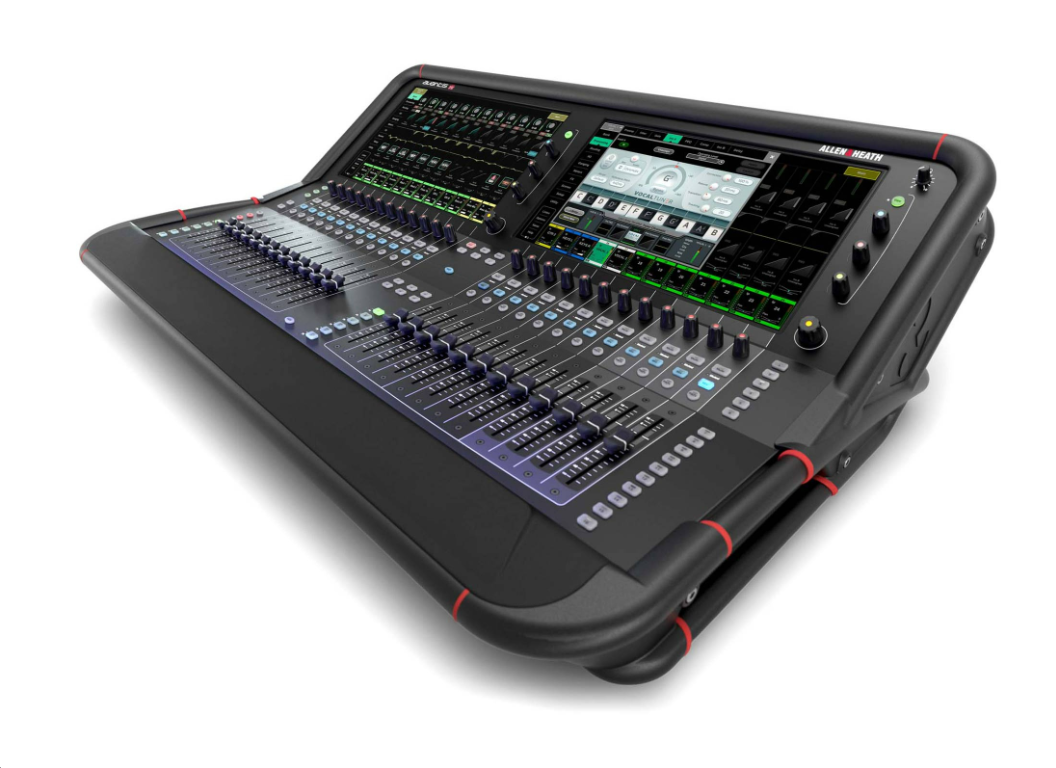

Allen&Heath AVANTIS Ultra FX Digital Mixer V2.00 - Feature Release. April 2026
Delivery is expected by mid-June
Features
- 96 Channels
- 56 Busses
- UltraFX Engine
- incl. dPack
Technical Data

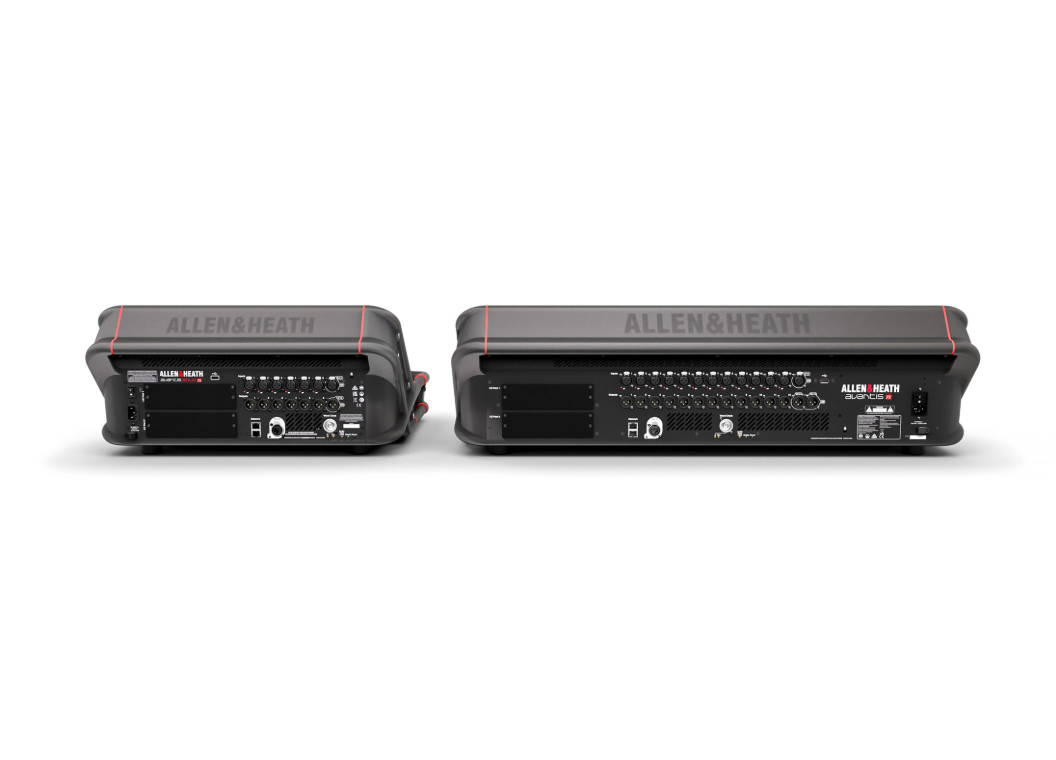

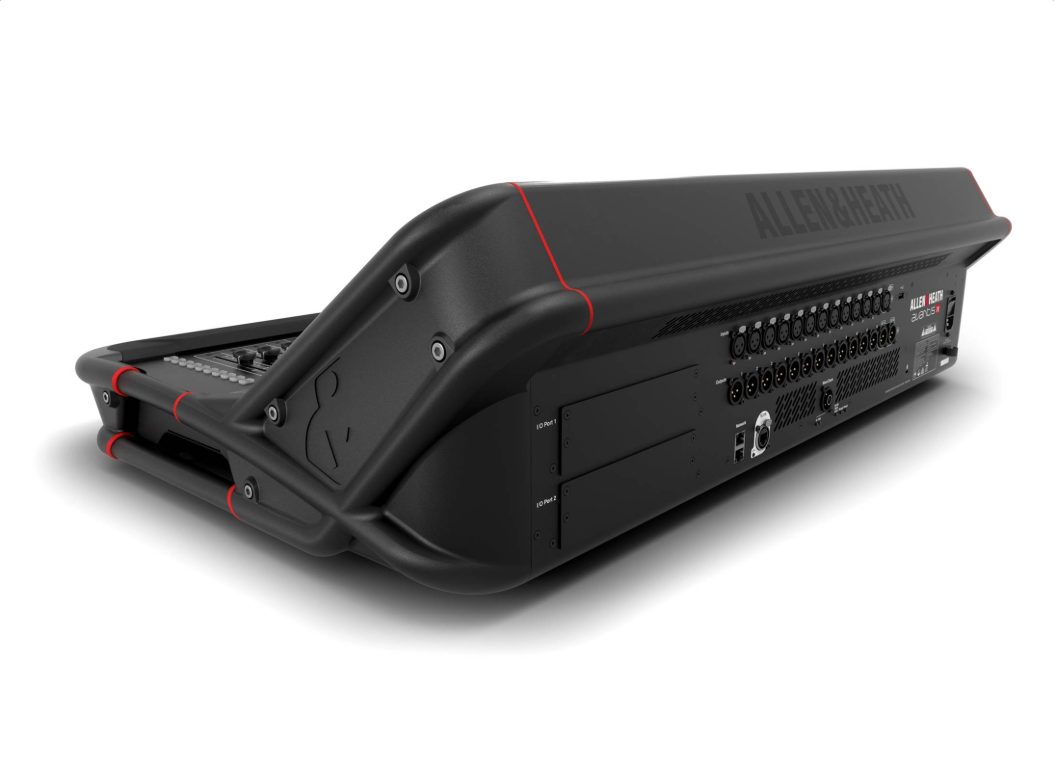

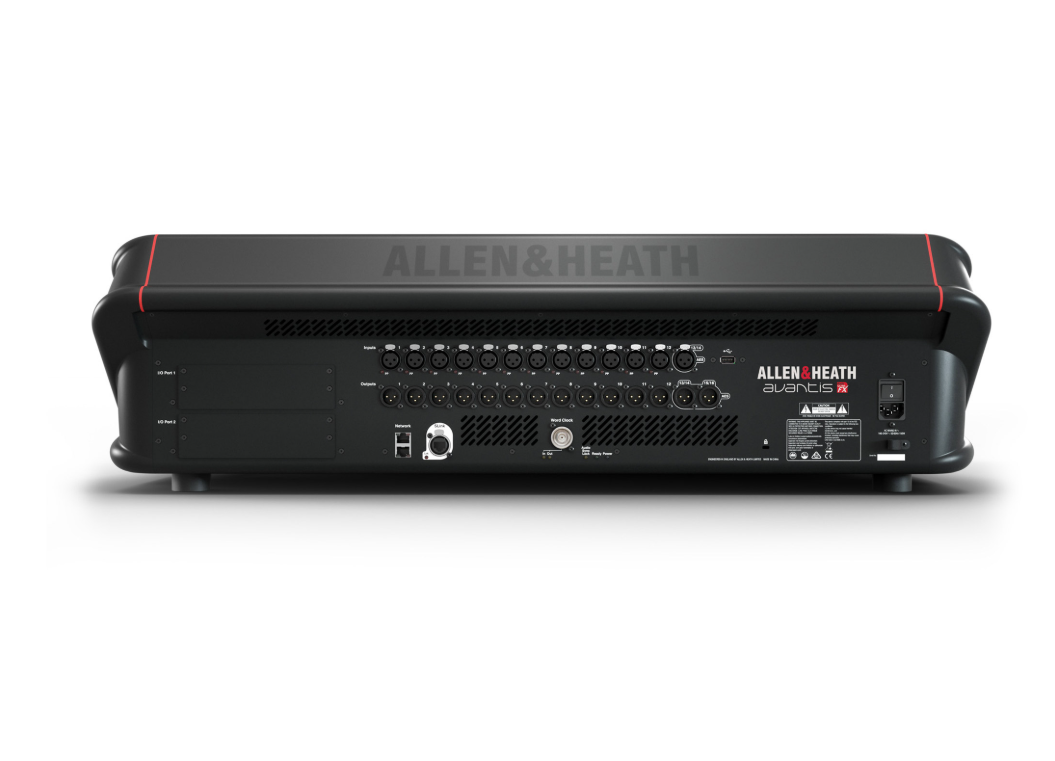

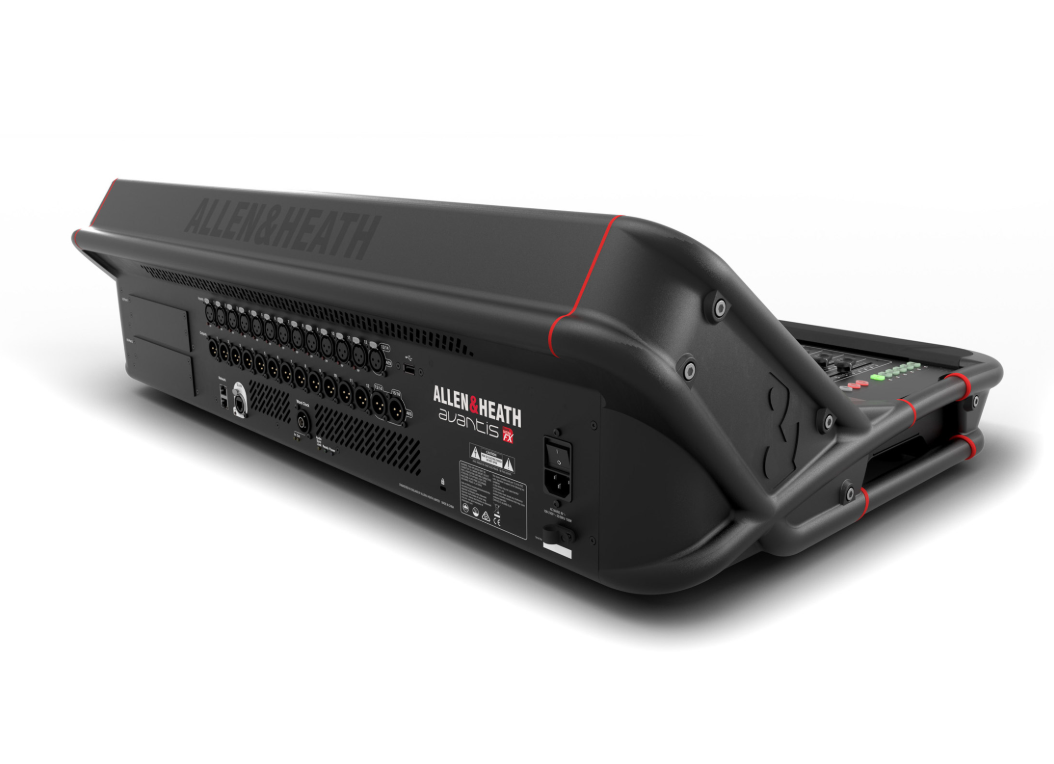

Connections
- SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols.
- 12 Local Mic/Line Inputs (XLR)
- 12 Local Line Outputs (XLR)
- 1 Stereo AES Input (XLR)
- 2 Stereo AES Outputs (XLR)
- 2 I/O Ports, both capable of 128x128 operation
- TRS 6.3mm and 3.5mm Headphone outs with dedicated analogue volume control
Controlls
- 144 fader strips (24 faders, 6 layers) with optional dedicated master section
- 64 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
- Configurable 42 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs
- DEEP Processing Ready
- 8 Mute Groups
- 16 DCA Groups with DCA Spill and MCA functionality
- 12 Stereo FX with dedicated FX Returns
- 24 Assignable SoftKeys
- 6 Assignable Custom Rotaries
- USB stereo recording and playback
More

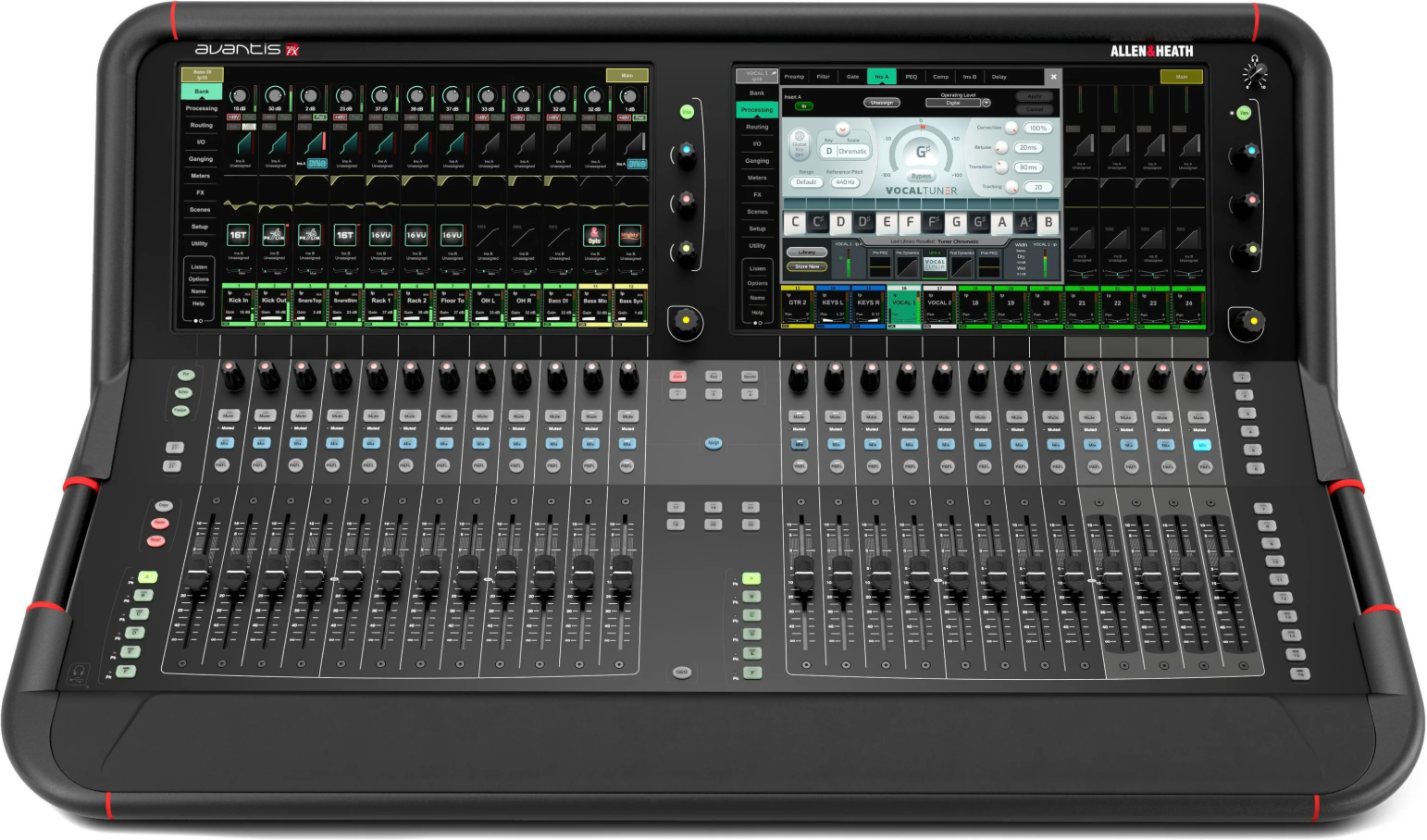

- Twin 15.6” Full HD capacitive touchscreens with gesture control
- Innovative compact design with super-tough, lightweight full-metal chassis
- 96kHz – for optional cards inc. Dante, MADI and gigaACE
- Comprehensive metering with multipoint peak detection
- Integrated Fader Illumination
- Built-in signal generator, RTA and spectrogram
- AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
- Quick copy/paste/reset for parameters
- User Permissions to restrict operator access
- 500 Scene memories per show
- Channel Safes, Global and per Scene Recall Filters
- USB transfer of Scenes, Libraries, Shows
- DAW Control driver for MIDI control via TCP/IP
- Wireless remote mixing apps for iPad
- BNC Word Clock connector (input or output)
V2.00 - Feature Release. April 2026
New dPack Features*
- Increased channel count to 96 input channels, 56 mixes for dPack users
- Increased number of Dyn8 instances to 24
- Added CompStortion DEEP compressor model
- Dyn8 ganging
*requires dPack

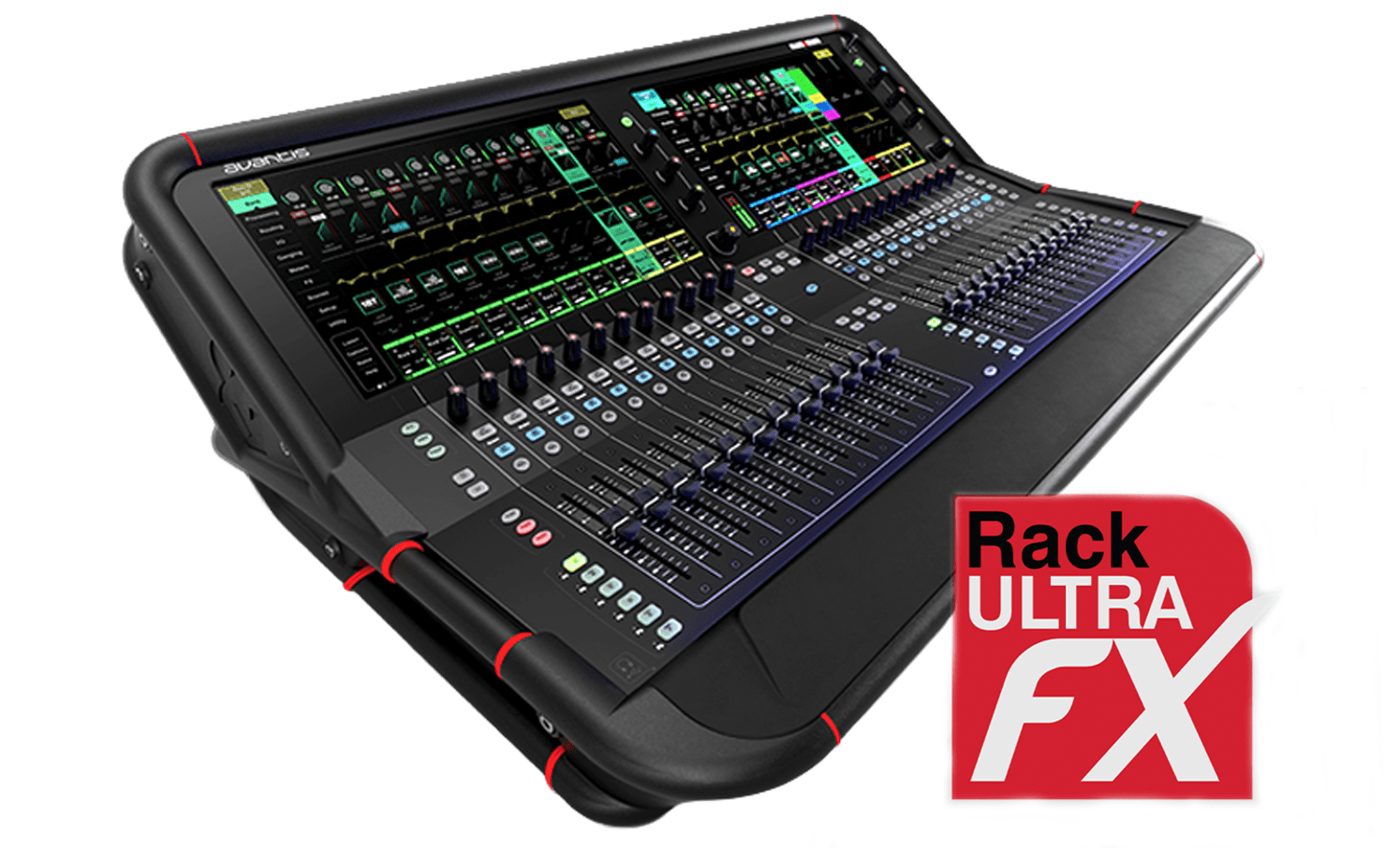

New RackUltra FX Features*
- 8 new RackUltra FX slots with dedicated stereo sends and returns.
- Pre and post FX PEQ and dynamics for each RackUltra FX slot.

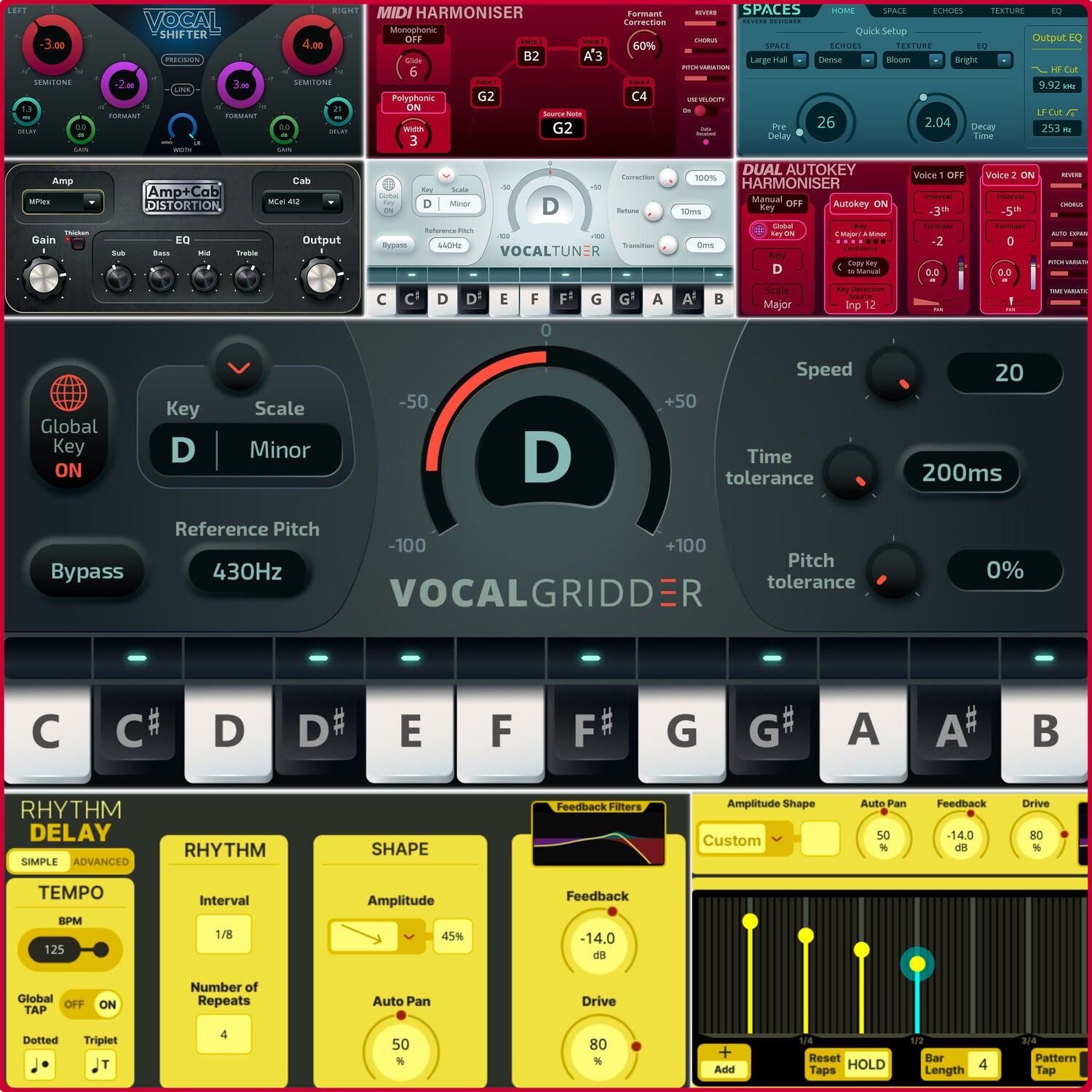

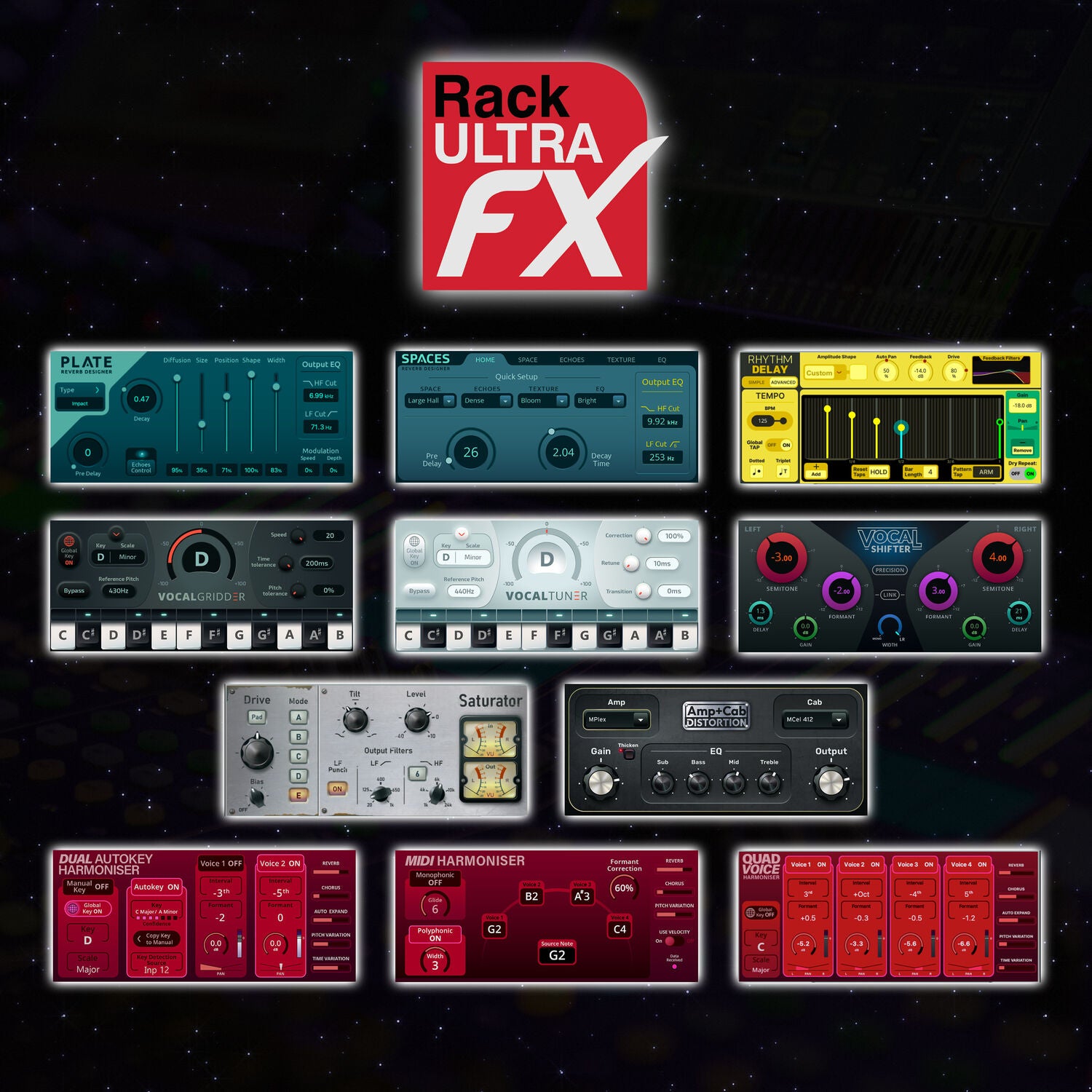

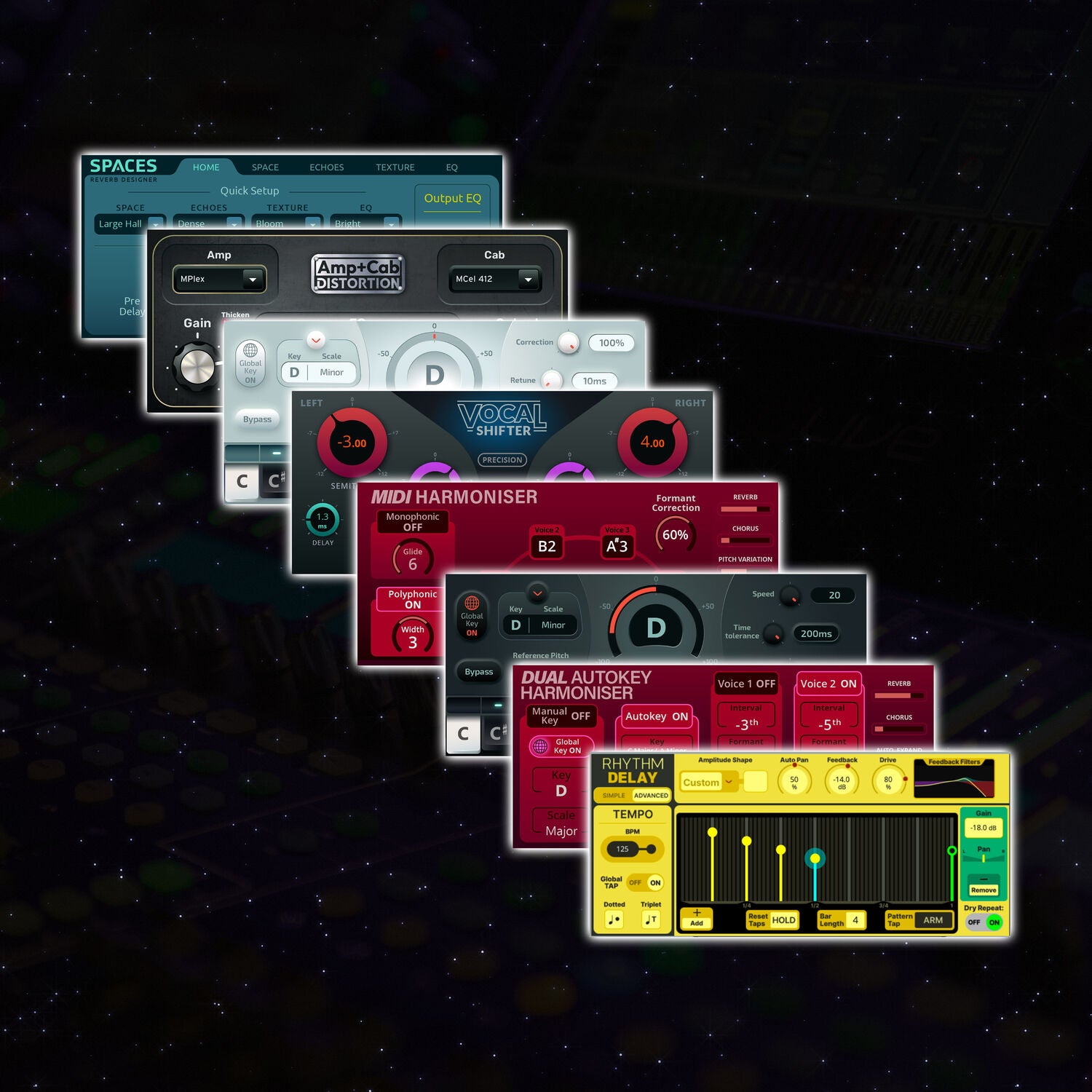

- New FX models:
- Spaces Reverb Designer
- Plate Reverb Designer
- Vocal Shifter
- Vocal Tuner
- Vocal Gridder
- Dual Autokey Harmoniser
- Quad Voice Harmoniser
- MIDI Harmoniser
- Amp+Cab Distortion
- Saturator
- Rhythm Delay
*requires RackUltra FX module and dPack
Other New Features
- Channel Library updates – now including Name & Colour settings and Routing.
- FX Width control for all RackExtra and RackUltra FX
- RF Integration Support for Shure SLX-D and Quad Band ULX devices.
- Mute override for channels assigned to DCAs or mute groups.
- PEQ and Dyn8 control added to custom rotaries
-
Smart Rotary function adds contextual control to custom rotaries for:
- Preamp and Trim
- Gates, Duckers and Expanders
- Compressors and Limiters
- PEQ and NEQ-12
- FX Parameters
- RackUltra FX parameters
- Dyn8
- Added 'Copy All Shows' function to show manager
-
New MIDI options and commands including:
- Global Send and Receive Enable / Disable options
- MIDI control of Global Key
- Configurable MIDI channel for each RackUltra FX slot
- Configurable MIDI CC messages for selected FX parameters e.g. Retune, Transition, Correction, Key, Scale, Bypass
