Allen & Heath AVANTIS SOLO Ultra FX 96-Channel Digital Mixer V2.00 release.

Delivery is expected by end of July

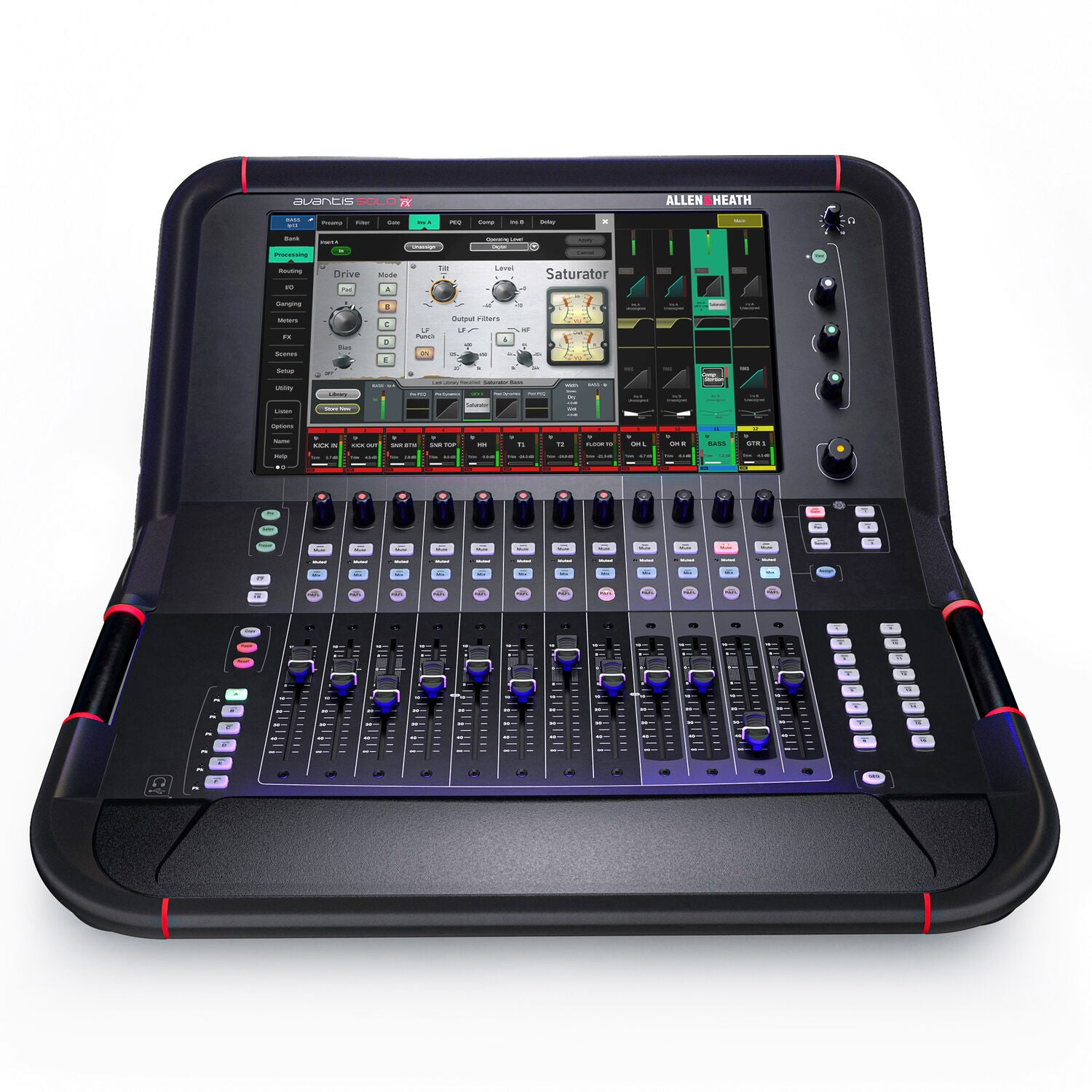

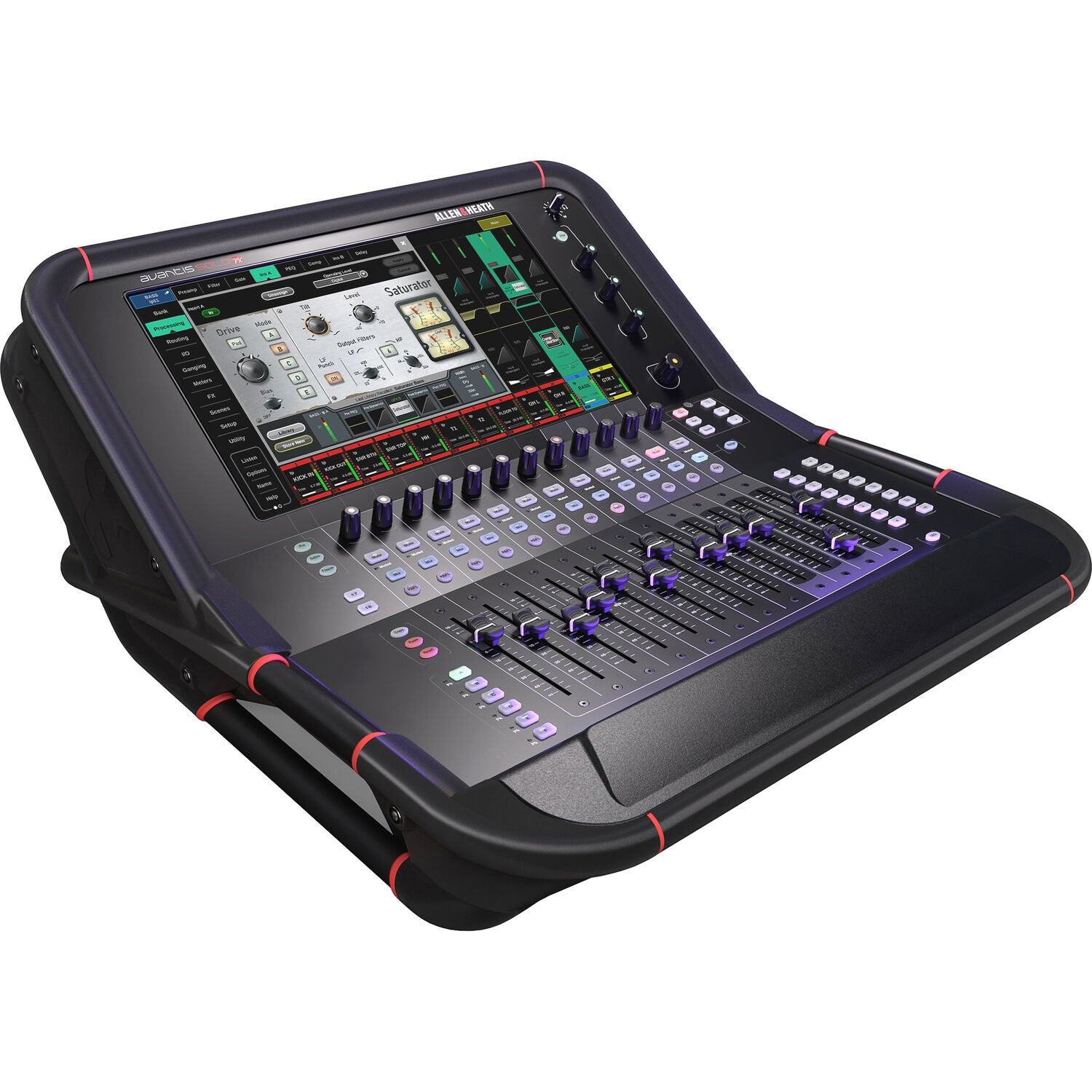

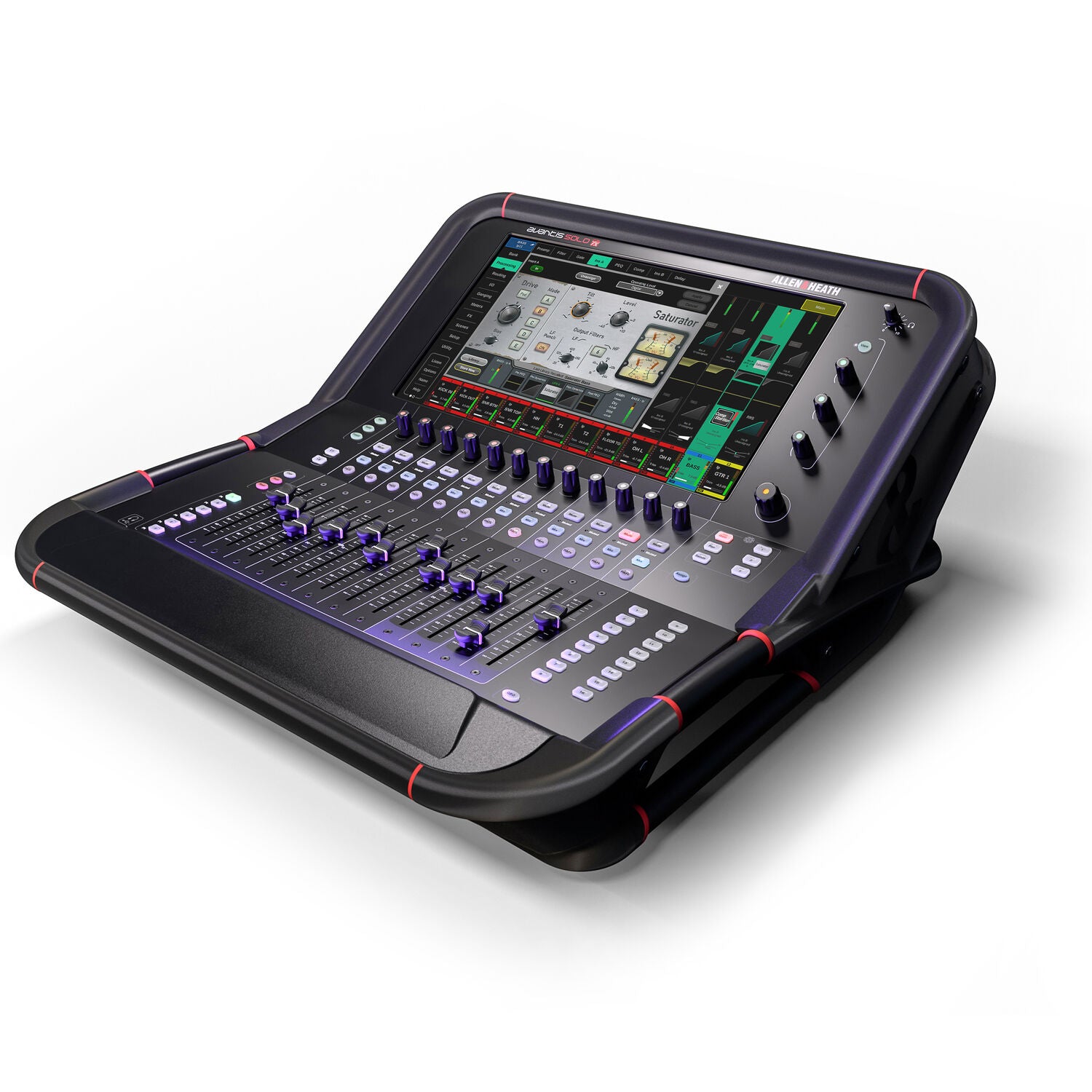

The Avantis Solo Ultra digital mixer provides 96 mono input processing channels, 12 stereo FX returns, 8 stereo RackUltra FX sends and returns, and 56 flexible mix buses.
WIth our 96kHz XCVI FPGA engine, Avantis Ultra puts all our next-generation technology in a stand-alone 96 channel / 56 configurable bus console, with a Full HD touchscreen, a super-flexible workflow with Continuity
UI, extensive I/O options, included DEEP processing and RackUltra FX from our flagship dLive mixing systems, and a rugged full-metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers

Technical Data

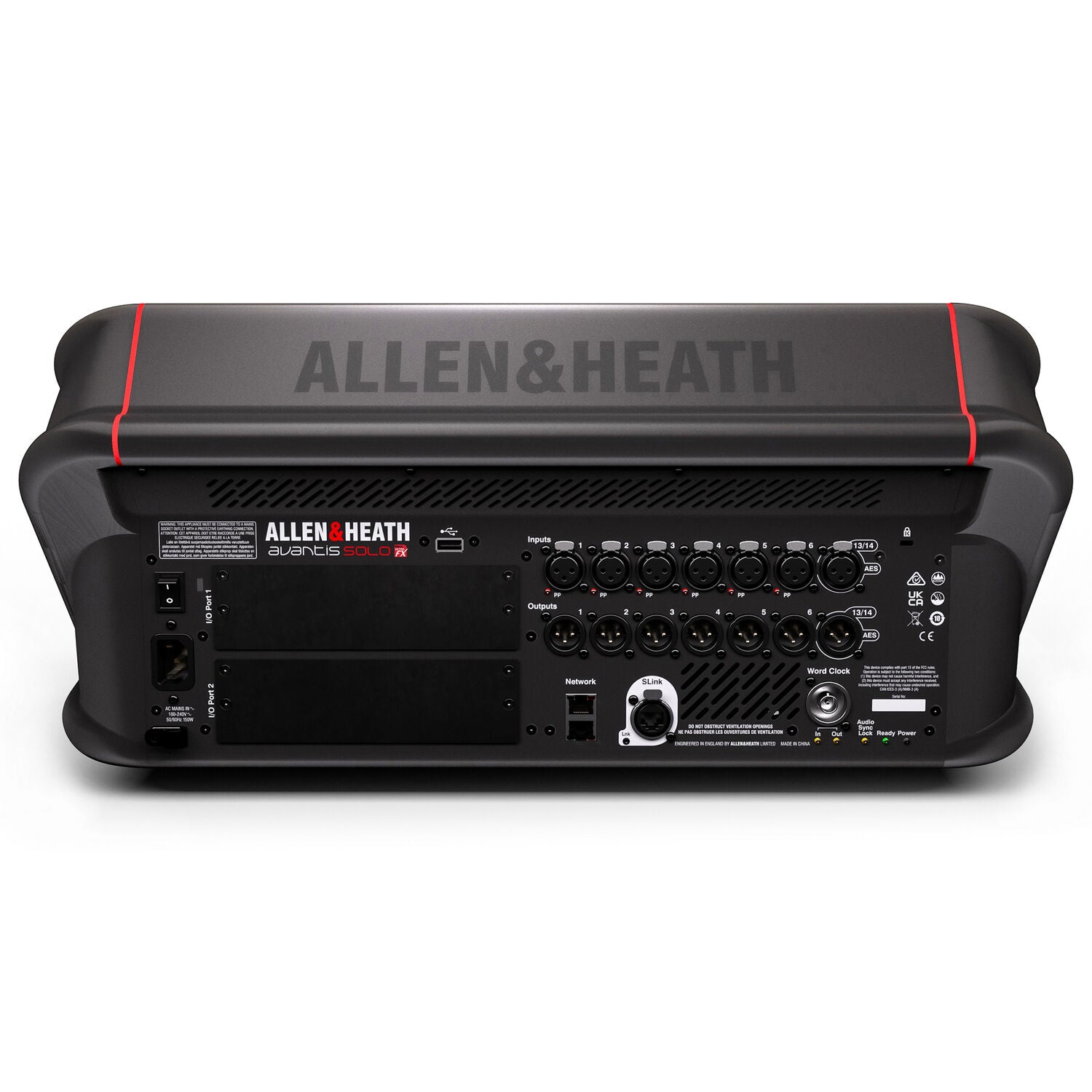

Inputs

Mic/Line XLR Inputs Balanced: XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN: -127dB with 150Ω source
Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
Digital Inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω

Outputs

Analogue XLR Outputs: Balanced, Relay protected
Output Impedance: <75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -95dBu (muted, 22-22kHz); -90dBu (muted, 0-80kHz)
Digital Outputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω; 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz

Dimensions & Weight

Dimensions (WxDxH): 546x627x269mm
Weight: 17,5kg

V2.00 - Feature Release. April 2026

New dPack Features*

Increased channel count to 96 input channels, 56 mixes for dPack users
Increased number of Dyn8 instances to 24
Added CompStortion DEEP compressor model
Dyn8 ganging

*requires dPack

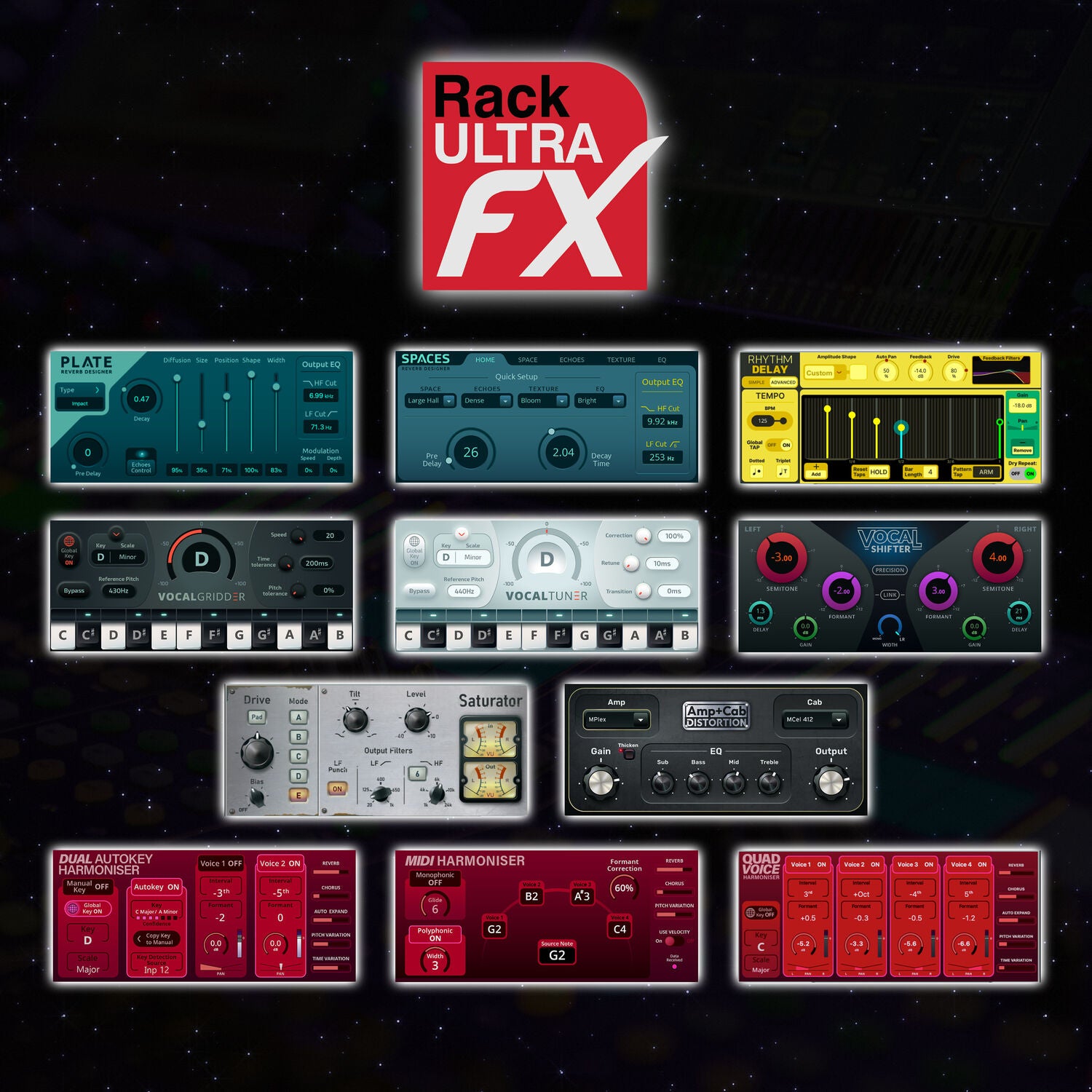

New RackUltra FX Features*

8 new RackUltra FX slots with dedicated stereo sends and returns.
Pre and post FX PEQ and dynamics for each RackUltra FX slot.

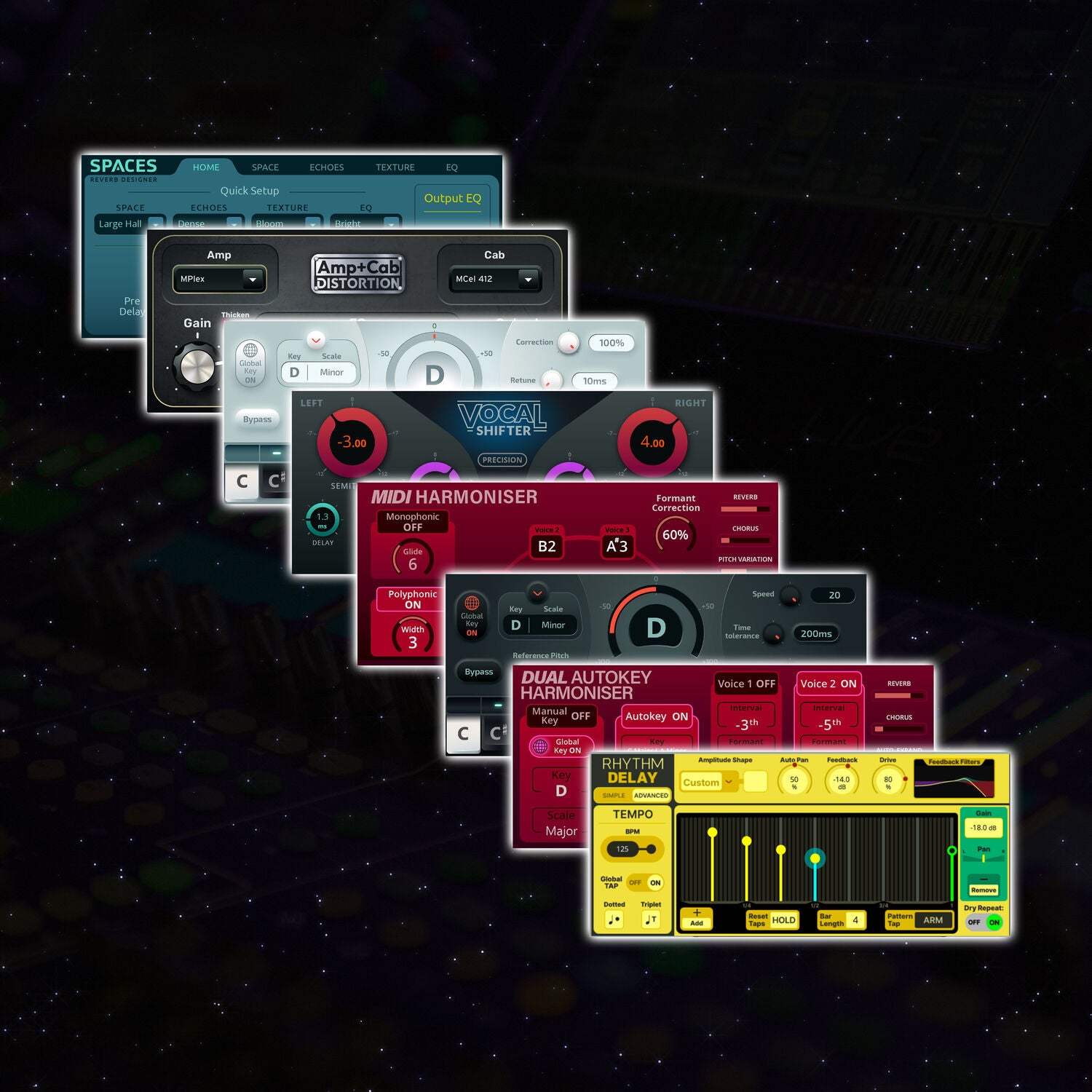

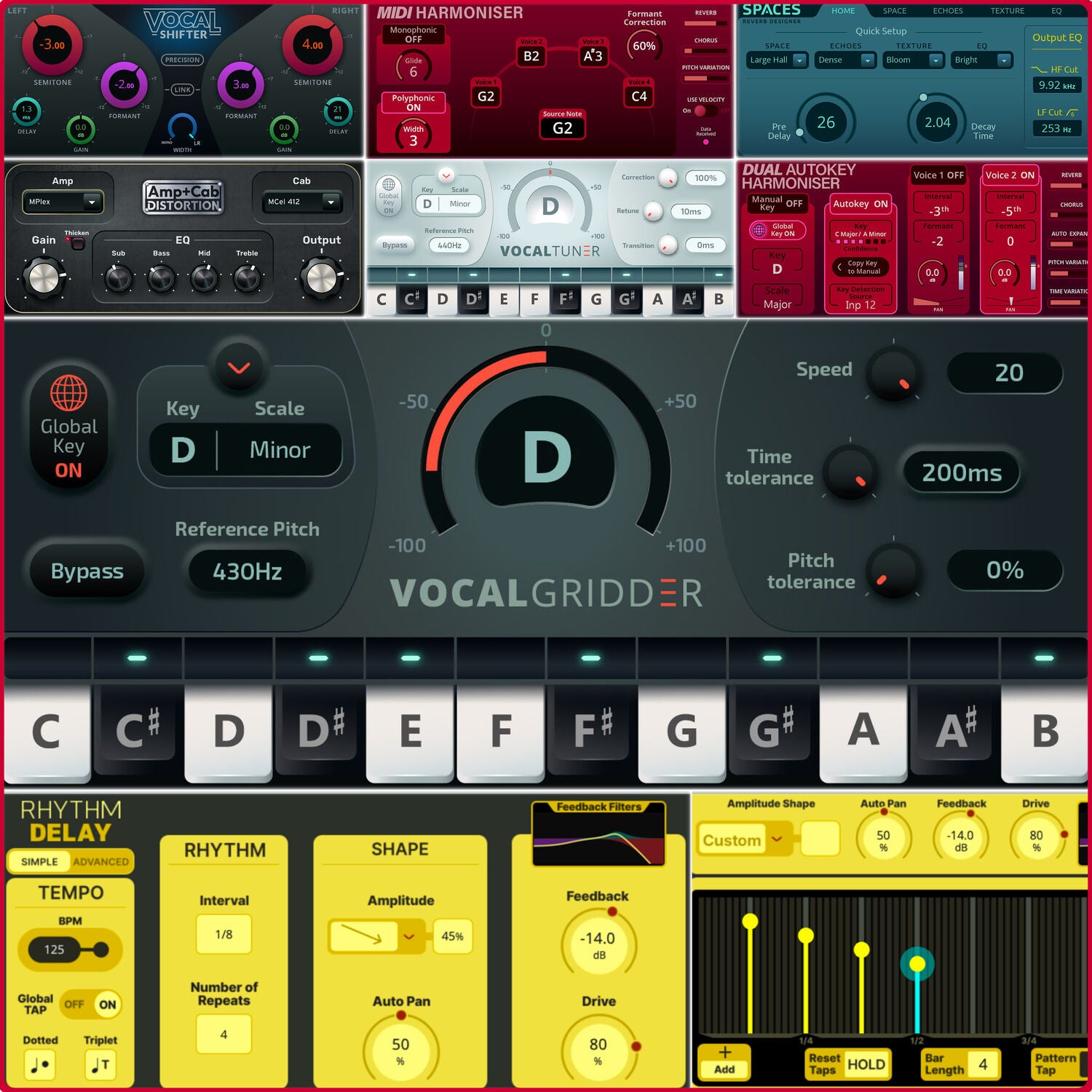

New FX models:
- Spaces Reverb Designer
- Plate Reverb Designer
- Vocal Shifter
- Vocal Tuner
- Vocal Gridder
- Dual Autokey Harmoniser
- Quad Voice Harmoniser
- MIDI Harmoniser
- Amp+Cab Distortion
- Saturator
- Rhythm Delay

*requires RackUltra FX module and dPack

Other New Features

Channel Library updates – now including Name & Colour settings and Routing.
FX Width control for all RackExtra and RackUltra FX
RF Integration Support for Shure SLX-D and Quad Band ULX devices.
Mute override for channels assigned to DCAs or mute groups.
PEQ and Dyn8 control added to custom rotaries
Smart Rotary function adds contextual control to custom rotaries for:
- Preamp and Trim
- Gates, Duckers and Expanders
- Compressors and Limiters
- PEQ and NEQ-12
- FX Parameters
- RackUltra FX parameters
- Dyn8
Added 'Copy All Shows' function to show manager
New MIDI options and commands including:
- Global Send and Receive Enable / Disable options
- MIDI control of Global Key
- Configurable MIDI channel for each RackUltra FX slot
- Configurable MIDI CC messages for selected FX parameters e.g. Retune, Transition, Correction, Key, Scale, Bypass
