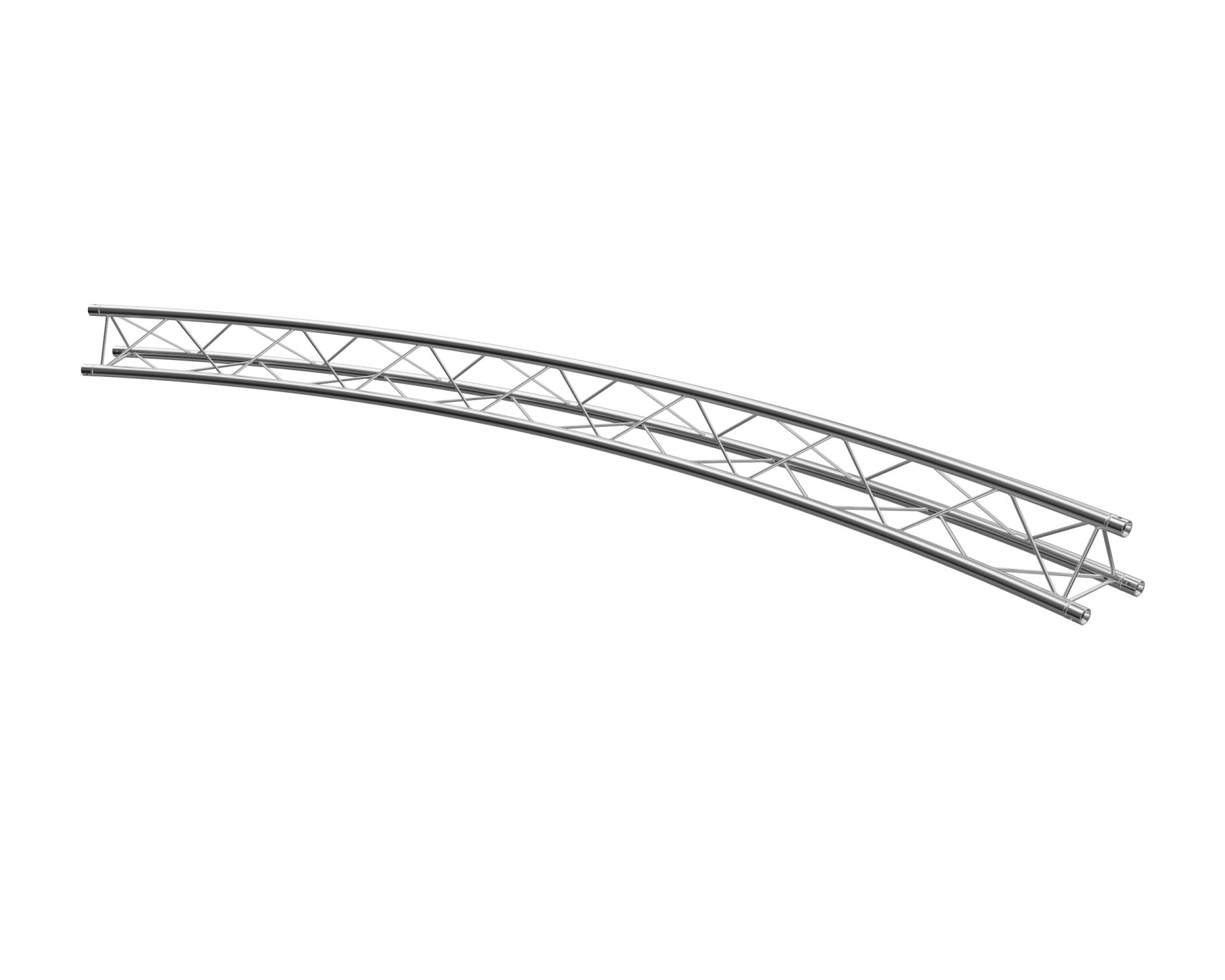

Circle piece for Ø 7,0m 60°; (outer-) diameter: 700 cm; Circle piece: 60°; Pipe diameter: 35 mm; Wall thickness: 1,6 mm
The F23 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 22cm. The series is perfect for small constructions, banner frames or permanent installations for lighting and sound along with use in shops. A maximum span of up to 10 meters can be used.
The F23 truss is built with 35 x 1.6mm main tubes and 8mm diagonal braces of aluminium. The truss lengths are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
Colour: Aluminum
TÜV certificate: No
Material: Al EN AW-6061 T6
Technical Data
Number of points: 3-point
Edge dimension: 22 cm
System: F23
Type: circle
Circle
Diameter circle: 7000 mm
Excerpt: 60°
Main pipe
Diameter main pipe: 35 mm
Wall thickness main pipe: 1,60 mm
Brace
Diameter Brace: 8 mm
Hardware
Weight: 8,20 kg
Shipping Data
Length: 3515 mm
Width: 675 mm
Height: 215 mm
Weight: 8,20 kg
PU: 1
