Length: 150 cm; Pipe diameter: 50 mm; Wall thickness: 2 mm; TÜV Certified; Conical connectors included

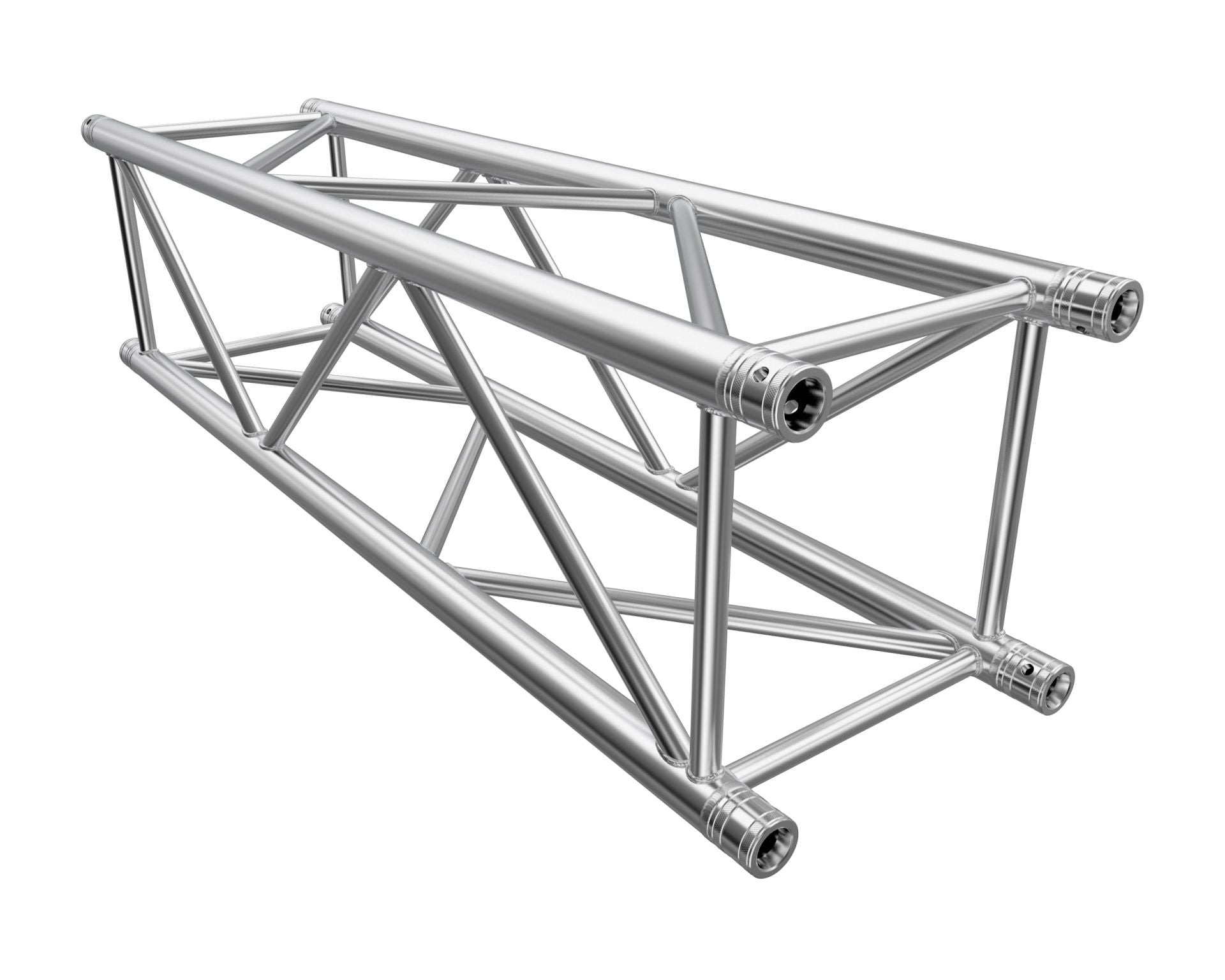

The F44 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 40cm. The system off ers an outstanding load capacity and low deflection, ideal for complex constructions with high loads, along with stage systems and permanent installations. A maximum span of up to 20 meters can be created with this system.
The F44 truss is built with 50 x 2mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
Colour: Aluminum
TÜV certificate: Yes
Material: Al EN AW-6082 T6
Technical Data
Number of points: 4-point
Edge dimension: 40 cm
System: F44
Type: straight
Truss length: 150 cm
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 2 mm
Brace
Diameter Brace: 25 mm
Wall thickness Brace: 3 mm
Hardware
Weight: 10,90 kg
Dimensions (L/W/H): 1500 x 400 x 400 mm
Shipping Data
Length: 1500 mm
Width: 400 mm
Height: 400 mm
Weight: 14,19 kg
PU: 1
