The DotBar Bat1 is a powerful and energy-efficient Outdoor Wall Washer light, specially designed for indoor and outdoor use.
Featuring 16x 12W RGBW LEDs, this wall washer fixture delivers a brilliant wash of colour, transforming the ambiance of your stage with rich, vibrant hues. Equipped with 4-in-1 RGBW technology, the DotBar Bat1 offers seamless colour mixing, allowing you to create a wide range of stunning visual effects. Its durable, weather-resistant design ensures reliable performance in any outdoor setting, while the plug-and-play convenience makes installation a breeze.
The DotBar Bat1 features an intuitive control interface that makes it easy to manage the colour, brightness, and effects of your stage lighting. Create custom lighting scenes with ease to match the mood and theme of your event.

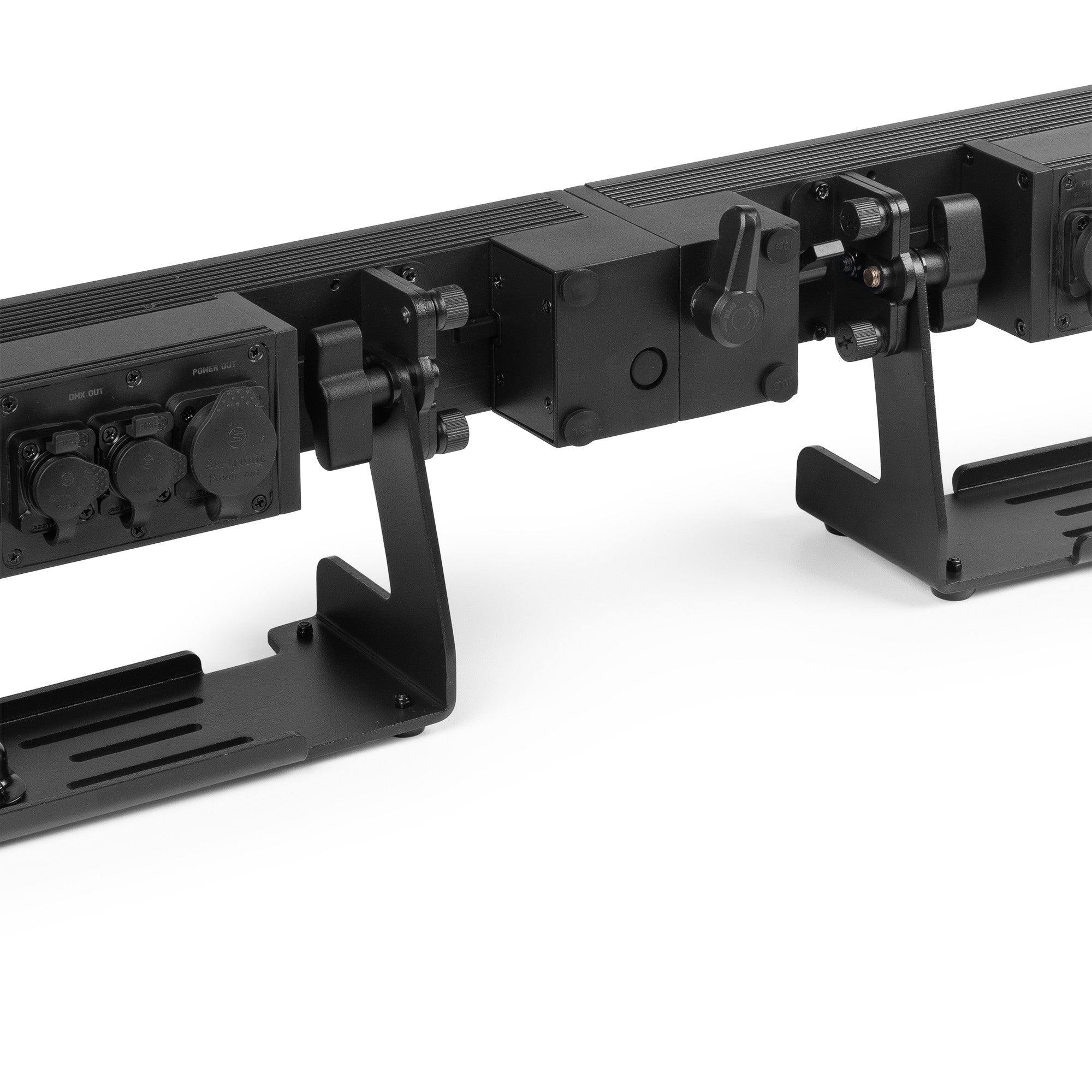

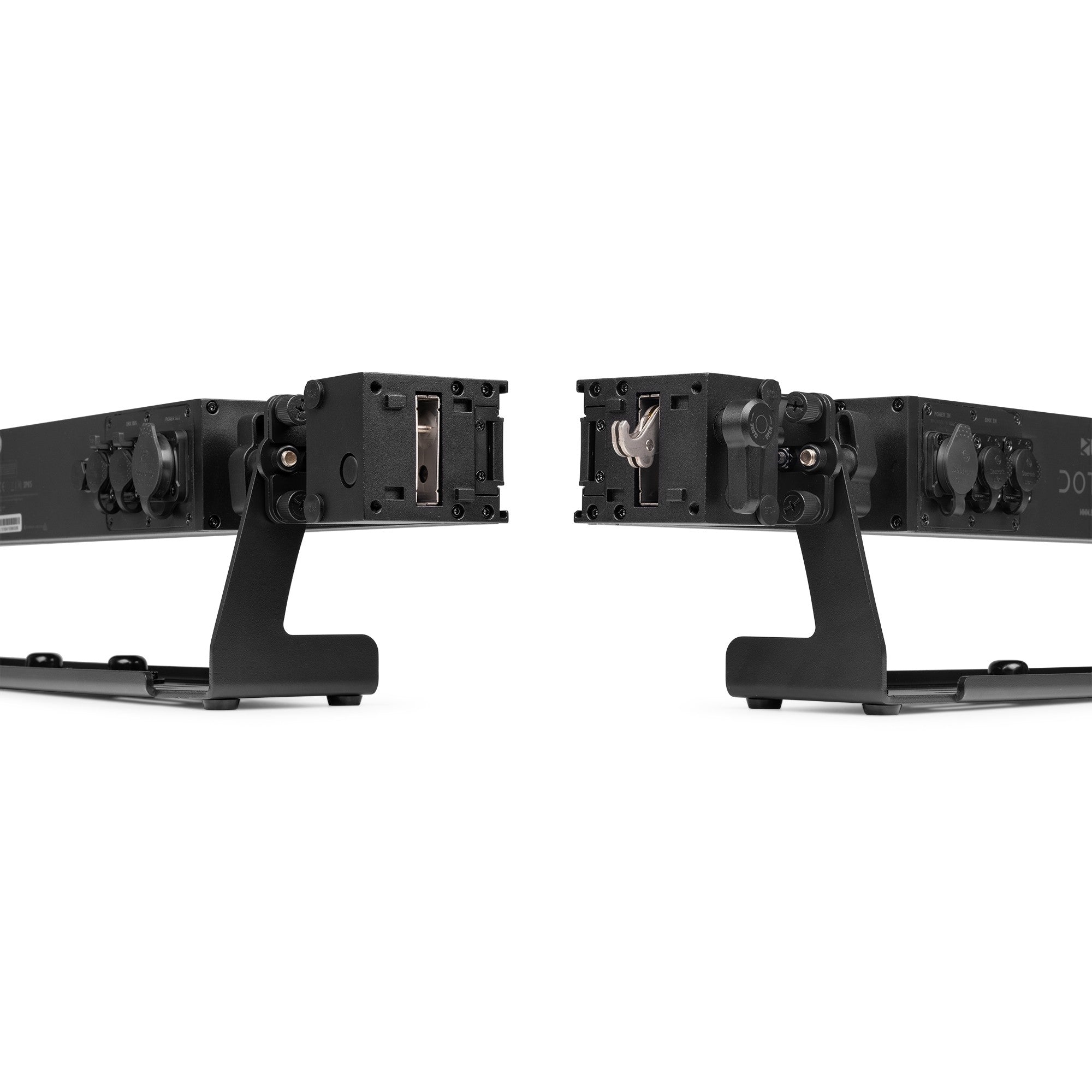

The DOTBAR series features an easy and quick-to-use coupling system. The coupling system built into each Bar allows quick alignment and installation, making it easy to align and couple the different Bars in the DOTBAR series with each other. These fixtures can also be placed directly on the ground using the optionally available Baseplate, which features the same coupling system to ensure absolute stability. Truss mounting is also possible.
- LED BAR-Wall Washer RGBW
- IP65 for indoor/outdoor use
- 16x 12W 4-in-1 LEDs
- RGBW colour mixing
- Single pixel control
- Pre-programmed shows and adjustable speed
- 4 Selectable dimming curves
- DMX and Stand-alone mode
- Master/slave function
- DMX in/output via 3/5-pin XLR
- P-Con TR Powerconnector input/output
- Aluminium housing with convection cooling
- Control panel with LCD display
- Adjustable bracket up to 90 degrees
- Linkable with the quick-to-use coupling system
- Including Omega Quick Lock brackets
- IR remote control included
| Brand | beamZ Pro |
|---|---|
| Product colour | Black |
| Light source | 4-in-1 LED |
| Colours | Red, Green, Blue, White |
| LED power | 12W |
| Quantity of LEDs | 16 |
| Beam angle | 13° |
| Field angle | 26° |
| Illuminance | 21.450 lx @ 1m |
| Flash rate per second | 1 - 14Hz |
| Modes | Automatic programs, DMX, Master/Slave |
| RDM | Yes |
| DMX channels | 3, 8, 12, 32, 37 |
| DMX connection | 3-pin XLR, 5-pin XLR |
| IP rating | IP65 |
| Cooling | Convection |
| Display | LCD |
| Power plug | P-Con TR1 |
| Power consumption | 1.124 - 0.546A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 1000 x 90 x 165mm |
| Weight (kg) | 6.65 |
| Included accessories | Remote control (wireless), Mounting bracket, Power cable |
