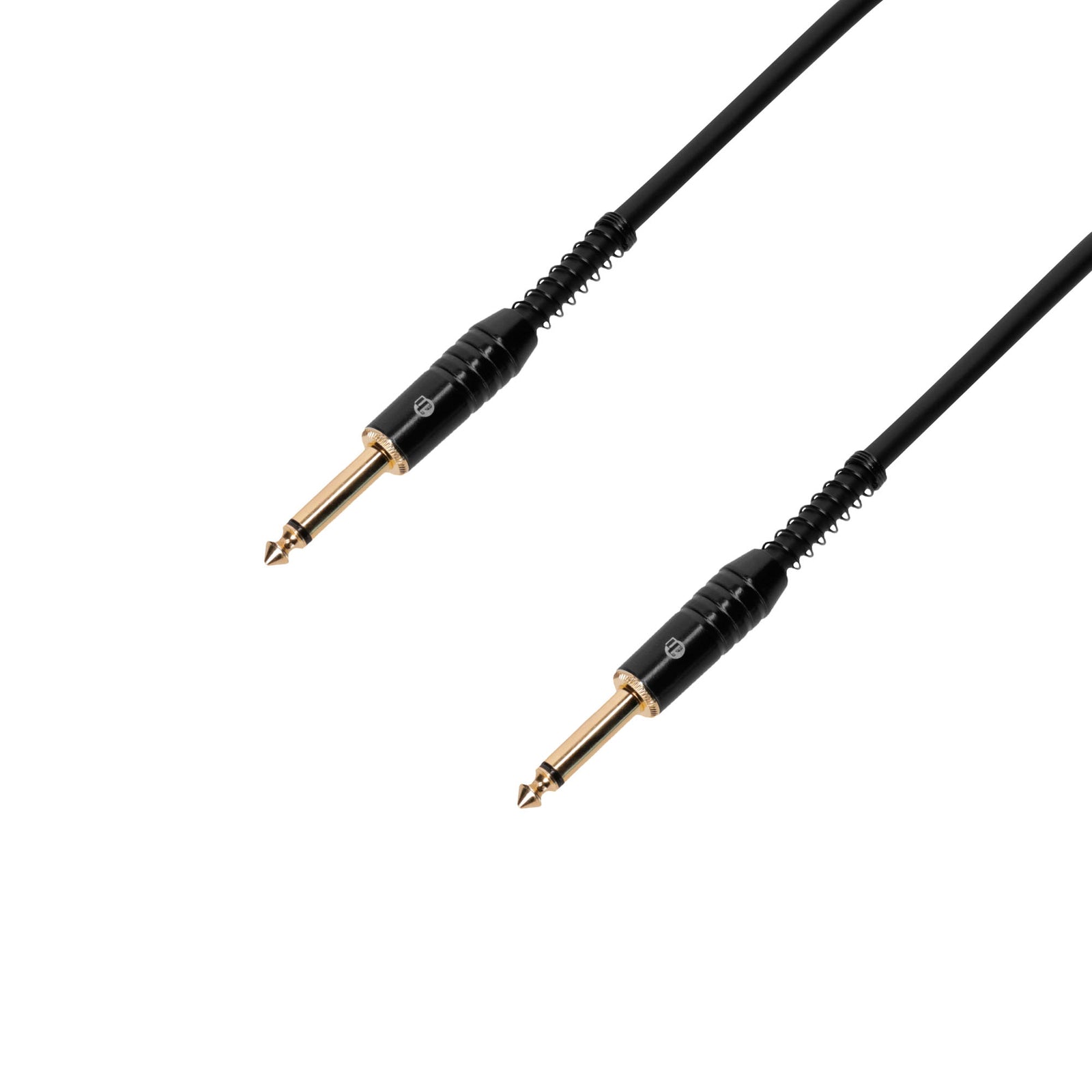

Instrument cable with TRS plugs from Adam Hall - proven since 1980, rugged, and still affordable. This cable guarantees optimal shielding against background noise with spiral shielding and an additional foil shield. Equipped with straight, unbalanced plugs.

Item highlights:

• The instrument cable from our 3 STAR SERIES
• Developed and engineered in Germany
• With high-quality TS jack connectors from Adam Hall Cables®
• The spring bend protection on the plug prevents cable breakage and ensures stability
• With gold-plated contacts for a long-lasting mating cycle

Specifications

General

• Cable length: 6 m
• Cable jacket: PVC (Polyvinyl chloride)
• Cable diameter: 6 mm
• Cable colour: Black

Plugs

• Connector type plug 1: 6.3 mm Jack TS
• Model name plug 1: Adam Hall 4 STAR C JM2 BLK
• Contact material plug 1: Nickel plated/golden tip
• Connector type plug 2: 6.3 mm Jack TS
• Model name plug 2: Adam Hall 4 STAR C JM2 BLK
• Contact material plug 2: Nickel plated/golden tip

Line

• Conductor material: OFC (Oxygen-free copper)
• Conductor cross-section: 1 x 0,22 mm²
• Capacity/m: < 122 pF
• Conductor impedance/km: 85 Ohm

Environmental

• Ambient temperature: -20 °C - 70 °C

Dimensions & weight

• Weight: 310 g
