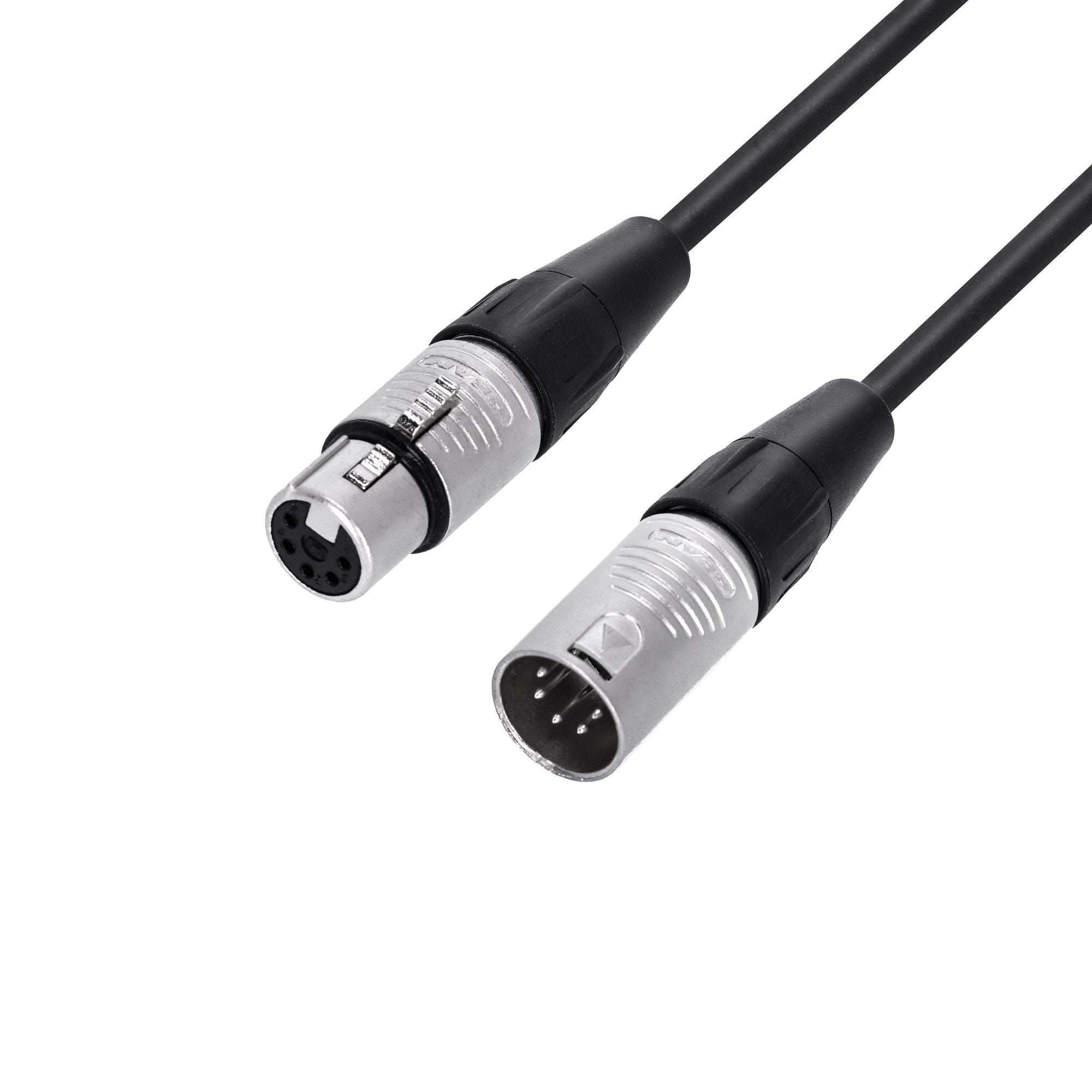

This high-quality DMX, AES/EBU cable with original REAN (A brand of the Neutrik Group) connectors and a larger inner conductor cross-section of 0.34 mm² is available ready-made and also in a 3-pole XLR version. The robust cable comes with a braided copper shield and solid soft PVC jacket, making it the perfect companion for the stage.

Item highlights:

• Professional DMX, AES/EBU cable from our 4 Star Series

• With high quality REAN (A brand of the Neutrik Group) connectors

• 5-pin XLR with two signal conductors connected

• Robust and flexible cable with larger inner conductor cross-section

• Shielding made of copper braiding

Specifications

General

• Cable length 1.5 m
• Cable jacket PVC (Polyvinyl chloride)
• Cable diameter 6.5 mm
• Cable colour Black

Plugs

• Connector type plug 1:  XLR 5-pole female
• Model name plug 1: Rean RC5F
• Contact material plug 1: Nickel plated
• Connector type plug 2: XLR 5-pole male
• Model name plug 2: Rean RC5M
• Contact material plug 2: Nickel plated

Line

• Conductor material: OFC (Oxygen-free copper)
• Conductor cross-section: 2 x 0,34 mm²
• Capacity/m: 65 pF
• Conductor impedance/km: 53 Ohm
• Shielding: Braided copper shielding

Environmental

• Ambient temperature: -20 °C - 70 °C

Dimensions & weight

• Weight: 172 g
