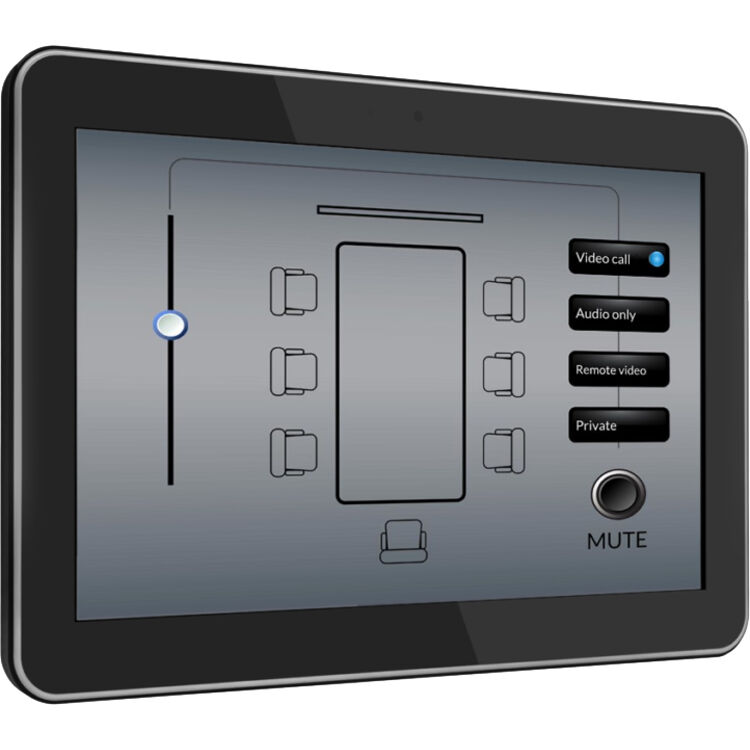

10" touchscreen control panel for Allen & Heath Custom Control with 1280 x 800 resolution, 5-point capacitive touchscreen, Gigabit Ethernet and PoE/12 V DC power.

The Allen & Heath CC-10 is a network touch panel for the Custom Control app and AHM, dLive and Avantis systems. It provides a customisable touchscreen interface for music source selection, level control, preset recall and paging functions.

The CC-10 is designed to operate as a fixed control device or as a complement to a BYOD solution. It is suitable for installations where a touchscreen interface is preferred over physical IP controllers.

Main Features

• Display: 10.1" capacitive, 5-point touchscreen.
• Resolution: 1280 x 800.
• Brightness: 500 cd/m².
• Network connection: Gigabit Ethernet.
• USB: USB-A port for Custom Control updates.
• VESA mounting: 75 x 75 mm.
• Power: PoE or +12 V DC.
• Custom Control: customisable control interface for AHM, dLive and Avantis systems.
• Kiosk mode: prevents unauthorised access to system settings.

Easy Configuration

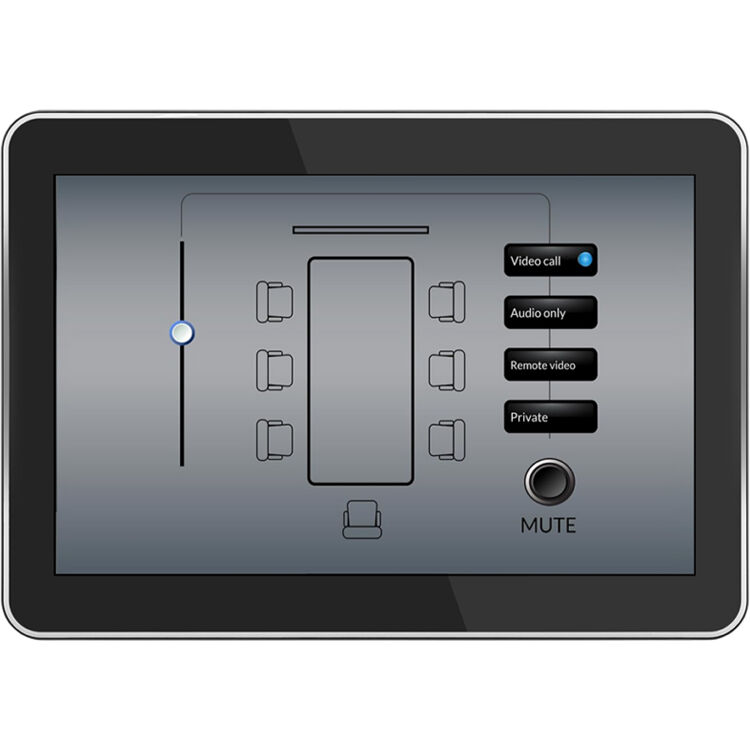

CC-10 runs the Allen & Heath Custom Control app, allowing custom control interfaces to be created for different users and applications. It can provide control of functions such as music source selection, levels, preset recall and paging.

Custom Control provides a customisable control environment for AHM, dLive and Avantis installed audio systems. CC-10 is configured to run in kiosk mode, preventing users from accessing the touch panel's system settings.

Convenient Connection

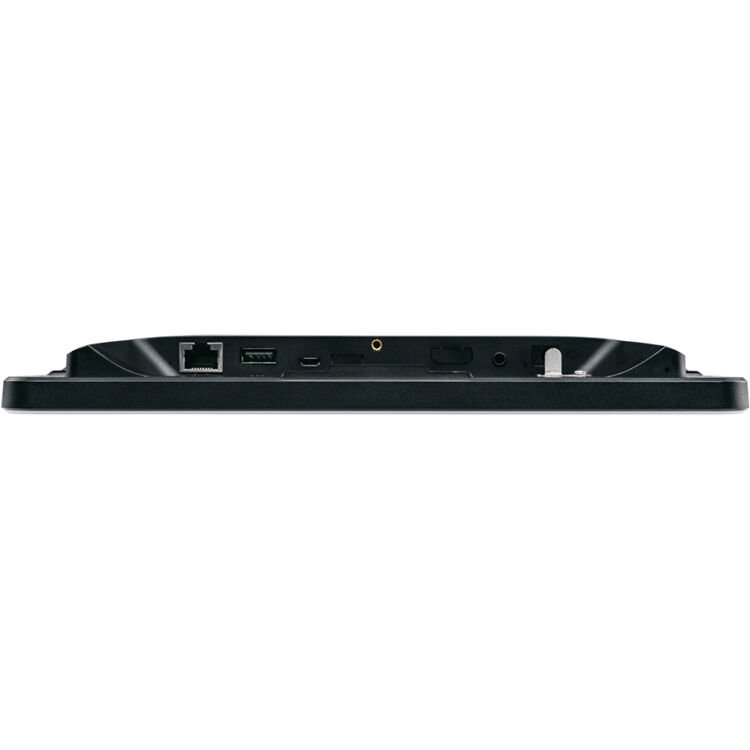

CC-10 uses a Gigabit Ethernet network connection and can be integrated into a standard Ethernet infrastructure. The network connection also provides PoE power.

The USB-A port is provided for Custom Control updates.

Mounting and Power

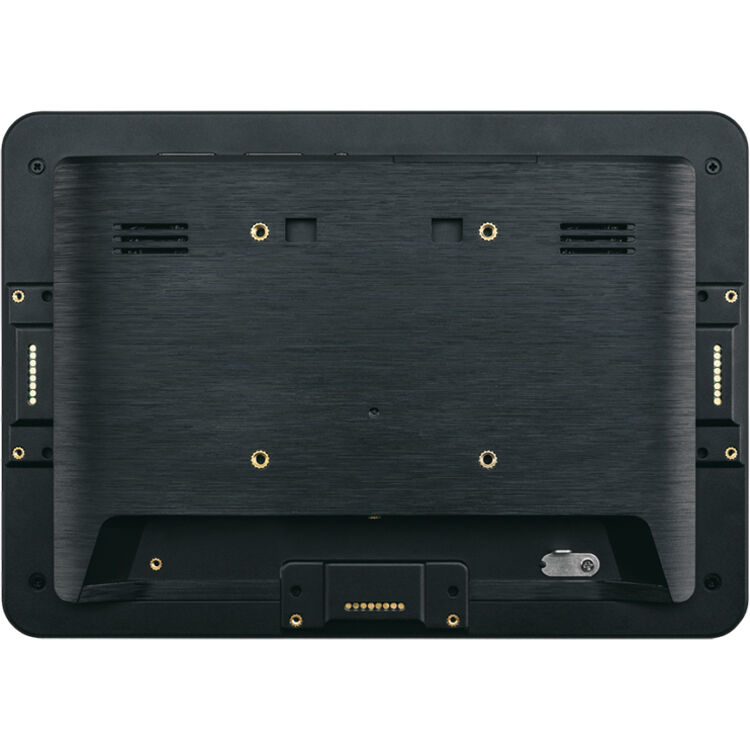

CC-10 is designed for desktop or wall-mounted use. The panel features VESA 75 x 75 mm mounting points. The CC-STN desktop stand and CC-BRK wall/glass mount bracket are available as optional accessories.

Power can be supplied using the included 12 V DC power supply or via PoE. IEEE 802.3af is supported.

Compatibility

CC-10 is designed for use with Allen & Heath AHM, dLive and Avantis systems. It is suitable for installations requiring customisable touchscreen control of music sources, levels, presets and other system functions.

Specifications

Display

• Display size: 10.1".
• Touchscreen: capacitive, 5-point.
• Resolution: 1280 x 800.
• Brightness: 500 cd/m².
• Viewing angle: H 160° / V 160°.
• Contrast ratio: 800:1.
• Aspect ratio: 16:10.

Network Connection and Power

• Network connection: Gigabit Ethernet.
• USB: USB-A, for Custom Control updates.
• External power: +12 V DC, 2 A.
• PoE: IEEE 802.3af.
• PoE source power: 15 W.

Mounting

• VESA mounting: 75 x 75 mm.
• Desktop stand: CC-STN, available separately.
• Wall/glass mount bracket: CC-BRK, available separately.

Dimensions and Operating Temperature

• Dimensions (W × D × H): 255.3 x 26.7 x 181 mm.
• Operating temperature: 0-40 °C.
