32-channel 48 kHz 19" rack-mountable digital mixer with 16 Mic/Line inputs, 3 stereo line inputs, 12 Mix buses and 4 FX engines.

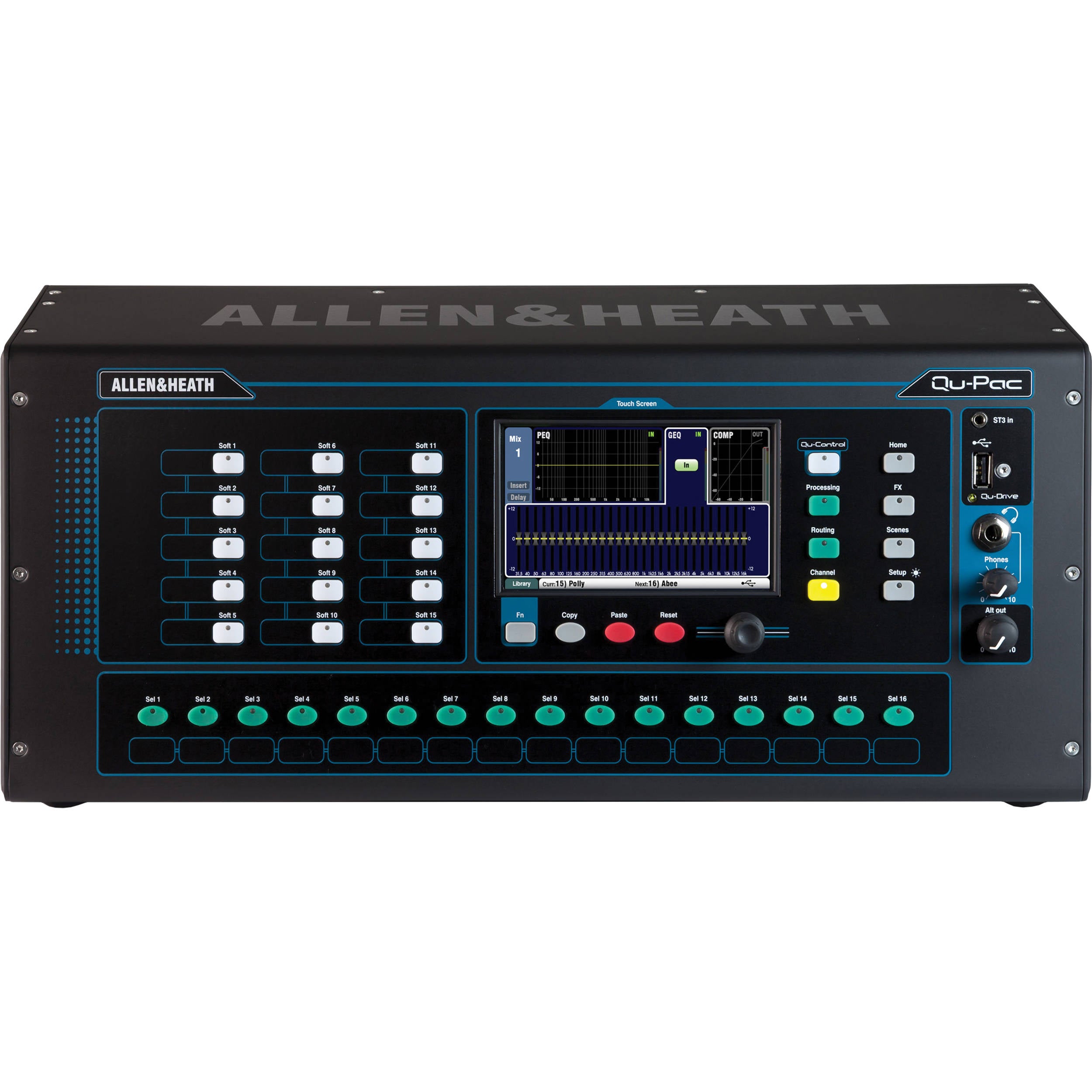

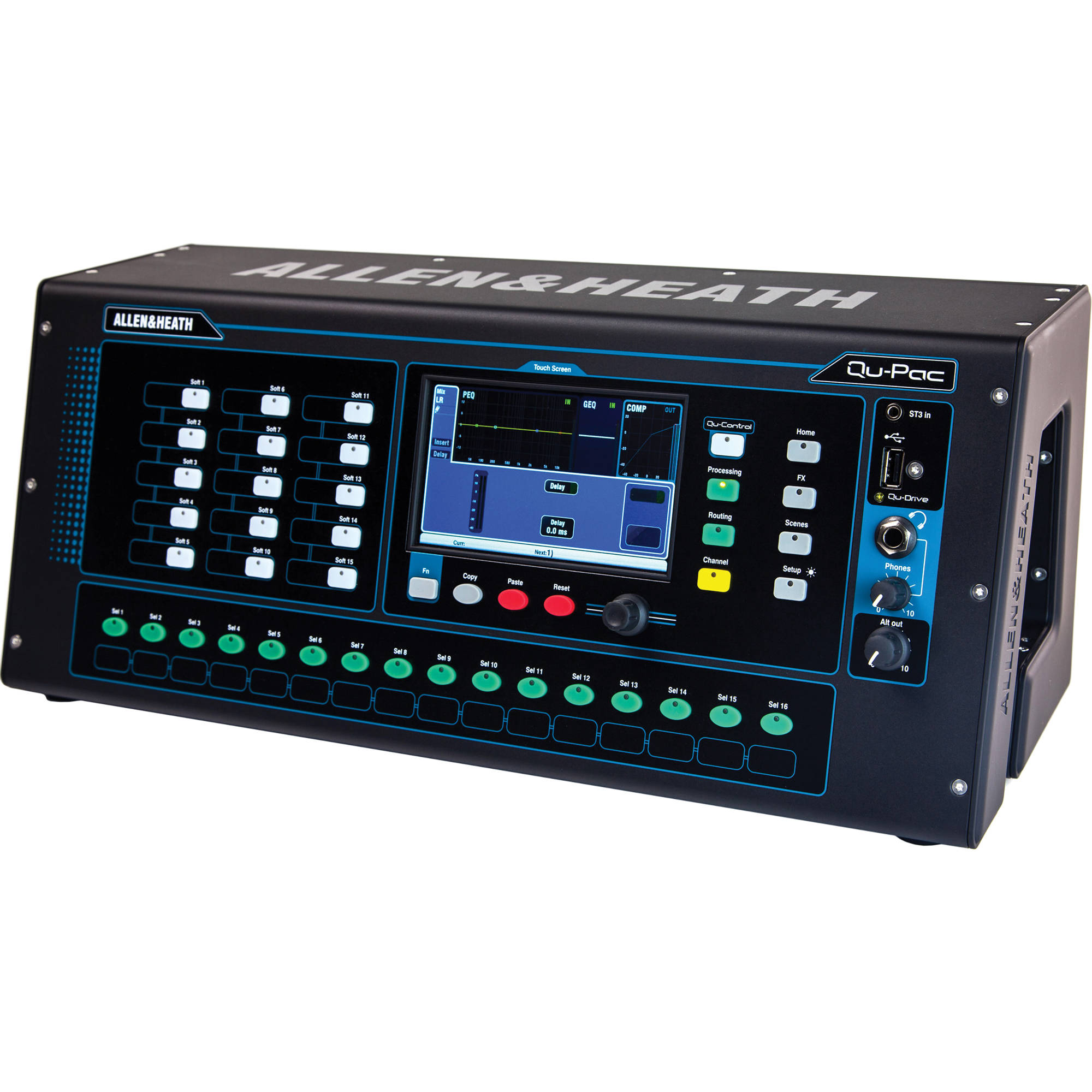

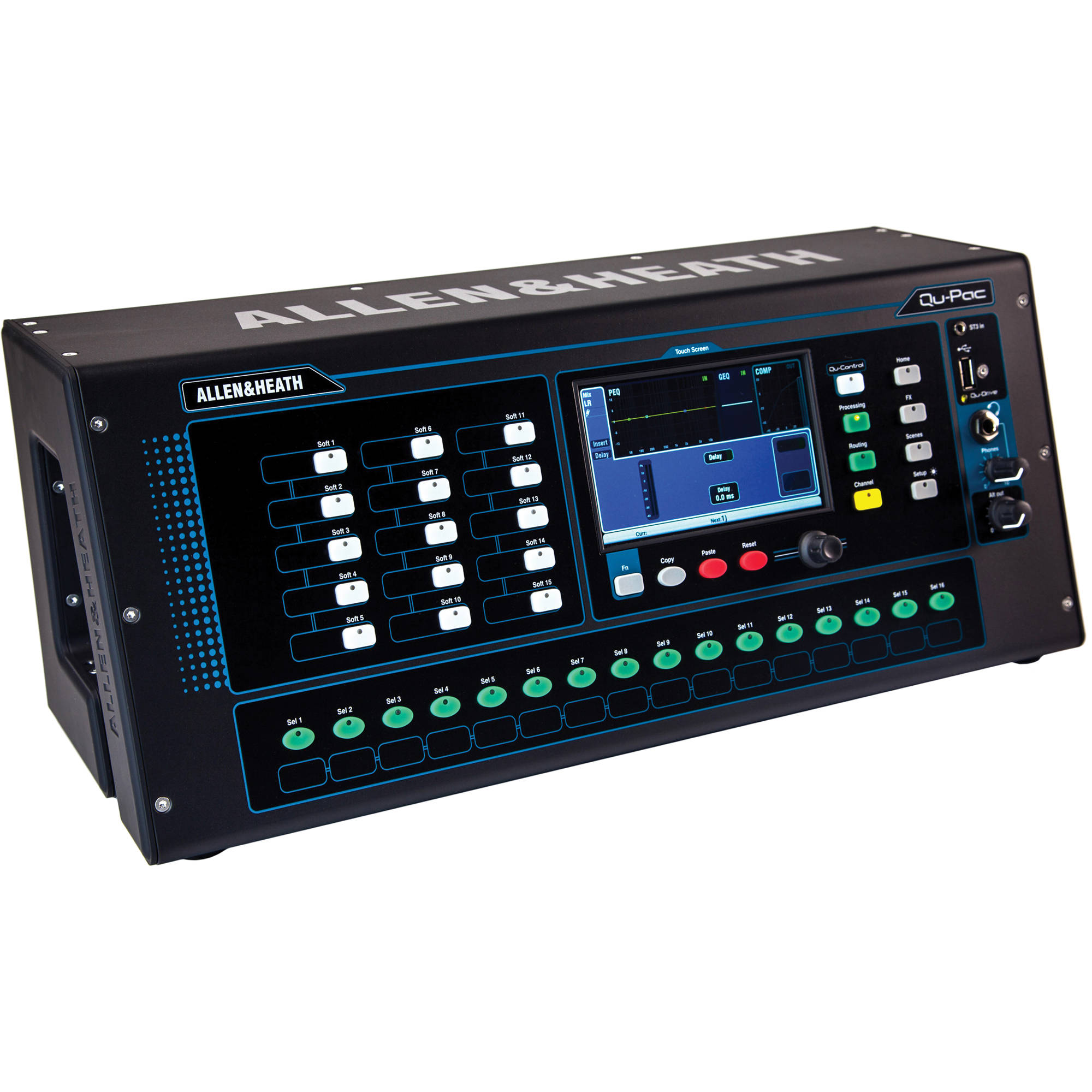

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into a compact desk or rack mount format.
With Qu-Pac you are free to mix from your iPad, but the full functions of the mixer can be accessed from the front panel and touchscreen should you need them.
Custom settings and Cat5 expansion up to 38 inputs, makes Qu-Pac a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.
User permissions and the customisable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.
Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.
Features
- 19” Rack Mountable
- 16 local Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 3 Stereo Inputs (TRS)
- 12 local Mix Outputs (XLR)
- Expandable to 38 input, 24 out using dSNAKE AudioRack
- 4 Stereo Groups (switchable to Mix mode)
- Up to 11 Monitor Mixes (4 mono + 7 stereo)
- 4 FX Engines
- 4 dedicated FX Sends / Returns
- 4 Mute Groups
- 4 DCA Groups
- AES Digital Out
- 32×32 USB Audio Interface
- dSNAKETM Remote Audio Port
- 800×480 Touchscreen
- 15 Soft Keys
- 16 Custom Select keys
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
- Automatic Mic Mixer
- Channel Ducker on all Inputs
- ProFactory Mic Presets
- iLive FX Library
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid feedback elimination and room acoustics
- DAW MIDI Control
- Customisable Qu-Control screen to suit your application
- Qu-Pad fully-featured iPad App
- Qu-You iPhone / Android personal monitoring app
- Qu-Control customisable iOS app for simple wireless control
- Compatible with ME Personal Mixing System
