10-channel radio broadcast analogue mixer with 4 Mic/Line inputs, 4 dual-source stereo channels, 2 Telco channels and built-in USB audio interface.

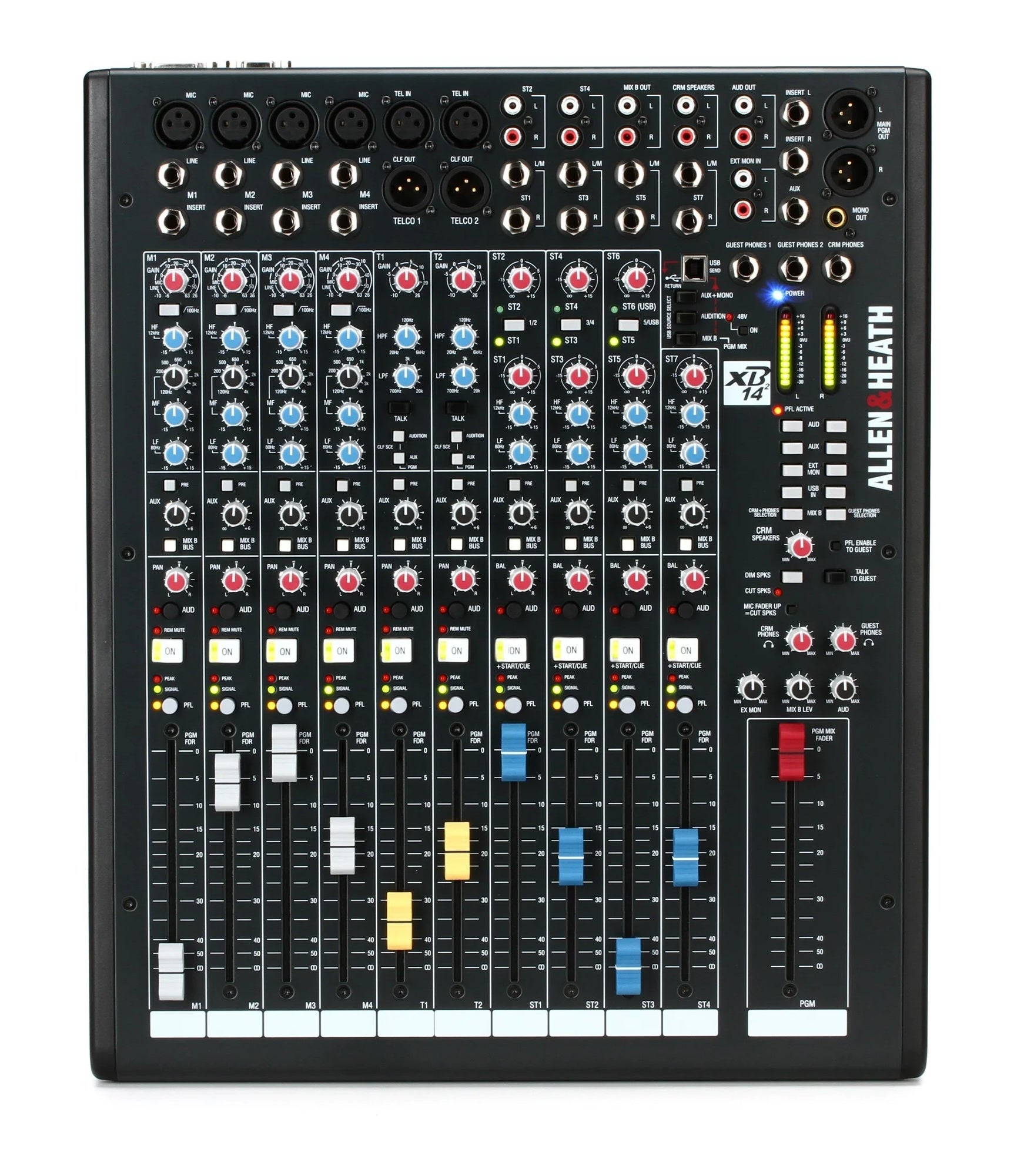

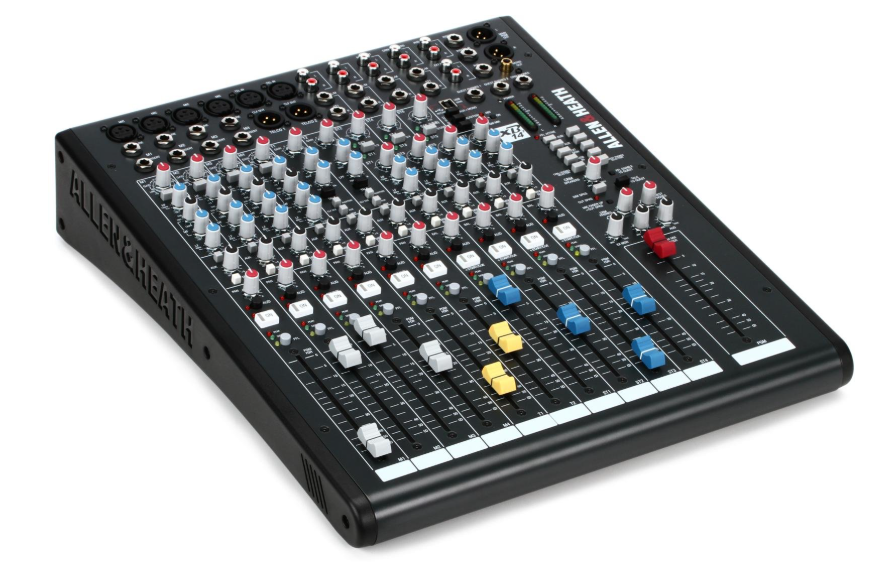

The XB-14-2 is a professional radio broadcast analogue mixer with 4 Mic/Line channels, 4 dual-source stereo channels and 2 Telco channels. It is designed for both self-operated broadcasting and studios with separate operator and producer positions.

The four mono channels feature DuoPre preamps with 69 dB of gain, a 100 Hz High-Pass filter, 3-band EQ with swept mid frequency, PFL, MUTE and fader-start sensing. The stereo channels provide 2-band EQ, while the Telco channels feature variable High-Pass and Low-Pass filters for optimising the frequency range of telephone signals.

The built-in stereo USB audio interface provides bidirectional audio transfer, while the dedicated Audition bus is designed for source auditioning and off-air recording. The mixer provides separate operator/producer and two guest headphone mixes, automatic control-room speaker muting, Start/Cue logic outputs for stereo channels and remote microphone mute control.

Specifications

Inputs and channels

• Mic/Line inputs: 4 mono channels
• Dual-source stereo channels: 4 channels
• Telco channels: 2
• Mic inputs: XLR
• Line inputs: 6.3 mm TRS Jack
• Stereo inputs: 6.3 mm TRS Jack and RCA
• Preamps: DuoPre, 69 dB gain range
• Channel Insert: on each Mic/Line channel
• Phantom Power: +48 V

EQ, filters and control

• Mono channel EQ: 3-band EQ with swept mid frequency
• High-Pass filter: 100 Hz on mono channels
• Stereo channel EQ: 2-band EQ
• Telco filters: variable High-Pass and Low-Pass filters
• AUX: 1 auxiliary bus
• MIX B: separate stereo bus for independent recording mix or Clean Feed
• Audition: dedicated stereo bus for source auditioning and off-air recording
• Faders: 100 mm
• PFL: channel auditioning
• Fader Start: mono channels
• Start/Cue: stereo channel logic outputs
• Metering: Input Signal and Peak indication

Broadcast features

• Telco Clean Feed: selectable PGM, AUX or Audition bus source, excluding the corresponding Telco channel
• Telco Talk: communication with telephone callers
• Auto Mute: automatic control-room speaker muting when a microphone is activated
• Remote Mute: remote microphone channel mute control
• Talkback: communication with producer and guests
• Headphone mixing: separate operator/producer and two guest headphone mixes
• External Meter: external meter connection
• Logic I/O: 27 logic inputs/outputs

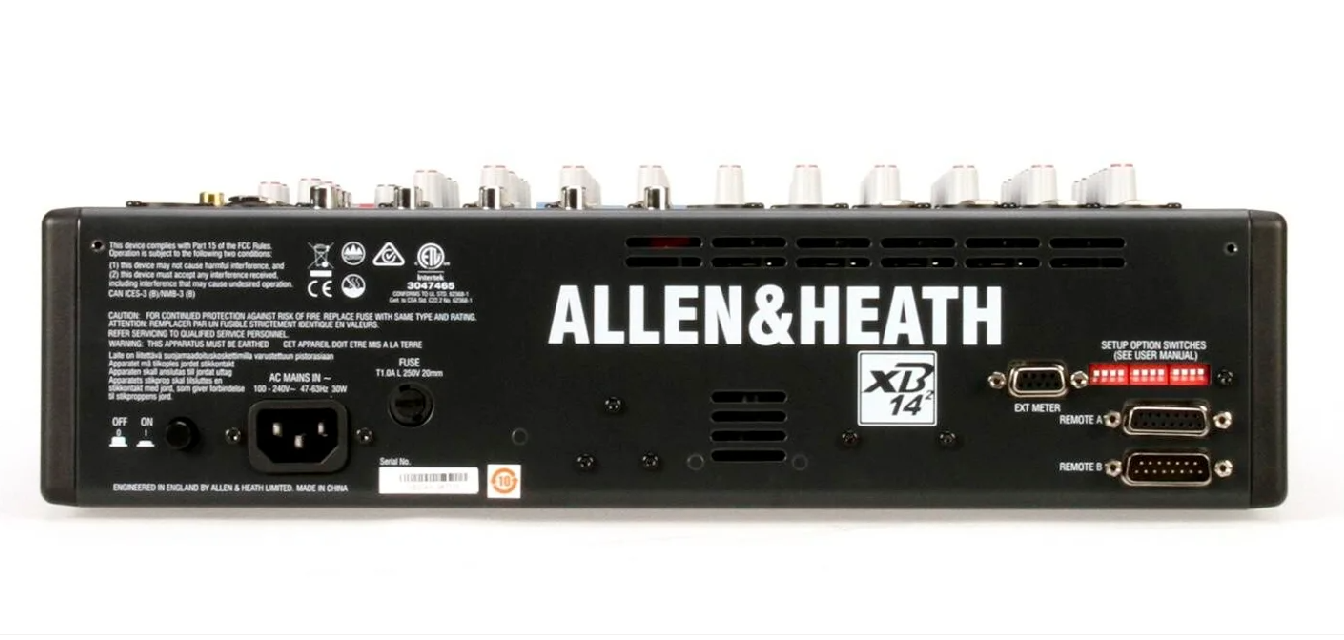

Connections and USB

• Main PGM outputs: XLR L/R
• PGM Insert: L/R, 6.3 mm TRS
• Mono output: RCA
• AUX output: 6.3 mm TRS
• MIX B output: stereo RCA
• Audition output: stereo RCA
• Telco outputs: Clean Feed outputs
• CRM Speaker outputs: stereo RCA
• External Monitor input: stereo RCA
• Headphone outputs: 3 - one for operator/producer and two for guests
• USB: stereo audio In/Out
• USB audio: USB 1.1 compliant stereo audio interface
• USB connection: USB Type-B

Dimensions and data

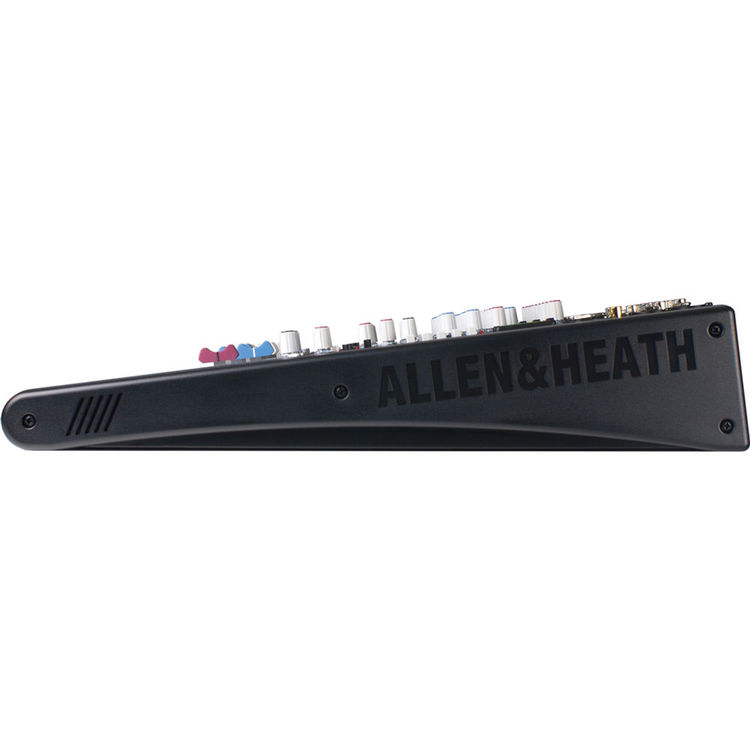

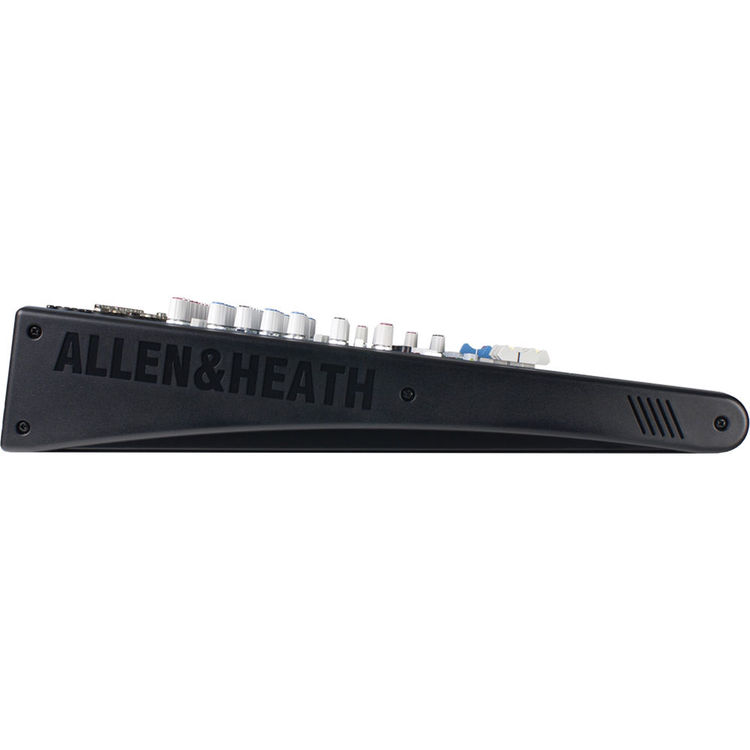

• Dimensions H × W × D: 103 × 385 × 450 mm
• Rack mounting: with Z1402-RK19X rackmount kit
