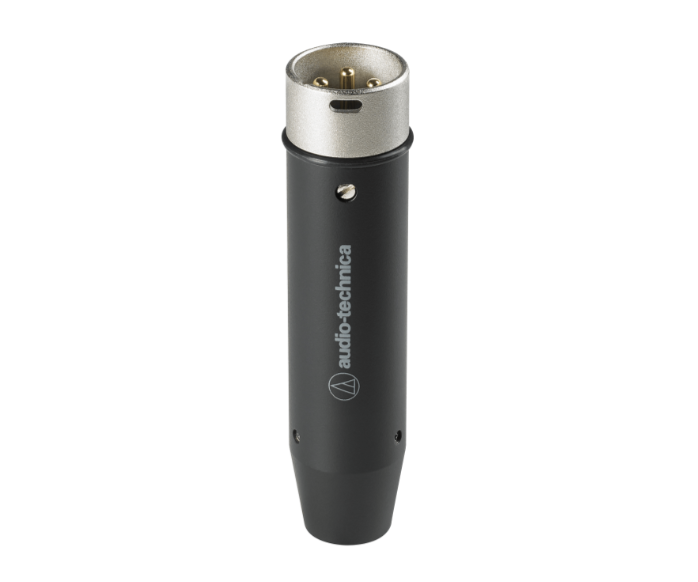

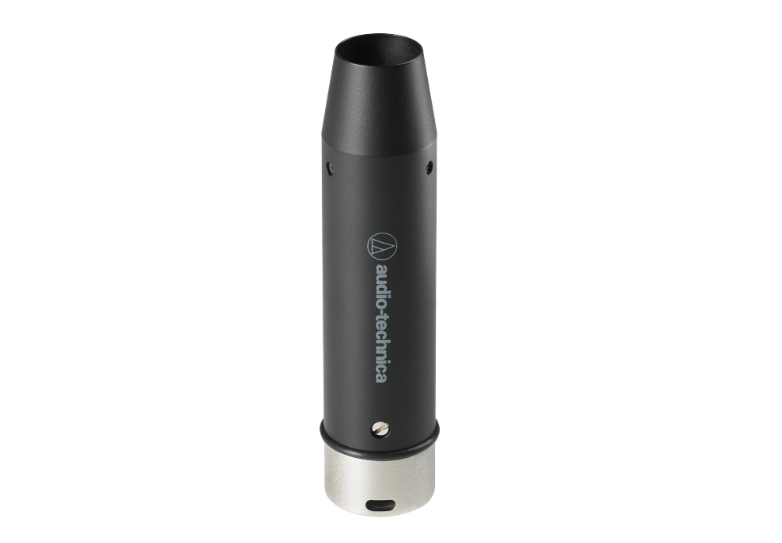

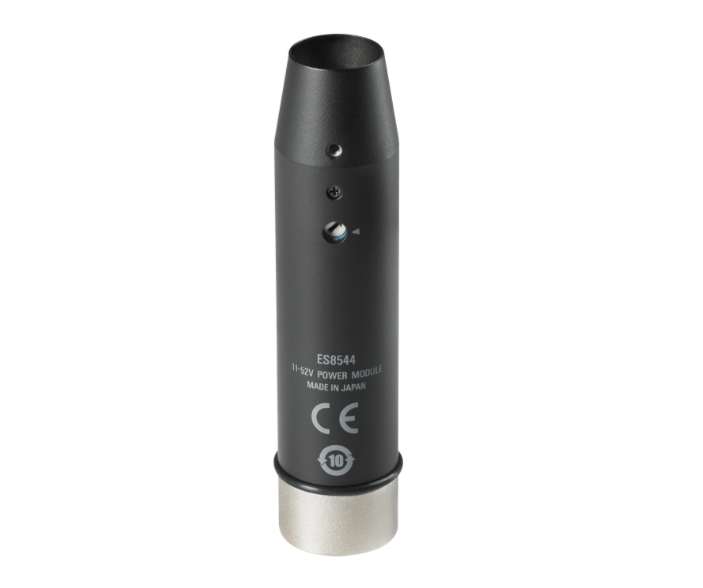

The ES8544 3-pin XLR power module works with ES925 goosenecks and microphone elements. Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using Quick-mount Stand Adapter AT8473 (not included).
Features
- 3-pin XLR power module for use with ES925 goosenecks and microphone elements
- Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using Quick-mount Stand Adapter AT8473 (not included)
- Included low-profile universal isolation mount attenuates noise, shock and vibration
- Remote LED control with ATUC products and AT8699R desk stand
Specifications
| Phantom Power | 11-52V DC |
|---|---|
| Weight | 68 g (2.4 oz) |
| Dimensions | 20.2 mm (0.80") diameter, 80.8 mm (3.18") height |
| Input Impedance | 130 ohms |
| Switch | LED Colour |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | Set screw (M2 x 2); hex wrench |
