POWER MODULE ES Modular, desk stand, 5-pin XLR

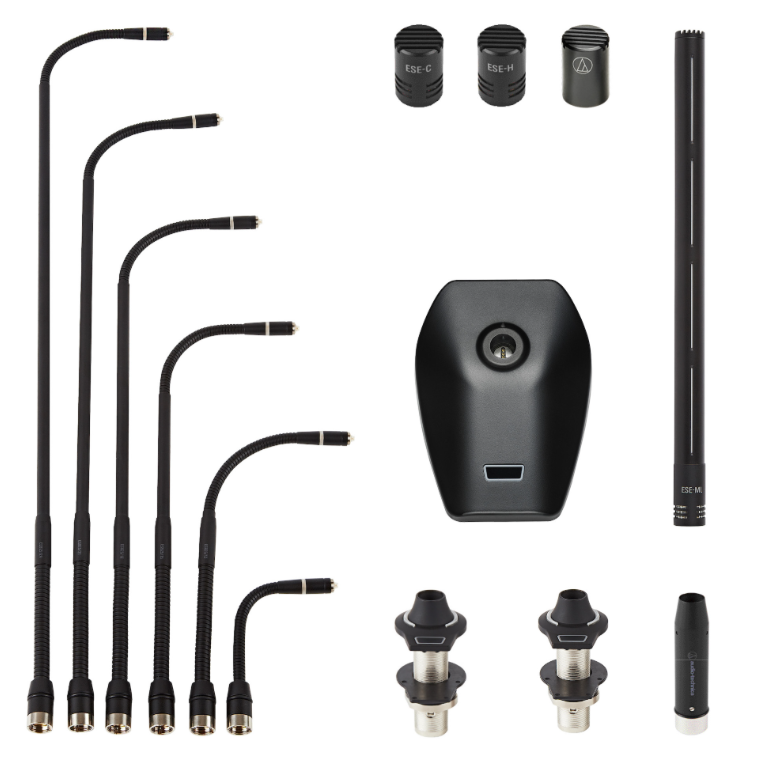

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements.

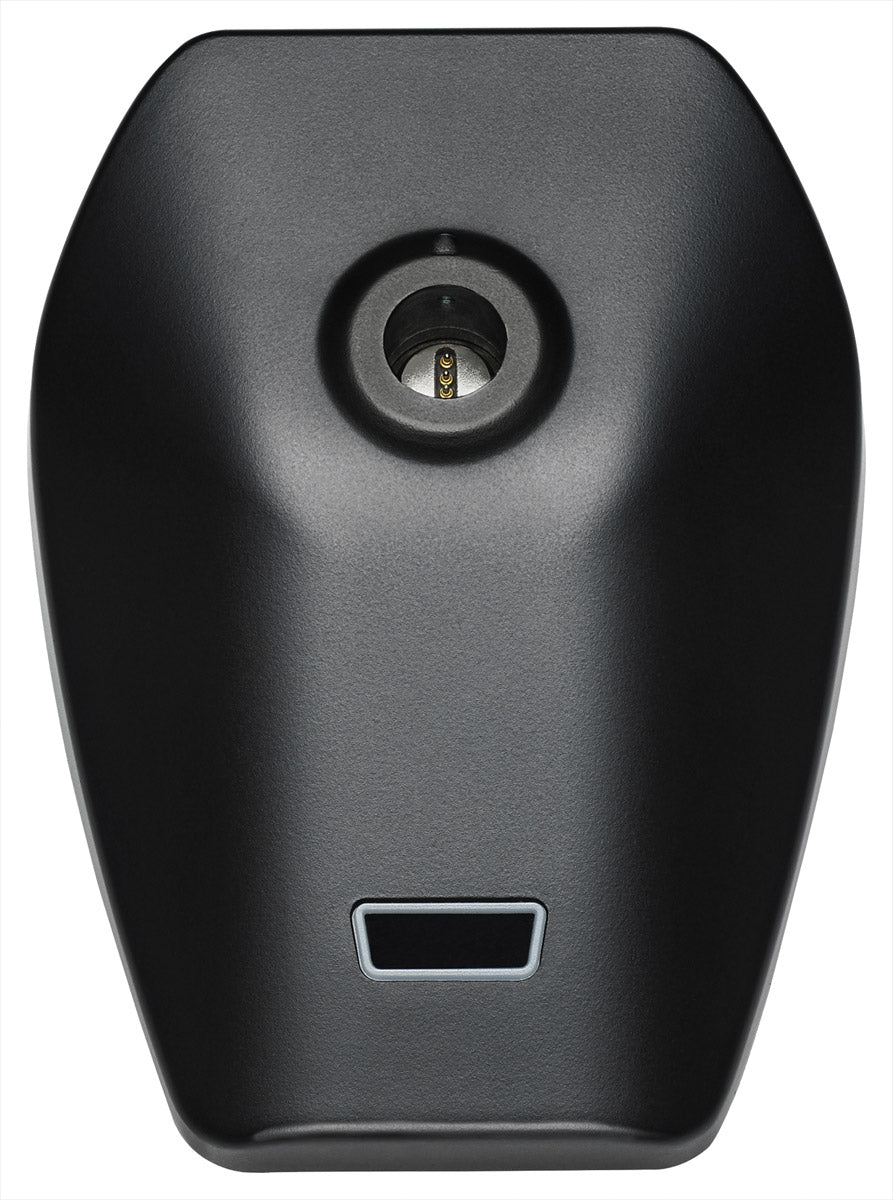

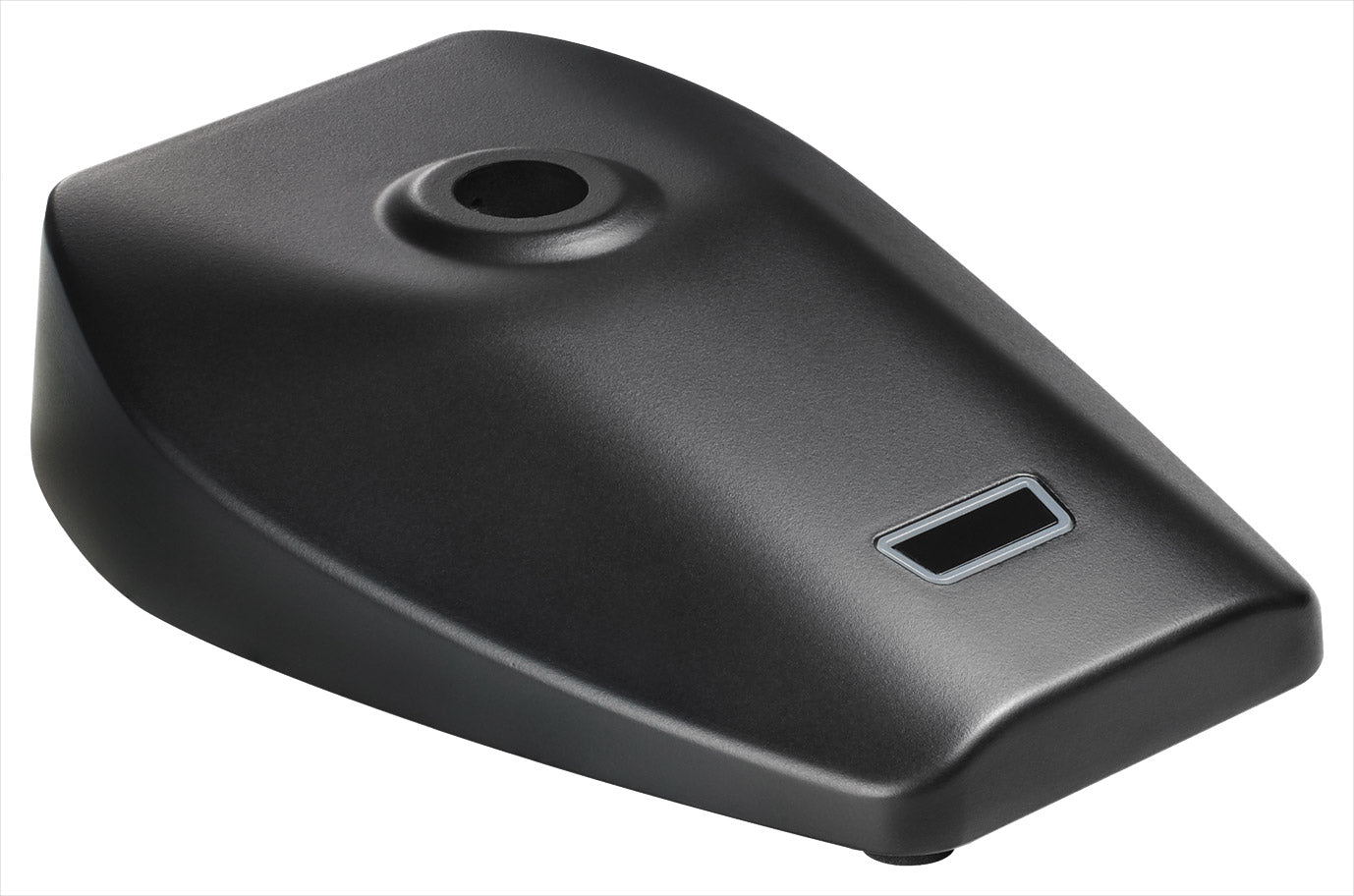

The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: touch-on/touch-off, touch-to-talk and touch-to-mute. For enhanced control in conference and boardroom installations, the units external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, two-state RGB LED status indicator and a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.
Features
- 5-pin desk stand power module for use with ES925 goosenecks and microphone elements
- Logic I/O capability permits control of remote devices from the desk stands touch-sensitive capacitive-type user switch
- Capacitive touch switch can be set to any one of three operating modes: touch-on/touch-off, touch-to-talk and touch-to-mute

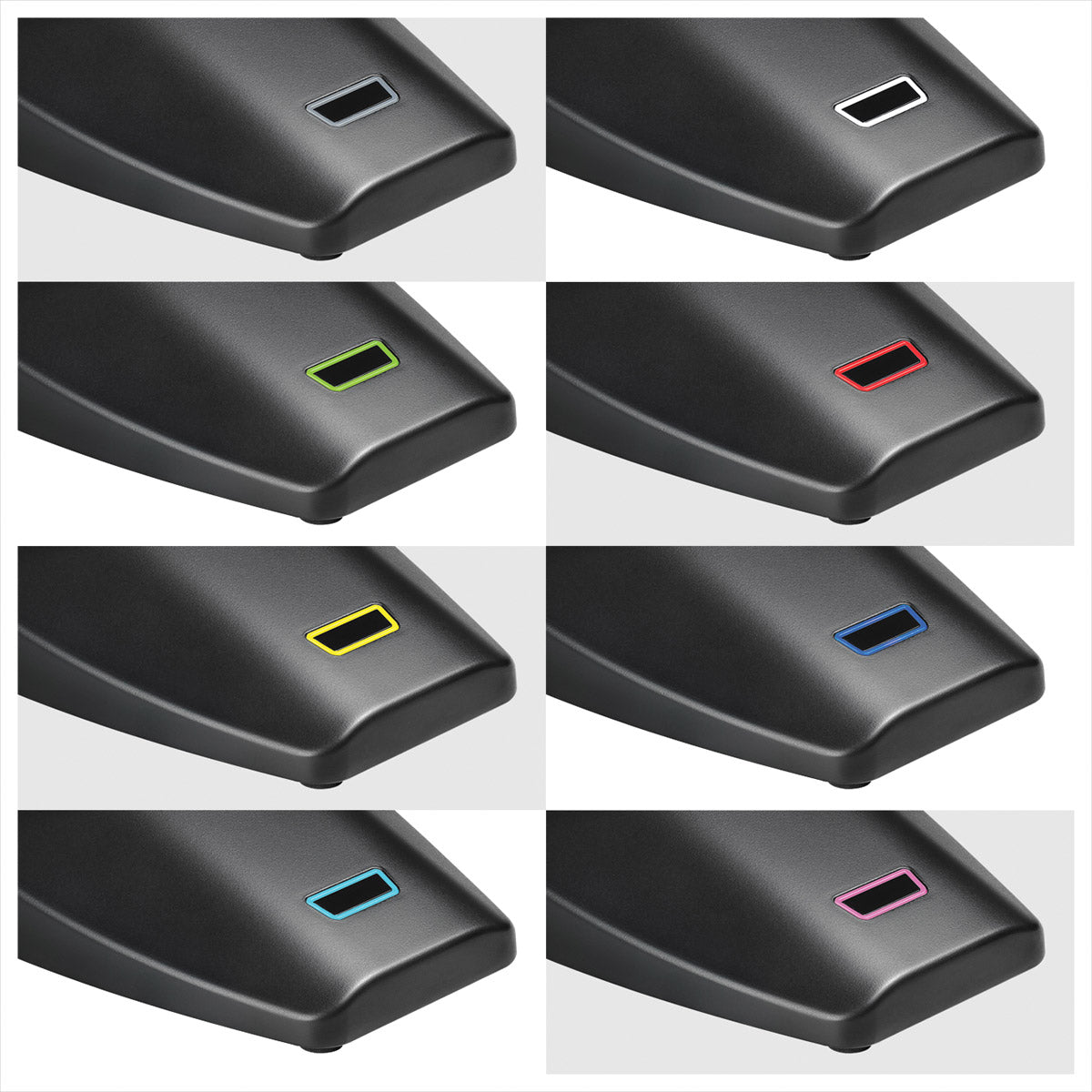

- Equipped with highly visible, two-state RGB LED status indicator
- Integral UniSteep® filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the microphone
Specifications
- Low-Frequency Roll-Off: 80 Hz, 18 dB/octave
- Impedance: 130 ohms

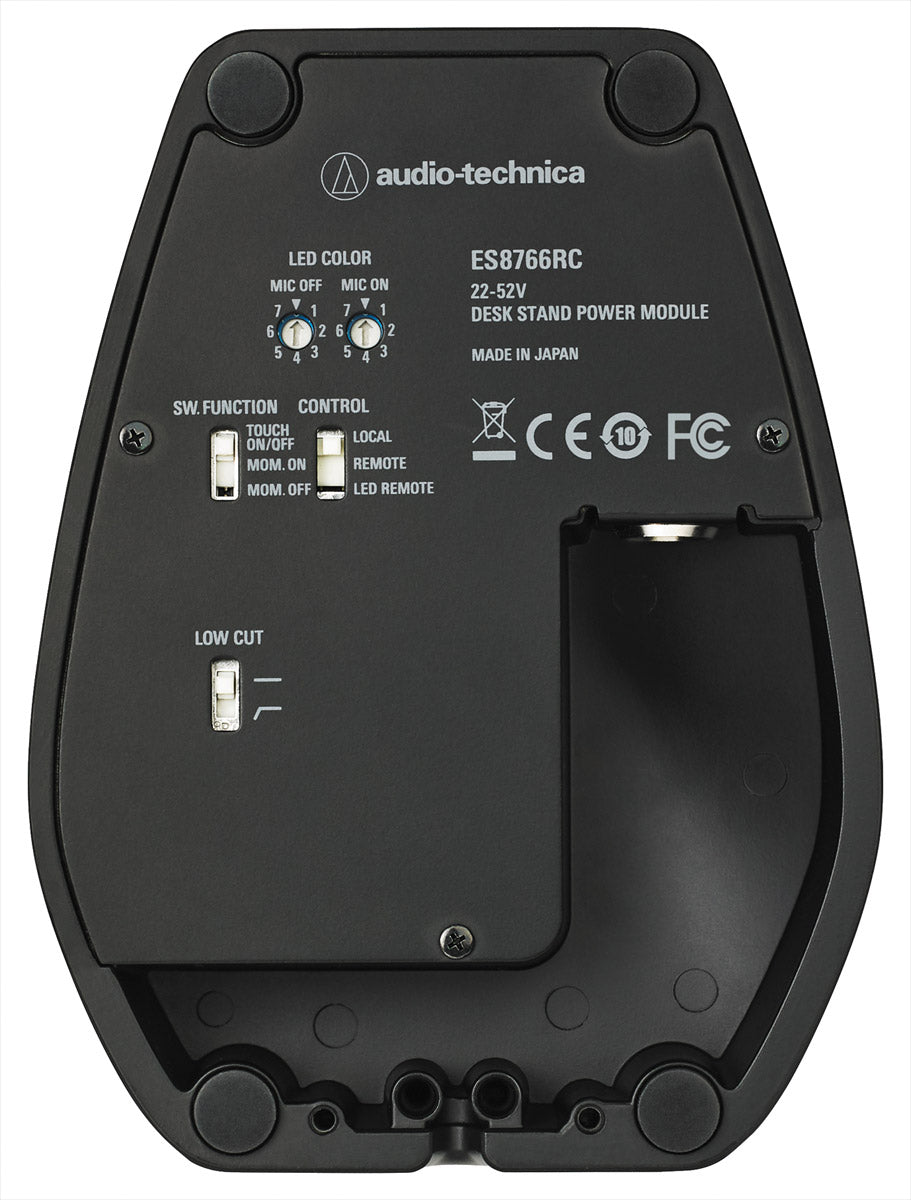

- Switches: Activation: on/off
- LED Color: mic on, mic off
- Switch function: touch on/off, momentary on, momentary off
- Control: local, remote, LED remote
- Low cut: on/off
- Phantom Power Requirements: 22-52V DC
- Contact Closure: Closure input voltage: -0.5 5.5V
- Maximum permissible power: 200 mW
- On-resistance: 100 ohms
- LED control: Active high (+5V DC) TTL compatible
- Active low voltage: 1.2V or lower
- Maximum permissible input power: -0.5 5.5V
- Maximum permissible power: 200 mW
- Weight: 640 g (22.6 oz)
- Dimensions: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 33 mm (1.30") H
- Output Connector: TB5M-type
- Accessories Furnished: 7.6 m (24.9') microphone cable (TA5F, unterminated); set screw (M2 x 2); hex wrench
