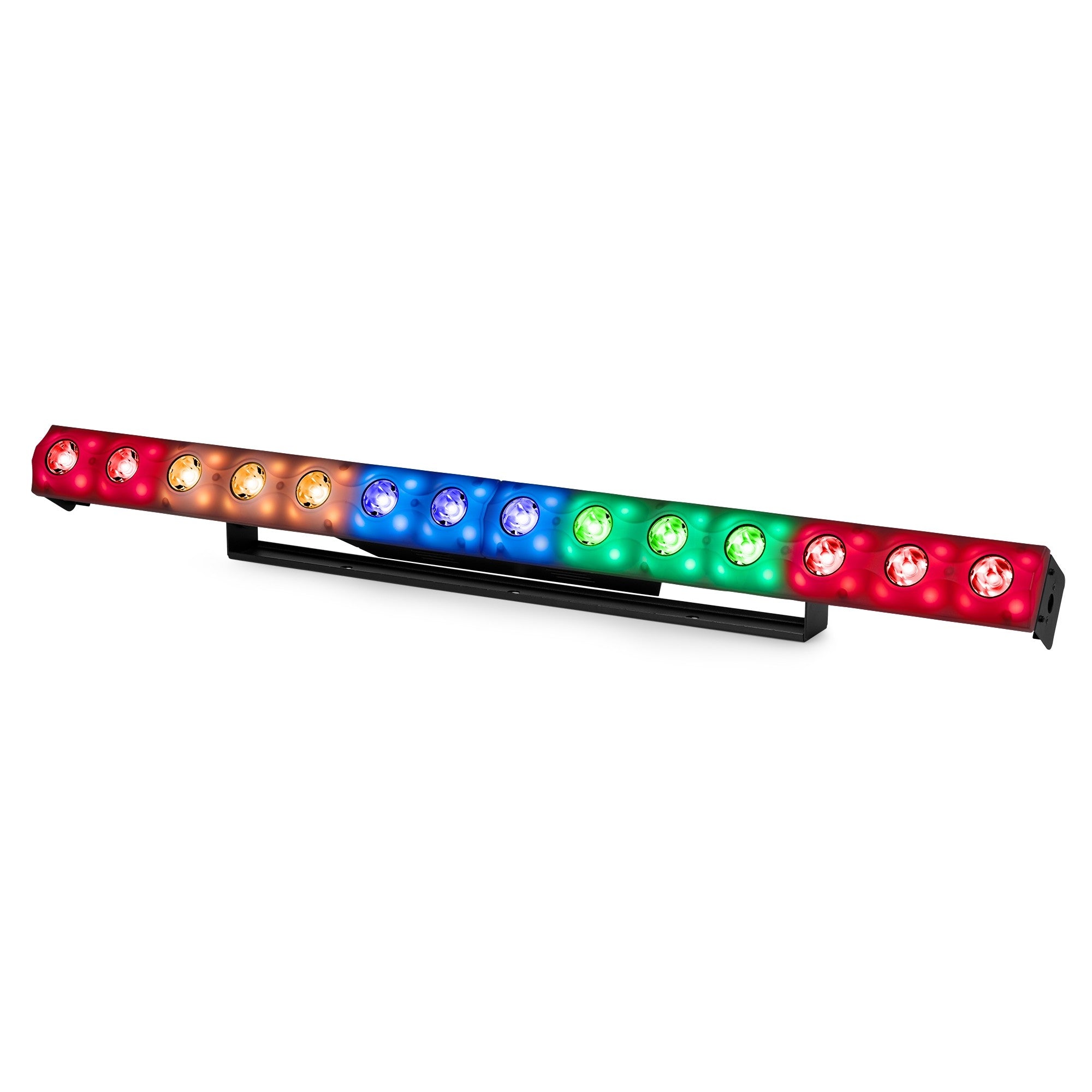

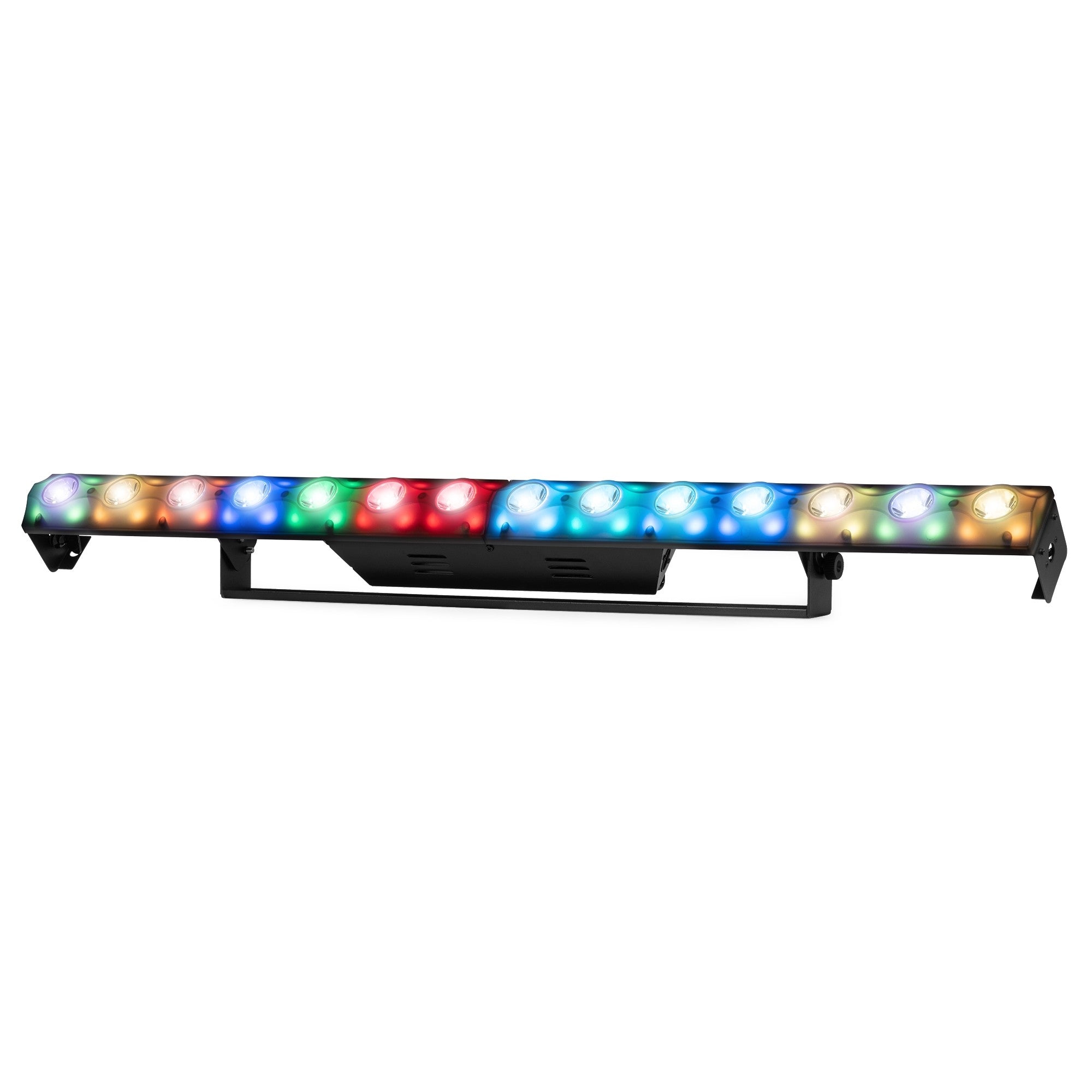

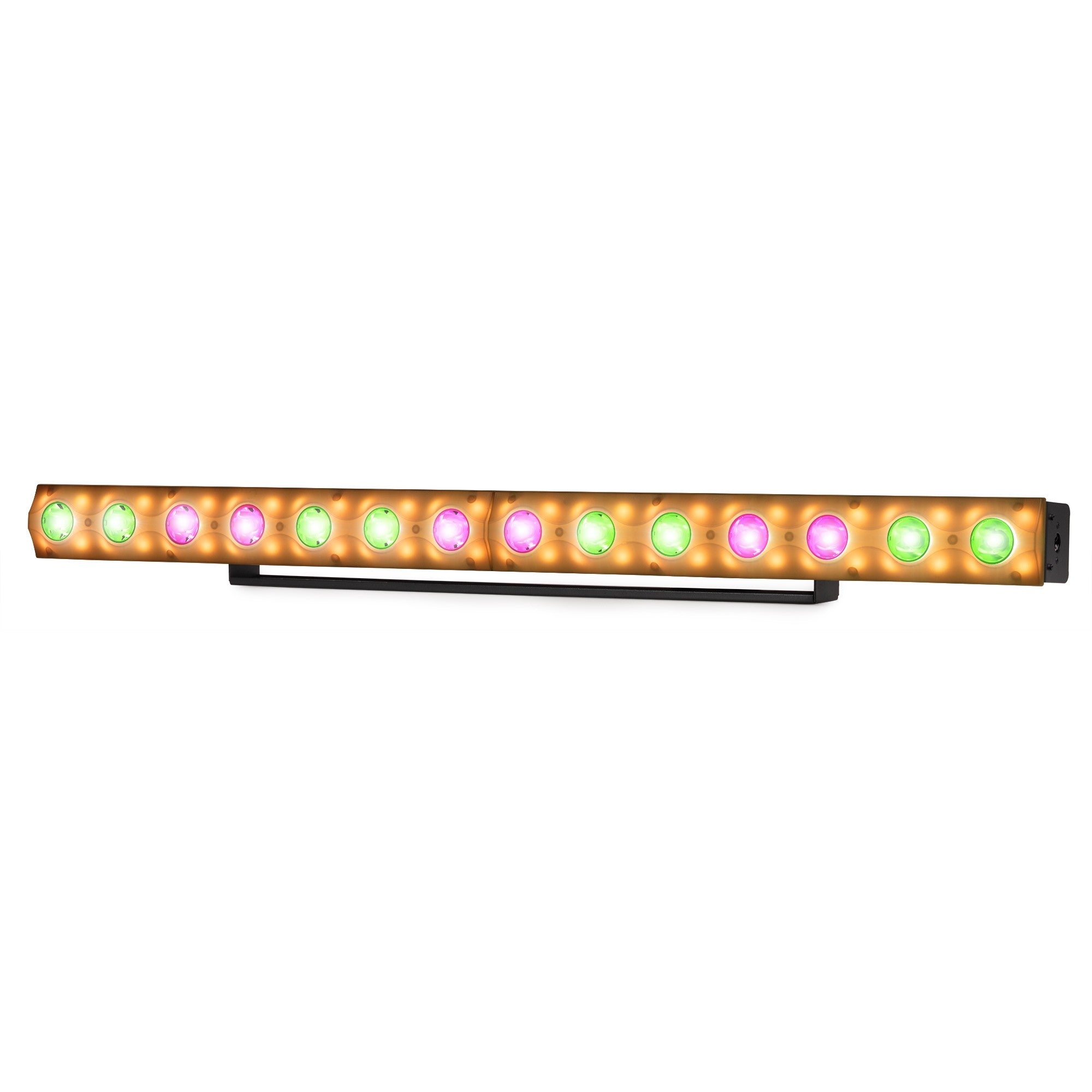

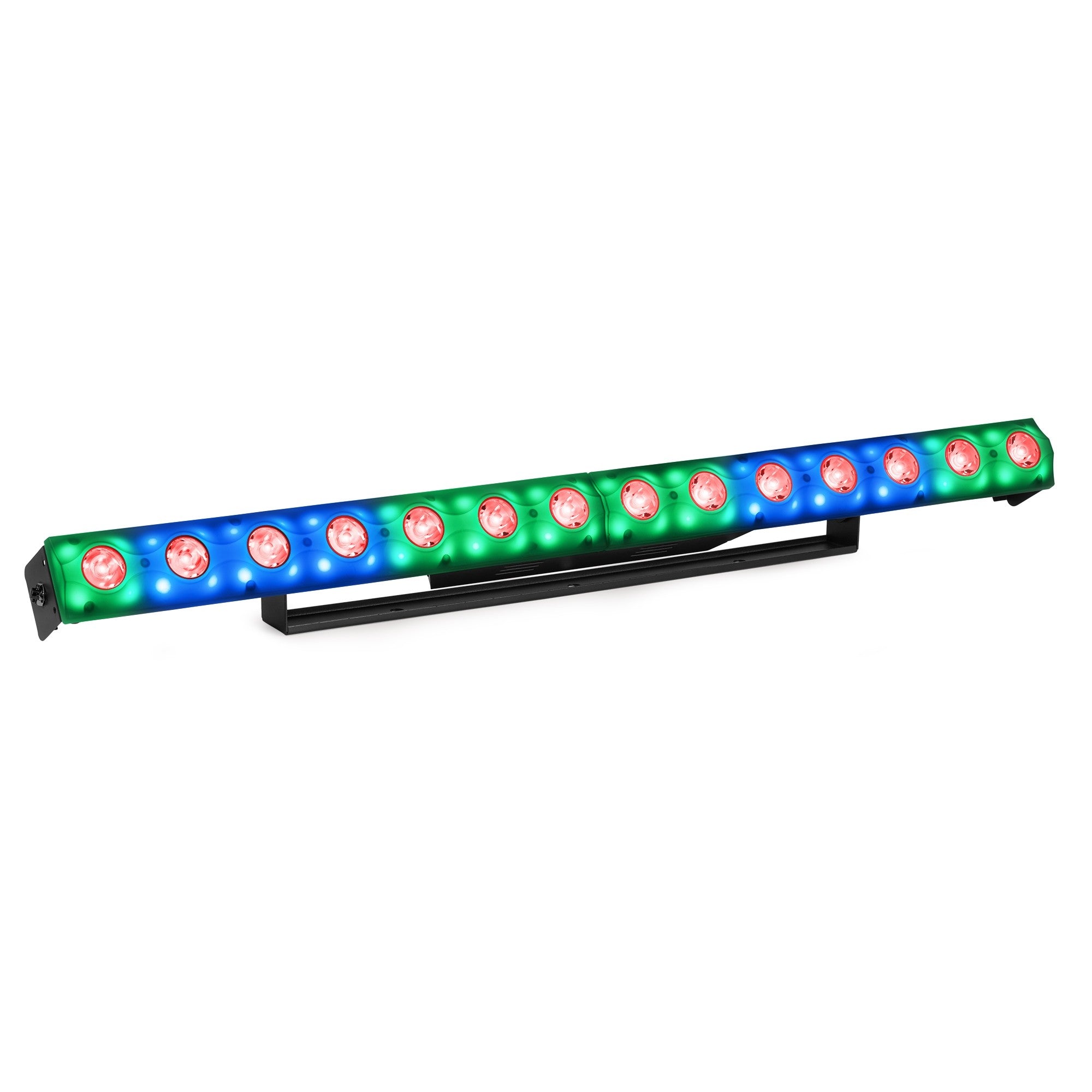

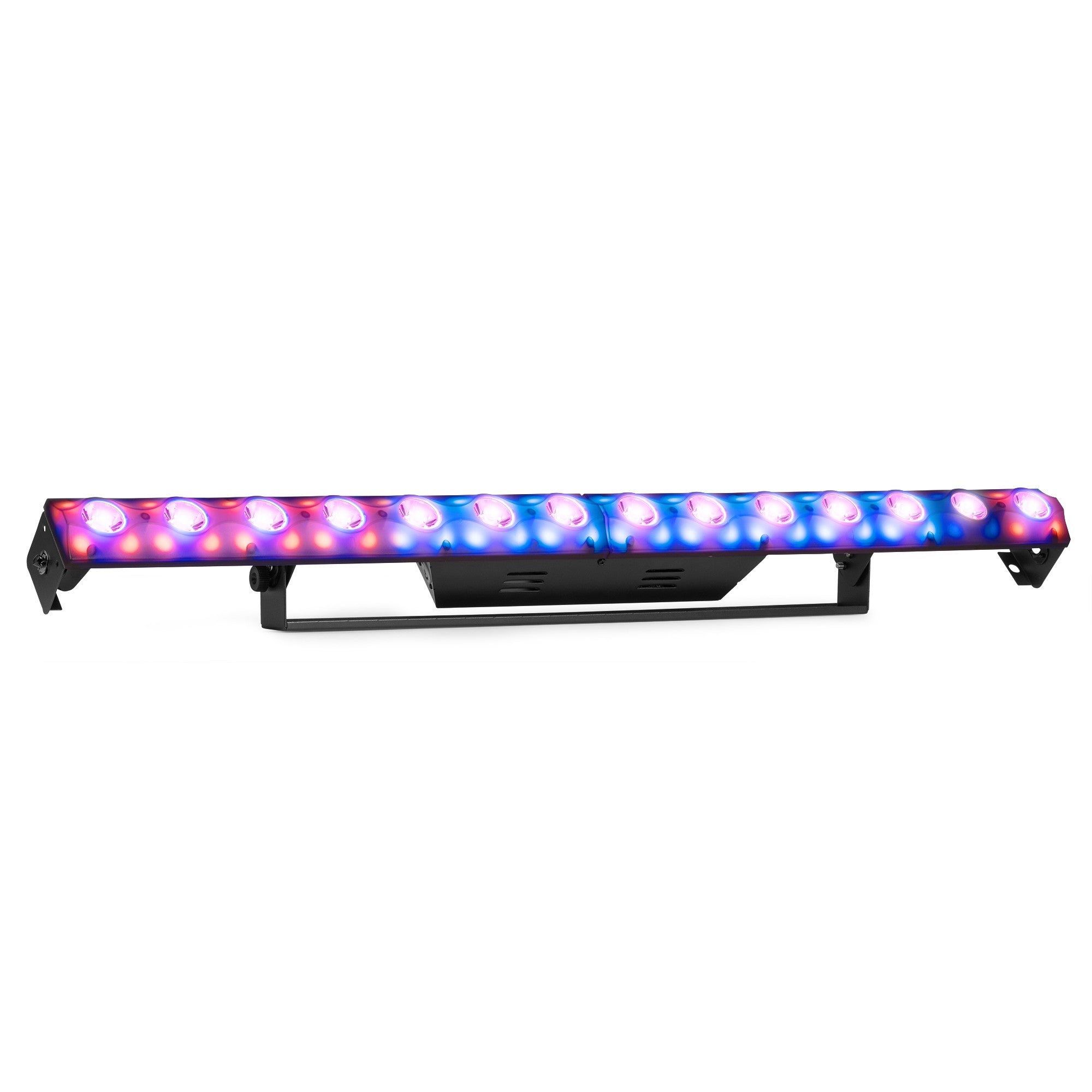

The LCB14C is a hybrid LED bar equipped with 14x 4W RGBW LEDs and 56x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects.
While using the fixture in stand-alone mode, there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket.
Features
- 14x 4W RGB LEDs for sharp 5° beams
- 56x SMD RGB LEDs (backlight)
- Single pixel control
- Built-in programs
- Silent operation

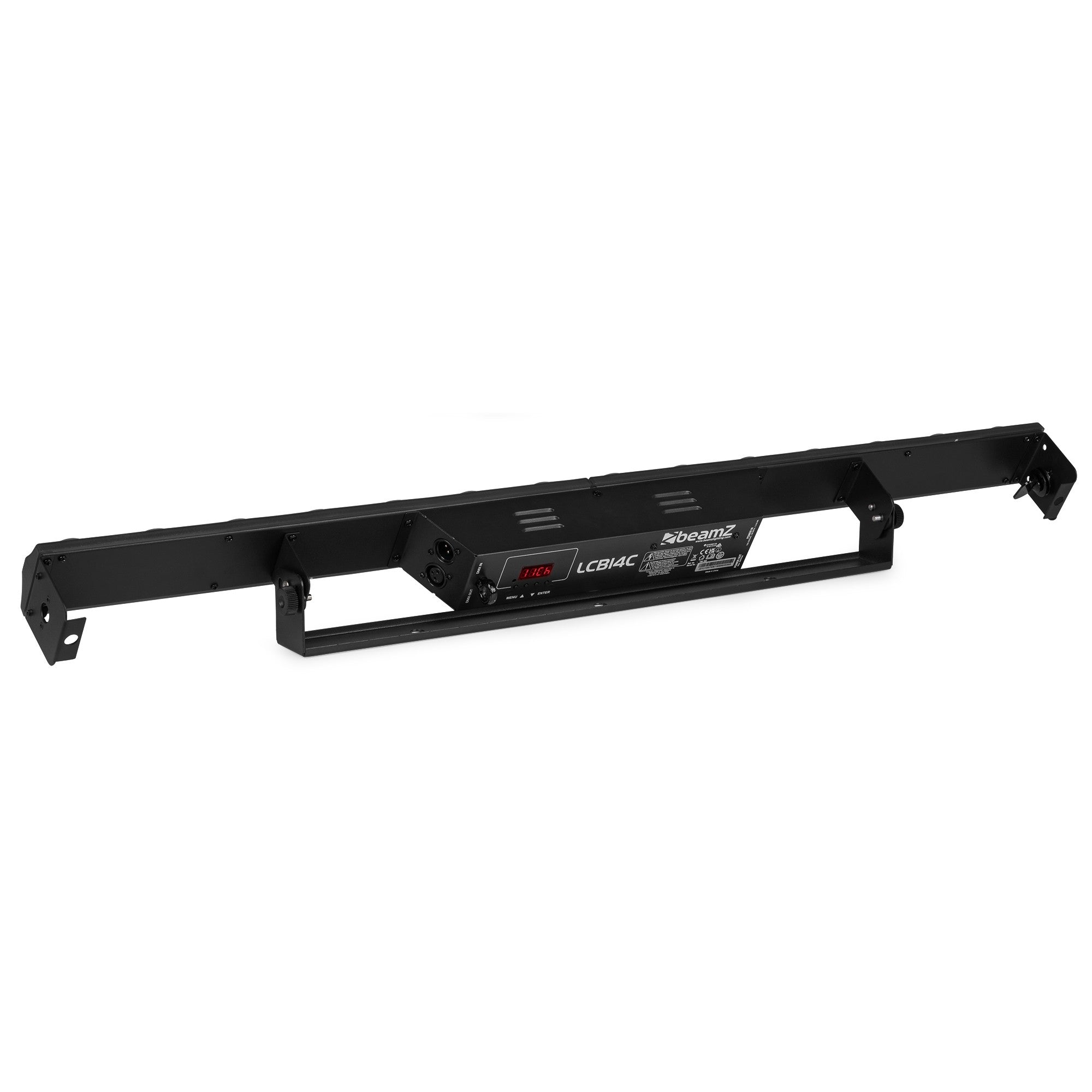

- Multifunctional bracket (floor and truss mounting)
- Electronic dimming: 0 - 100%

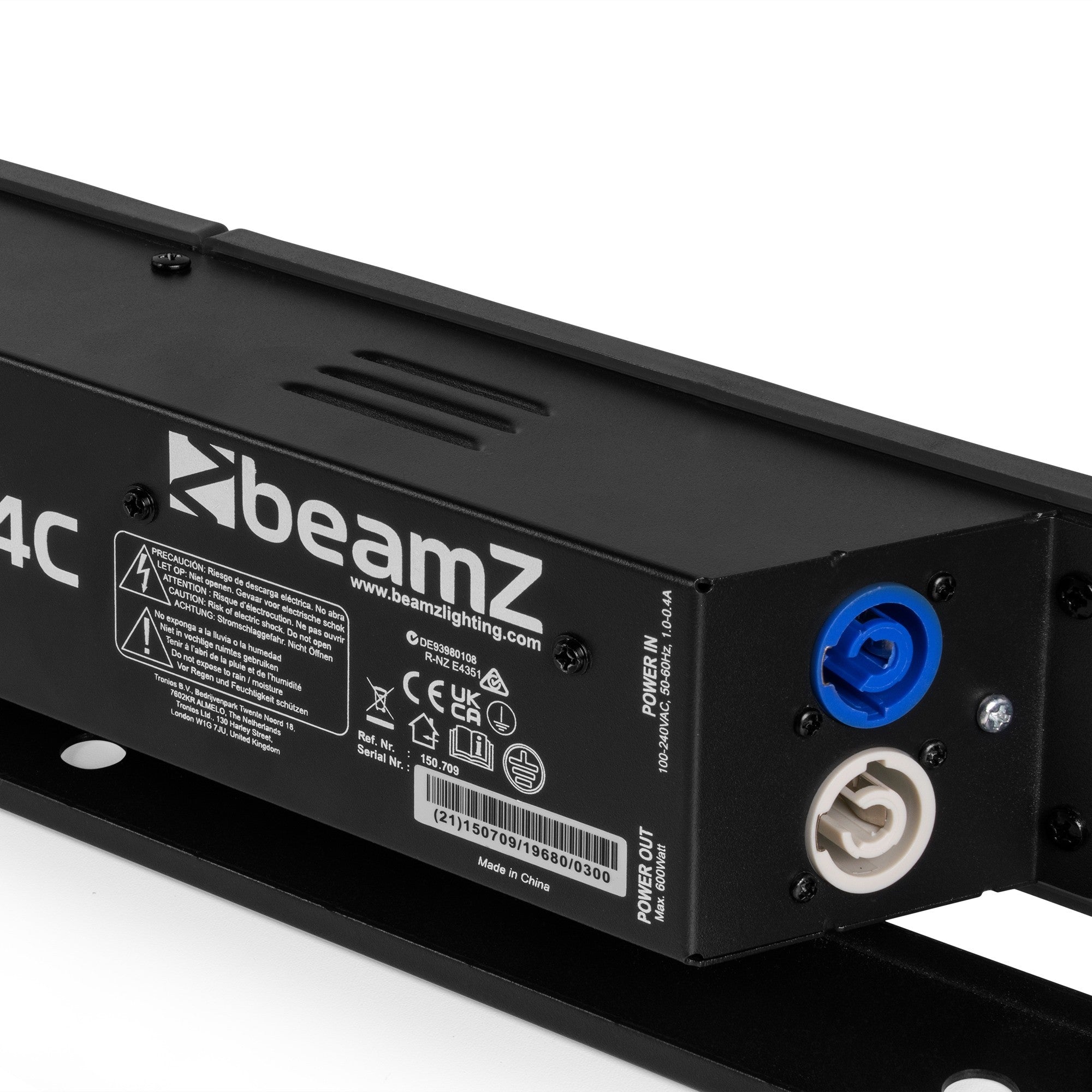

- Power Connector input/output
Specifications
| Brand | beamZ |
|---|---|
| Product colour | Black |
| Light source | 3-in-1 LED, 4-in-1 LED |
| Colours | Red, Green, Blue, White |
| LED power | 4W |
| Quantity of LEDs | 14 |
| LED power: Backlight | SMD |
| Quantity of backlight LEDs | 56 |
| Beam angle | 5° |
| Field angle | 10° |
| Illuminance | 8.294 lx @ 1m |
| Flash rate per second | 1 - 30Hz |
| Modes | Automatic programs, DMX |
| Sound to light mode | Yes |
| DMX channels | 8, 11, 32, 98 |

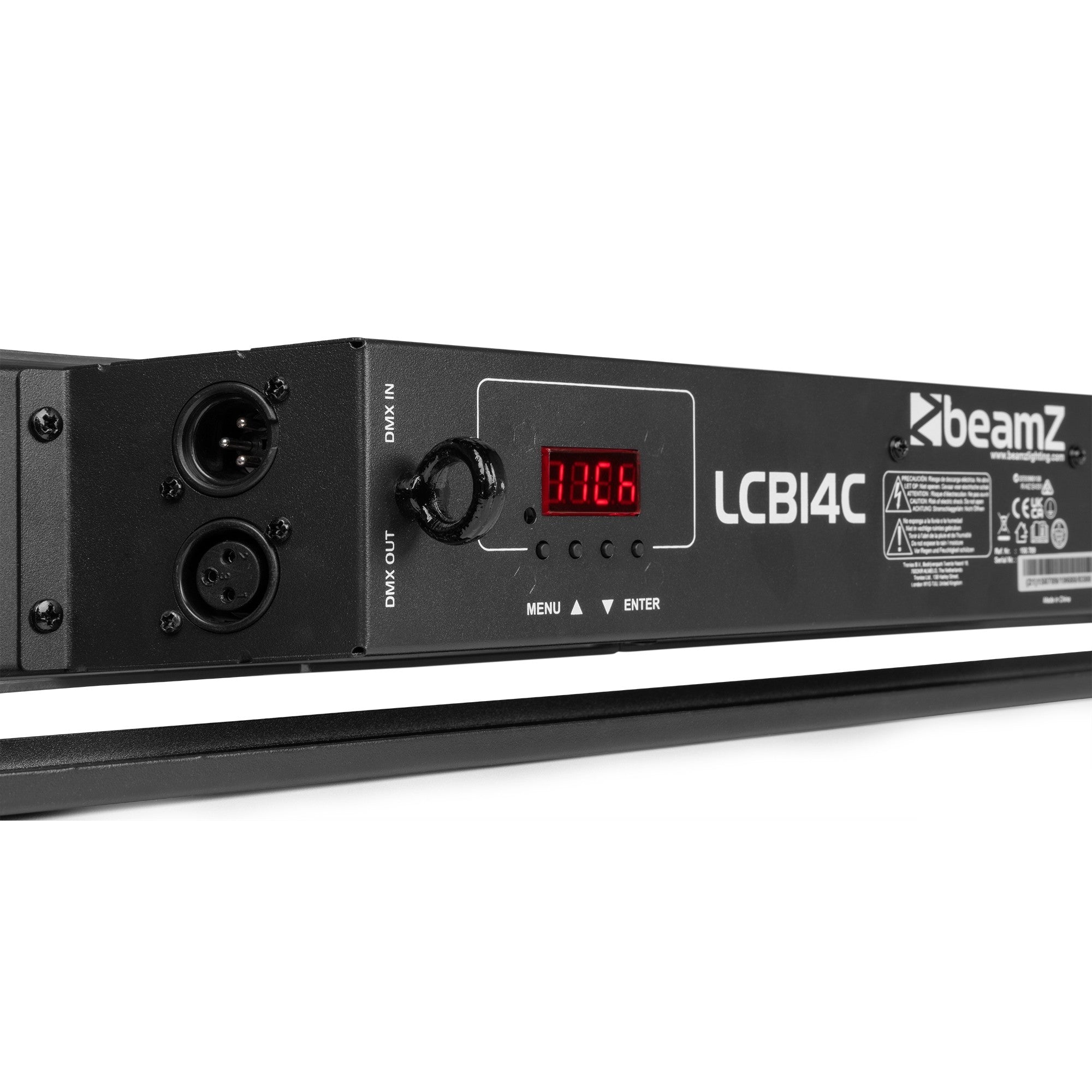

| DMX connection | 3-pin XLR |
| Daisy chain | Yes (max. 6 bars) |
| IP rating | IP20 |
| Cooling | Fan |
| Display | LED |
| Power plug | P-Con |
| Power consumption | 1.310 - 0.637A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 1000 x 70 x 120mm |
| Weight (kg) | 2.8 |
| Included accessories | Mounting bracket, Power cable |
