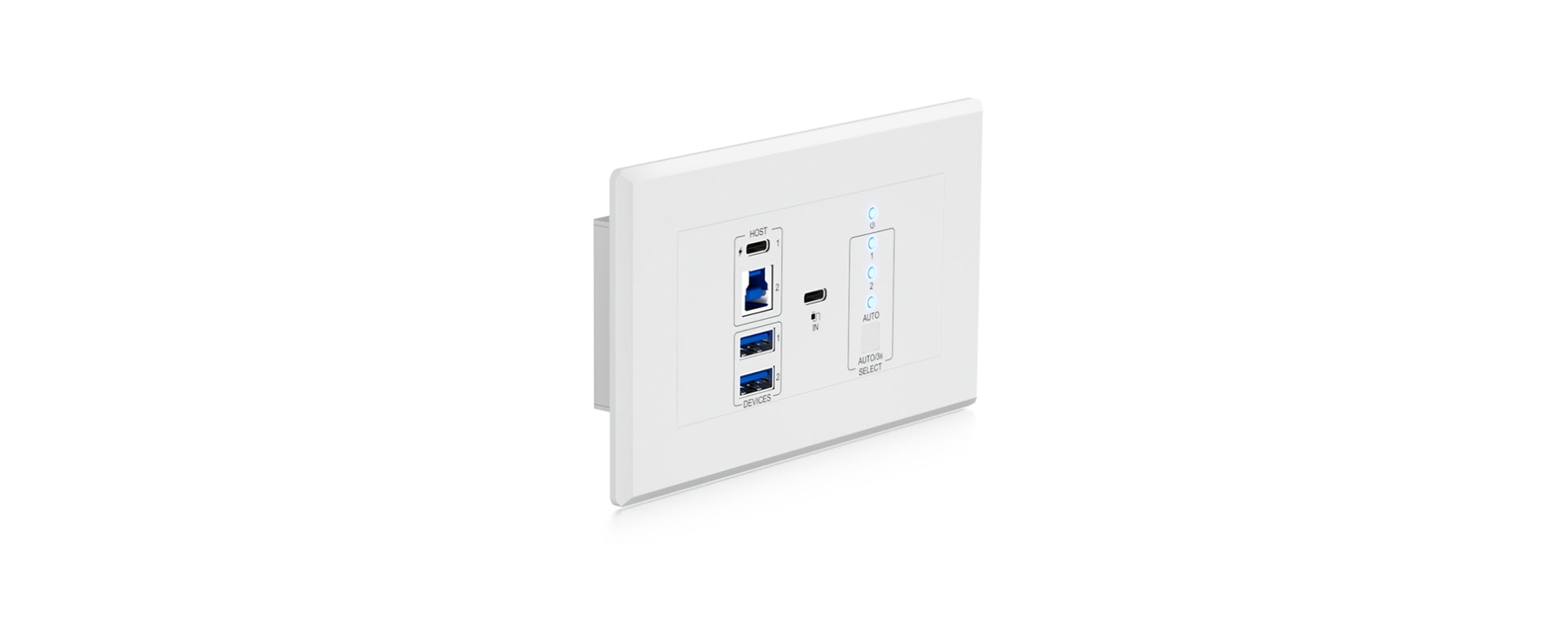

The UEX3H-WP-EU is a USB Host solution that utilises HDBaseT™ technology to allow for remote connectivity of USB 3.2 Gen1 Devices at distances of up to 100m / 330ft over a single CAT6A cable in a dual EU / UK wall plate format.

The UEX3H-WP-EU allows 2 x USB Hosts to be switched between the 2 x local USB Devices as well as the Devices connected to a remote compatible Blustream USB HDBaseT™ Transmitter (Device) extender, with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3H-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT™ link. The UEX3H supports both auto or manual Host selection, which can be controlled via the front panel button, or RS-232 from 3rd party control solutions.

The UEX3H-WP-EU is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices.

*Requires compatible Blustream USB 3.2 HDBaseT™ Device product

Key Features

• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB Host devices and 2 x local USB Devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 & 1.1 devices
• Combined USB3.2 Gen1 data transfer rate up to 5Gbps *

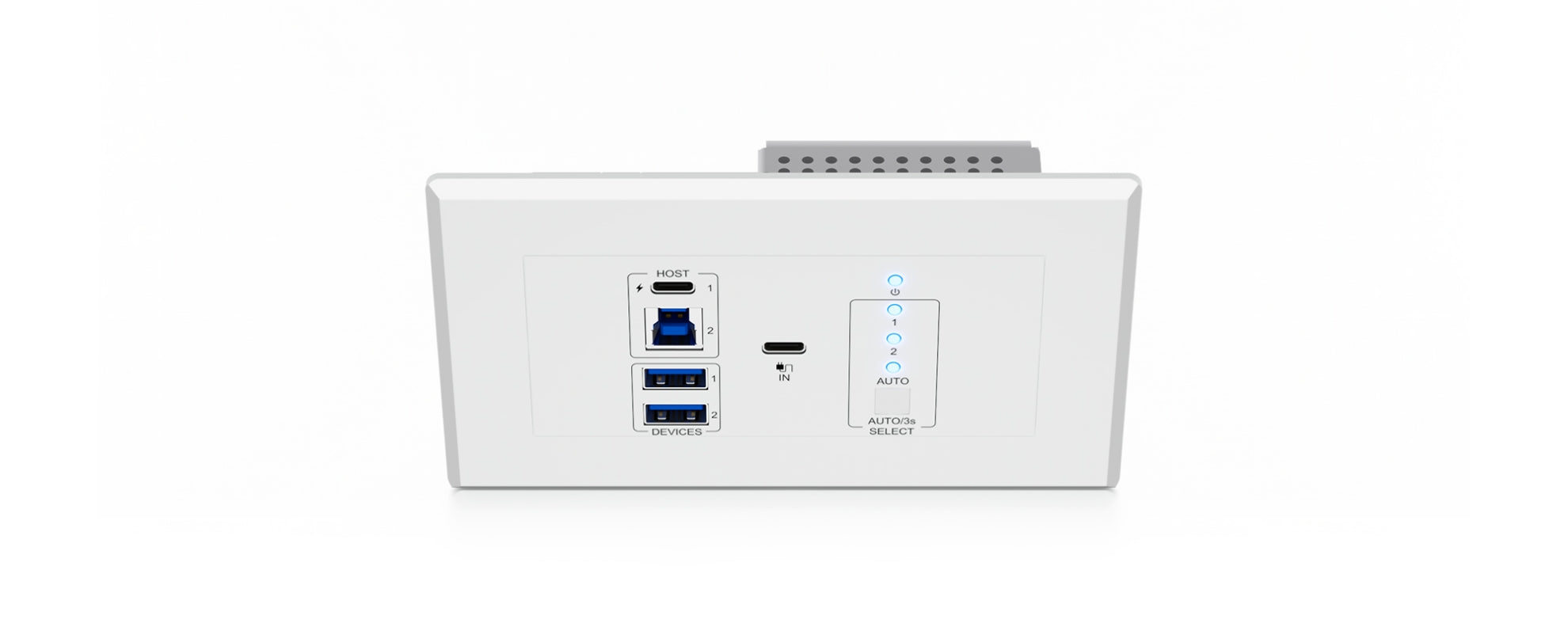

• 1 x USB-A & 1 x USB-C port for connection to host devices with manual or auto switching
• 2 x USB-A ports for connection to local devices
• 1 x USB-C host charging port for connection of external power supply to power host device
• Provides up to 500mA combined power to USB devices (up to 500mA per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the Device end of the link
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required

Compatible with Blustream UEX3D and UEX3D-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

Specifications

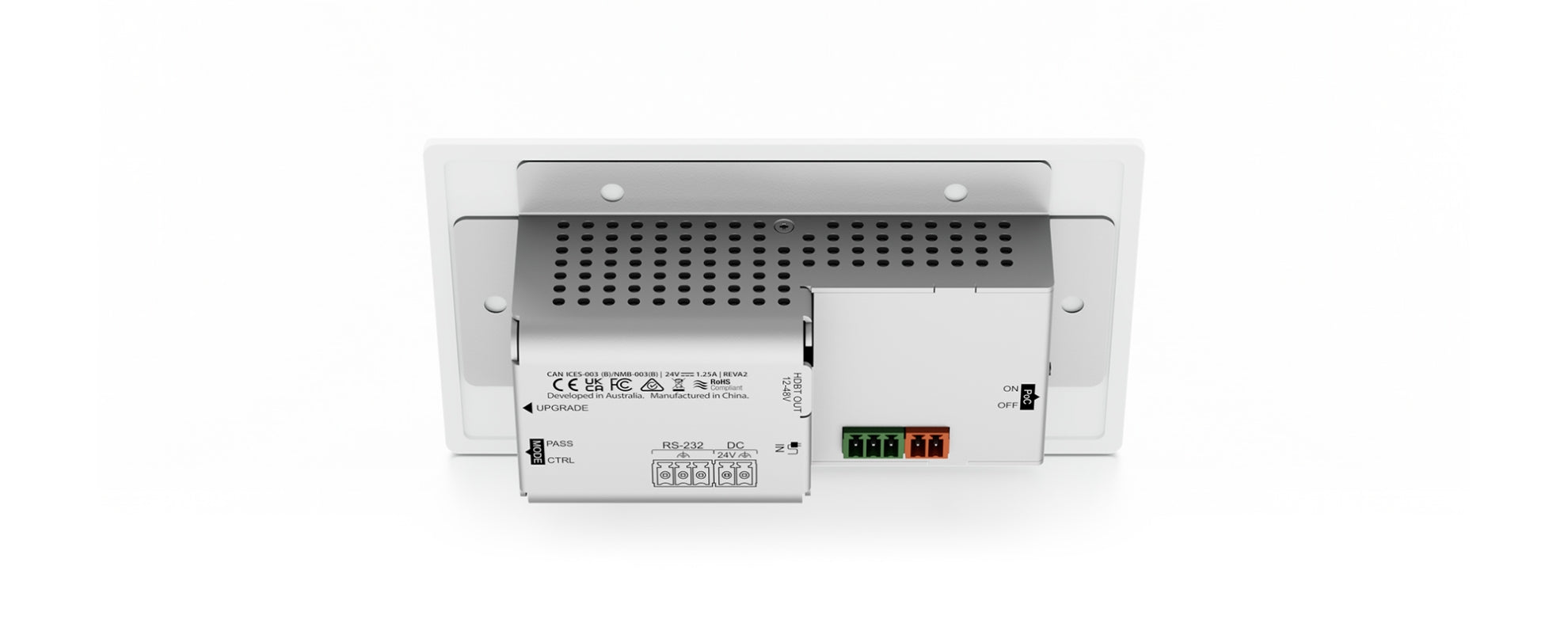

 • HDBaseT Connector: 1 x RJ45 connector
• USB Host Ports: 1 x USB Type C female, 1 x USB Type A female
• USB Device Ports: 2 x USB Type C female
• USB Hops: 1 x USB hop / tier for this unit (the Device end of the link will also count as a separate USB hop / tier)
• USB-C Charging Port: 1 x USB Type C female (provides charging for USB-C host)
• Local power input: 1 x 2-Pin Phoenix connector
• Firmware Upgrade: 1 x Micro-USB
• RS-232: 1 x 3-Pin Phoenix connector
• Power Supply: 24V/1.25A DC (PSU supplied with Device end of the link)
• Dimensions (W x H x D):  136mm x 76mm x 46mm (without faceplate)
• Faceplate Dimensions (W x H x D):  146mm x 86mm x 6mm (faceplate)
• Mounting hole spacing: UK 121mm CTC, EU 60mm CTC
• Backbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gang
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
