10-channel analogue mixer with 4 Mic/Line inputs, 2 stereo inputs, 2 AUX outputs and 2×2 USB audio interface.

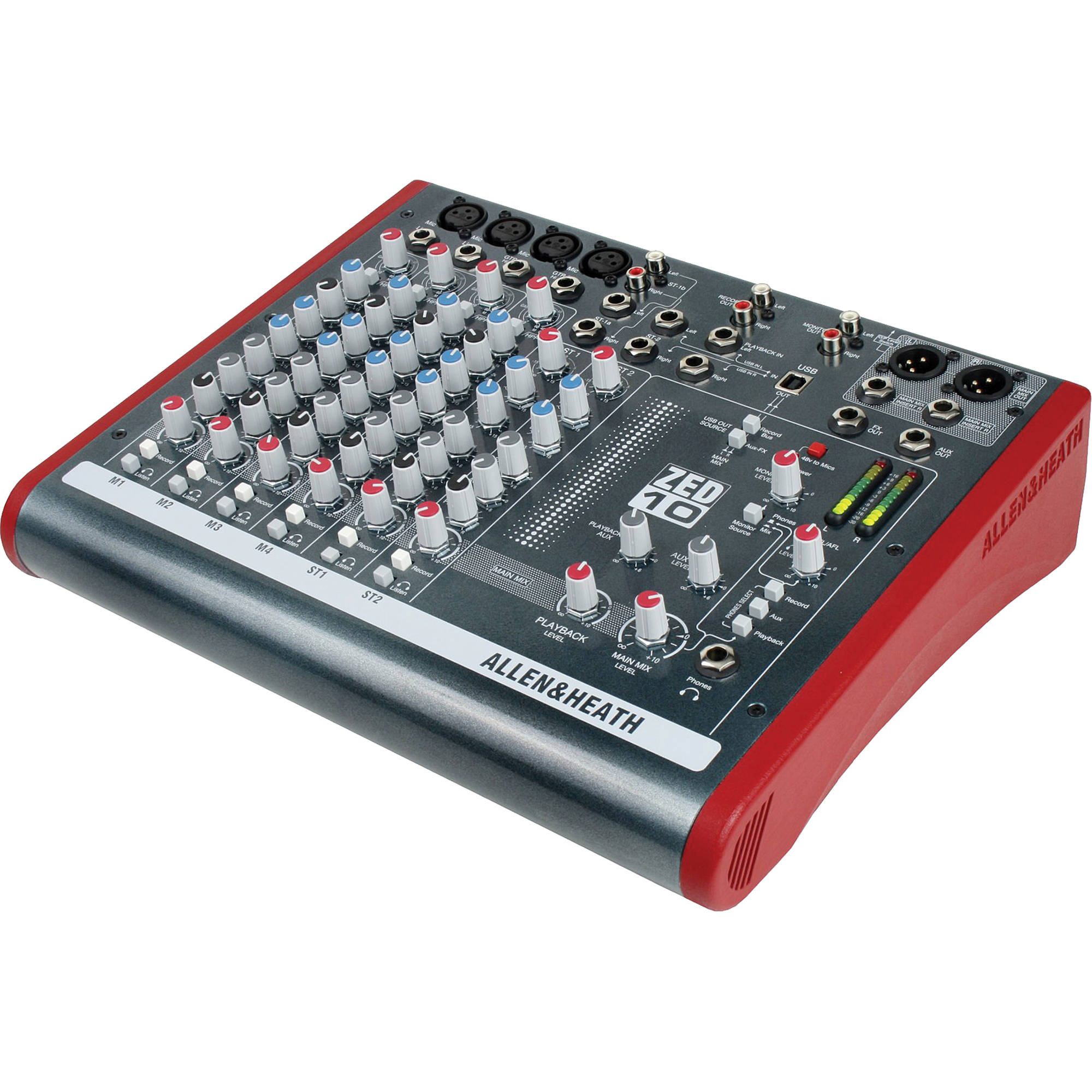

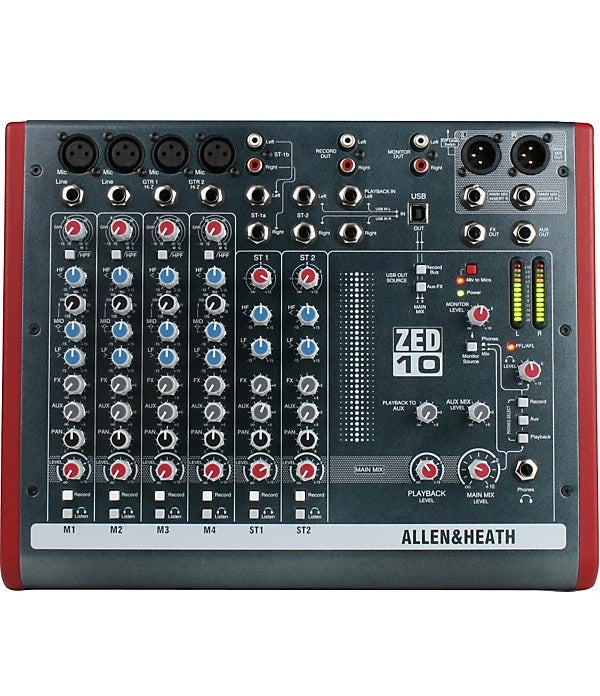

The Allen & Heath ZED-10 is a compact analogue mixer for live sound, rehearsals and recording, combining four Mic/Line inputs, two stereo inputs and a USB audio interface.
The four Mic/Line inputs use Allen & Heath preamp circuitry, while channels 3 and 4 also provide Hi-Z instrument inputs with dedicated high-impedance FET input circuitry. The mono channels feature 3-band EQ with sweepable mid frequency and a High-Pass filter, while the stereo channels feature 2-band EQ.
The ZED-10 provides a 2×2 USB audio interface with 16-bit resolution and 32, 44.1 or 48 kHz sample rate, as well as a separate Record Bus, 2-Track Return and Stereo Return. The main XLR outputs feature insert points, while 12-segment L/R LED meters provide precise signal monitoring.
Specifications
Inputs and channels
- Mic/Line inputs: 4
- Stereo inputs: 2
- Hi-Z instrument inputs: 2, on channels 3 and 4
- Mic/Line input connectors: XLR and 6.3 mm TRS Jack
- Stereo input connectors: 6.3 mm TRS Jack, with RCA also available on stereo input 1
- Preamps: 60 dB maximum gain range
- Phantom Power: 48 V
EQ and control
- EQ on mono channels: 3-band EQ with sweepable MID frequency
- EQ on stereo channels: 2-band EQ
- High-Pass filter: available on mono channels
- PFL/Listen: available
- AUX outputs: 2
- Main level control: rotary control
- Signal metering: 12-segment L/R LED meters
Connections and USB
- Main outputs: XLR L/R
- Main output inserts: 2 × 6.3 mm TRS Jack
- Headphone output: 6.3 mm Jack
- Monitor outputs: available
- Record outputs: stereo RCA
- 2-Track Return: stereo RCA
- Stereo Return: available
- USB audio interface: 2 inputs / 2 outputs
- USB resolution: 16-bit
- USB sample rate: 32, 44.1 or 48 kHz
Dimensions and data
- Dimensions: 95 × 336 × 275 mm
- Weight: 3.2 kg
- Power supply: integrated power supply
