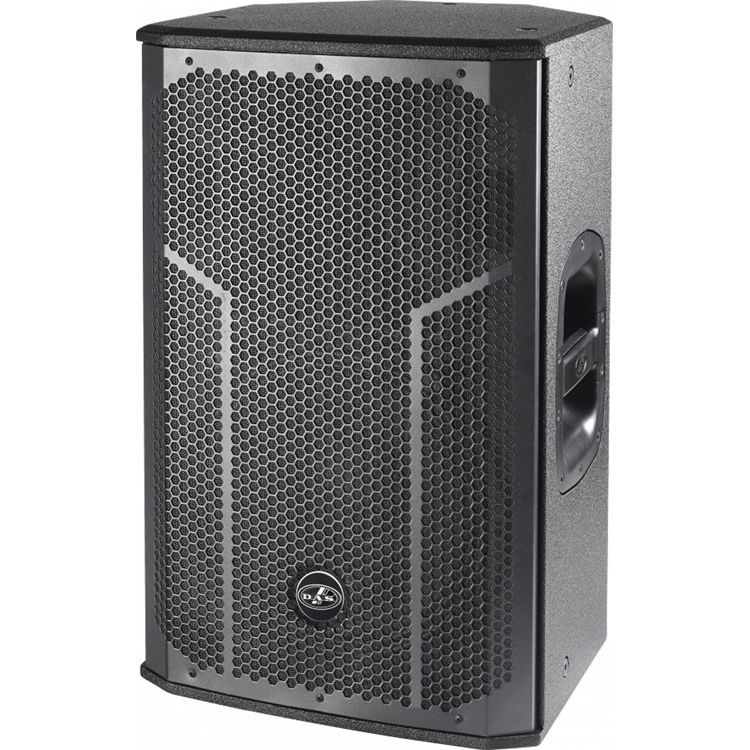

DAS Audio ACTION-512A powered loudspeaker

€769,00

€1.054,00€285,00 OFF

Tax included. Shipping calculated at checkout

Select quantity

Performance
Frequency Range (-10 dB)	50 Hz – 20 kHz
Horizontal Coverage (-6 dB)	90º
Vertical Coverage	60º
Maximum Peak SPL at 1 m	131 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	500 W
Nominal Amplifier Power (peak)	1000 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	1.95 V (+8 dBu)
Audio Signal Input Connector	2 x Female XLR
AUX Input	1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector	1 x Male XLR
Control	DAScontrol™
Current Draw 230 V / 115 V	1.1 A/2.2 A
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	Black
Dimensions ( H x W x D )	620 x 385 x 380 mm 24,4 x 15,2 x 15,0 in
Net Weight	20,0 kg ( 44,1 lb )
Components
LF Driver	12MI4
HF Driver	M-34
Horn/Waveguide	BC-916
Shipping
Carton Dimensions ( H x W x D )	690 x 435 x 435 mm 27,2 x 17,1 x 17,1 in
Shipping Weight	22,5 kg ( 49,6 lb )
