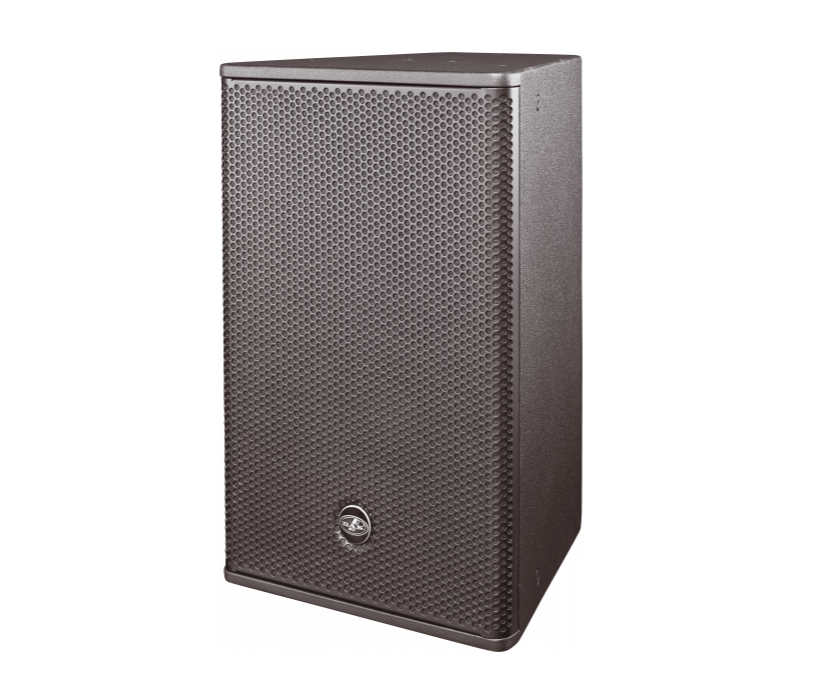

DAS Audio ARTEC-312.64 passive loudspeaker

€859,00

Tax included. Shipping calculated at checkout

Select quantity

Performance
Frequency Range (-10 dB)	50 Hz – 20 kHz
Horizontal Coverage (-6 dB)	60º
Vertical Coverage	40º
Nominal Impedance	8 ohms
RMS Power Handling	300 W
Peak Power Handling	1200 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	127 dB
Recommended Amplifier	INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor	INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004

Connectors
Audio Input Connector	Covered Barrier Strip Terminals
Audio Output Connector	Covered Barrier Strip Terminals
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	Black
Depth	375 mm (14,8 in)
Dimensions ( H x W x D )	615 x 385 x 375 mm 24,2 x 15,2 x 14,8 in
Net Weight	18,5 kg ( 40,8 lb )
Components
LF Driver	12MI
HF Driver	M-34
Horn/Waveguide	BC-614
Shipping
Carton Dimensions ( H x W x D )	710 x 450 x 450 mm 28,0 x 17,7 x 17,7 in
Shipping Weight	20,4 kg ( 44,9 lb )

€859,00
