| Performance | |
| Frequency Range (-10 dB) | 37 Hz – 300 Hz |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 134 dB |
| Recommended Amplifier | PA-2700 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP54 |
| Depth | 690 mm (27,2 in) |
| Dimensions ( H x W x D ) | 365 x 700 x 690 mm 14,4 x 27,6 x 27,2 in |
| Net Weight | 48,5 kg ( 106,9 lb ) |
| Components | |

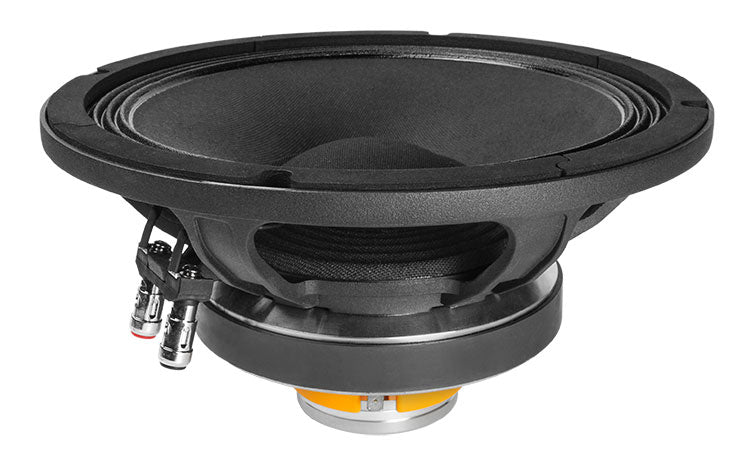

| LF Driver | 12P |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 470 x 800 x 740 mm 18,5 x 31,5 x 29,1 in |
| Shipping Weight | 52,5 kg ( 115,7 lb ) |
