FEATURES
480W Full Spectrum RGBMA LED Engine
Up to 15,000 Total Lumen Fixture Output @ 6,500K
CRI up to 92
Internal 4-Blade Framing Module
Variable Frost and Iris for advanced beam control
Wide Zoom Range from 9° to 60°
Variable 16-bit Dimming Curve Modes
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
SPECIFICATIONS
SOURCE
480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
15,000 Total Lumen Fixture Output
CRI 92
Zoom Range 9° - 60°
Beam Angle 8.2° - 50.3°
Field Angle 13° - 62.4°
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60 Index
Variable Frost Filter
Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 270°
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 29 / 47) (CMY 27 / 43)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

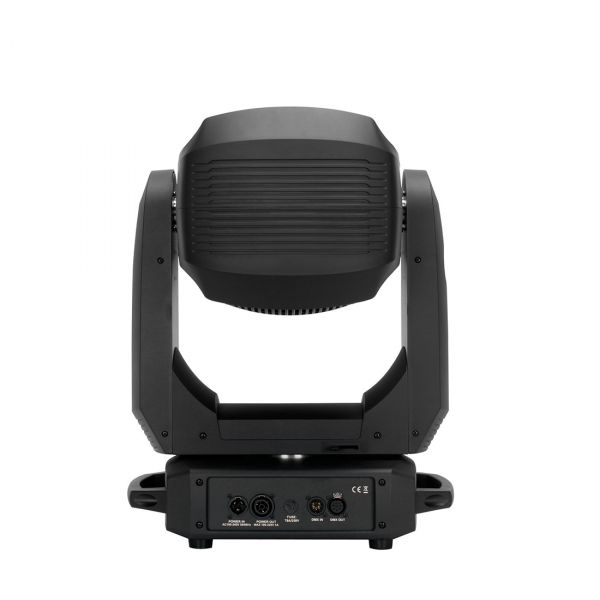

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 408mm (16.06")
Width: 256mm (10.08")
Vertical Height: 679mm (26.74")
Weight: 28.1kg (62 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 631W
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2151.71
