FEATURES

280W RGBMA LED Engine
ColourTune Technology Software Integration
11,000 Total Fixture Lumen Output
Field replaceable lenses
Stand-Alone control with one Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
7.5" Gel Frame and four lenses (11°, 22°, 30°, 52°) included

SPECIFICATIONS

SOURCE

280W 6500K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

11.000 Total Lumen Output
CRI 92
TLCI 95

INCLUDED LENSES

VNSP (11°)
NSP (22°)
MFL (30°)
WFL (52°)

EFFECTS

Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

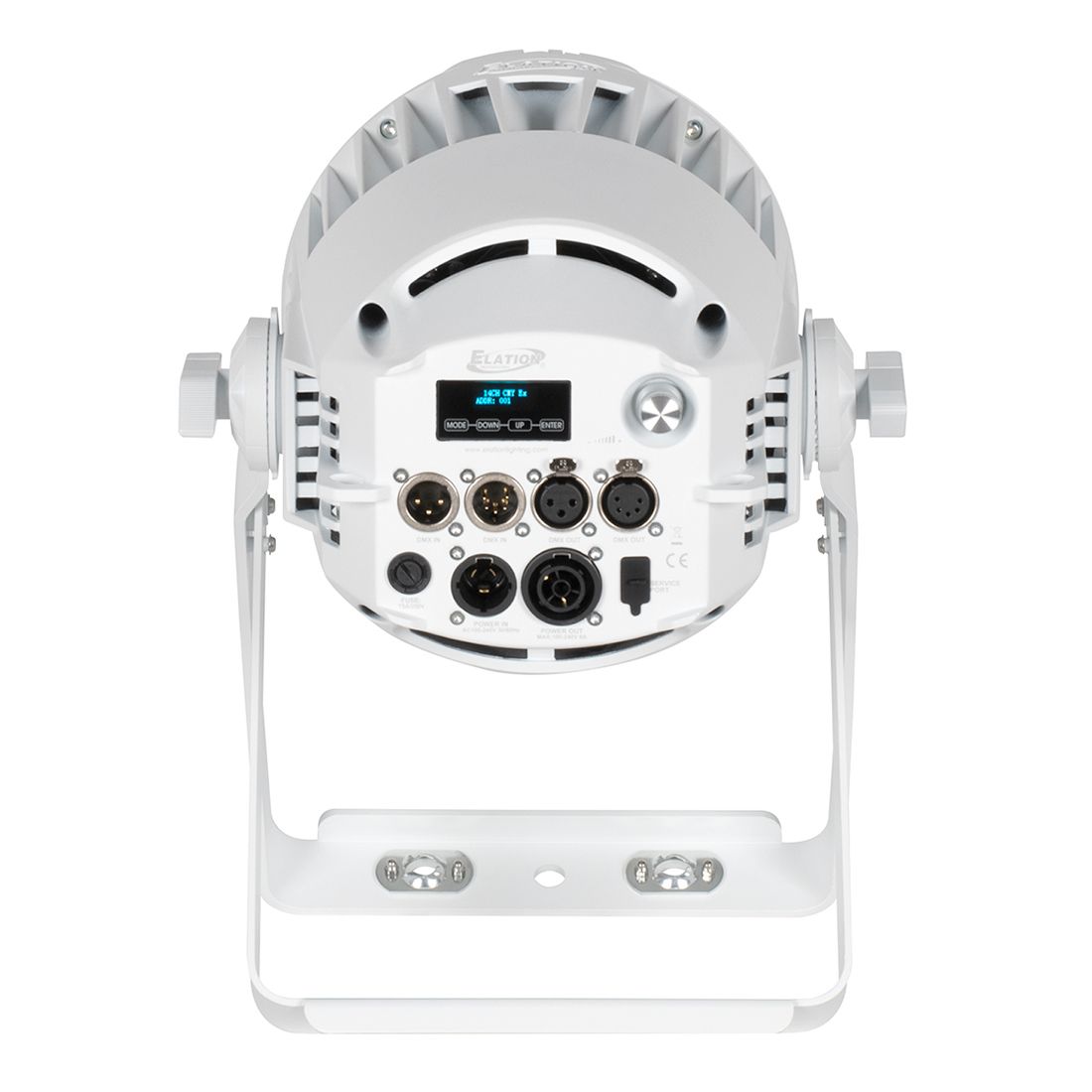

CONTROL / CONNECTIONS

8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer and Color
Single Rotary Dial
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 354mm (13.94")
Width: 304mm (11.97”)
Vertical Height: 380.0mm (14.96”)
Weight: 7.25kg (15.98 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
284W Max Power Consumption
Power Thru Capacity: 3 units @115V, 6 units @240V
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 891.76

INCLUDED ITEMS

7.5" Gel Frame
4x Lenses (11°, 22°, 30°, 52°)
IP65 Locking Power Cable

OPTIONAL ITEMS

7.5" Barndoors
XWFL (92°) Lens
23° Glass Lens
