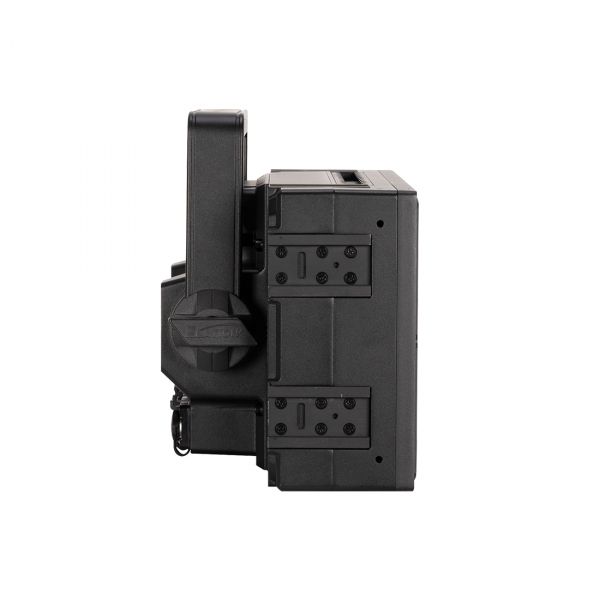

RGB & CW Strobe Panel IP65
FEATURES
(1152) 1.5W RGB LED's in 24 Zones
(432) 5W CW Strobe LED's in 48 Zones
(96) 1.5W RGB StrobeLine LED's in 12 Zones
Art-Net, sACN and KlingNet Support
IP65 Rated
SOURCE
(1248) 1.5W RGB LEDs
(432) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
Integrating Sphere
All LED: 77,919 Lumens
CW LED:110,709 Lumens
RGB LED: 49,868 Lumens
CRI: >70
Beam Angle: 68°
Field Angle: 112°
EFFECTS
24 Zones of RGB Plate LEDs (6 x 4)
48 Zones of CW Strobe LEDs (12 x 4)
12 Zones of RGB StrobeLine LED's (12 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves
COLOR
RGB Color Array
CONTROL / CONNECTIONS
9 DMX Channel Modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
IP65 Locking Power Cable In
SIZE / WEIGHT
Length:299.3 mm (11.78”)
Width: 420 mm (16.53”)
Height: 210 mm (8.26”)
Weight: 13.4kg (39.5 lbs)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 1400W
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 4774
INCLUDED ITEMS
Safety Cable
IP65 Locking Power Cable
Interconnect Key
FIRMWARE UPDATES
Current firmware can be found here (login required)
