FEATURES

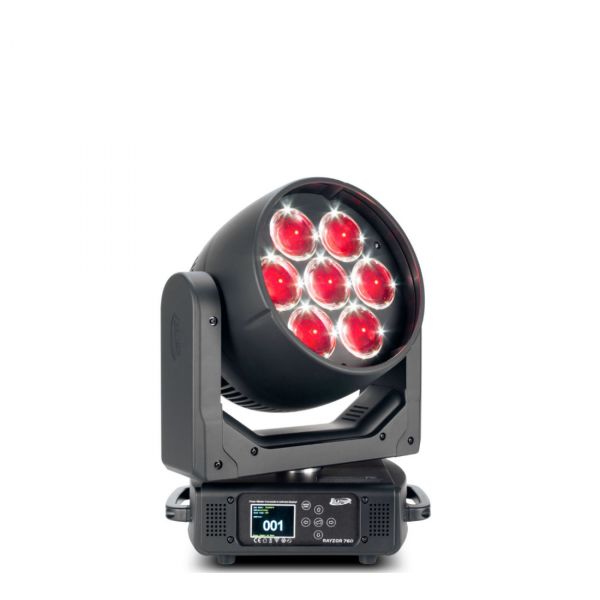

LED Wash Effects Fixture
7x 60W OSRAM RGBW LED with Pixel Control
28x 2W SparkLED™ Effect with Pixel Control (patent pending)
Extreme Zoom – 5° for Mid-Air Beam to 77° for Even Washes
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Fast and Precise 360° Continuous Pan and Tilt Rotation
*Lamp Life may vary depending on several factors including but not limited to:Beam FX and Smooth Wash Fixture in a Compact Housing
50,000 Hour Average LED Life*SOURCE
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED™Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
8,400 Total Lumen Output
CRI 80
Zoom Range 5° - 77°
Beam Angle 5.4° - 57.3°
Field Angle 7.4° - 73.3°
CRI 80
Zoom Range 5° - 77°
Beam Angle 5.4° - 57.3°
Field Angle 7.4° - 73.3°
EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2,700 - 8,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 270°/360°
Tilt Angle: 270°/360°
CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80)
360° Continuous Pan and Tilt Movement
900 - 25,000 Hz DMX Adjustable Refresh Rate
6 Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-NET, and sACN Protocol Support
5pin XLR DMX In/Out
RJ45 Ethernet In/Out
Locking Power Cable In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 340.4mm (13.4”)
Width: 218.0mm (8.58”)
Vertical Height: 423.4mm (16.67”)
Weight: 12.2 kg (27 lbs.)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
700W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2216.5
BTU/hr (+/- 10%) 2216.5
