15″ active coaxial PA system with 1500 W RMS power, 135 dB maximum SPL, Bluetooth 5.1, SysCore DSP and rotatable horn with 90° × 50° dispersion.

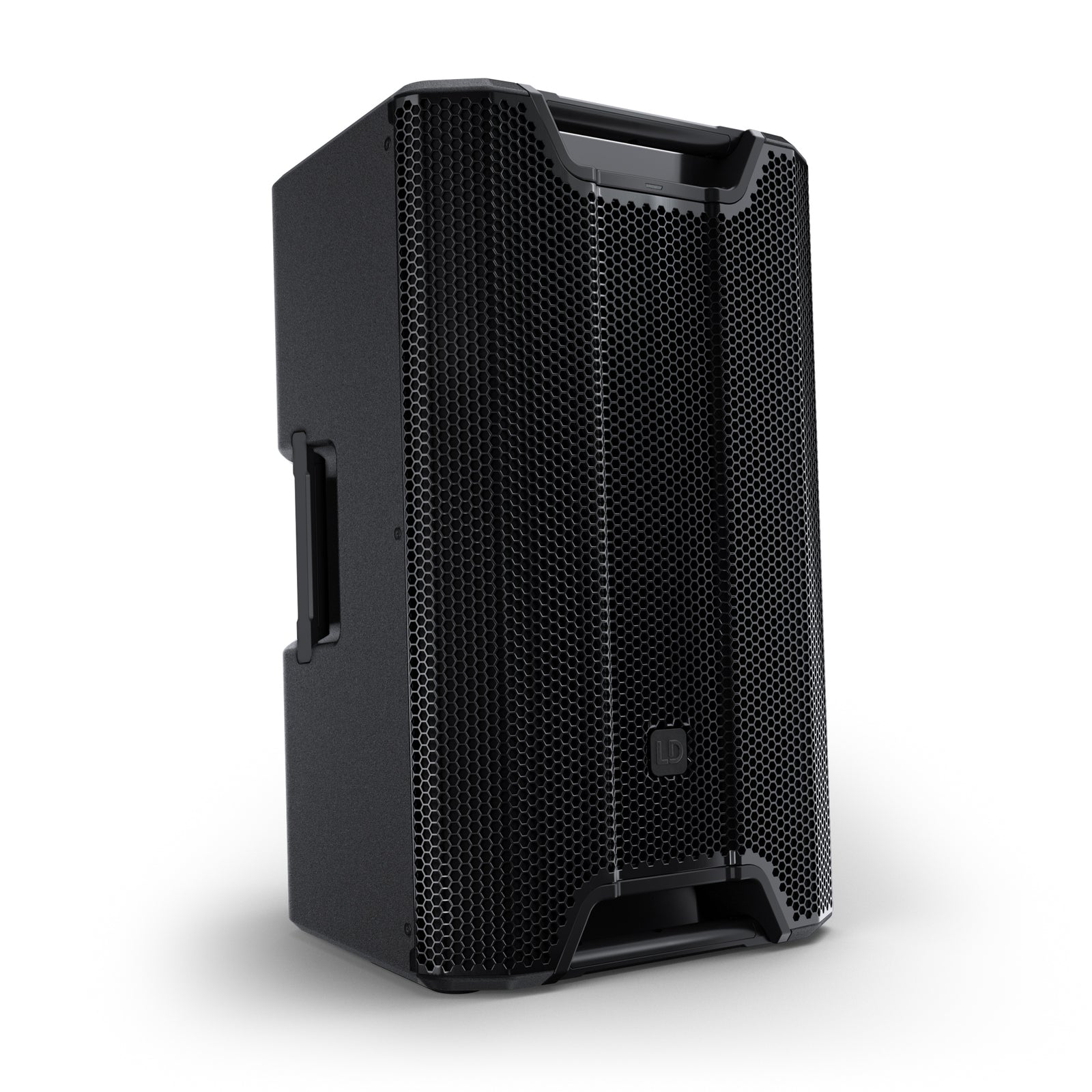

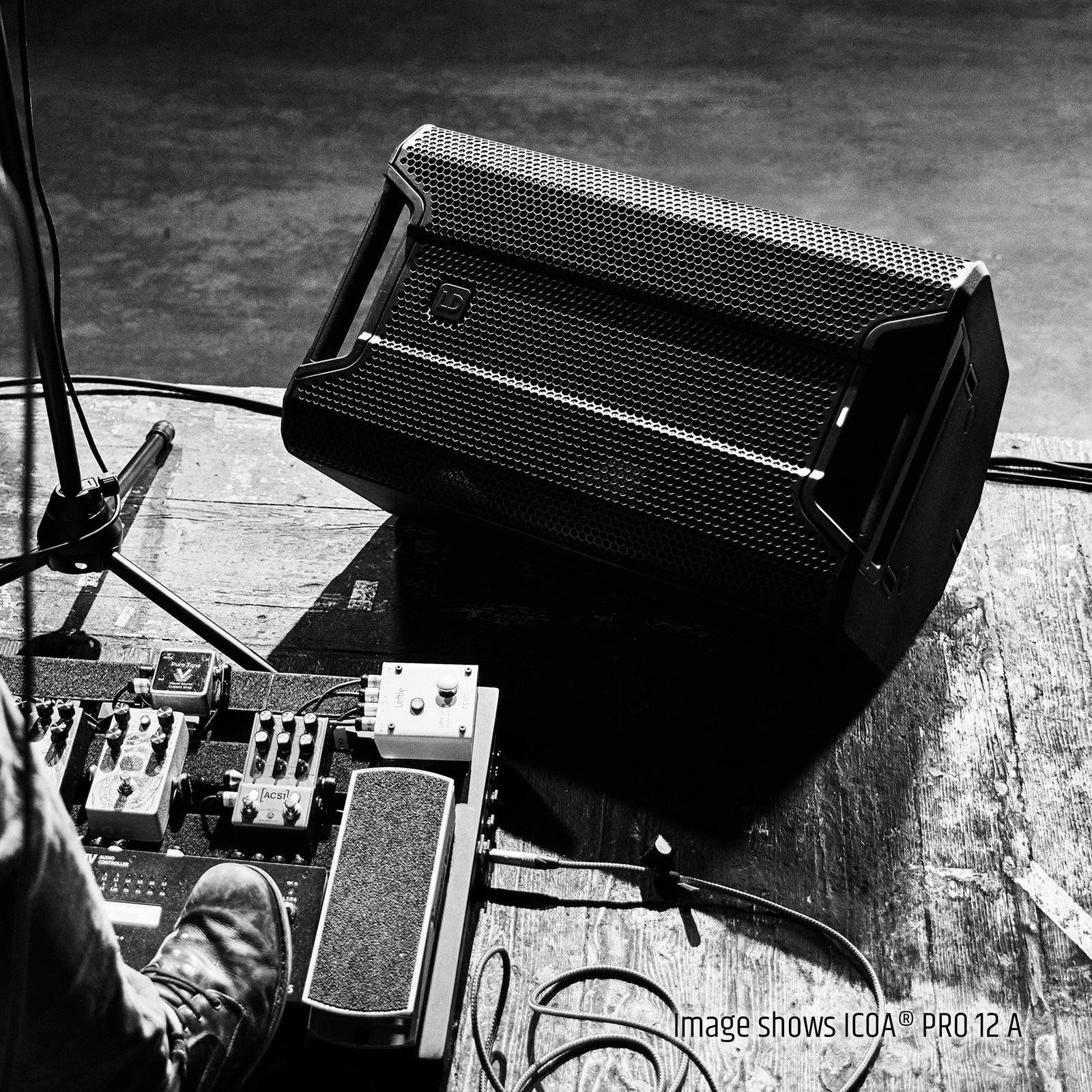

The LD Systems ICOA PRO 15 A is a powerful 2-way active coaxial PA system designed for full-range, satellite and stage monitor applications as well as permanent installations. Its 15″ woofer, 3″ voice coil and 3″ titanium high-frequency driver form a coaxial Common Motor Design system with a precise point-source character.

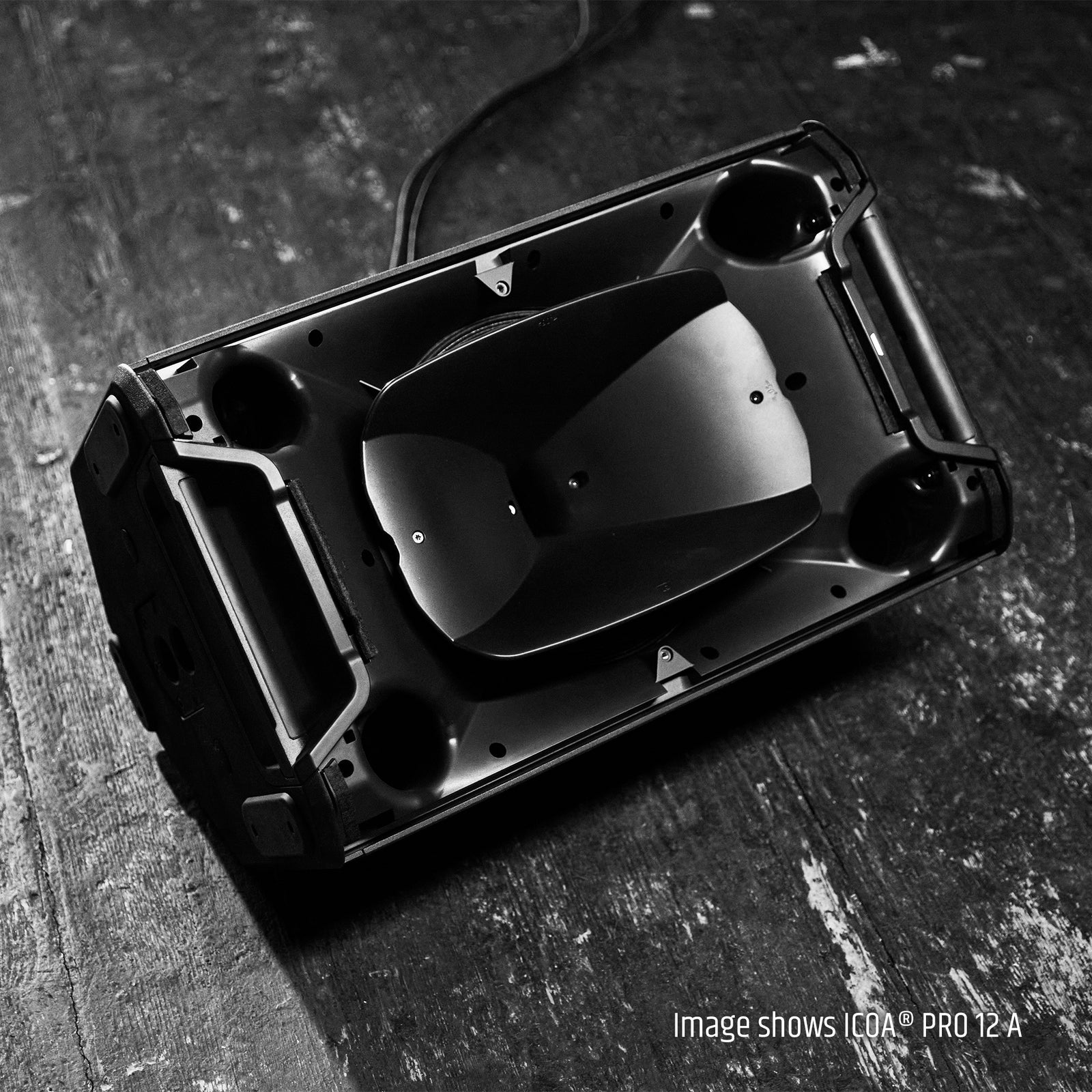

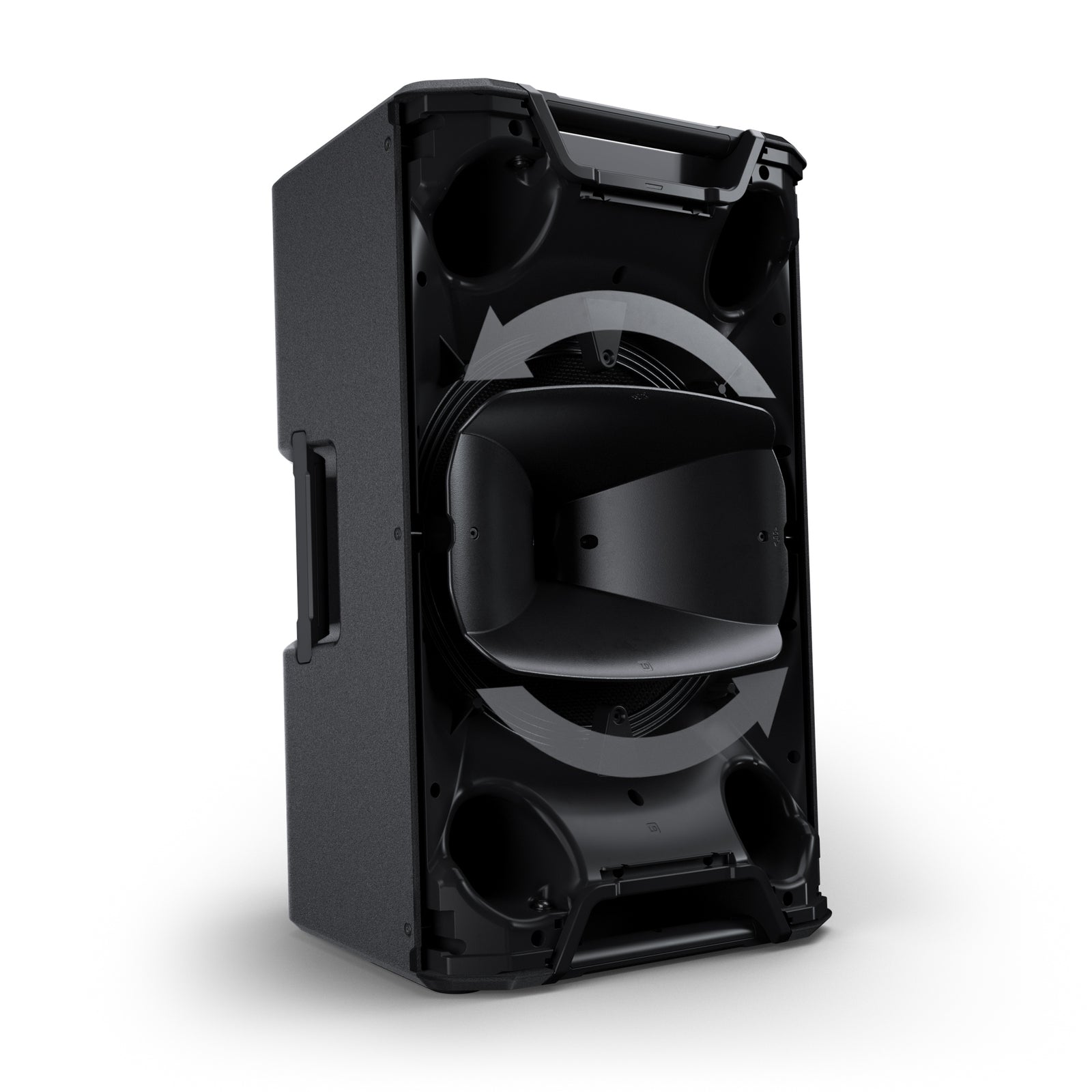

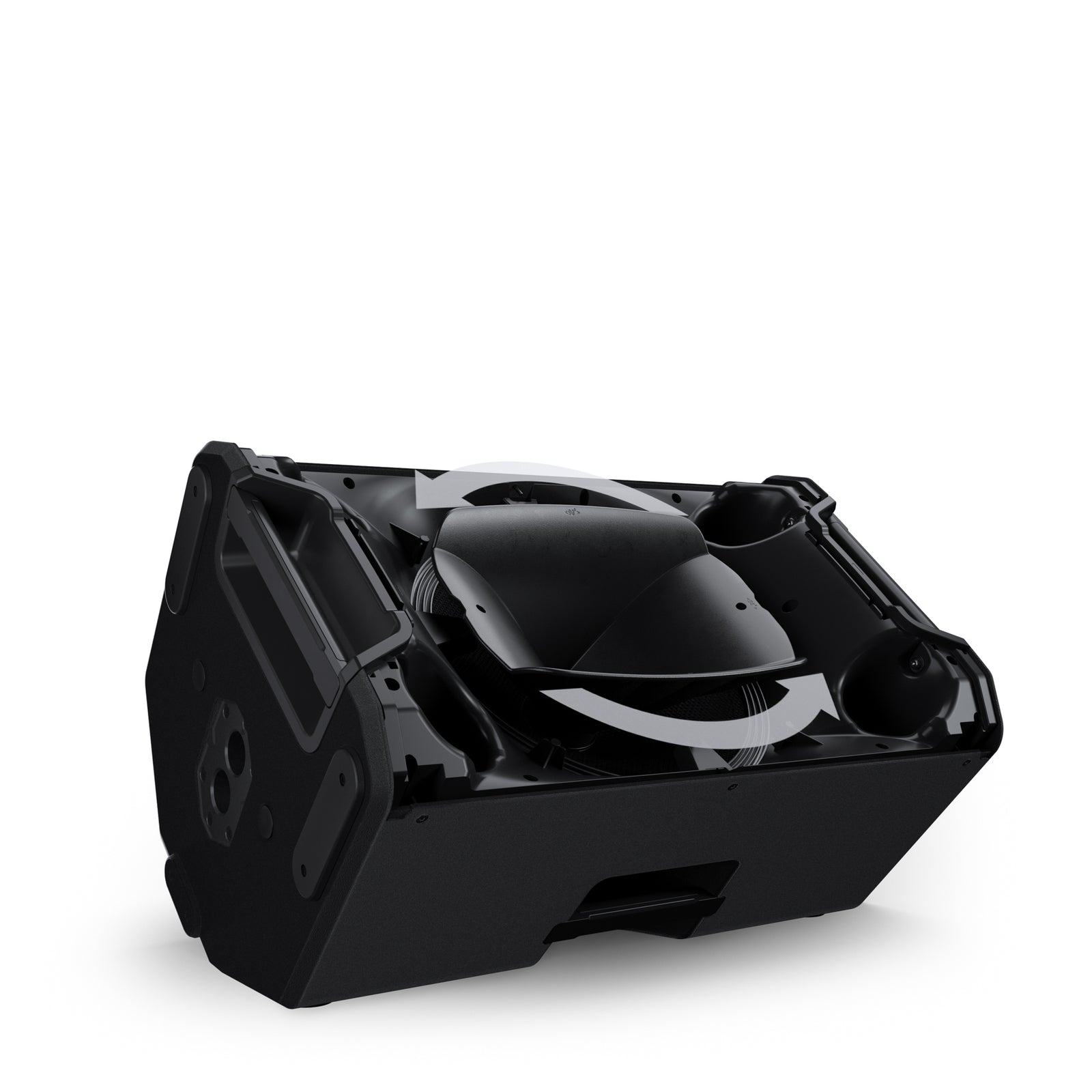

The rotatable, BEM-optimised CD horn provides 90° × 50° dispersion, while the flow-optimised bass reflex ports enhance low-frequency performance. The integrated SysCore DSP with FIR/IIR filters, crossover, 4-band parametric EQ, four application presets and delay function allows the system to be adapted to different applications.
The system delivers 1500 W RMS / 3000 W peak power and up to 135 dB maximum SPL. Two Mic/Line input channels with individual gain control, a mono mix output, Bluetooth 5.1 with TWS and a free control app provide flexible signal routing and wireless control.
Acoustic System
- Type: 2-way active coaxial system, Common Motor Design
- Woofer: 15″, 3″ voice coil
- High-frequency driver: 3″ titanium
- Crossover frequency: 800 Hz
- Dispersion: 90° horizontal × 50° vertical
- Frequency response: 50 Hz-20 kHz (-10 dB)
- Max. SPL: 135 dB

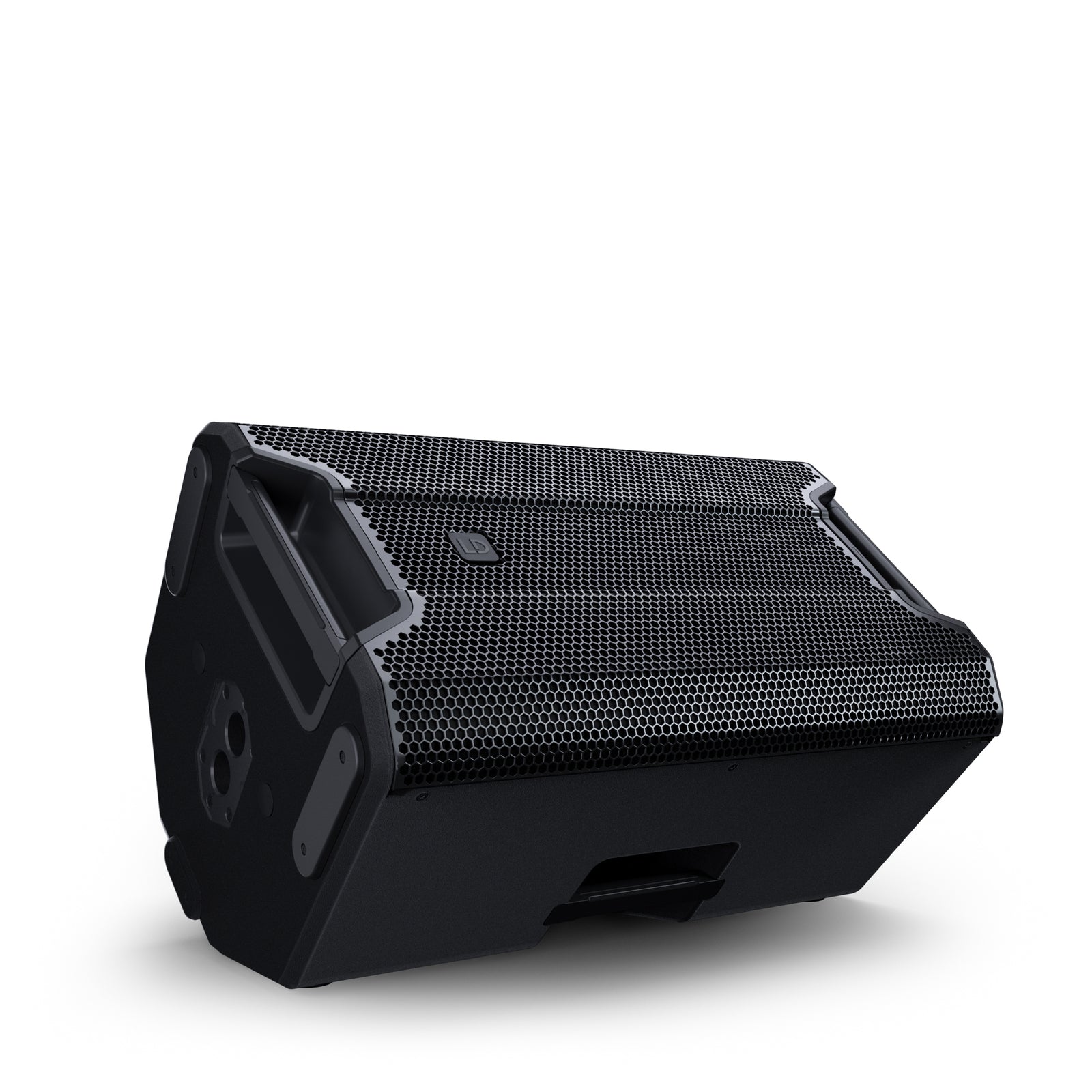

- Monitor angle: 50°
Amplifier
- Amplifier class: Class D
- RMS power: 1500 W
- Peak power: 3000 W
DSP and Control
- DSP: SysCore with FIR/IIR filters and crossover
- Parametric EQ: 4 bands
- Application presets: 4
- Delay: Yes

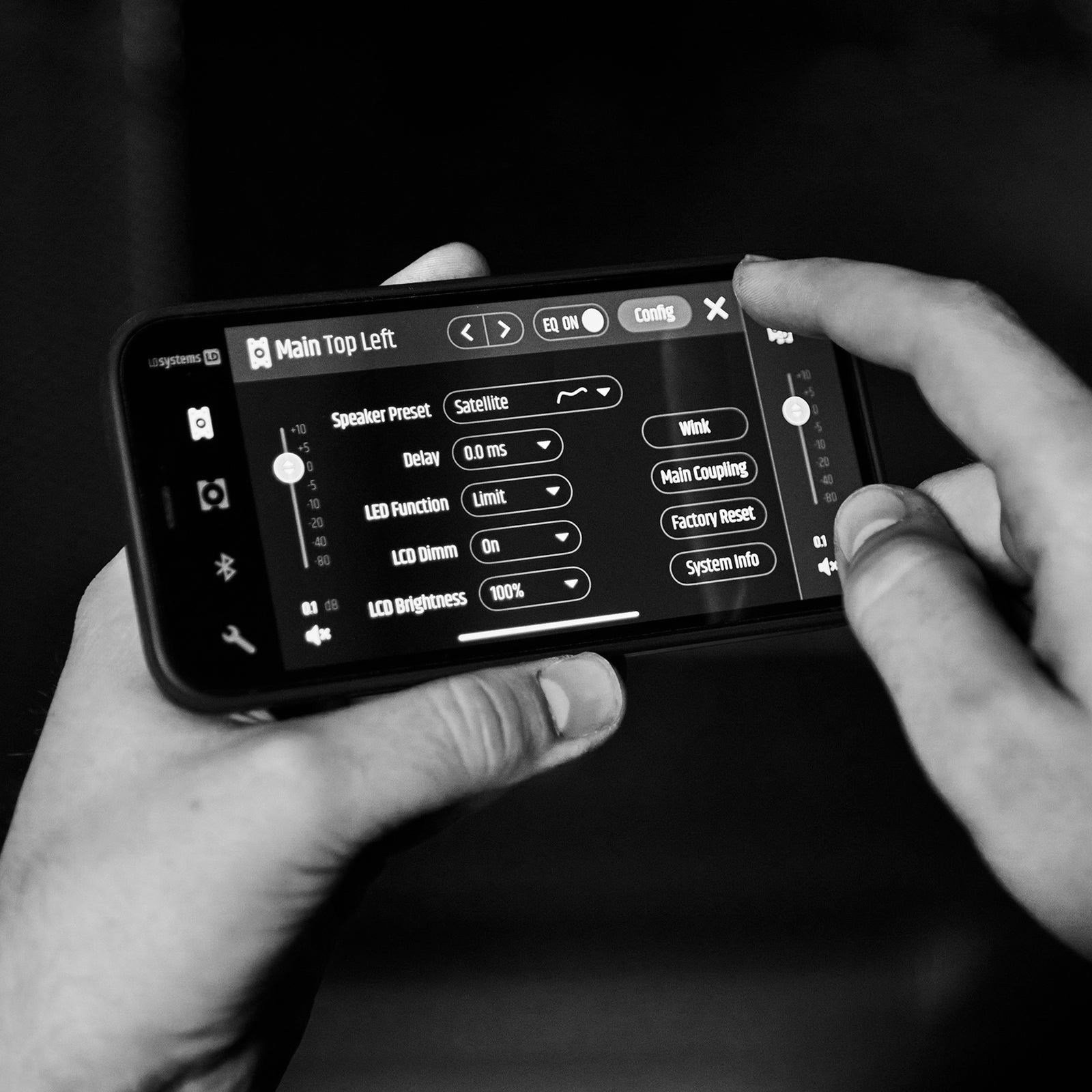

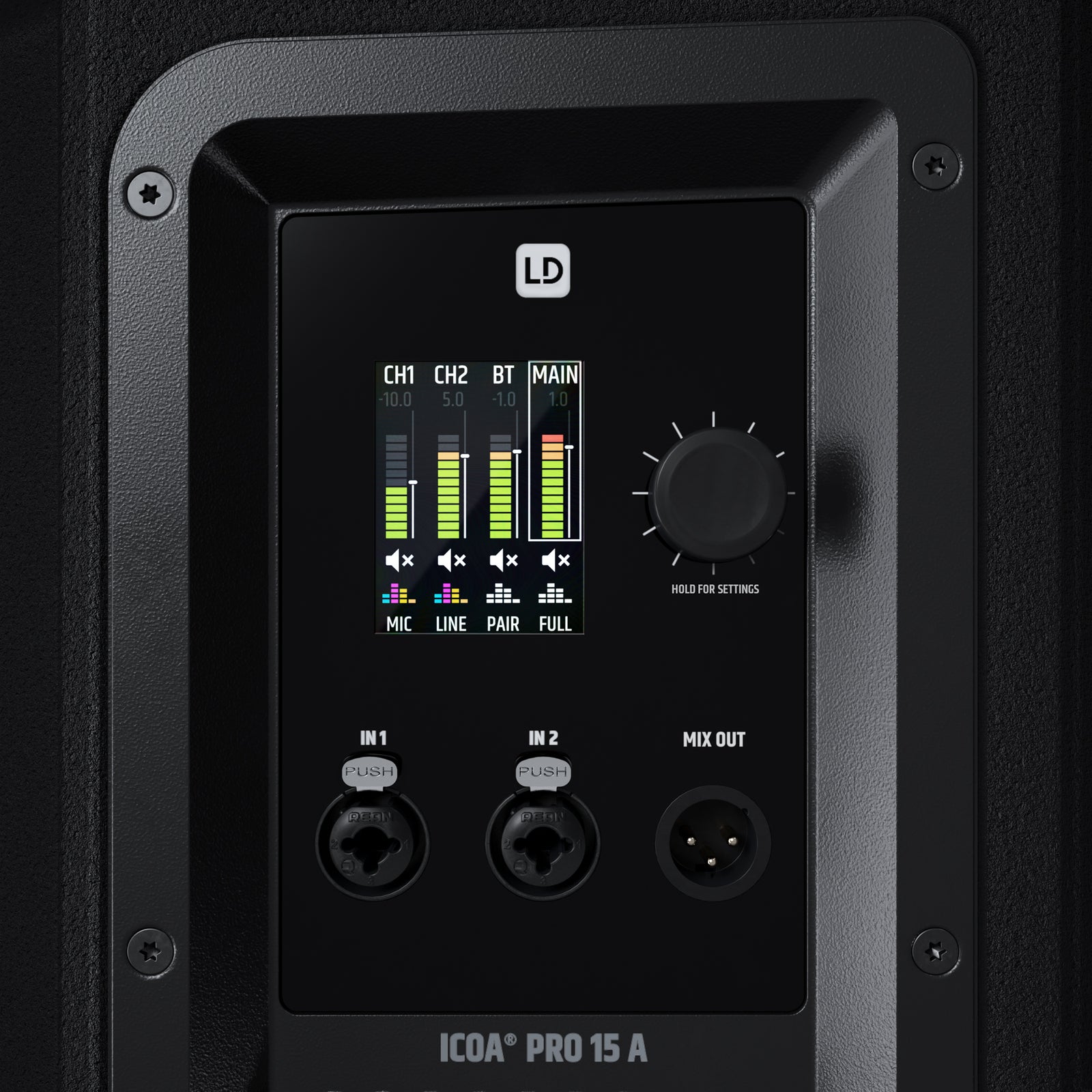

- Control: Colour display with one-knob control and iOS/Android app
Connections and Wireless Functions
- Mic/Line inputs: 2 × XLR Combo
- Input gain control: Individual per channel
- Mix output: 1 × XLR mono
- Bluetooth: Bluetooth 5.1

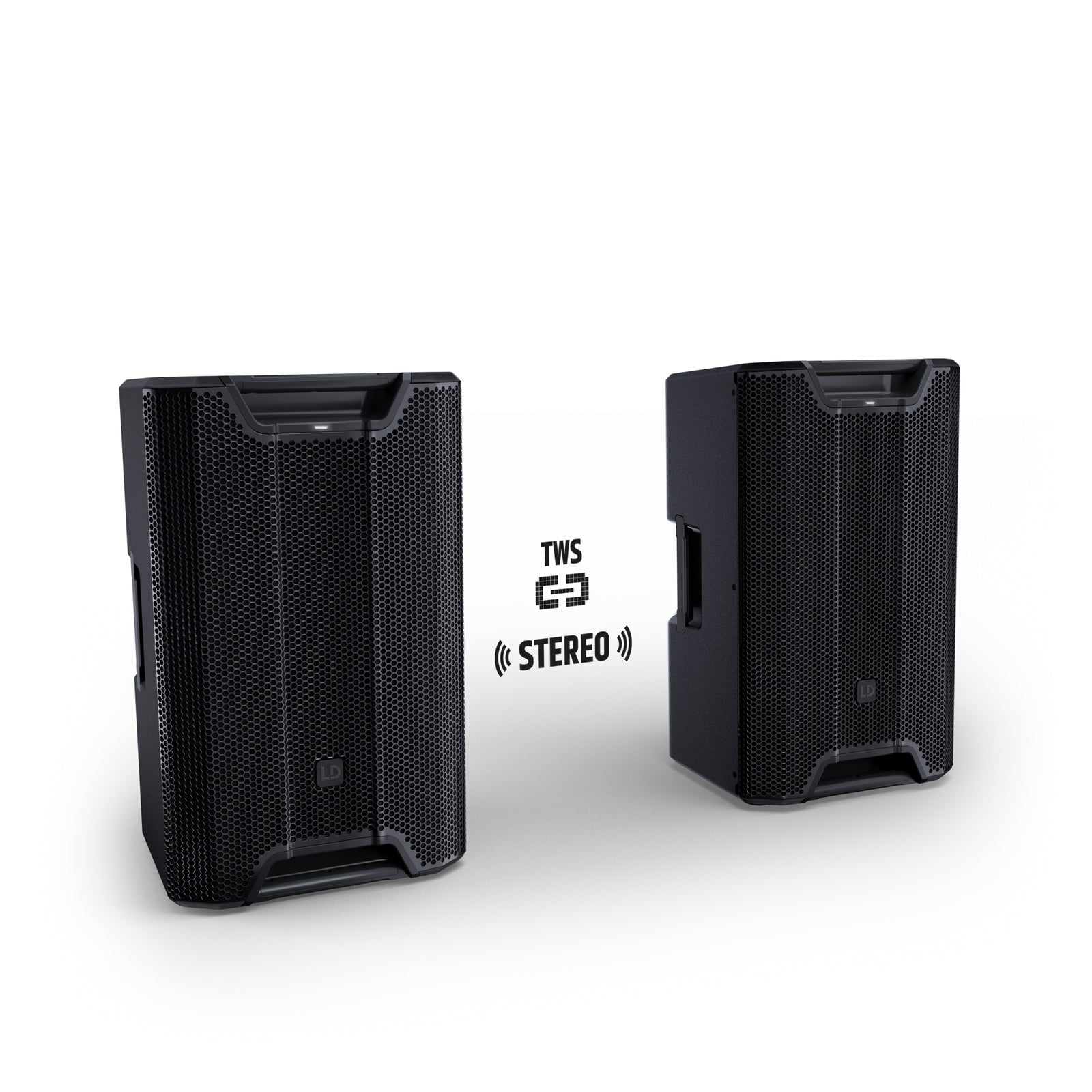

- TWS: Stereo connection with two ICOA PRO 15 A systems
- App: iOS and Android
Construction and Mounting
- Cabinet: ABS with integrated steel construction

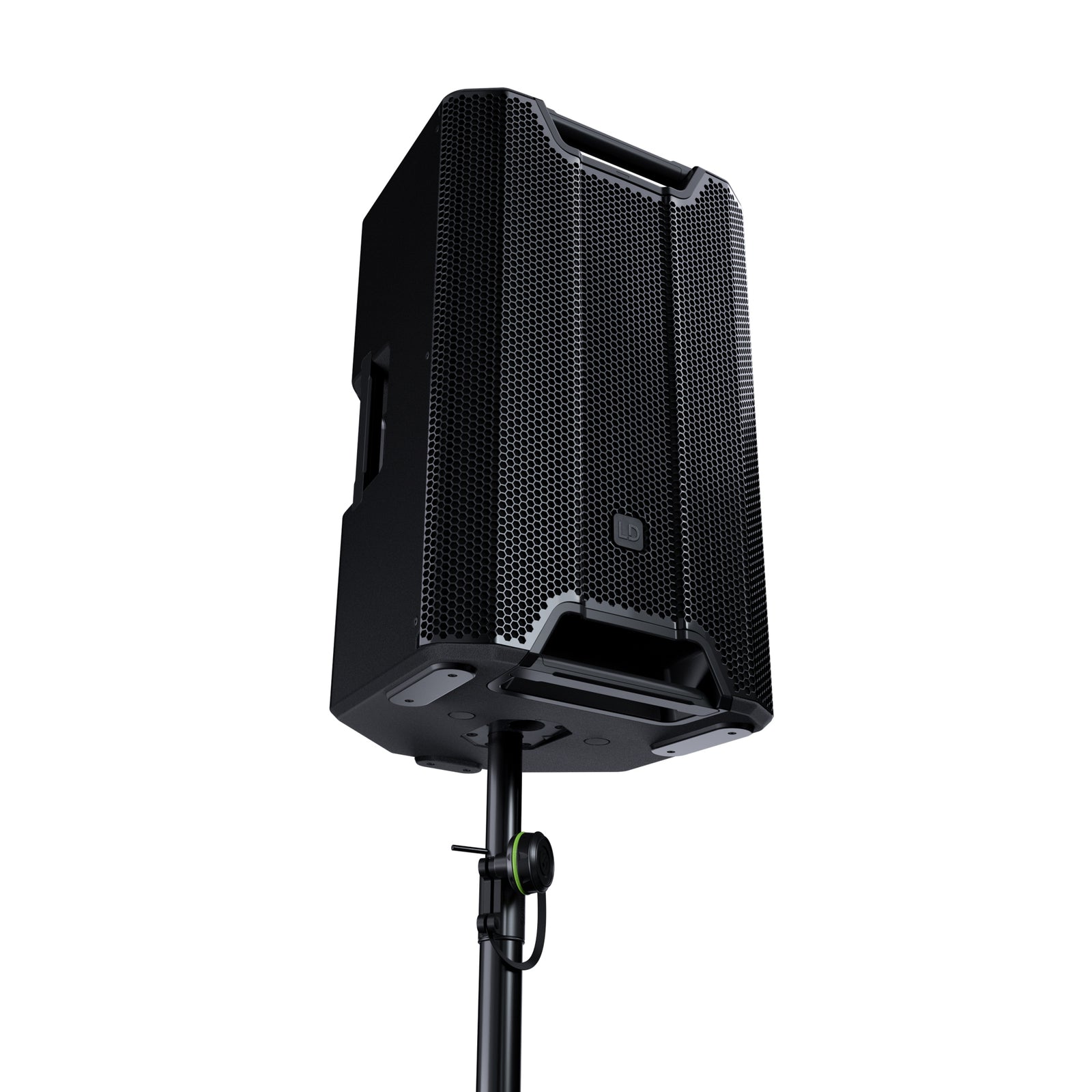

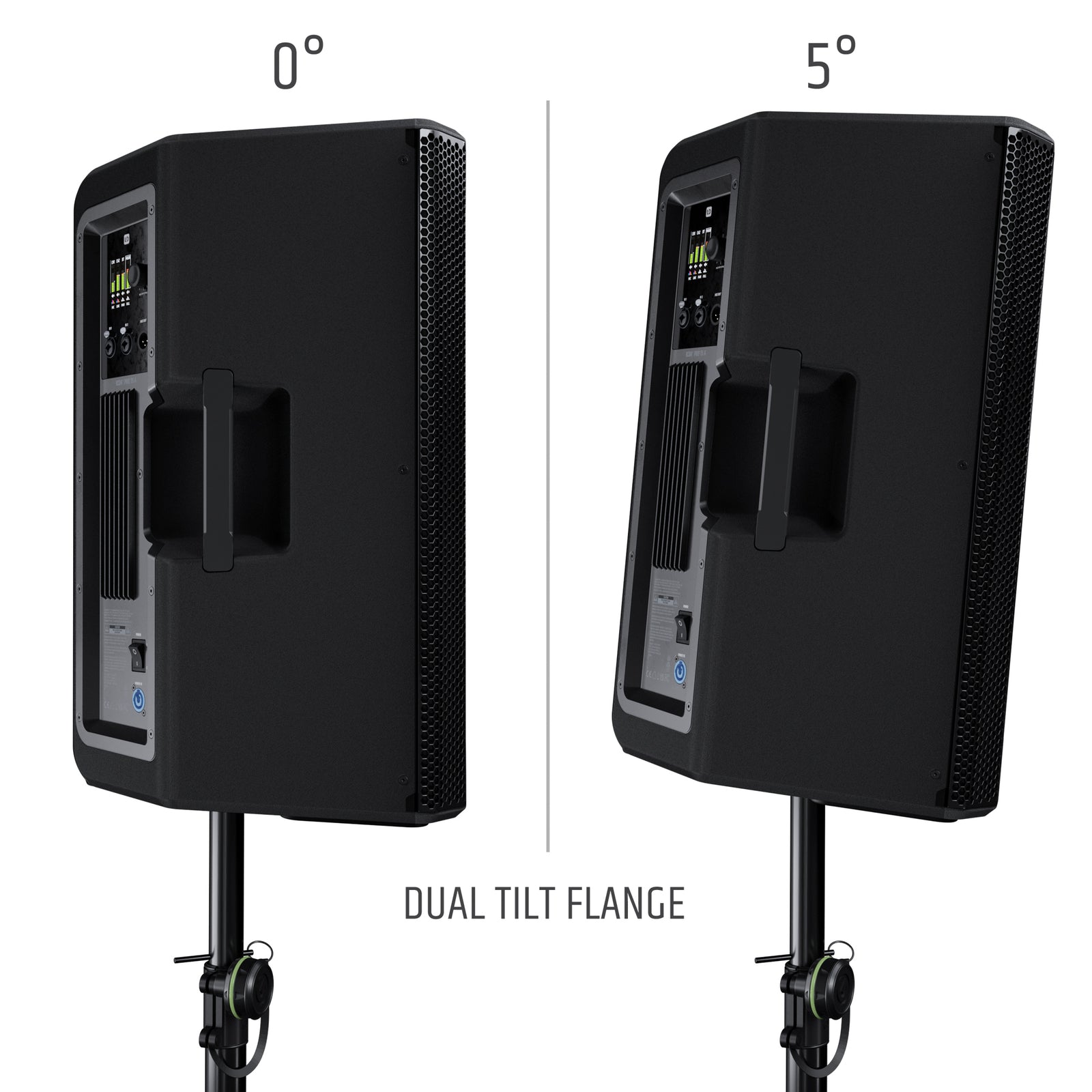

- Stand mounting: 35 mm, 0°/5° tilt selection

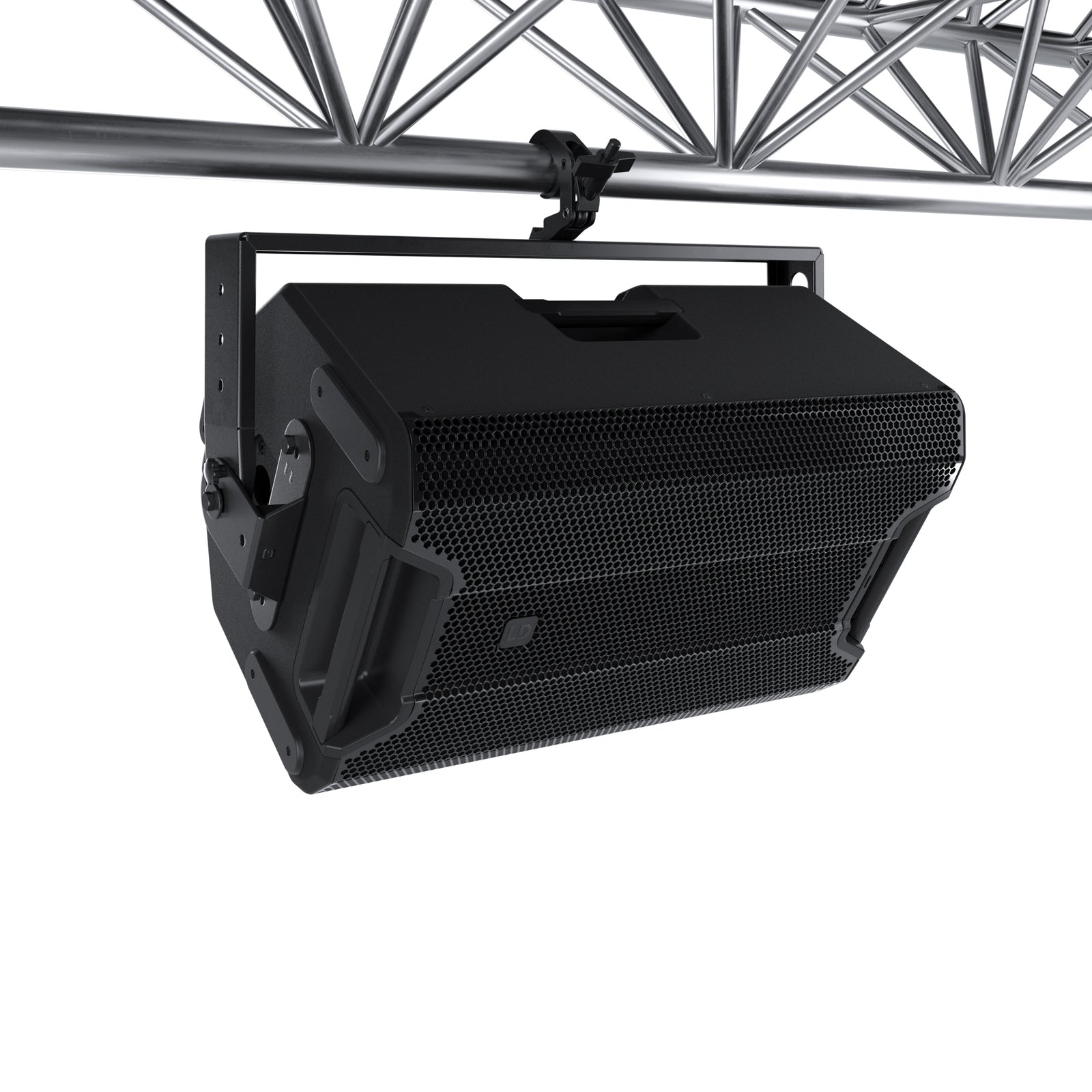

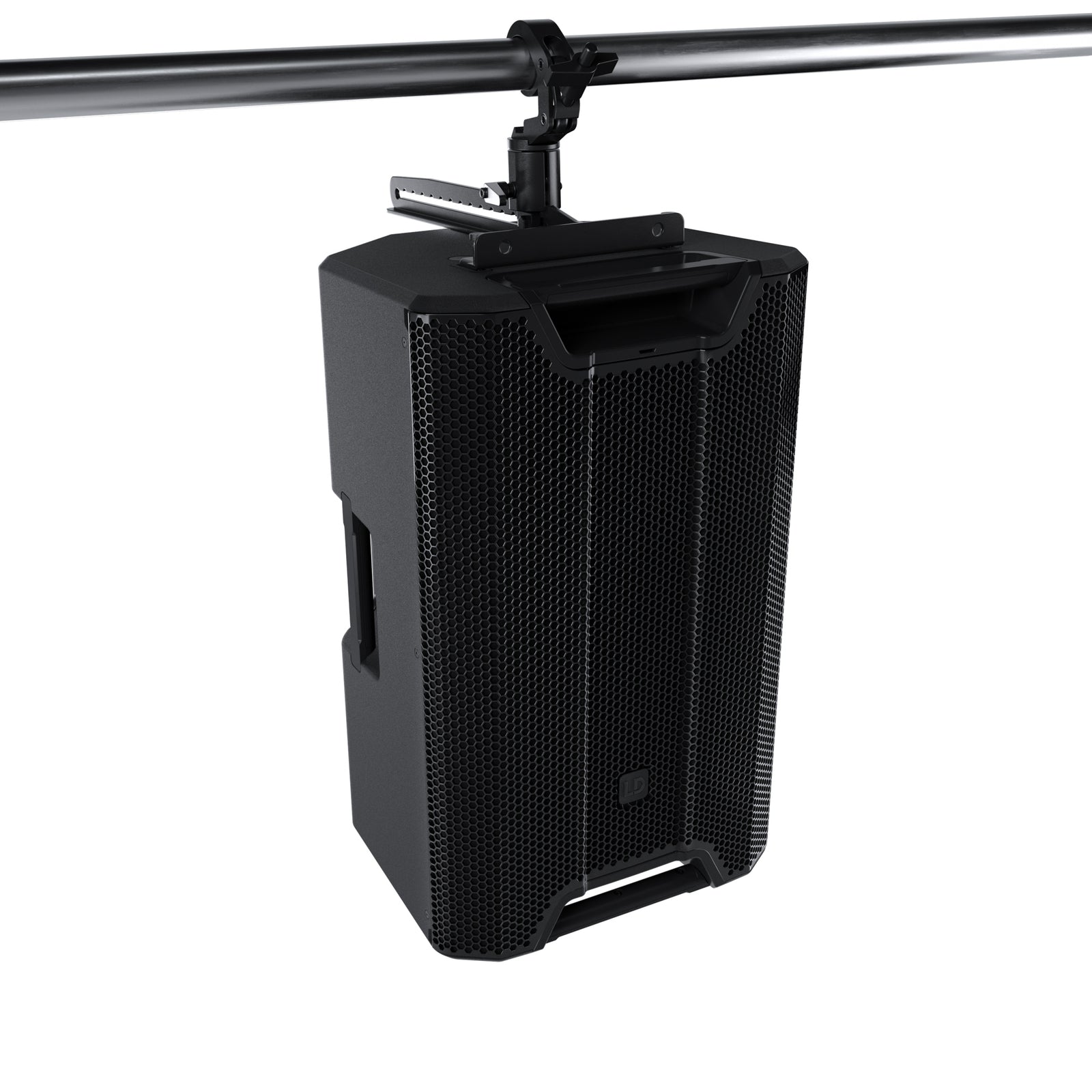

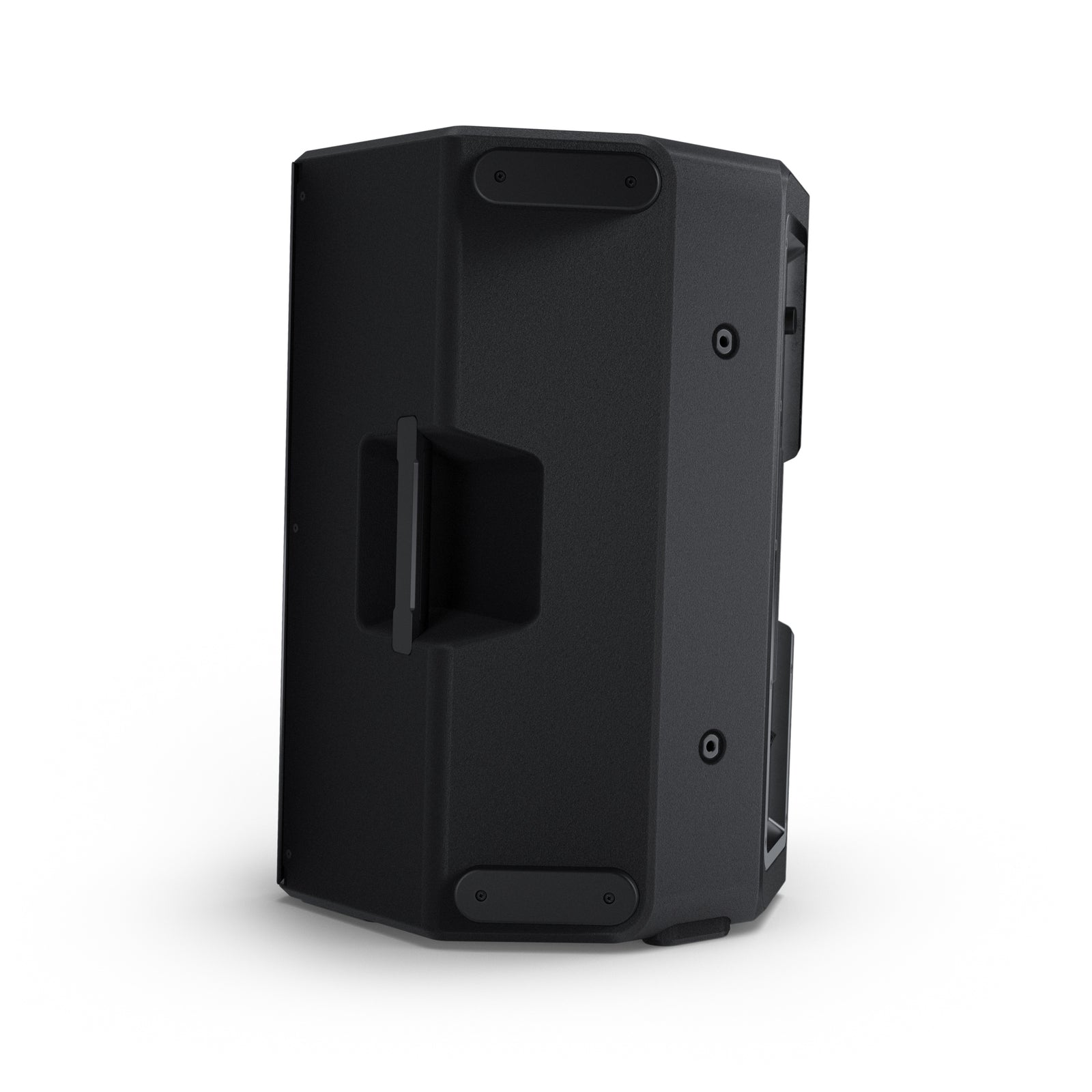

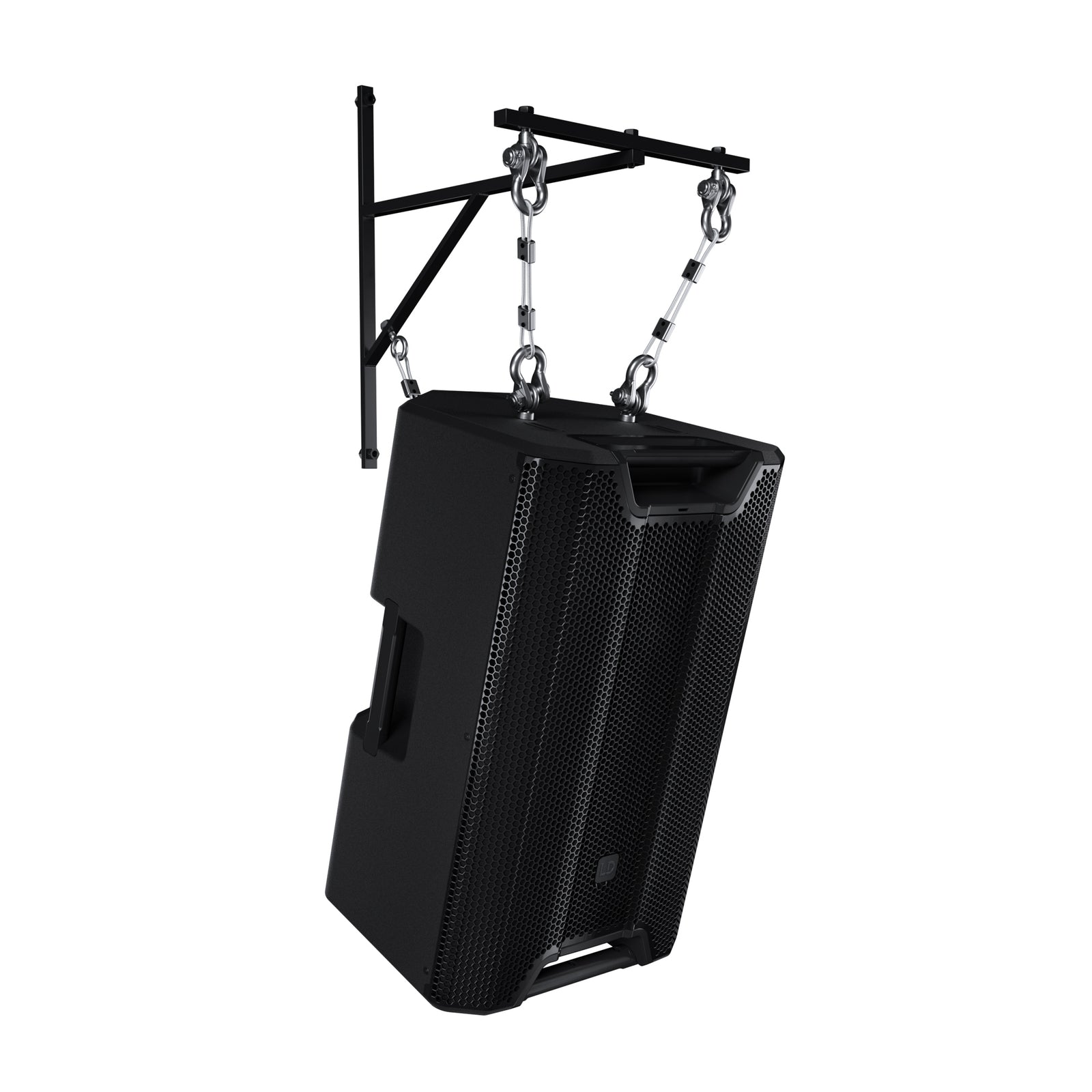

- M10 mounting points: 6
- Mounting: EasyMount compatible
- Orientation: Vertical or horizontal

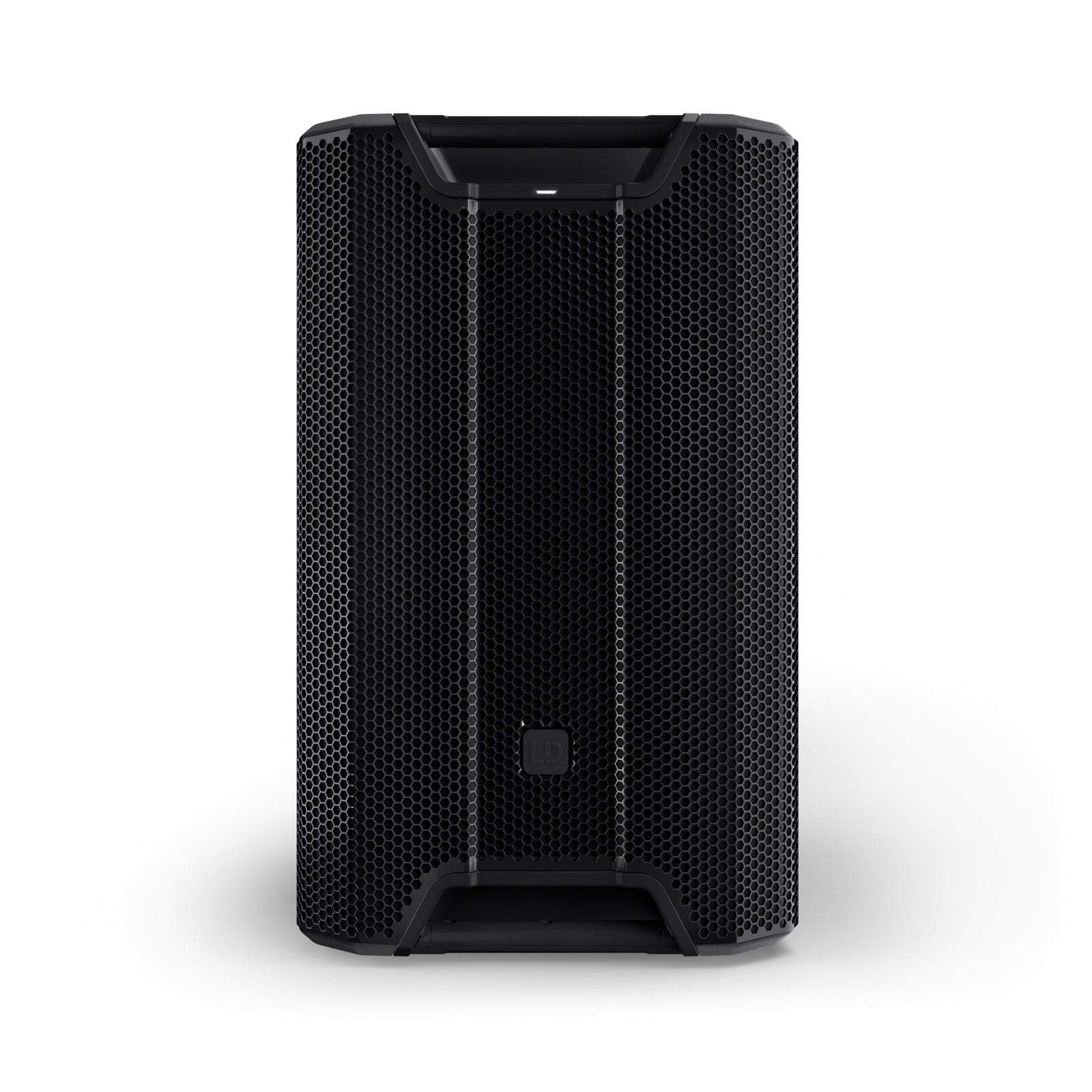

- Front grille: Shock-resistant
Dimensions and Data
- Dimensions (H × W × D): 687.9 × 416.7 × 414.9 mm
- Weight: 27.5 kg
- Power supply: 100-240 V AC, 50-60 Hz
- Max. power consumption: 900 W
