Length: 200 cm; Pipe diameter: 50 mm; Wall thickness: 2 mm; TÜV Certified; Conical Connectors included

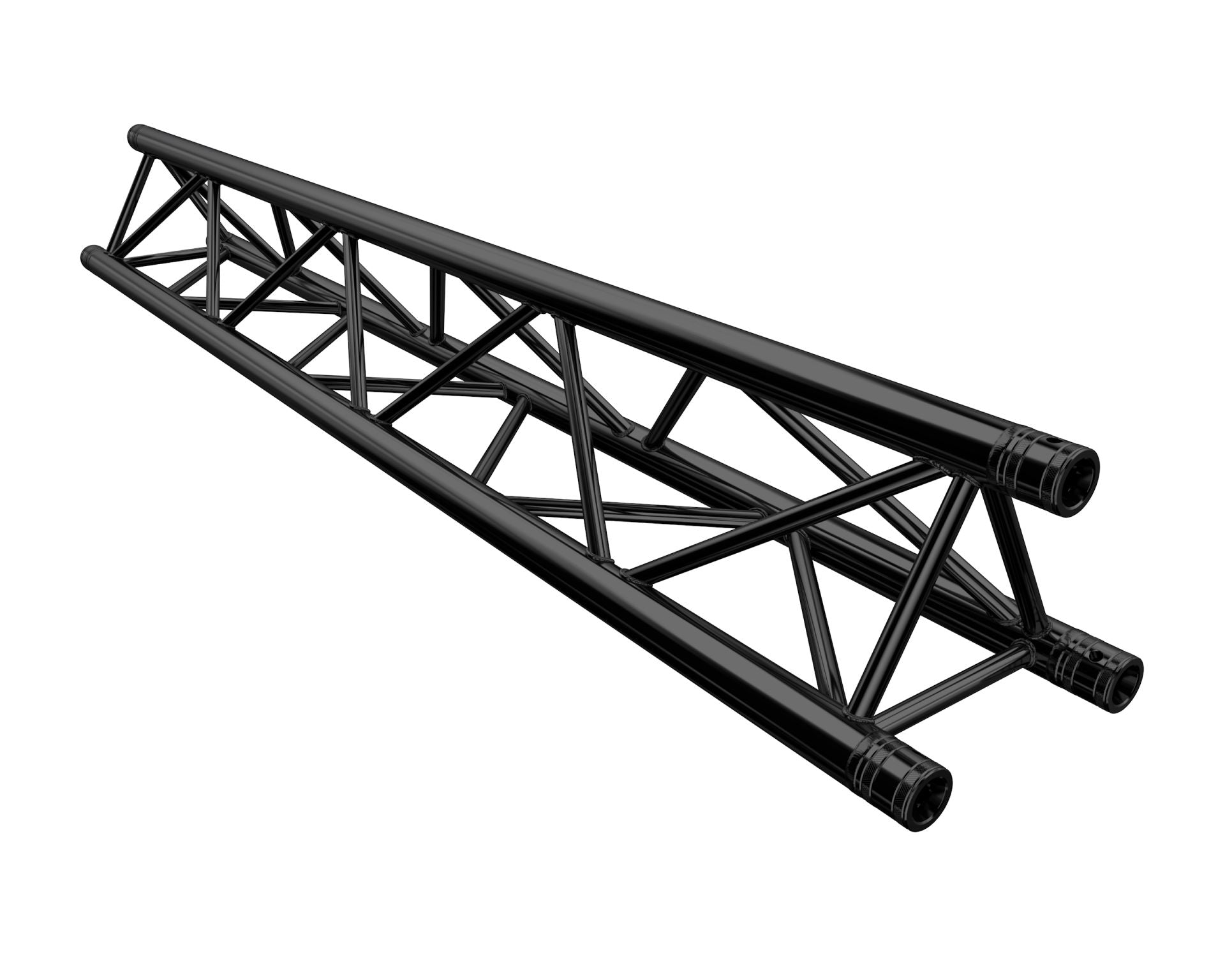

The F33 truss series by Global Truss is a TÜV approved 3-point system with an external dimension of 29cm. Due to its shape it off ers the best ratio between transportation volume and load capacity from the F3x range. Exhibition stands and banner frames can be created perfectly with truss pieces from the F33 system. Furthermore the system can be used for permanent installations or similar. The system offers a maximum span of up to 18 meters.

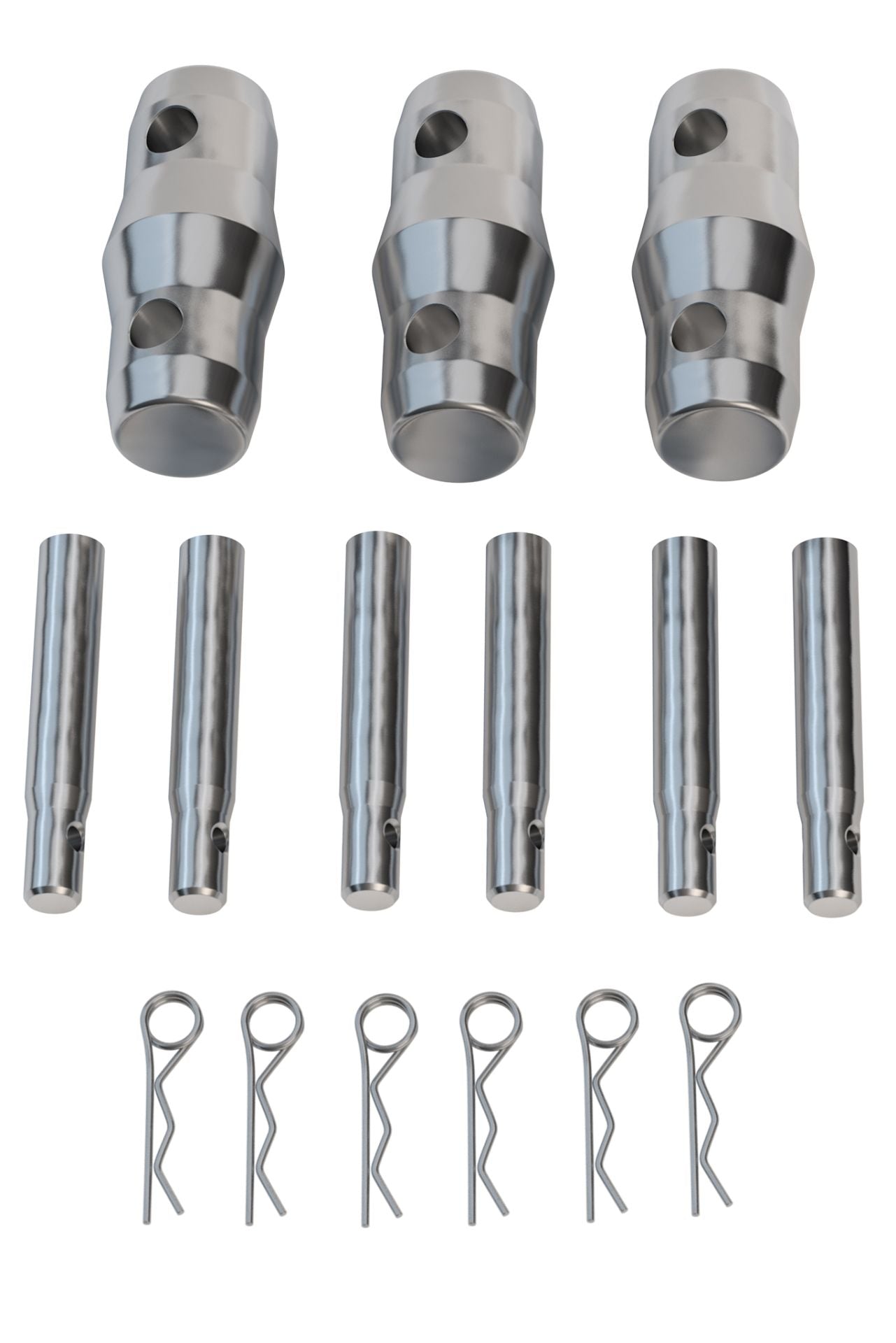

The F33 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
Colour: black
TÜV certificate: Yes
Material: Al EN AW-6082 T6
Technical Data
Number of points: 3-point
Edge dimension: 29 cm
System: F33
Type: straight
Truss length: 200 cm
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 2 mm
Brace
Diameter Brace: 20 mm
Wall thickness Brace: 2 mm
Hardware
Weight: 9,60 kg
Dimensions (L/W/H): 2000 x 290 x 290 mm
Shipping Data
Length: 2000 mm
Width: 300 mm
Height: 300 mm
Weight: 10,30 kg
PU: 1
