Top part for freestanding tower; Pipe diameter 50mm; Load capacity vertical / horizontal max. 500kg

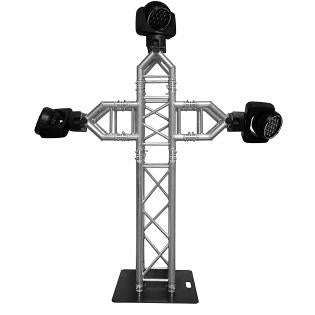

The F34 Toptube is designed to mount lighting fixtures using a coupler on freestanding towers or suspended trusses.
It can be used in both vertical and horizontal orientations. The maximum mounting width is 17 cm.
General
Colour: Aluminum
TÜV certificate: No
Material: EN AW 6082 T6
Technical Data
Number of points: 4-point
Edge dimension: 29 cm
System: F34
Type: special part
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 3 mm
Brace
Diameter Brace: 20 mm
Wall thickness Brace: 2 mm
Hardware
Weight: 2,66 kg
Dimensions (L/W/H): 290 x 290 x 290 mm
Shipping Data
Length: 300 mm
Width: 300 mm
Height: 300 mm
Weight: 2,66 kg
PU: 2
