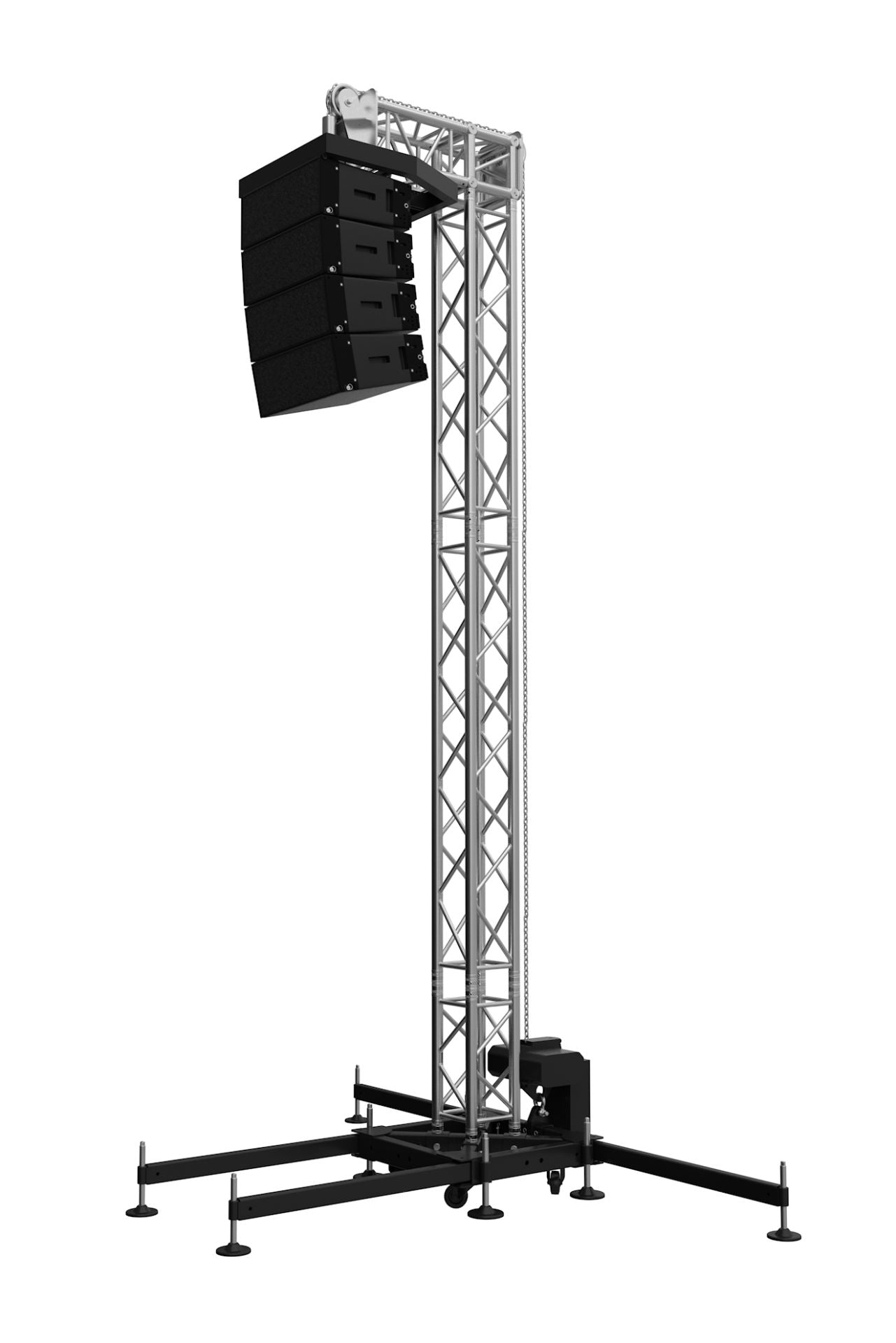

4,95m height PA Tower with F34 truss; 300 kg load capacity; Including proof of stability; No construction booklet needed
The new Global Truss Smart PA-Tower is easy to set up and is perfect for small and middle sized outdoor applications. Based on the Multi- Tower-Basement the tower can be built with standard trussing like the F34 or F34P series. Only the return sheave for the top-section is needed. Therefore unnecessary special parts in stock are avoided.
The outrigger on the top can be made with a 50 cm or 75 cm piece. The outriggers of the basement can be attached in two different directions.
The self-weight of the PA system can be calculated as live load. The ballasting is therefore affected by the hung load. The minimum ballast is 40/60 kg.
Features:
Load capacity: 300 kg
Maxmimum wind load: 1,5 m²
Height: 4,95 m
Including proof of stability
No construction booklet needed
F34 truss system

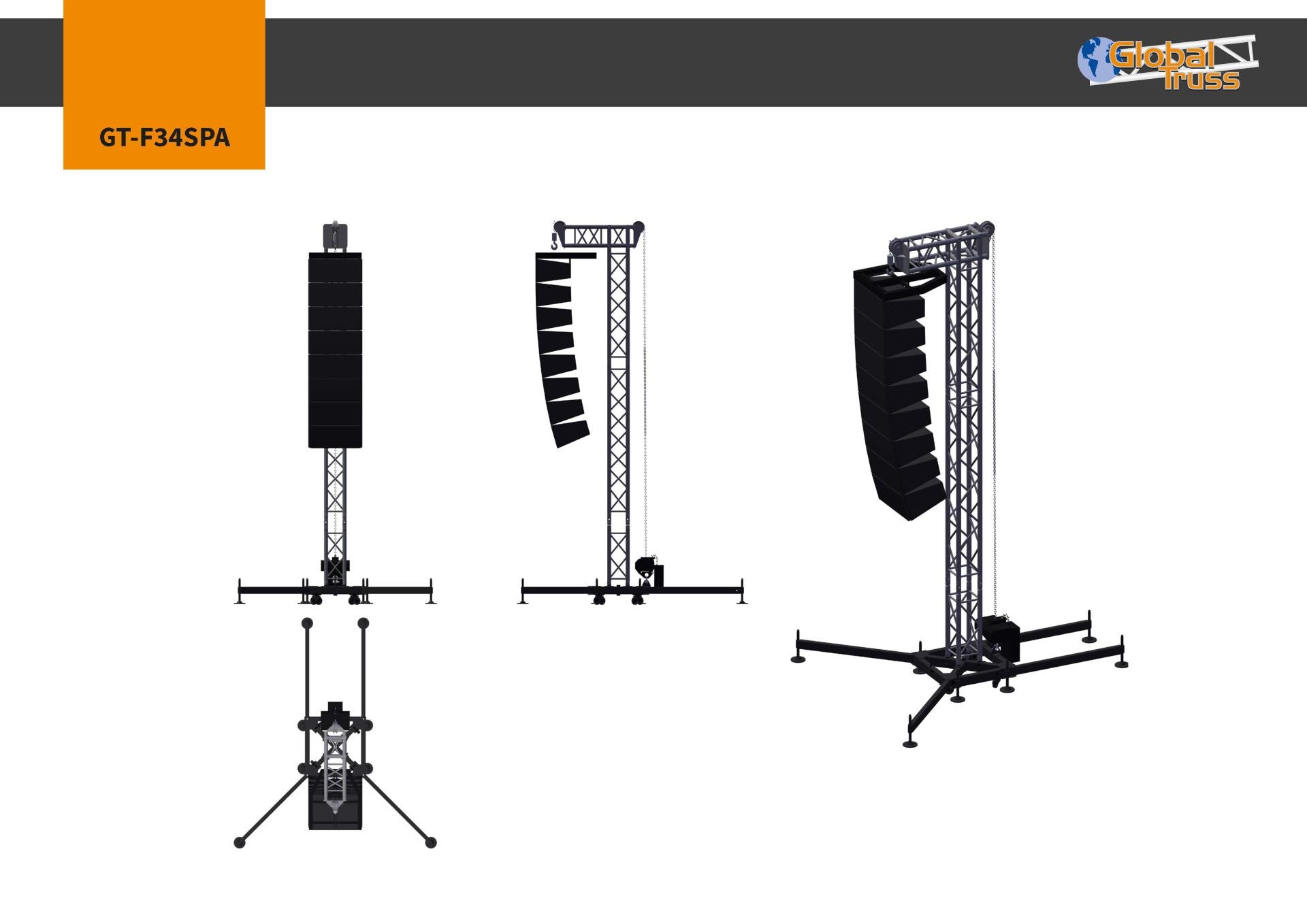

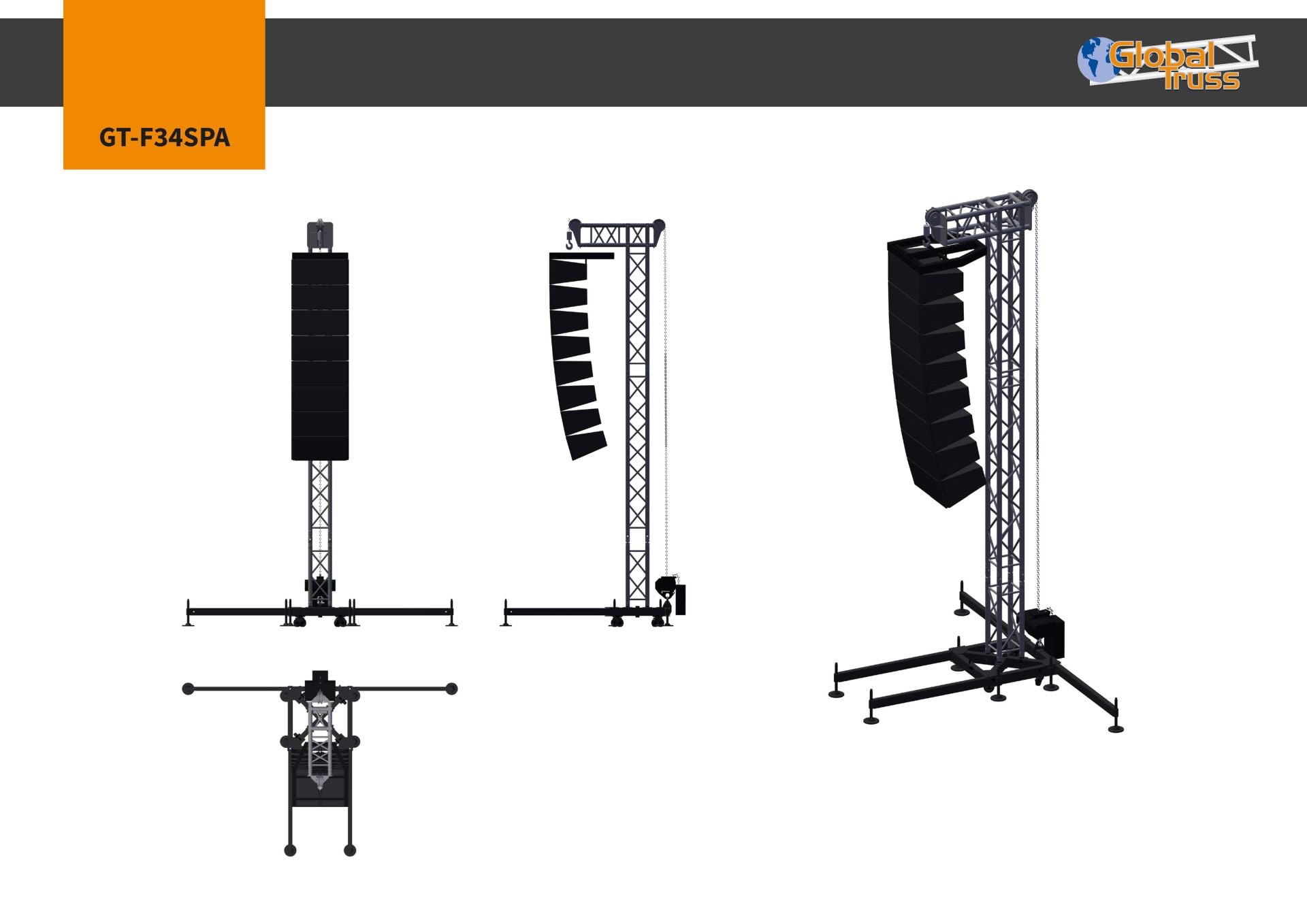

2 versions for the basement outrigger
The outrigger on the top can be made with a 50 cm or 75 cm piece. The outriggers of the basement can be attached in two different directions.
The self-weight of the PA system can be calculated as live load. The ballasting is therefore affected by the hung load. The minimum ballast is 40/60 kg.
Features:
Load capacity: 300 kg
Maxmimum wind load: 1,5 m²
Height: 4,95 m
Including proof of stability
No construction booklet needed
F34 truss system
2 versions for the basement outrigger
Shipping Data
Weight: 197,00 kg
