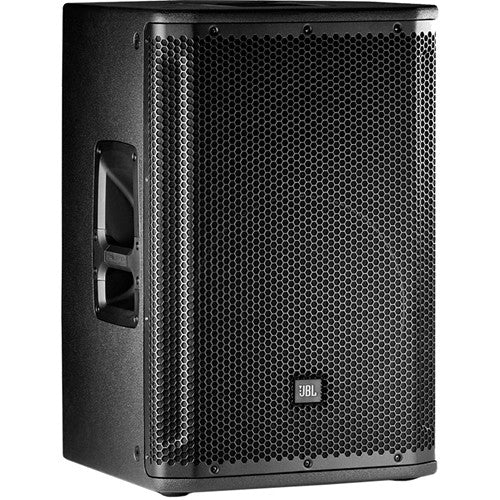

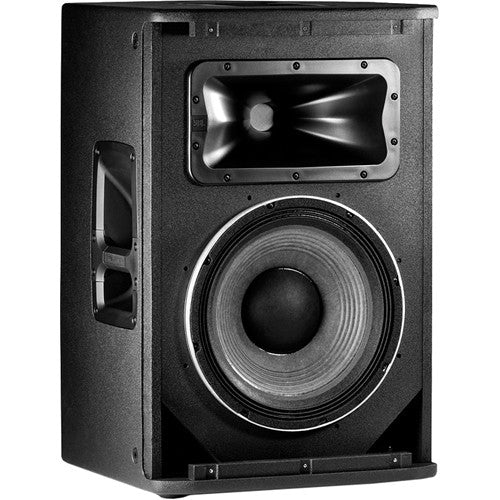

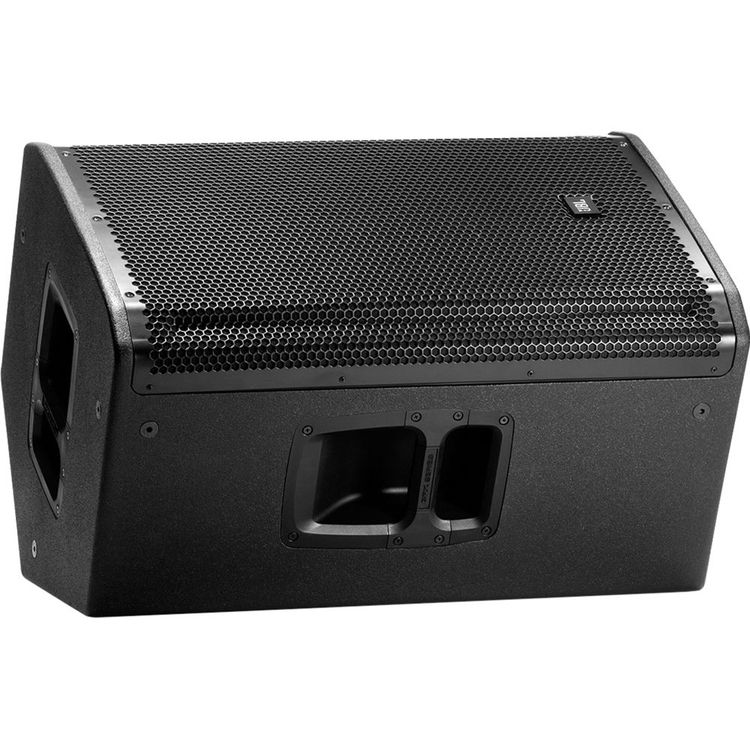

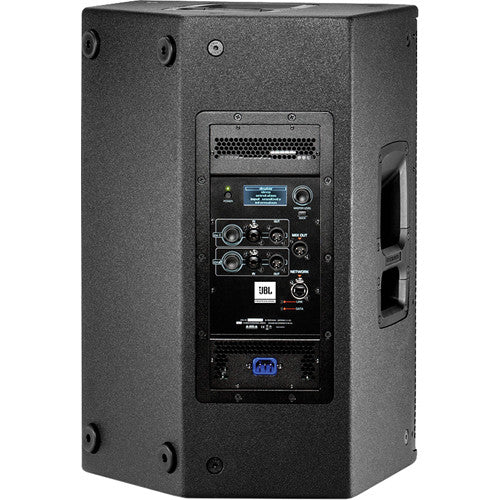

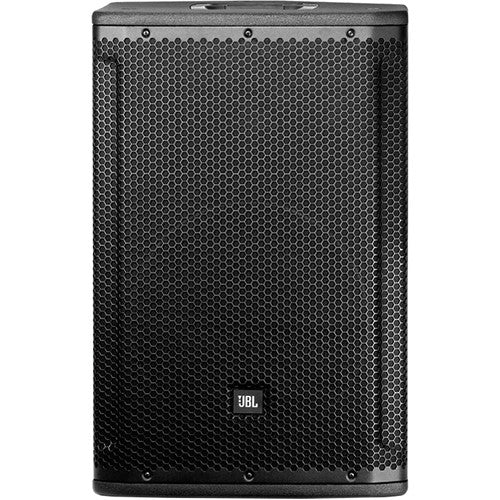

The JBL SRX812P 12" Two-Way Bass Reflex Self Powered System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. The speaker can also be placed on its side and used as a stage monitor. Using JBL Premium Transducers, 2000W peak of Crown Class-D Drivecore Amplification, and a full user configurable DSP system with HiQnet network control (via Ethercon connection to third party router) and 50 JBL engineered application presets, the system can deliver a frequency response of 48 to 20,000 Hz (-3 dB) (-3 dB) and a maximum SPL of 136 dB.
Specifications
- Powered: Yes
- Power Configuration: Bi-amped

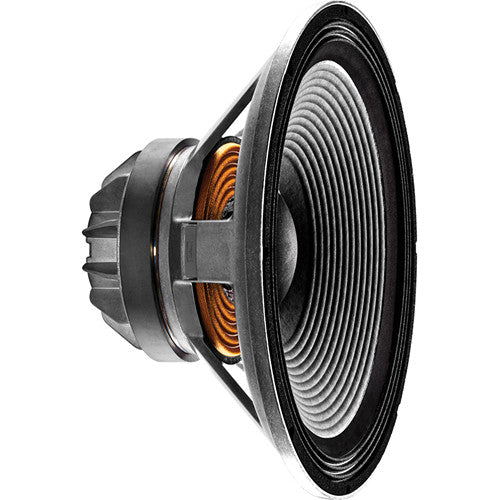

- LF Driver Size: 12"
- HF Driver Size: 3"
- Total Power: 2000 W (Peak), 1500 W (Continuous)
- Frequency Range: 40 Hz–21 kHz (-10 dB)
- Crossover Frequency: 1.9 kHz
- Maximum Peak SPL: 136 dB
- Horizontal Coverage Angle: 90°
- Vertical Coverage Angle: 50°
- Enclosure Material: 18 mm plywood
- Inputs: 2 × XLR/TRS combo
- Outputs: 2 × XLR
- Height: 25.11" (638 mm)
- Width: 16.31" (414 mm)
- Depth: 16.87" (428 mm)
- Weight: 26.4 kg
