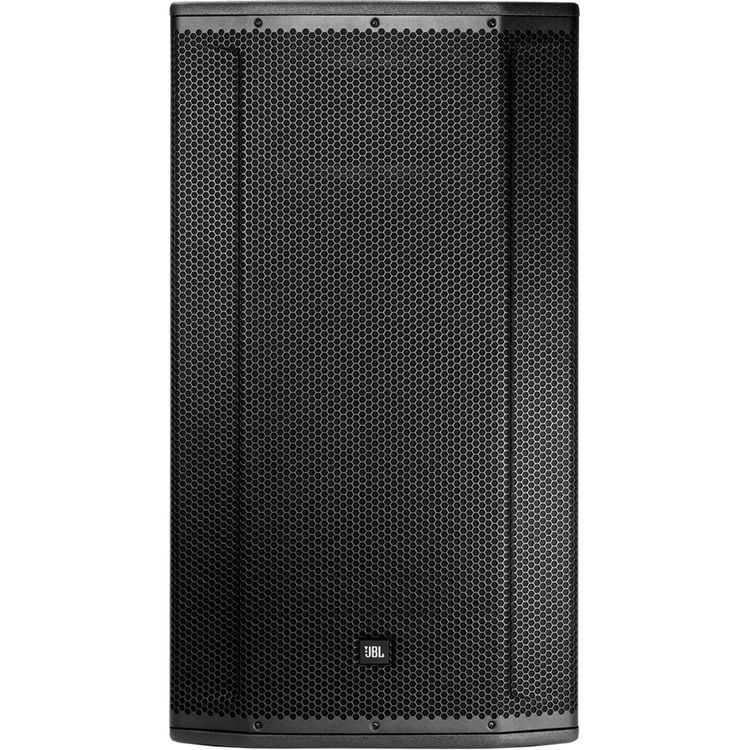

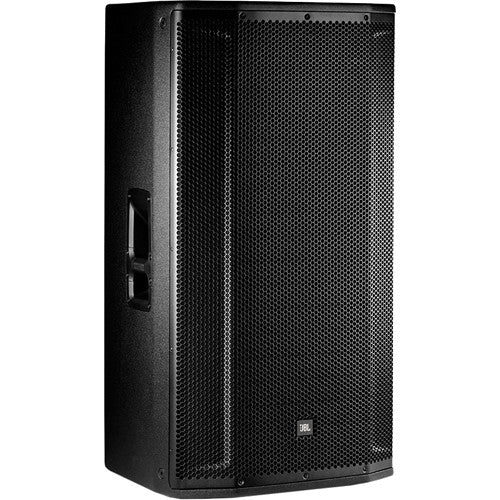

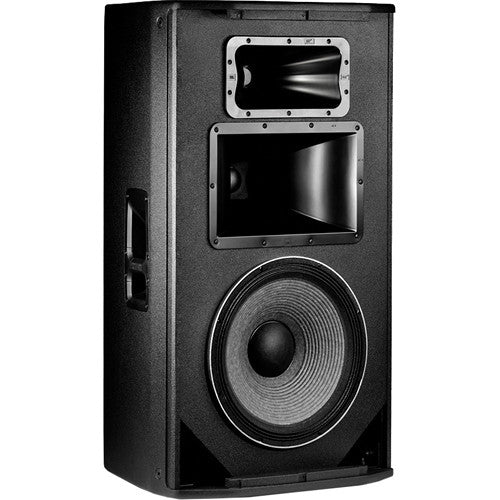

The JBL SRX835P 15" Three-Way Bass Reflex Self Powered System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. Using JBL Premium Transducers, 2000W peak of Crown Class-D Drivecore Amplification, and a full user configurable DSP system with HiQnet network control (via Ethercon connection to third party router) and 50 JBL engineered application presets, the system can deliver a frequency response of 41 to 20,000 Hz (-3 dB) (-3 dB) and a maximum SPL of 137 dB.

Specifications

• Powered: Yes
• Power Configuration: Tri-amped

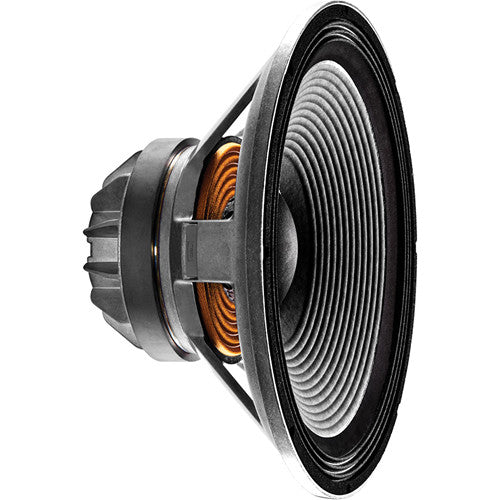

• LF Drivers: 15" (Low), 6.5" (Mid)
• HF Driver Size: 3"
• Total Power: 2000 W (Peak), 1500 W (RMS)
• Frequency Range: 33 Hz–21 kHz (-10 dB)
• Crossover Frequencies: 330 Hz / 2.4 kHz
• Maximum Peak SPL: 137 dB
• Horizontal Coverage Angle: 60°
• Vertical Coverage Angle: 40°
• Enclosure Material: 18 mm plywood

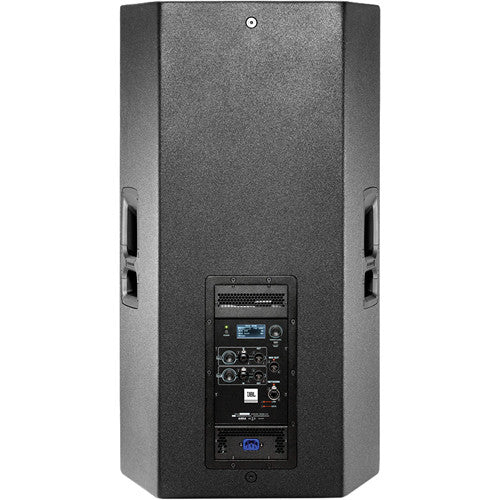

• Inputs: 2 × XLR/TRS
• Outputs: 3 × XLR
• Height: 984 mm
• Width: 544 mm
• Depth: 476 mm
• Weight: 38.6 kg
