10″ active coaxial stage monitor with 300 W RMS power, 126 dB maximum SPL, DynX DSP Gen.2 and a 58 Hz-20 kHz frequency range.

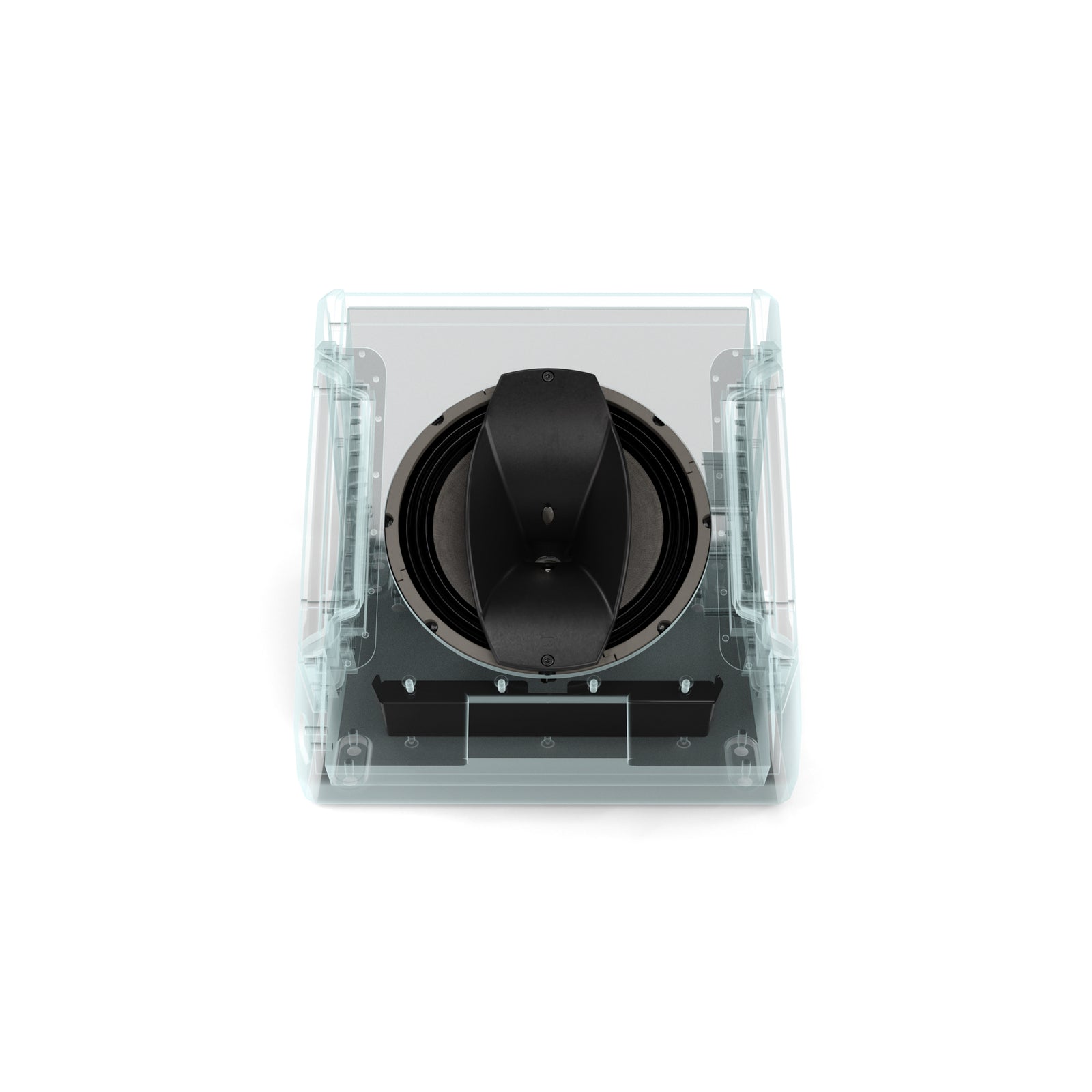

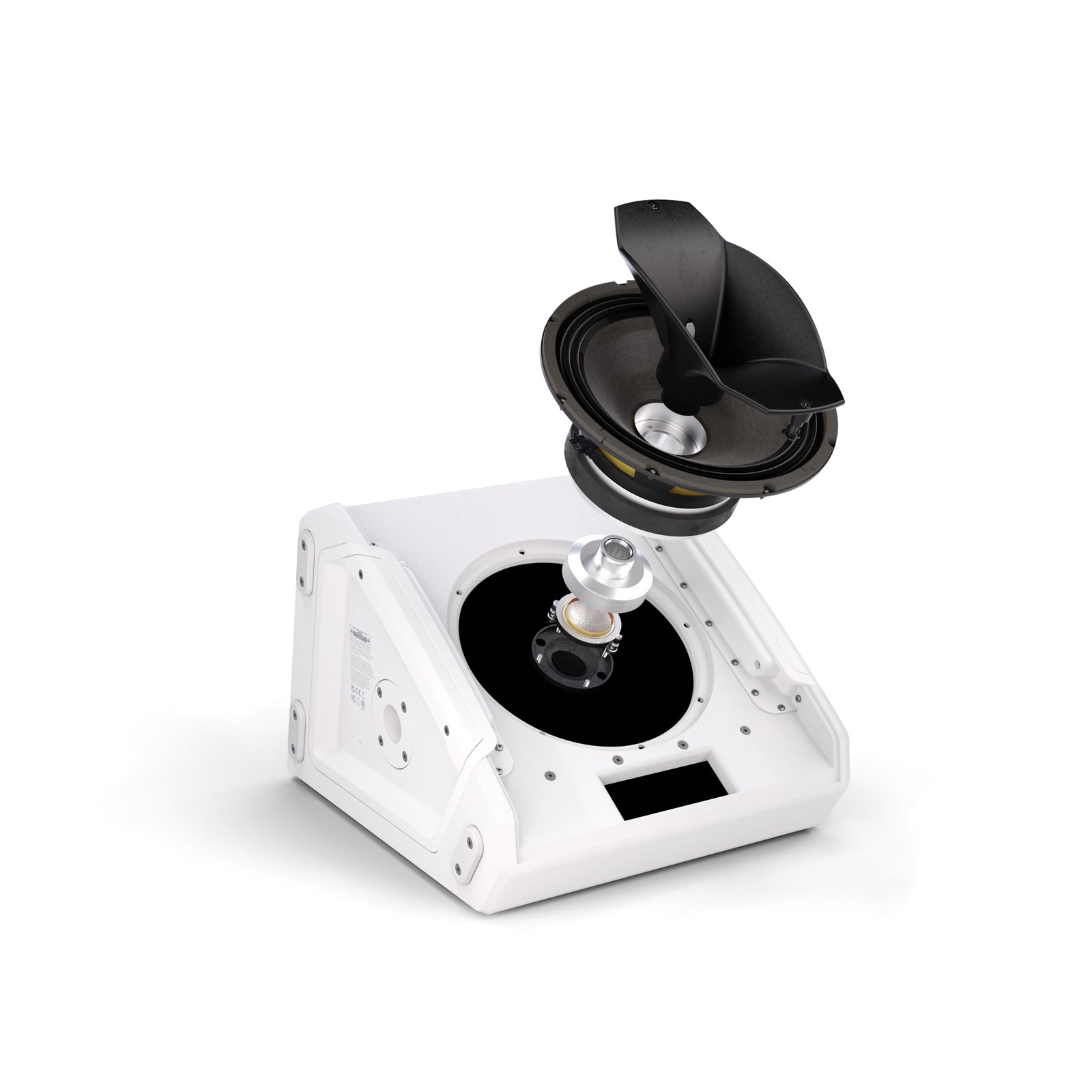

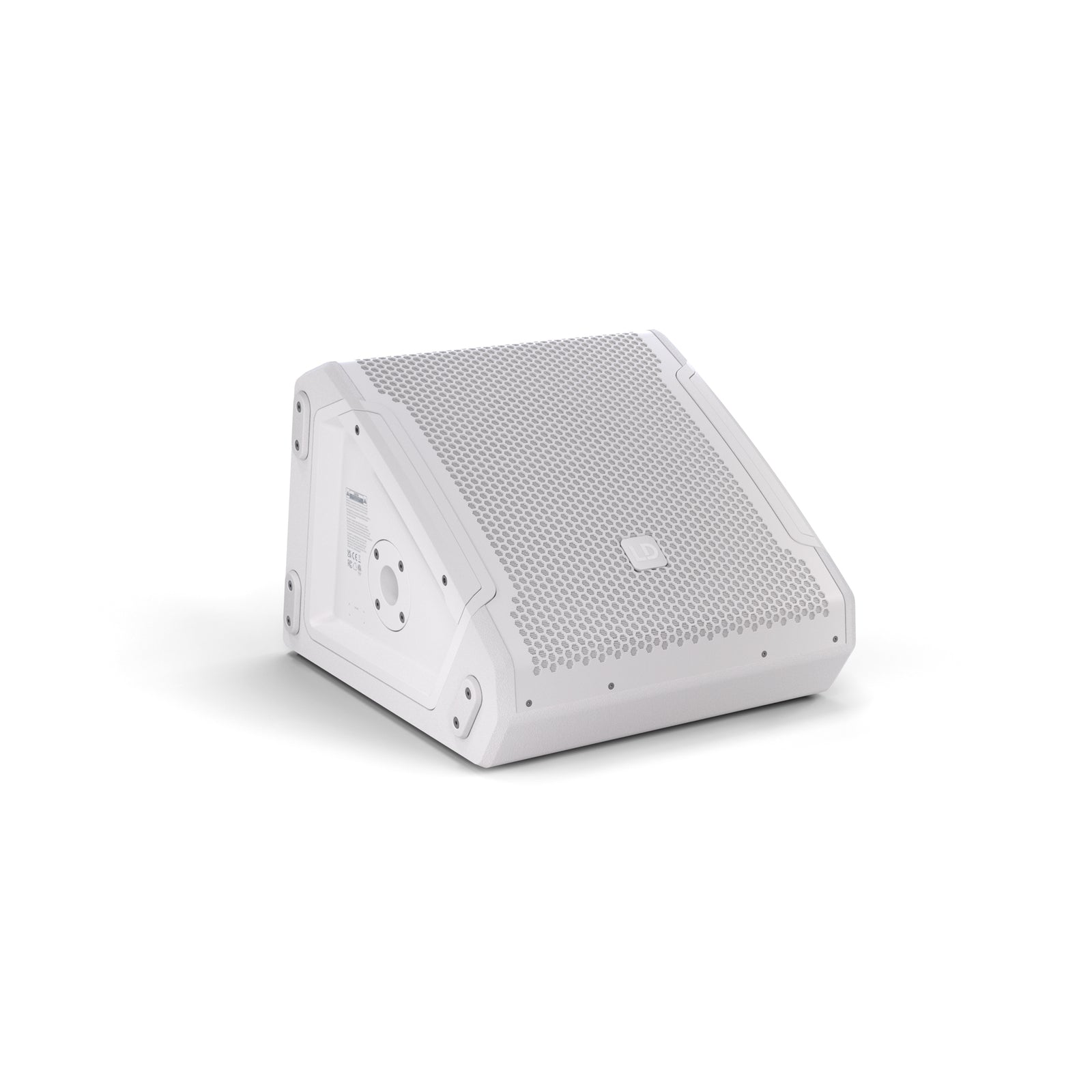

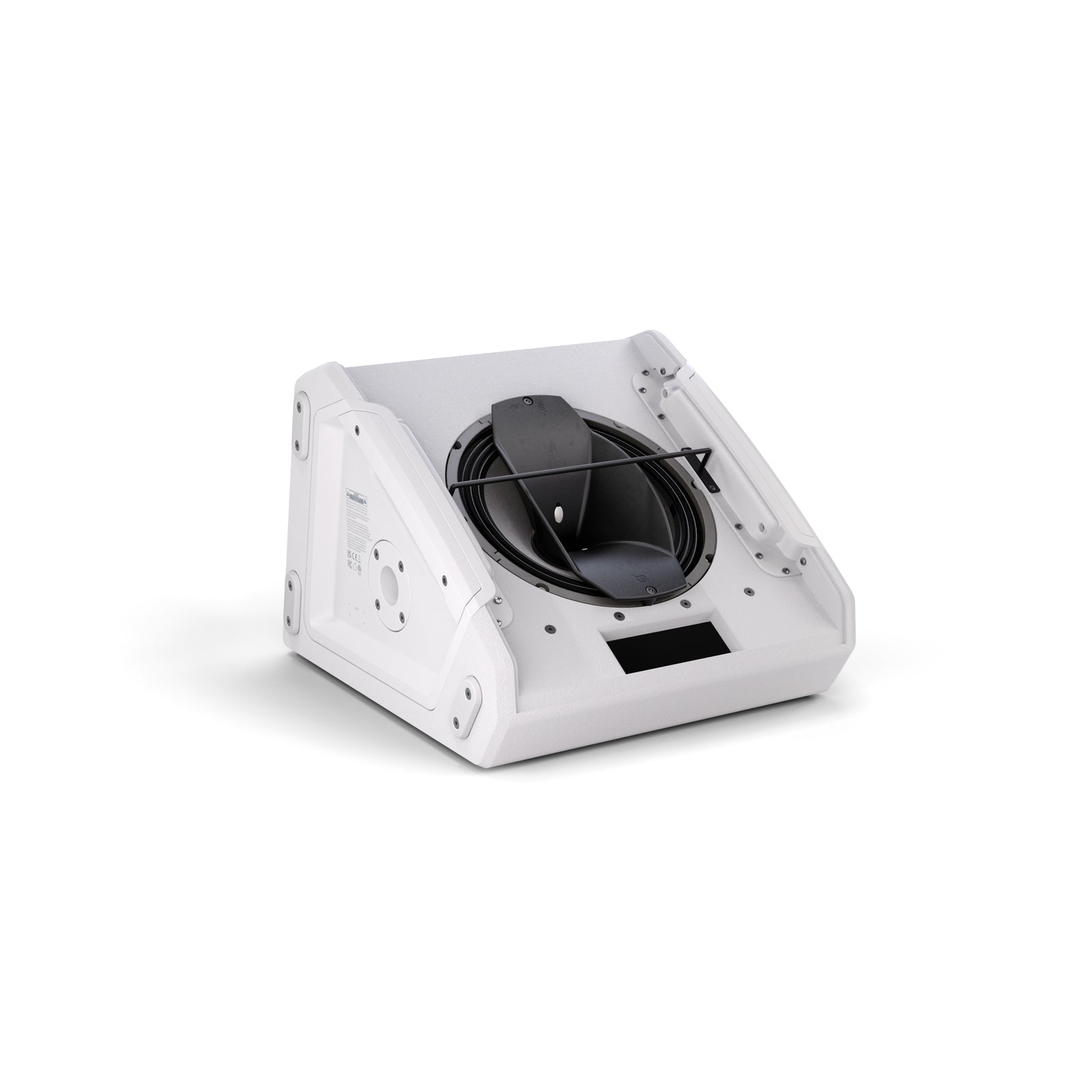

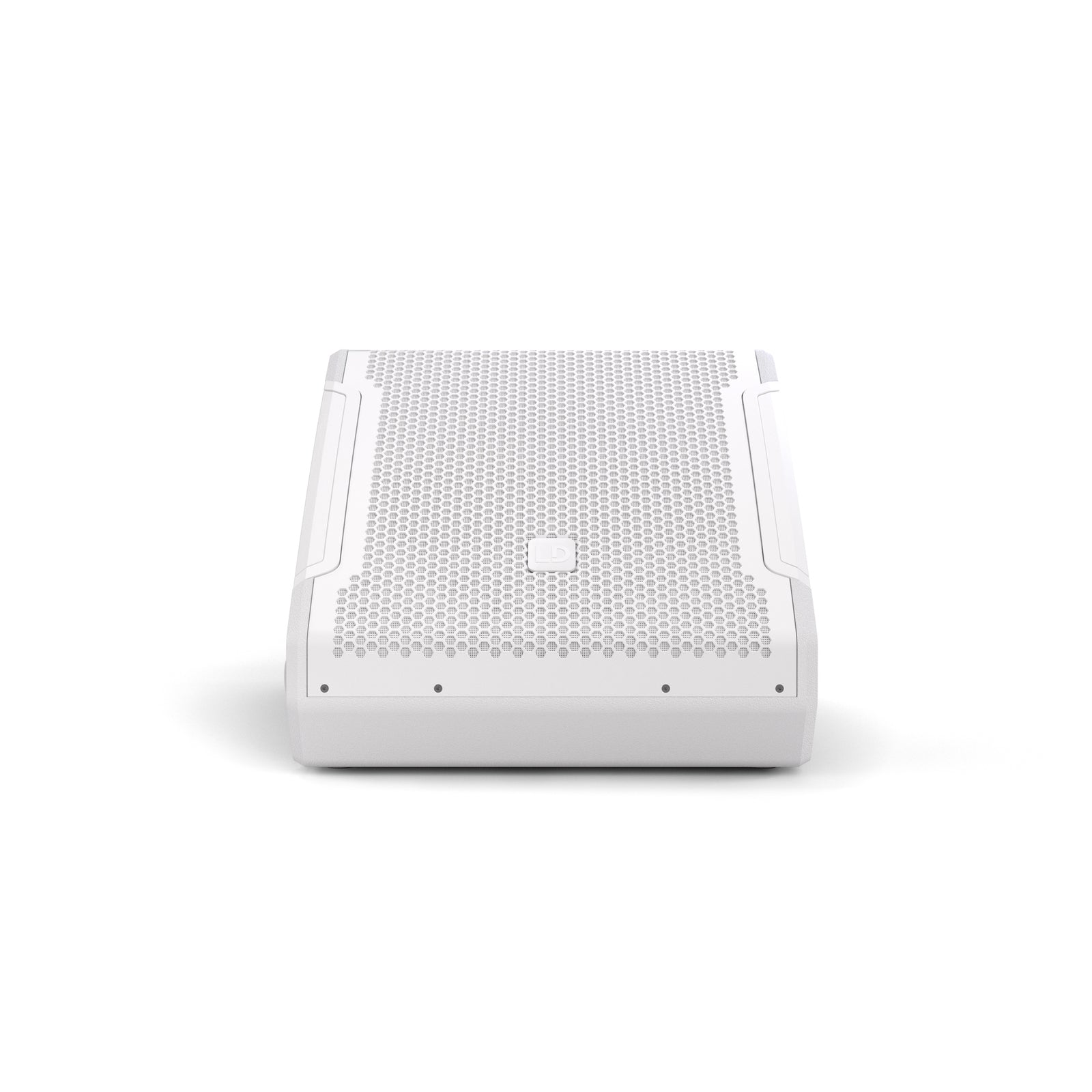

The LD Systems MON 10 A G3 W is an active 10″ coaxial stage monitor combining a compact design with a 300 W RMS / 1200 W peak Class-D amplifier. Its coaxial design with a 1.75″ titanium-diaphragm HF driver provides a true point source and consistent sound dispersion.

The monitor features DynX DSP Gen.2 for precise signal processing, along with a 3-band EQ, tunable notch filter, four application presets and delay function. The 50° × 90° CD horn and 33° monitor angle provide suitable coverage for stage monitoring.

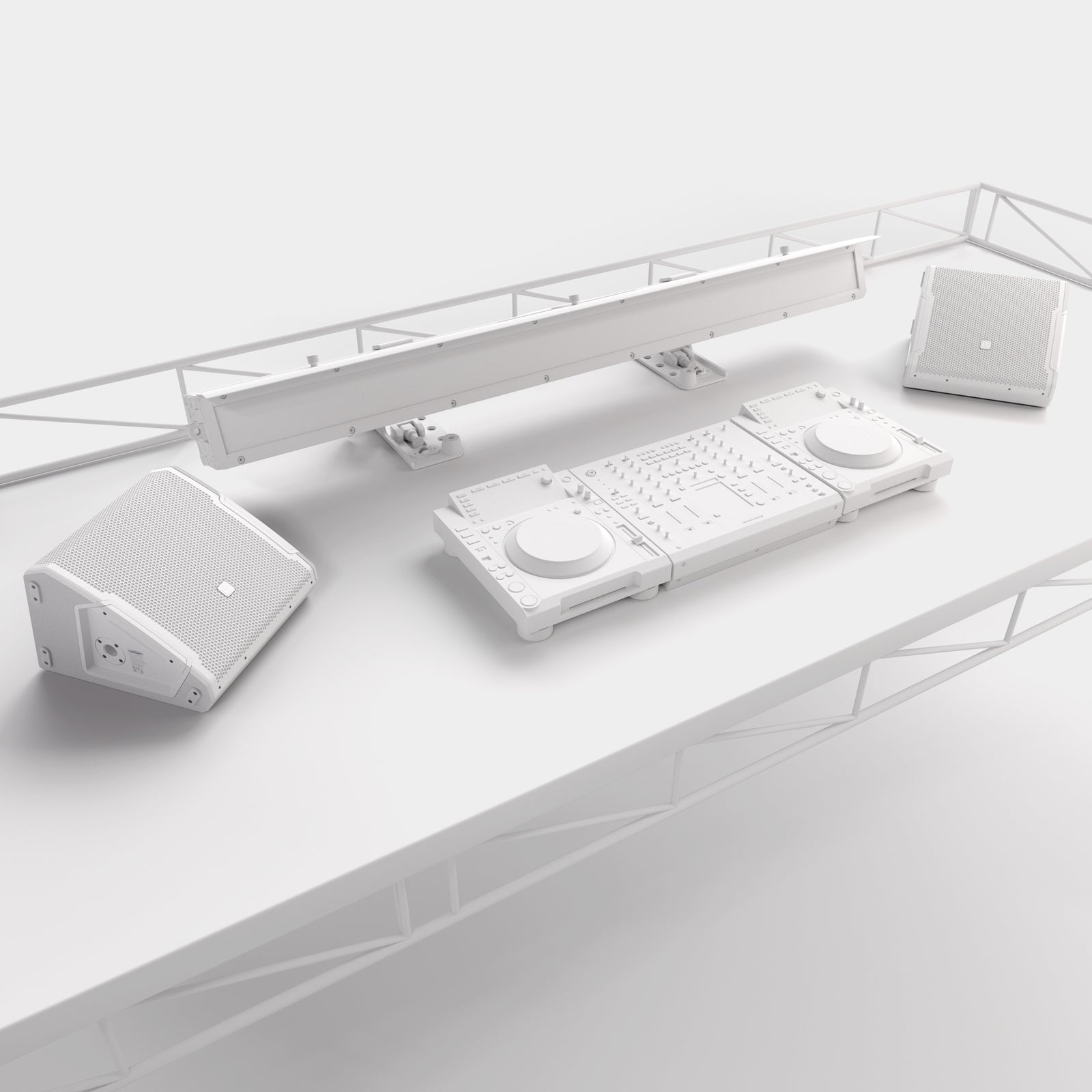

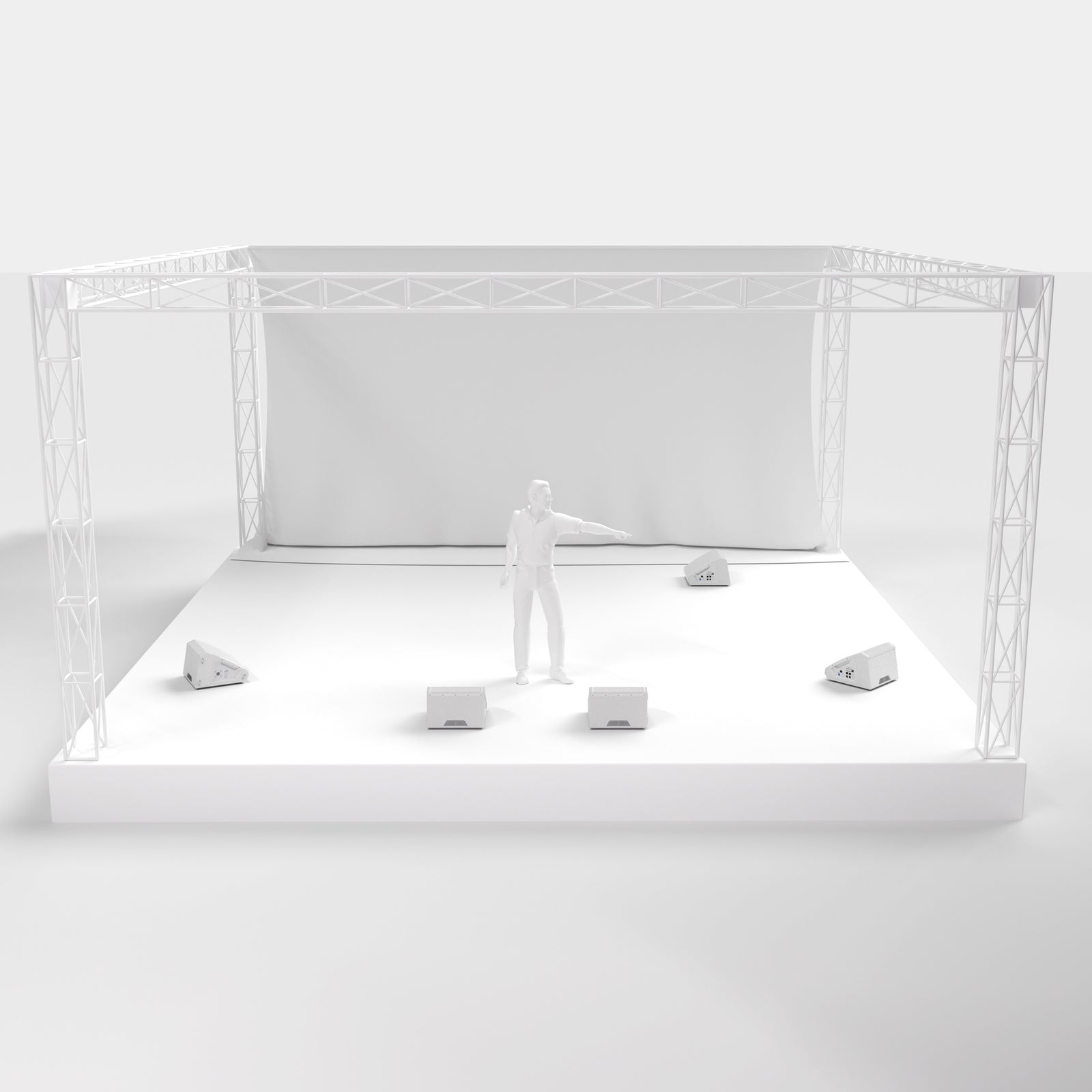

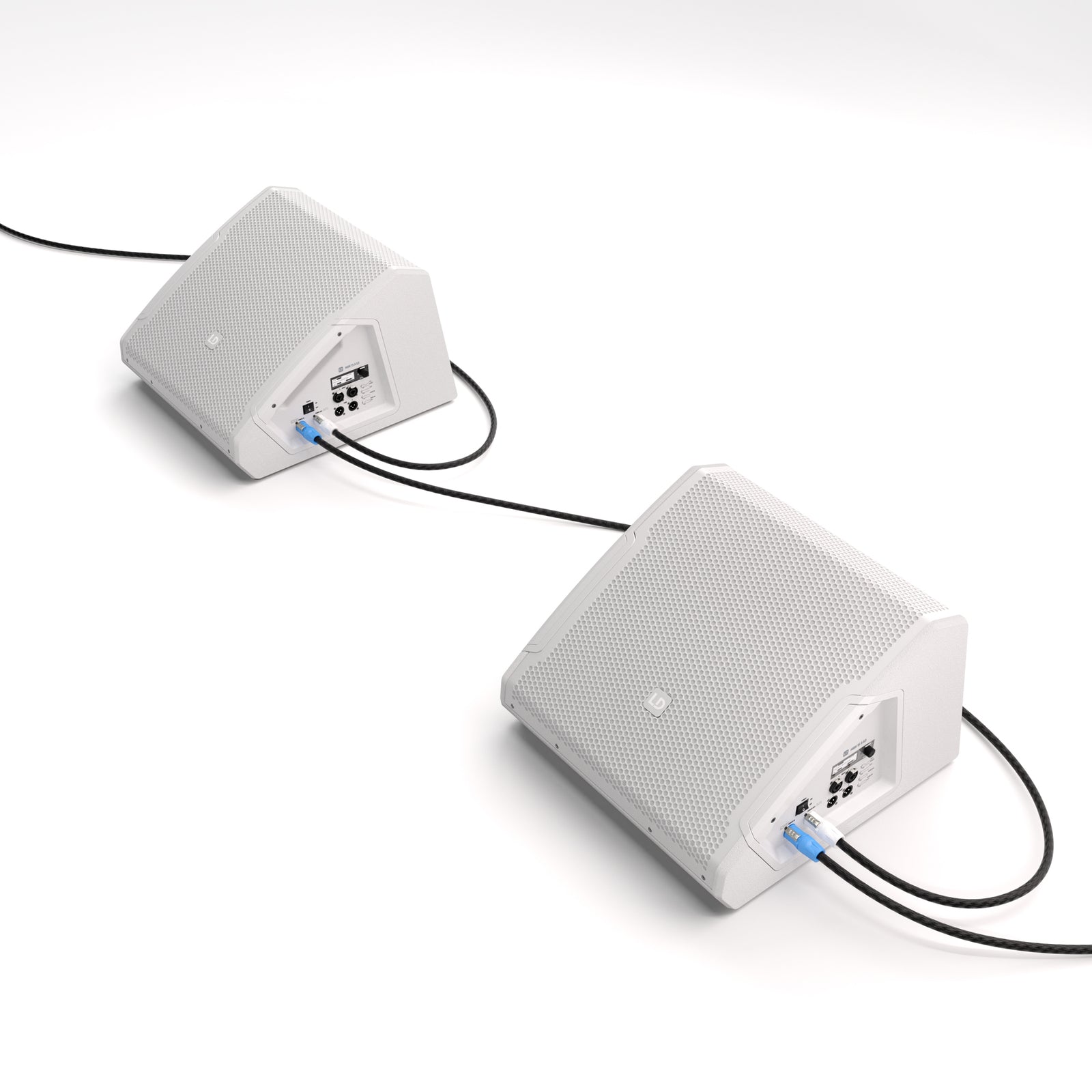

A durable Polyurea coating, rugged front grille, 35 mm stand flange and PowerCON-compatible loop-through power connection make the MON 10 A G3 suitable for FOH applications and multi-monitor setups.

Acoustic System

• Type: 2-joslu active coaxial system
• Woofer: 10″, 2.5″ voice coil
• HF driver: 1.75″ titanium diaphragm
• Crossover frequency: 1700 Hz
• Frequency range (-10 dB): 58 Hz-20 kHz
• Frequency range (-3 dB): 72 Hz-18 kHz
• Dispersion: 50° × 90°
• Maximum SPL: 126 dB peak
• Monitor angle: 33°

Amplifier

• Amplifier class: Class D
• RMS power: 300 W
• Peak power: 1200 W

DSP and Control

• DSP: DynX DSP Gen.2
• EQ: 3-band EQ
• Notch filter: Tunable
• Application presets: 4
• Delay: Available

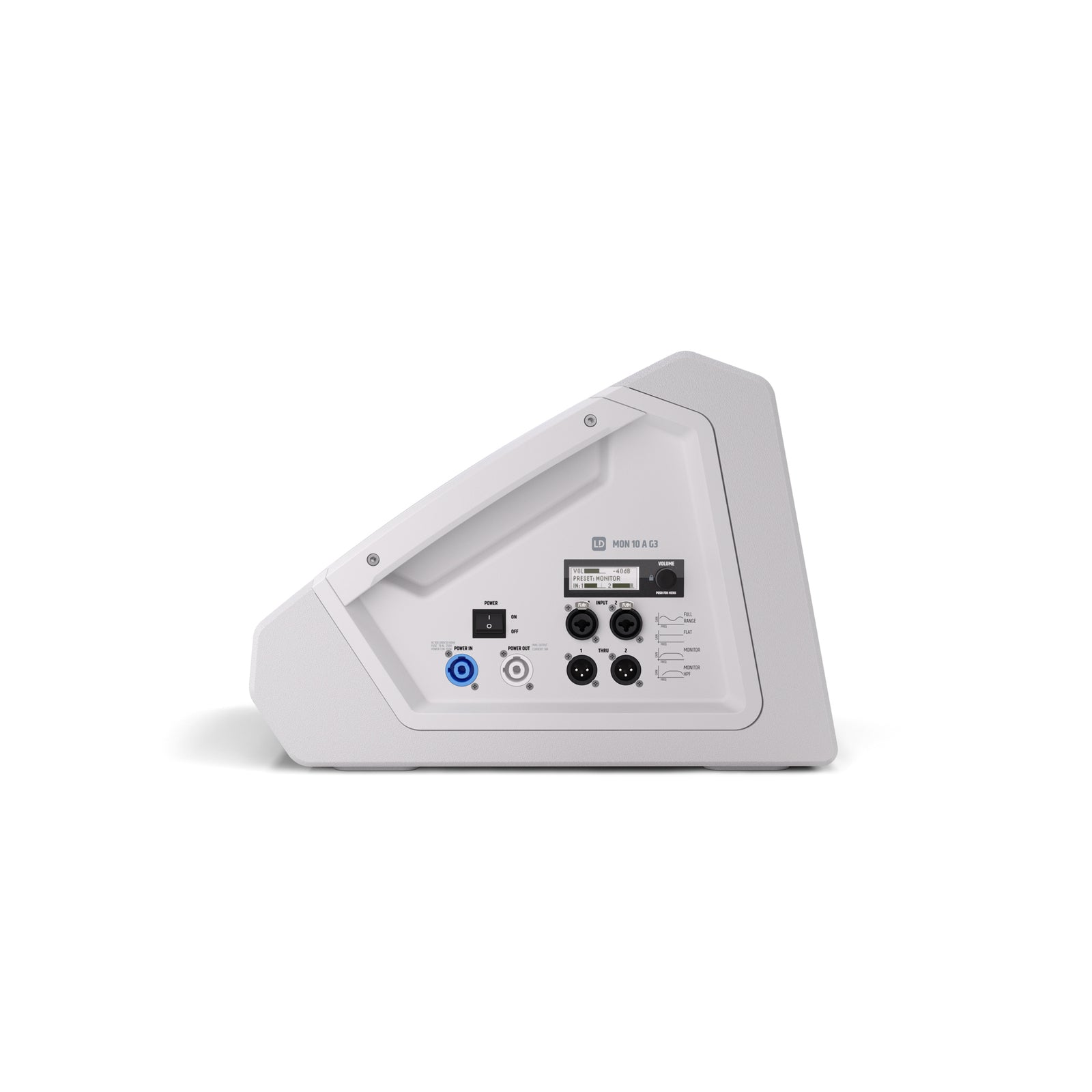

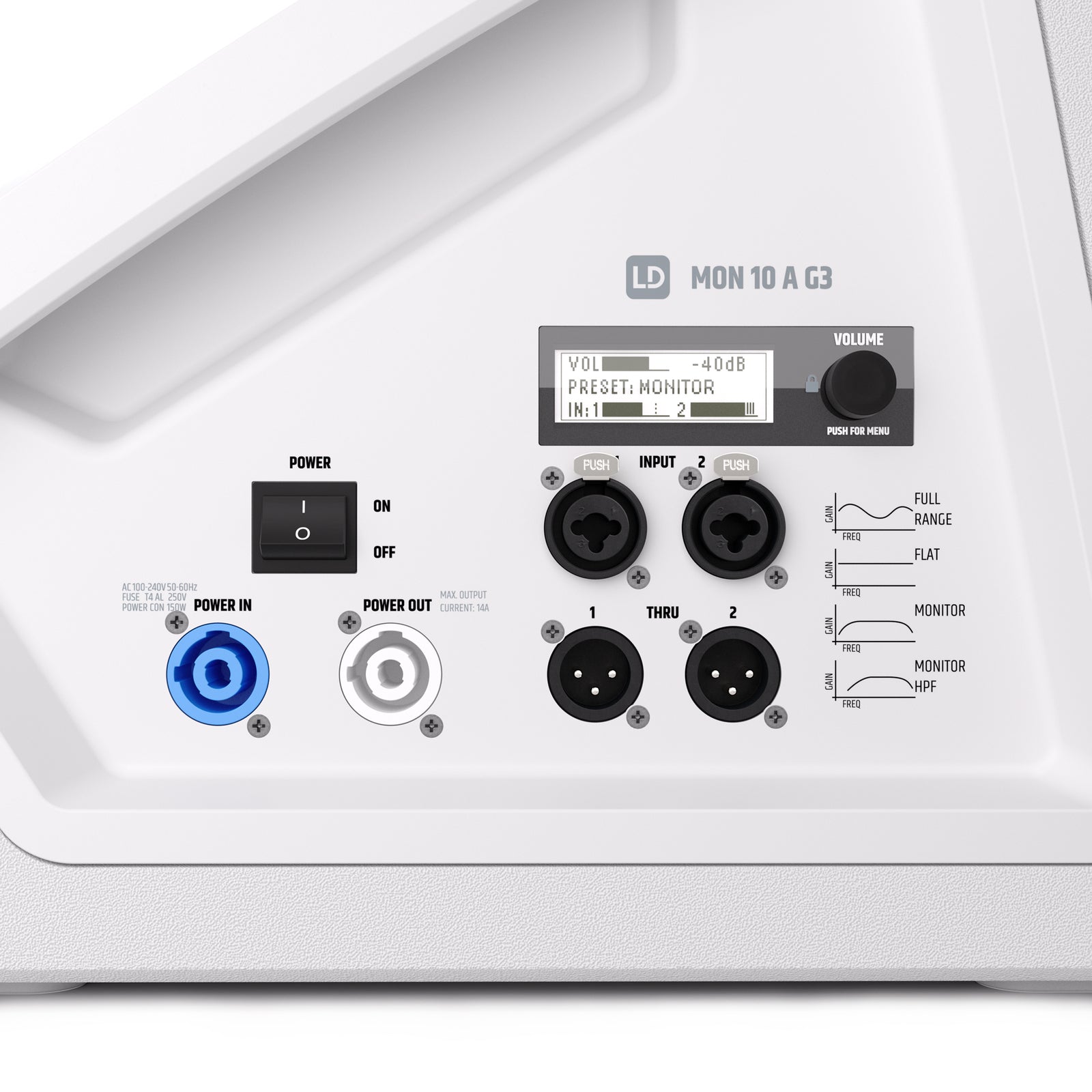

Connections

• Line inputs: 2
• Input connectors: XLR combo and 6.3 mm Jack TRS
• Outputs: 2 × XLR
• Power connection: PowerCON-compatible loop-through

Construction and Mounting

• Cabinet coating: Durable Polyurea coating
• Front grille: Heavy-duty

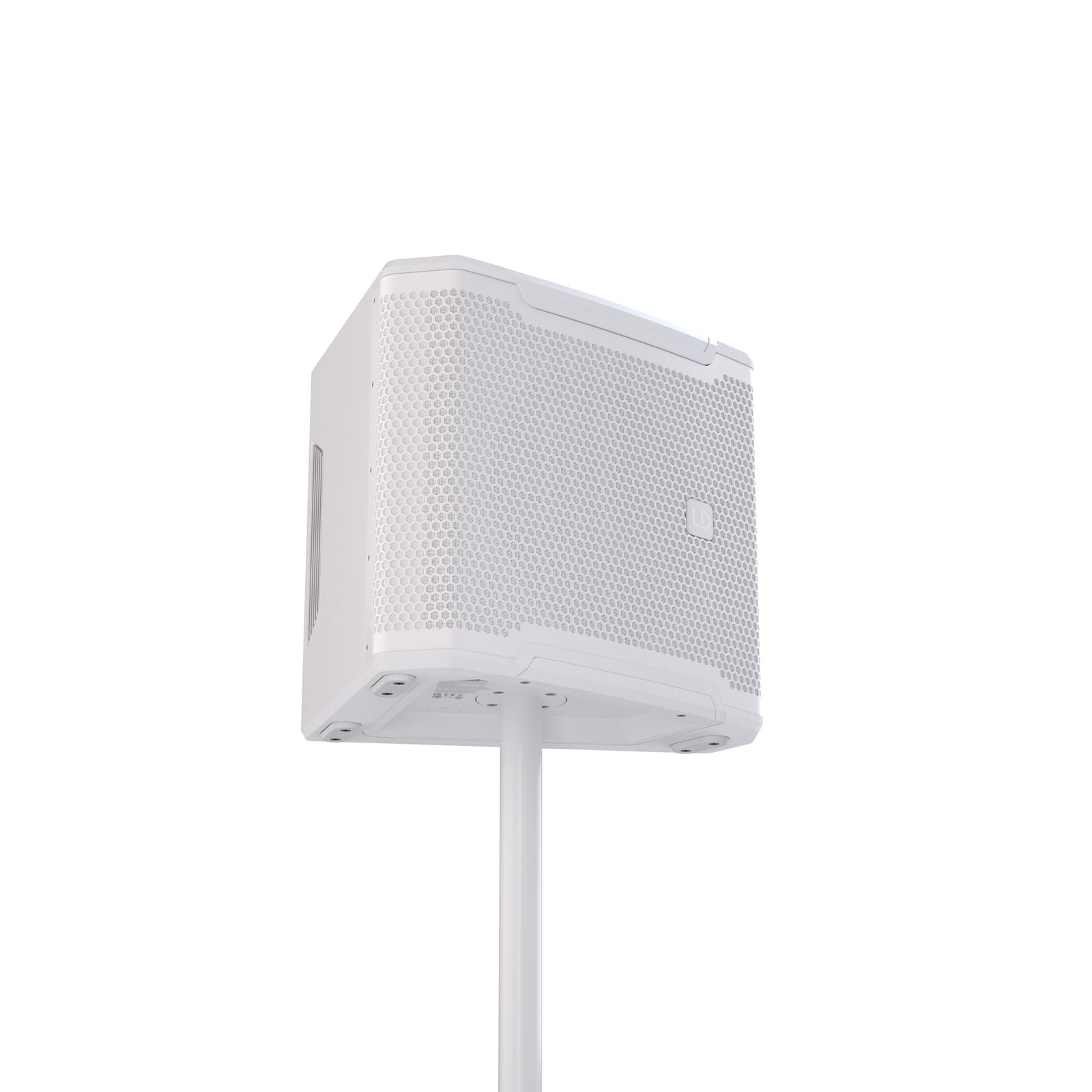

• Stand flange: 35 mm
• Colour: White

Dimensions and Data

• Dimensions: 305 × 380 × 426 mm
• Weight: 15.21 kg
