DMX - XLR 5 Male / XLR 5 Female - 10m.- 4 x 0,15mm + mesh

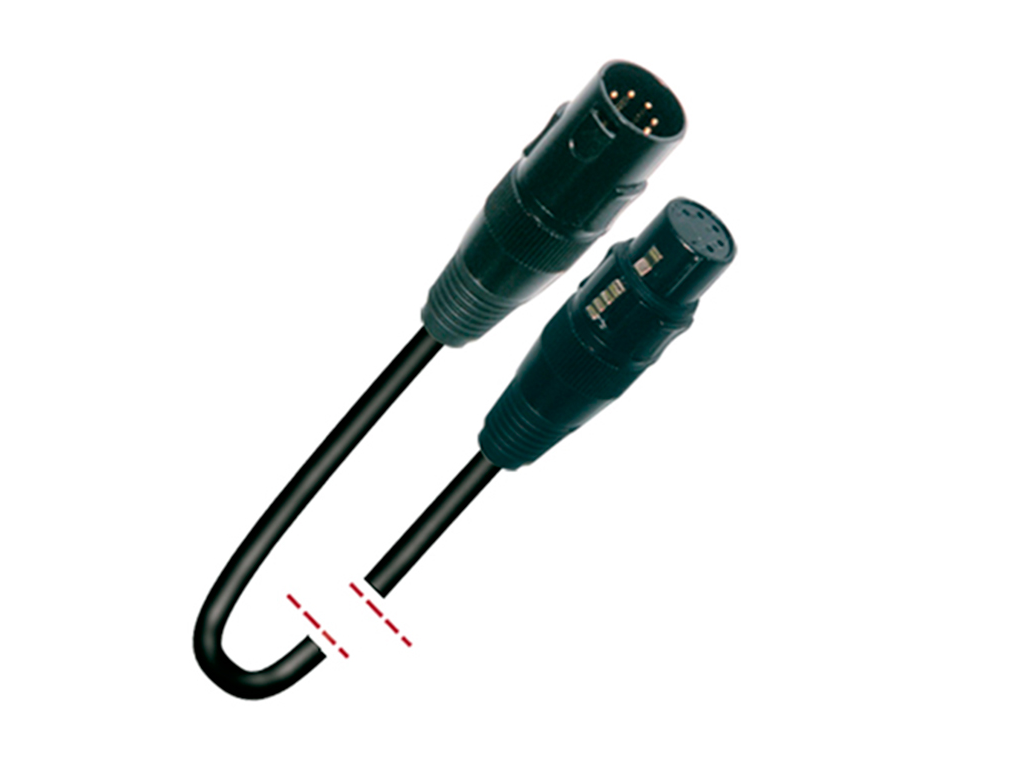

Cable with connectors XLR 5 pin male - XLR 5 pin female, special for DMX. 4 conductors of 19 x 0.15 mm + braid shielding. Length: 10 m.

Technical Data

• Length: 10 meter

• Diameter: 7 mm

• AW: G22

• Conductors: 4 x 0.34 mm²

• Threads per conductor: 7 x 0.25 mm

• Conductor insulation: Shield

• Shield factor: 100 %

• Shield capacitance: 245 pF/m/

• Conductor resistance: 53 Ohm/Km/

• Shielding resistance: 18 Ohm/Km/

• Insulation resistance

• Characteristic impedance: 110 Ohm/
