Easy-to-use UHF wireless system for singers and presenters with a 606-630 MHz GB band. Up to 10 compatible channels and a 50-16,000 Hz audio frequency range.
The system features a dynamic e835 microphone capsule, diversity reception and Auto-Tune for automatic free-frequency selection.
Features
- Excellent live sound featuring Sennheiser’s renowned Evolution microphone capsules (e825 or e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization between receiver and transmitter for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Specifications
- Dimensions: approx. 200 × 42 × 127 mm
- Frequency range A band: 548-572 MHz
- Frequency range GB band: 606-630 MHz
- Frequency range B band: 614-638 MHz
- Frequency range E band: 821-832 / 863-865 MHz
- Microphone capsule: Dynamic e835
- Bandwidth: 24 MHz
- Frequency banks: 8, with up to 10 presets in each
- Antennas: Integrated
- Reception: Diversity with antenna switching
- Automatic frequency selection: Auto-Tune to find free frequencies
- Audio frequency range: 50-16,000 Hz

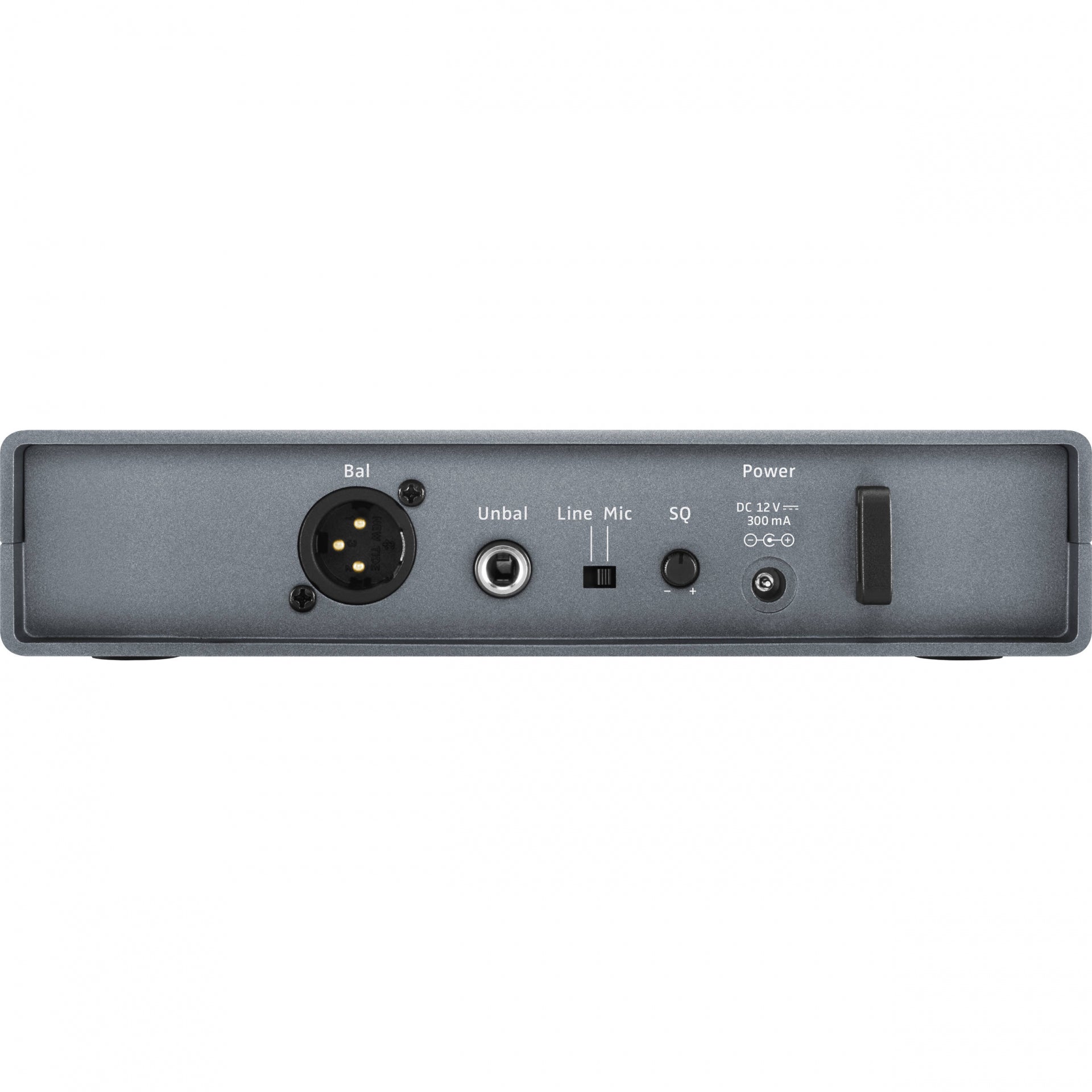

- Outputs: XLR and Jack
- Squelch: Adjustable
- Mic/Line: Switchable
- Connection: Wireless
- Sensitivity: < 3 μV at 52 dB(A)rms signal-to-noise ratio
- Signal-to-noise ratio: ≥ 103 dB(A)
- Transducer type: Dynamic

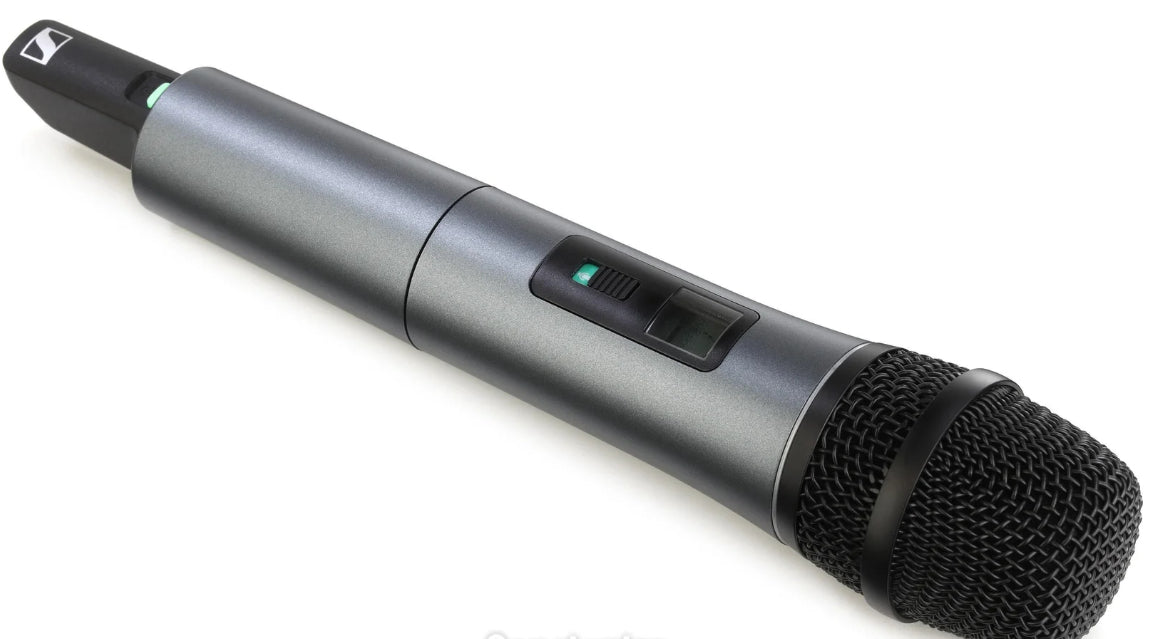

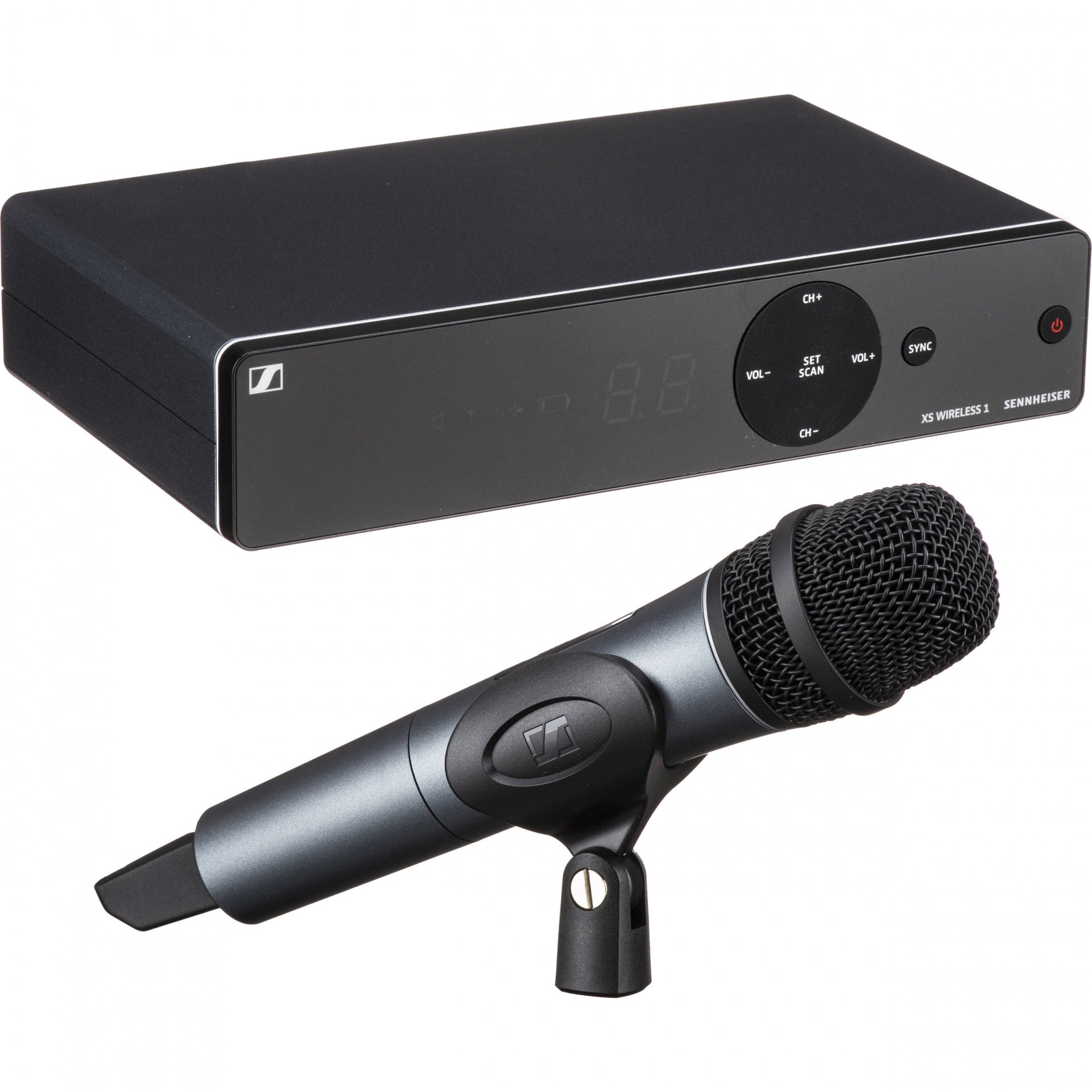

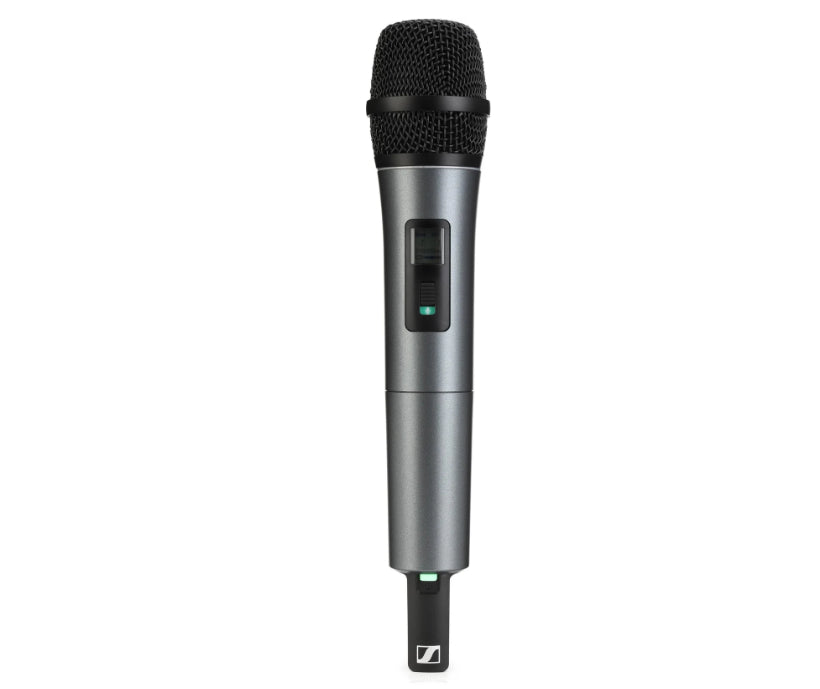

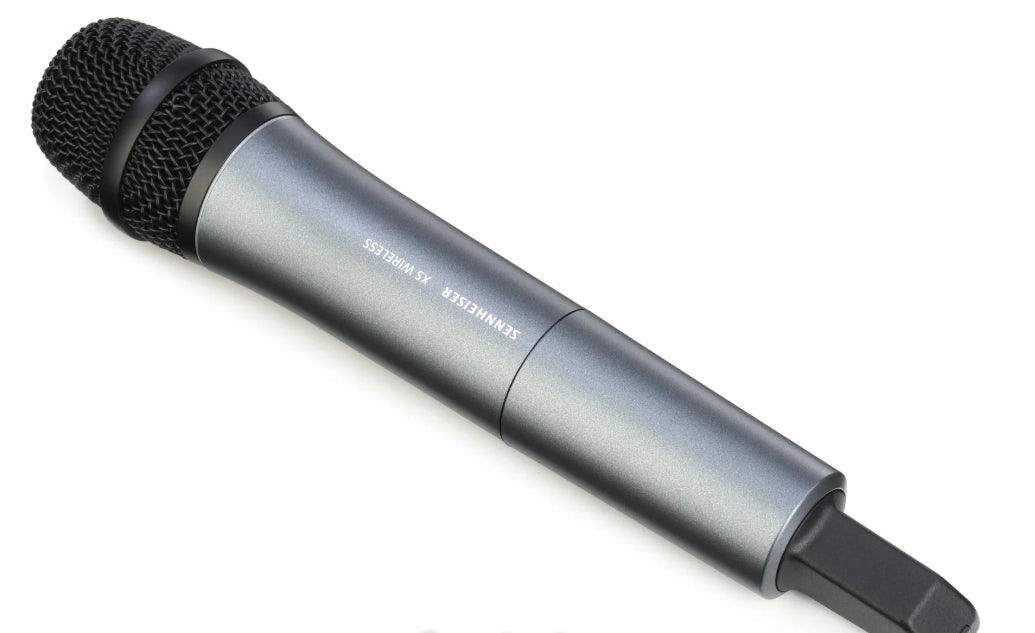

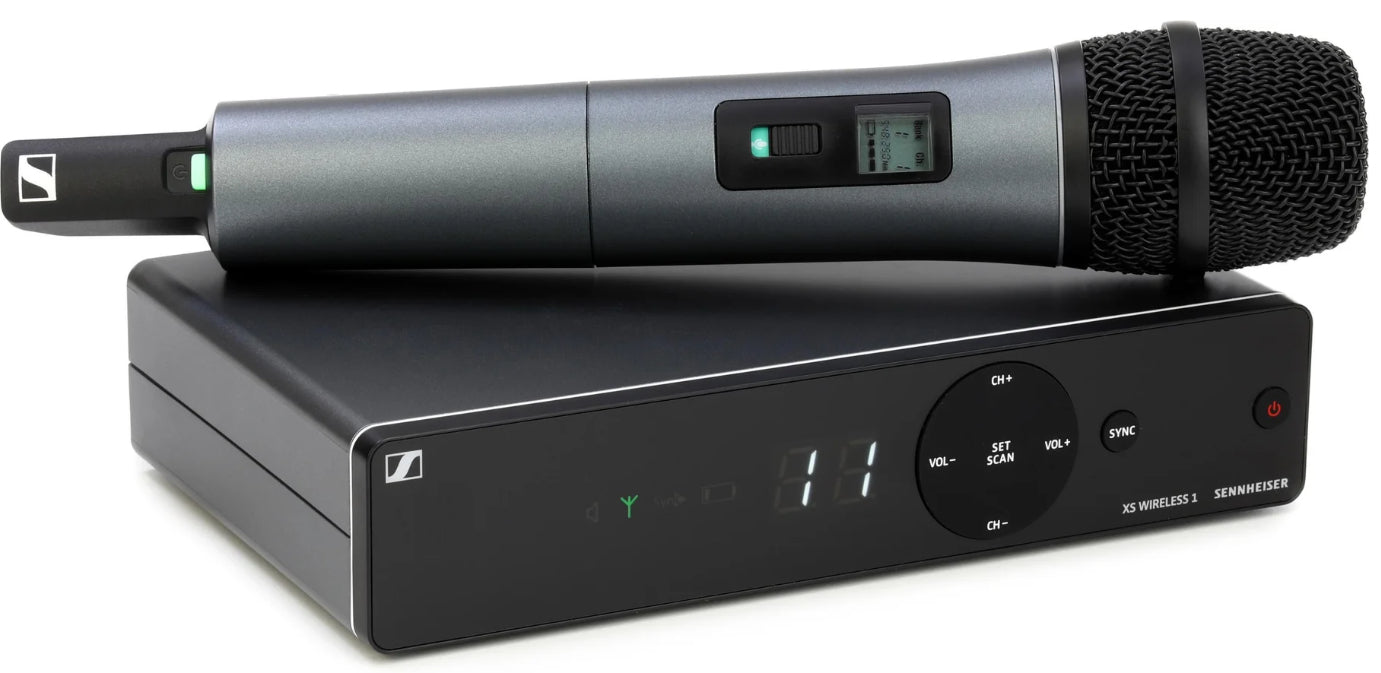

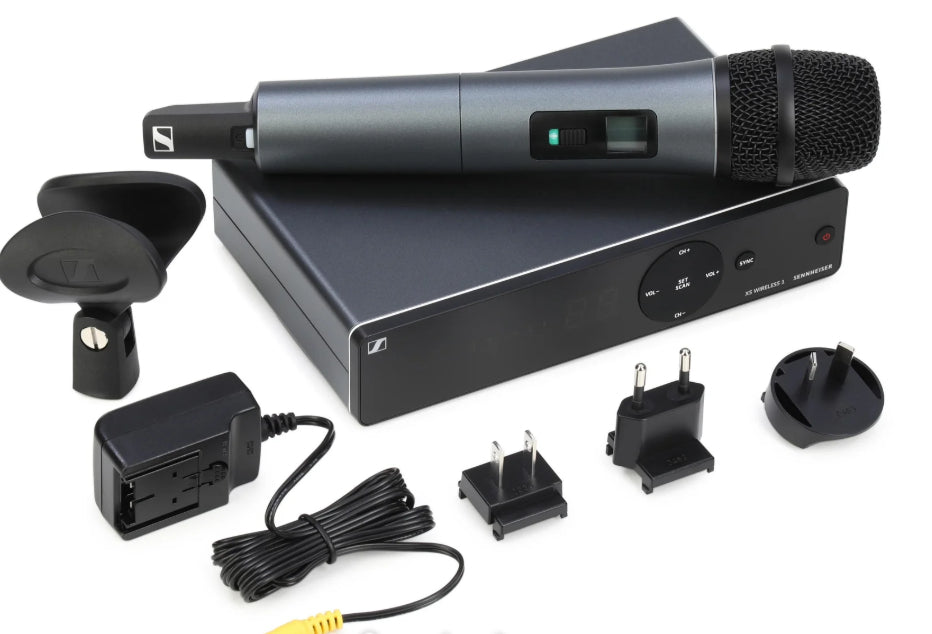

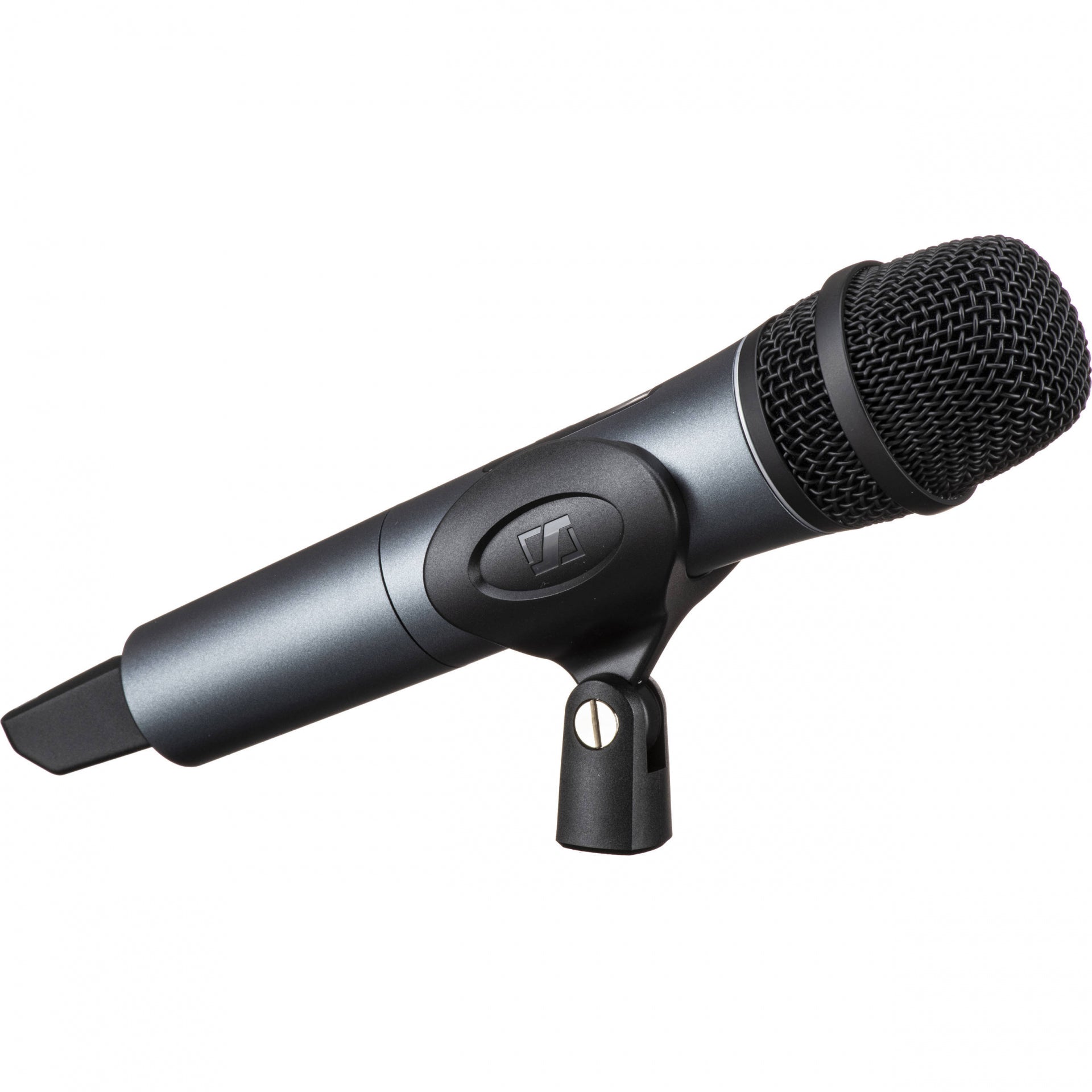

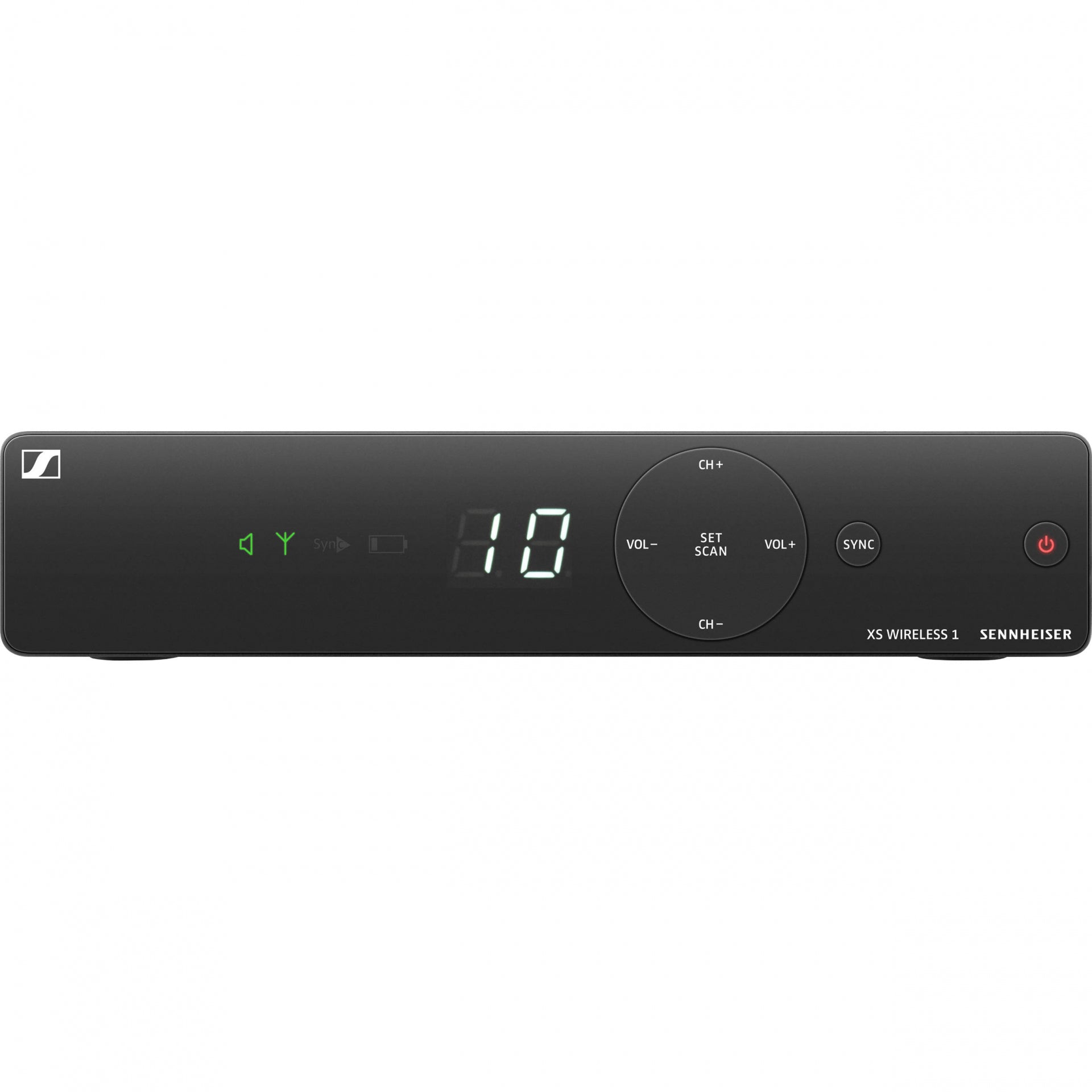

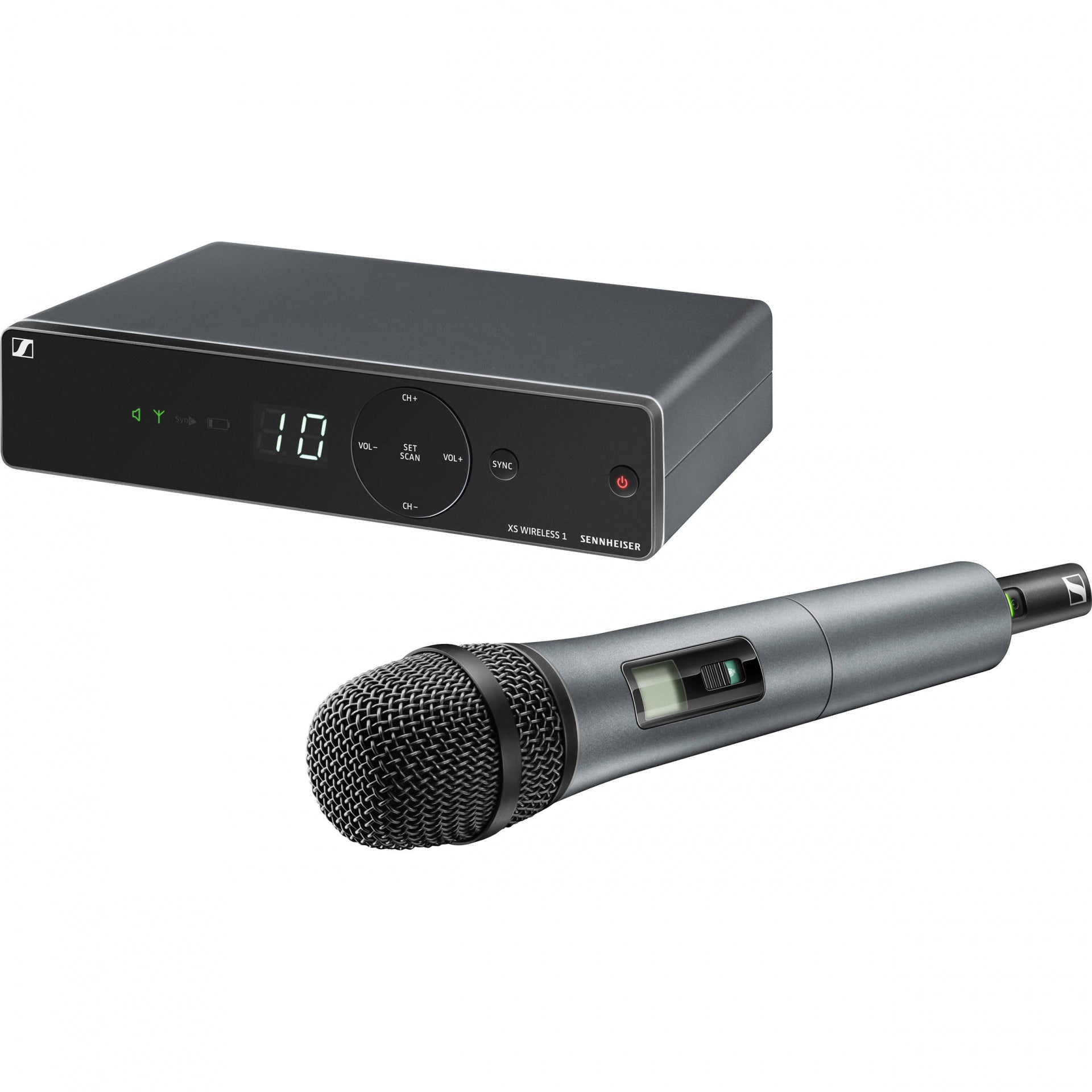

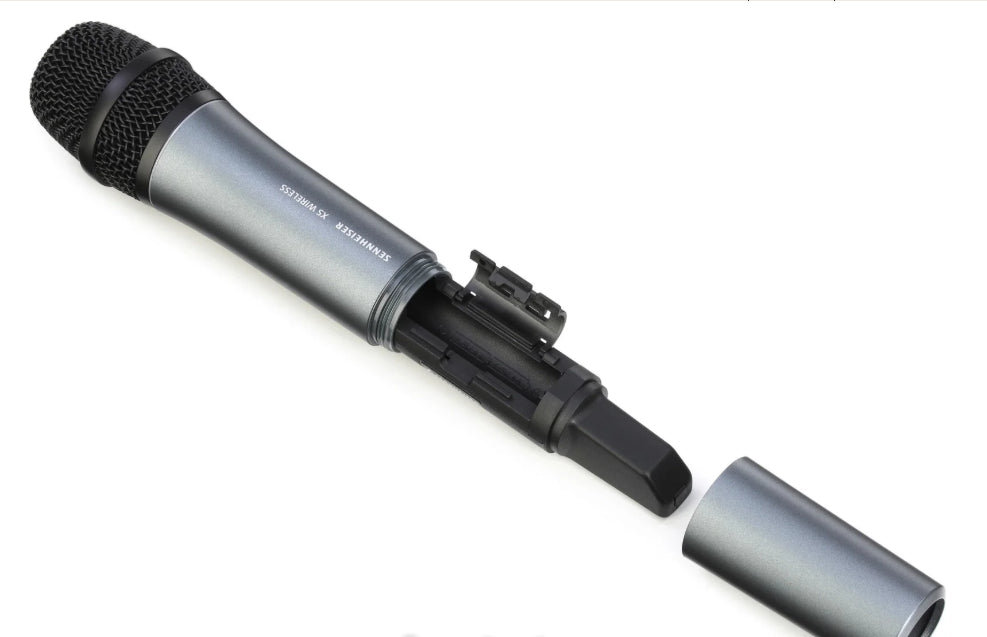

- Set comprises: 1 × SKM-XSW35 handheld transmitter with dynamic capsule and cardioid polar pattern, 1 × EM-XSW1 Diversity desktop receiver, NT 12-5 CW power supply, MZQ1 microphone mount and 2 × AA batteries
