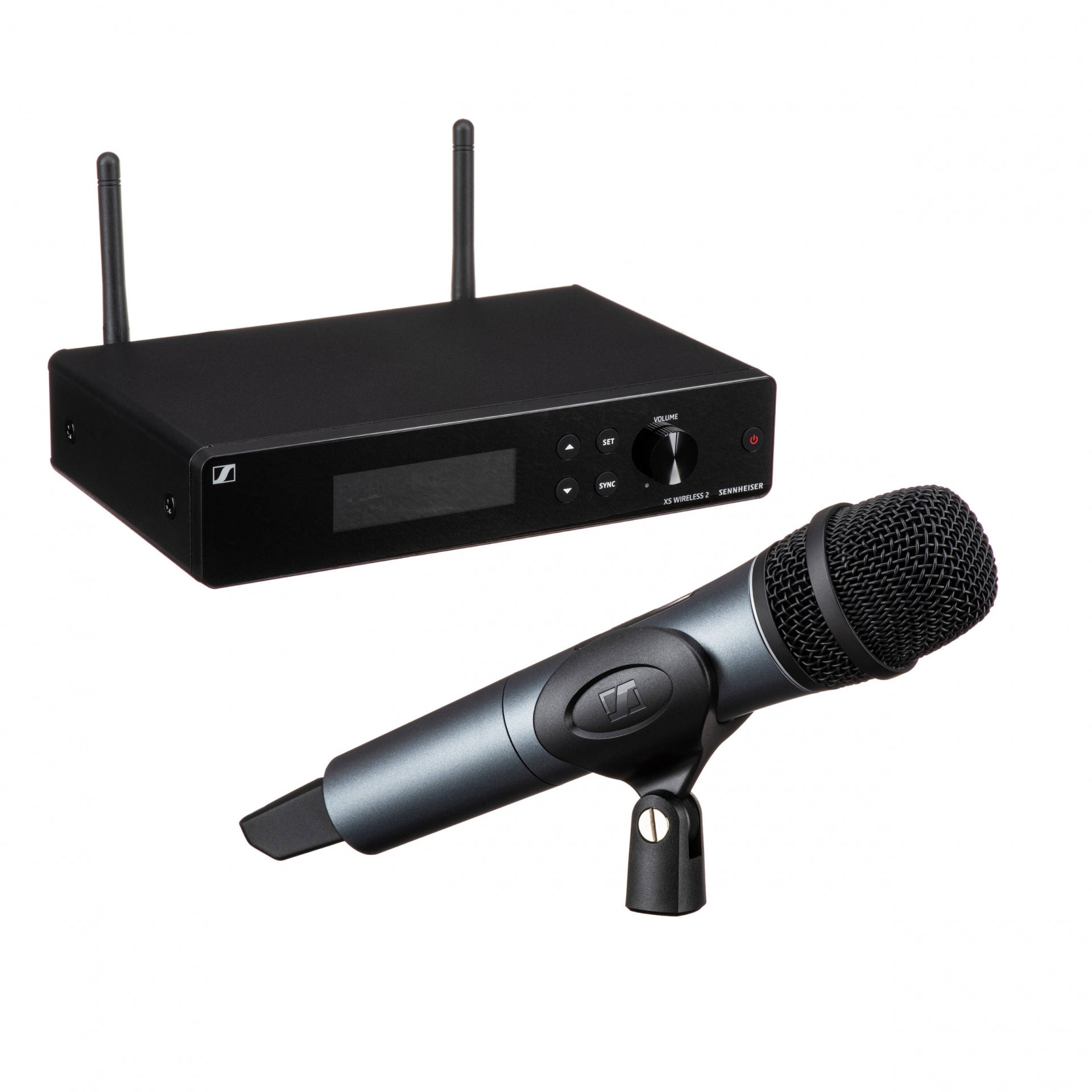

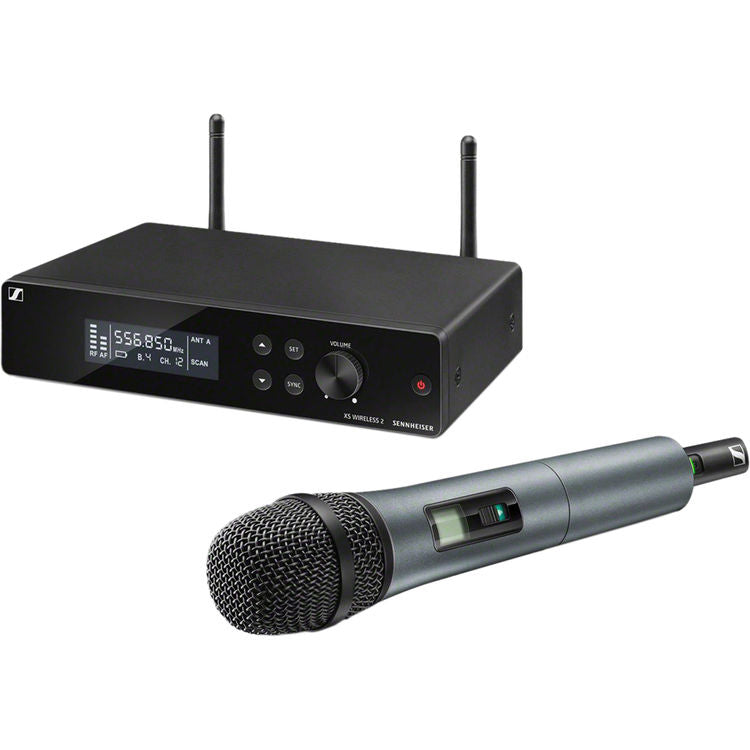

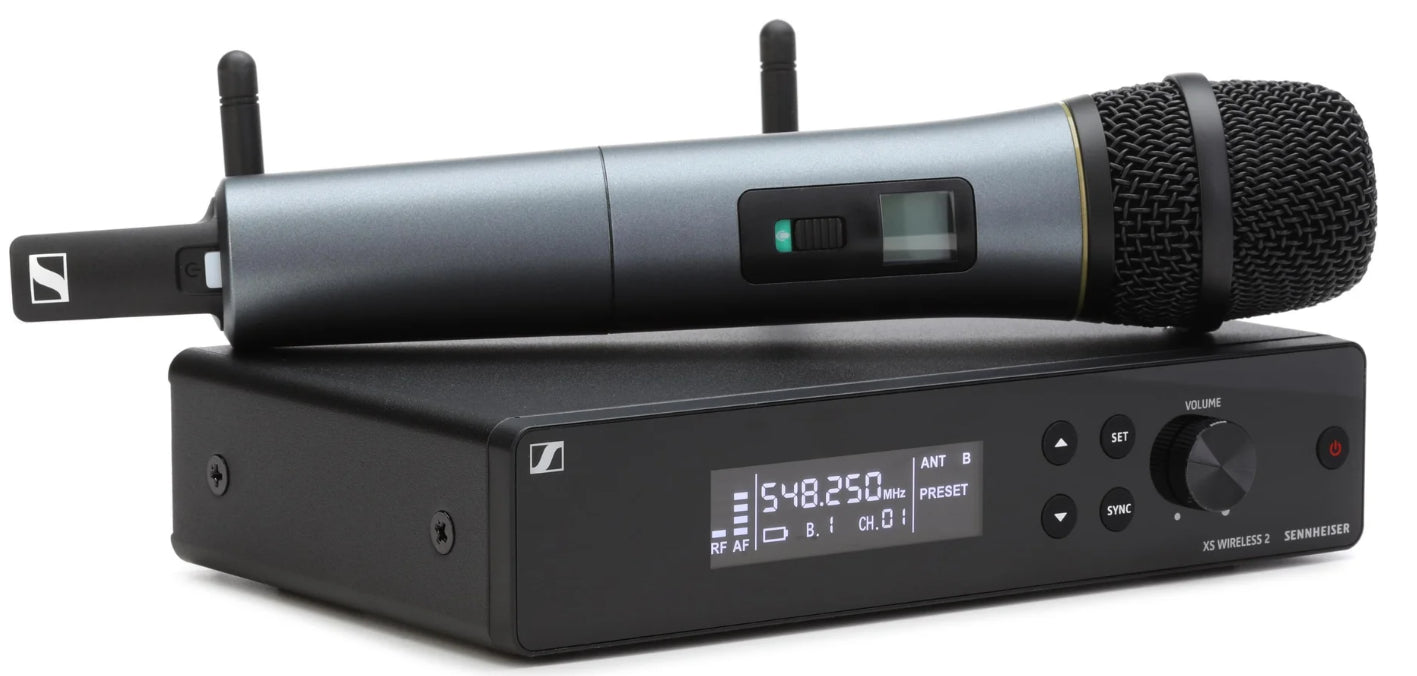

Flexible and rugged UHF wireless system for singers and presenters with the 821-832 MHz and 863-865 MHz E band, up to 12 compatible channels and a 50-16,000 Hz audio frequency range.
The system features a condenser e865 microphone capsule with a supercardioid pickup pattern, True Diversity reception and external antennas.
Features
- Excellent live sound featuring Sennheiser Evolution series microphone capsules
- True Diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization between receiver and transmitter for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Specifications
- Dimensions: approx. 200 × 42 × 127 mm
- Frequency range A band: 548-572 MHz
- Frequency range GB band: 606-630 MHz
- Frequency range B band: 614-638 MHz
- Frequency range E band: 821-832 MHz and 863-865 MHz
- Pickup pattern: Supercardioid
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Signal-to-noise ratio: ≥ 103 dB(A)
- Transducer type: Condenser
- Microphone capsule: e865
- Bandwidth: 24 MHz
- Frequency banks: 8, with up to 12 presets each
- Reception: True Diversity
- Antennas: External BNC
- Automatic frequency selection: Auto-Tune to find free frequencies
- Transmitter power: 10 mW
- Audio frequency range: 50-16,000 Hz

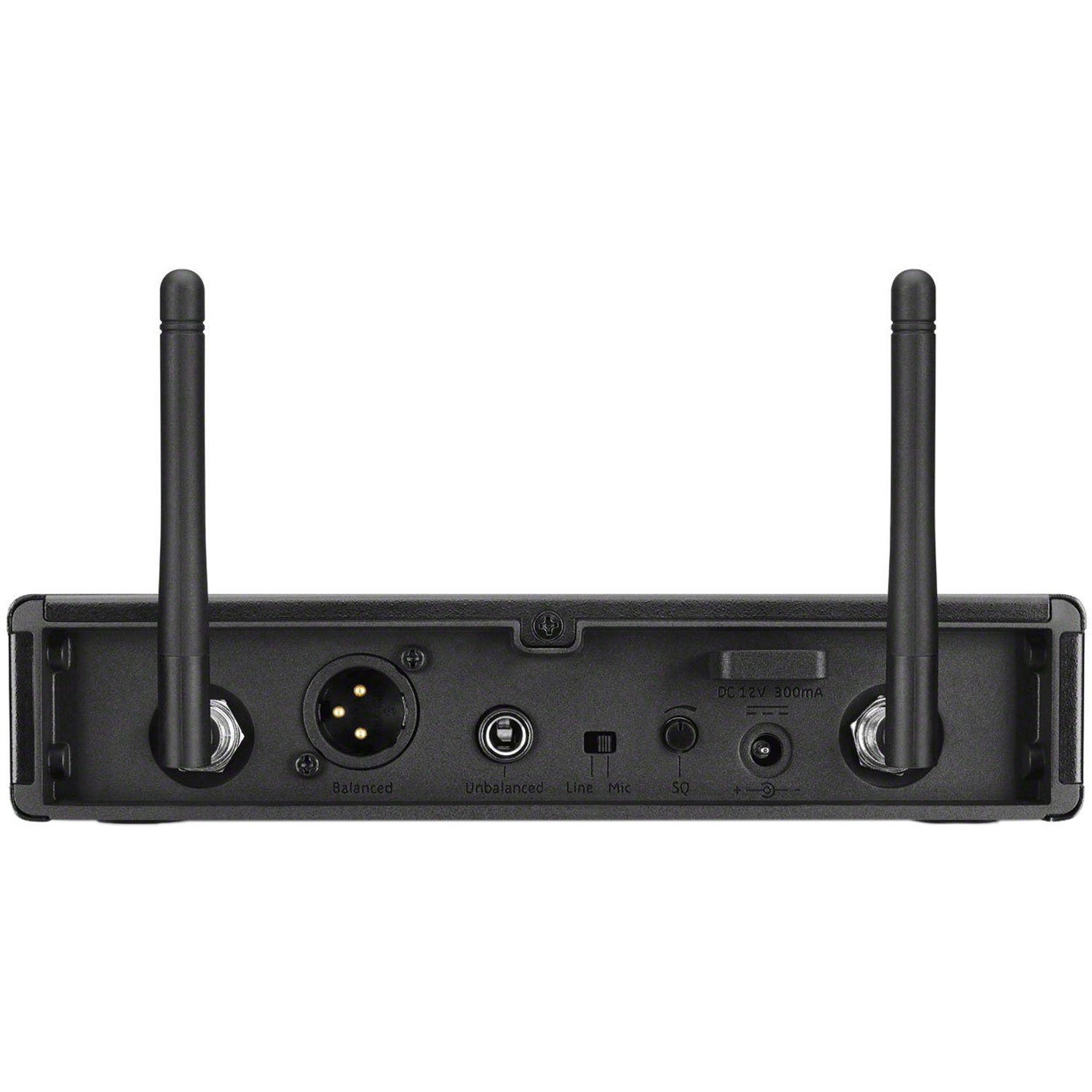

- Outputs: XLR and Jack
- Squelch: Adjustable
- Mic/Line: Switchable
- Connection: Wireless

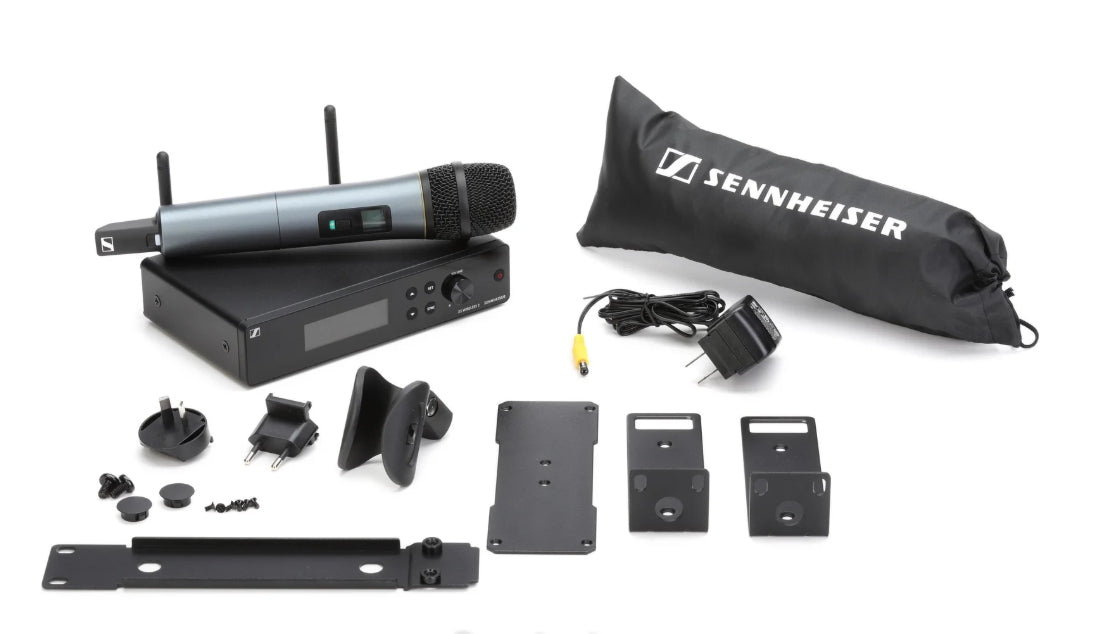

Set includes

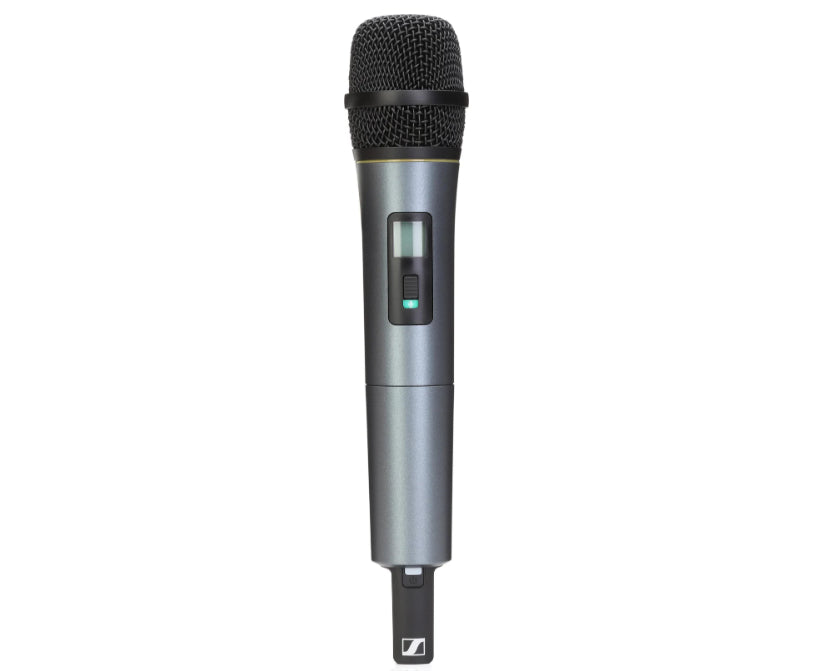

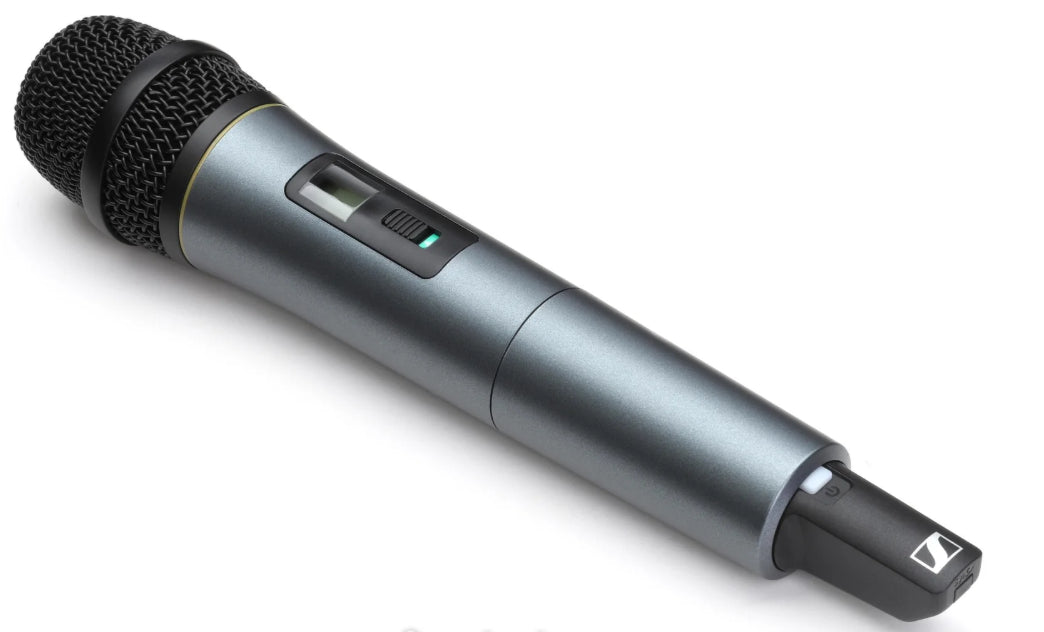

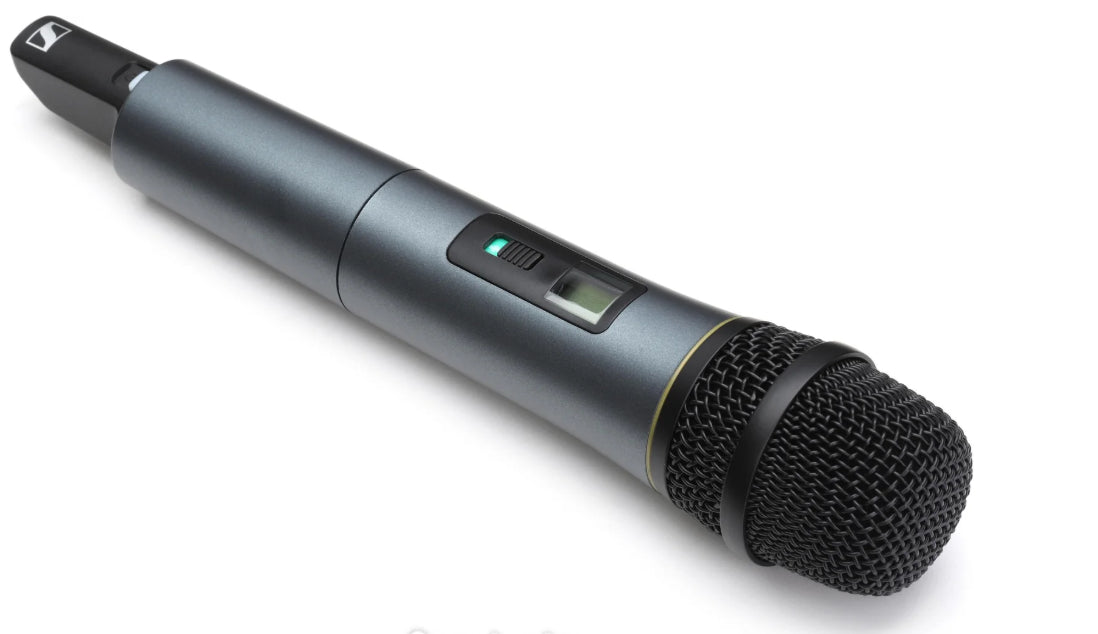

- 1 × SKM-XSW35 handheld transmitter with dynamic E835 capsule

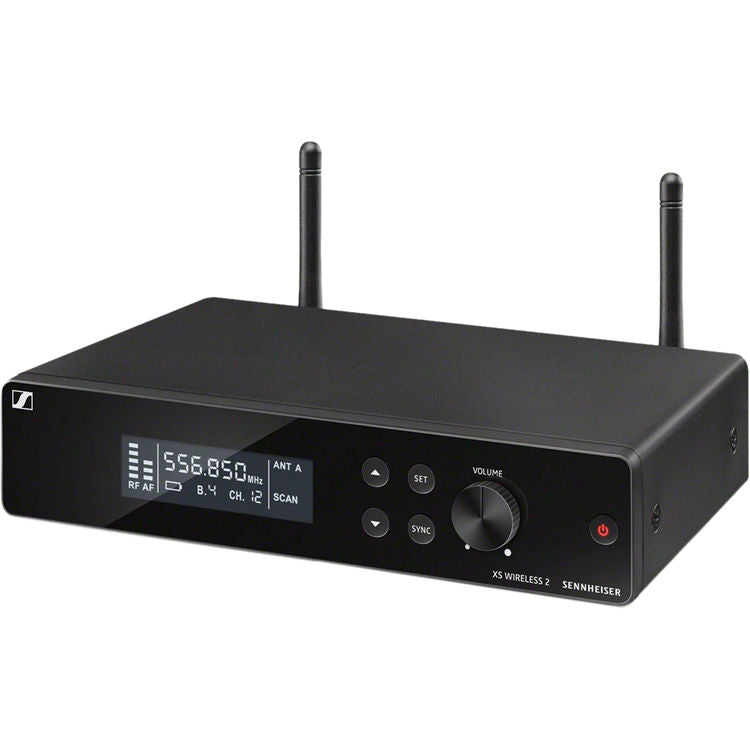

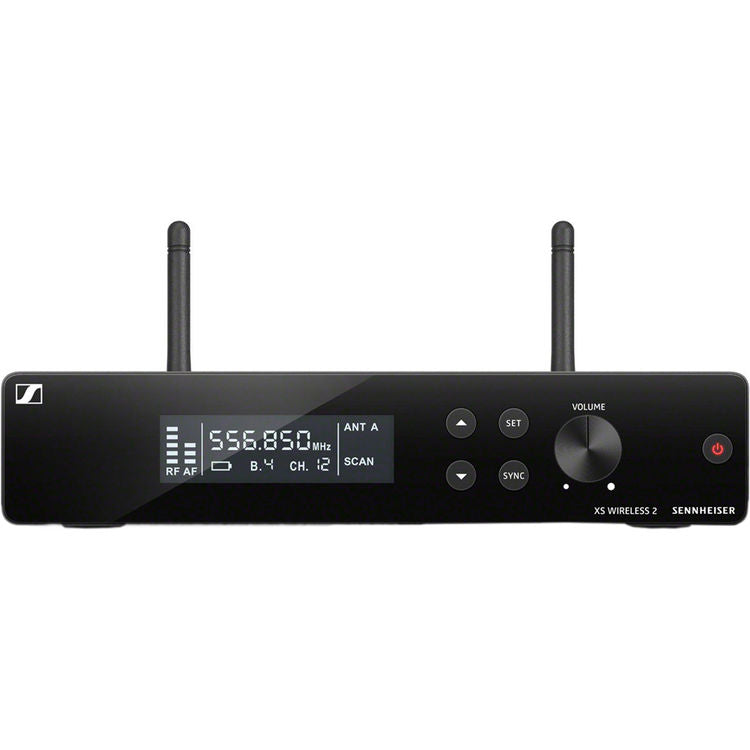

- 1 × EM-XSW2 Diversity receiver
- NT 12-5 CW power supply

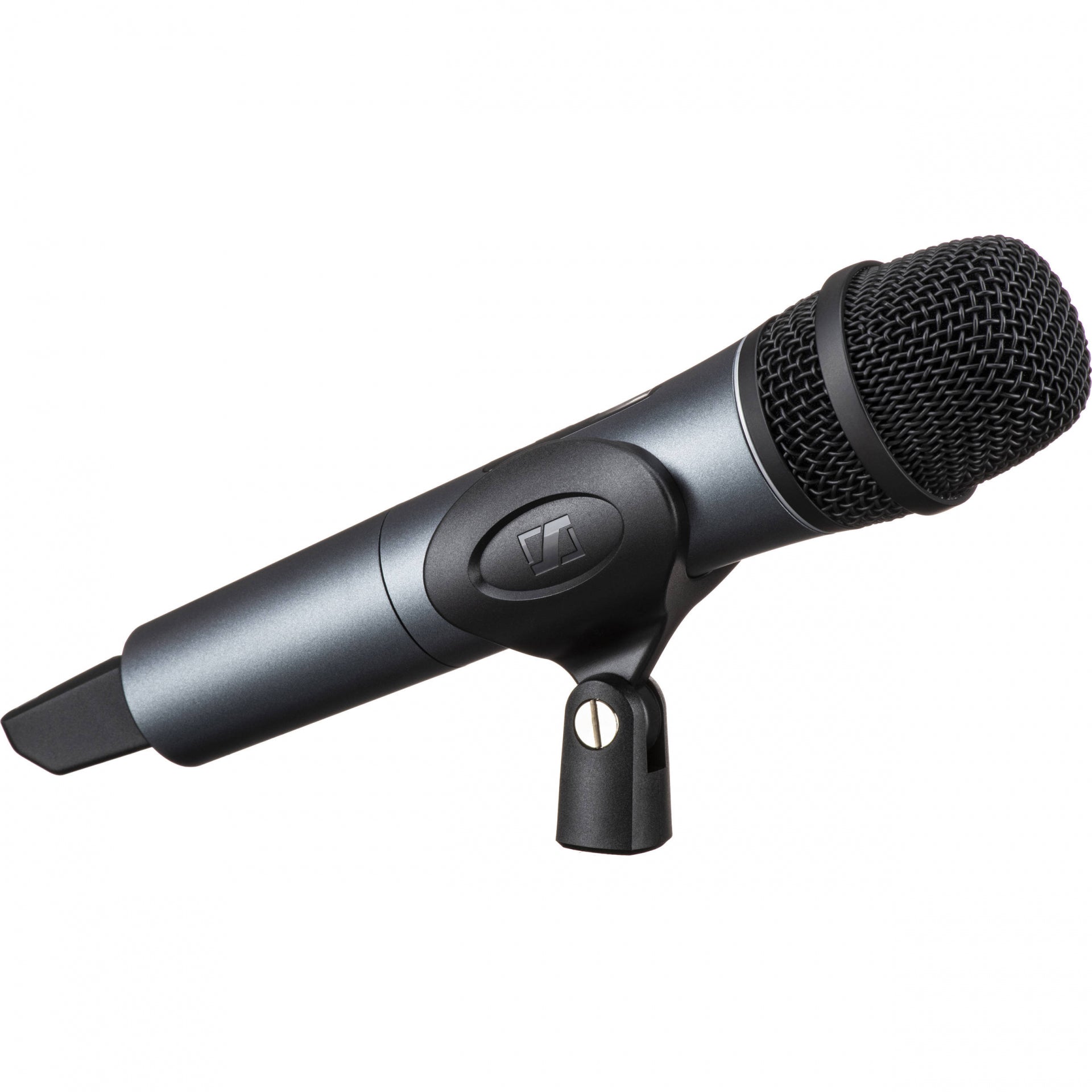

- MZQ1 microphone mount
- 2 × AA batteries
- Rackmount kit
- Bag
