Price indicated per 1 meter.

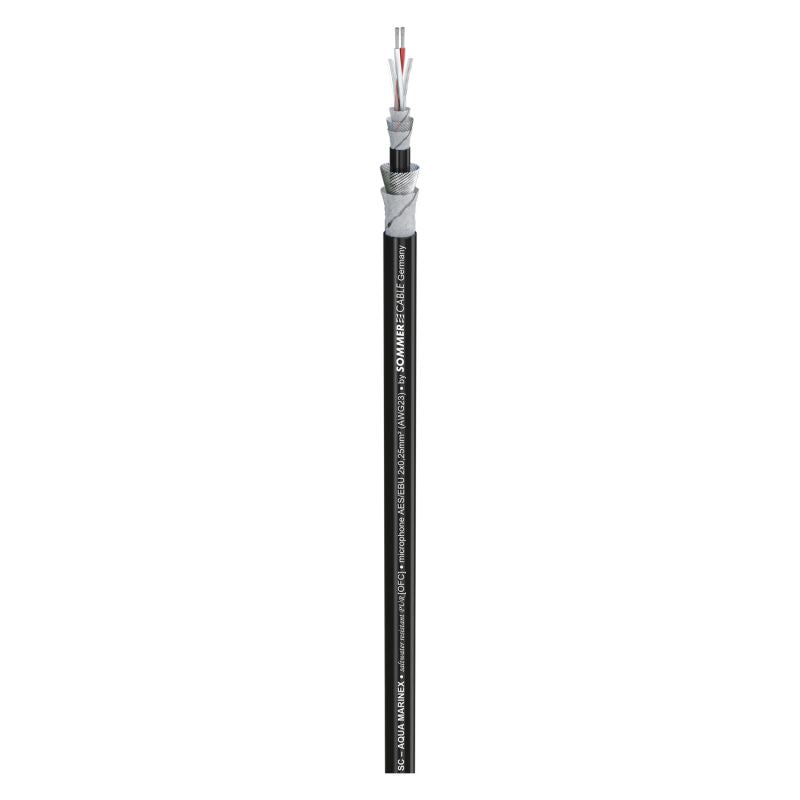

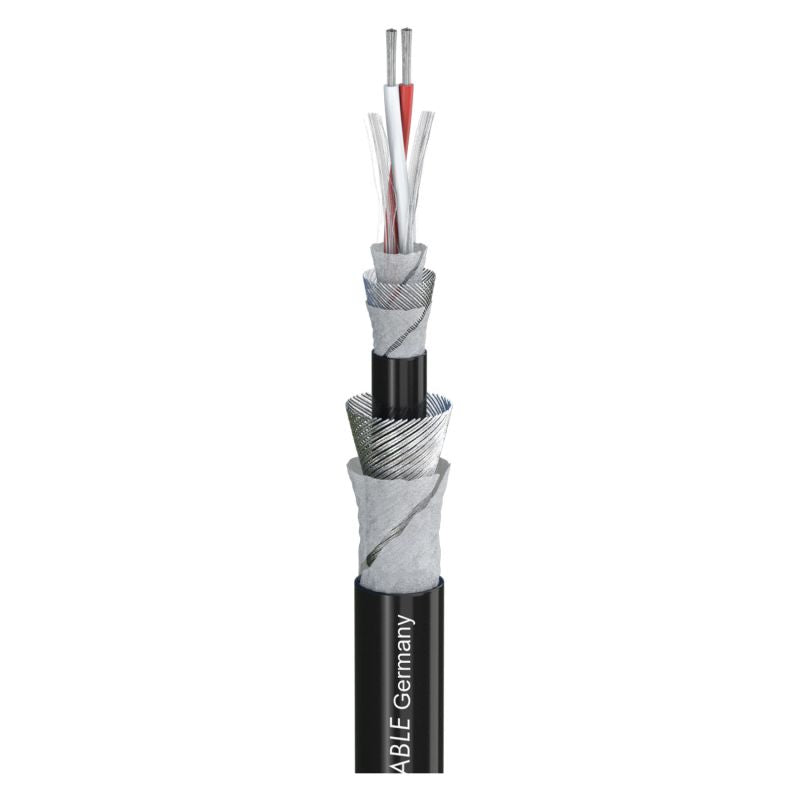

Microphone cable AES/EBU
Advantages:
- Sea- and freshwater resistant outer jacket
- 110 Ω wave impedance
- Transversely watertight due to water-absorbing, pressure-compensating protective banding
- Halogen-free
- Cold-flexible and reelable
- UV- and microbe-resistant
- Shielded by two tight CU mesh screens, insulated against each other
Application:
- Permanent laying in a maximum water depth of 50 m
- Demanding outdoor installation (e.g. with long-time events)
- Installation and usage near the coast and in boat-building
- In- and outdoor installation in leisure parks and water oases
- Digital control of visual effects
Technical Data:
- Article number: 200-0241AQ
- Name: SC-AQUA MARINEX MIKRO 25
- EAN: 4049371194433
- Properties: Analog
- Properties: Halogen-free / LSZH
- Properties: PUR
- Properties: Digital 75 Ω
- Properties: Digital 110 Ω AES / EBU
- Properties: Underwater / submerged
- Application area: Stage / live
- Application area: Mobile outdoor / indoor
- Application area: Installation
- Application area: ELA 100 V
- Application: Microphone cable AES/EBU
- Colour: black
- Signal transmission: symmetrical
- Jacket material: PUR-SR
- Jacket Ø: 7,20 mm
- Jacket Ø: 0.2835 "
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 0,25 mm²
- Inner conductor (audio): 0.0004 sqin
- AWG (audio): 23
- Shielding: 2 x copper spiral + special protective banding
- Shielding factor: 95 %
- Copper strands (audio): 32
- Copper strand Ø (audio): 0,10 mm
- Copper strand Ø (audio): 0.0039 "
- Conductor insulation material: PUR
- Conductor insulation Ø: 1,60 mm
- Conductor insulation Ø: 0.063 "
- Weight per 1 m: 65 g
- Weight at 1000 ft.: 43.7395 lbs
- UV-resistant: yes
- Fire load per m: 0,27 kWh
- Style variant: round
- Packing: bulk stock
- Temperature min.: -40 °C
- Temperature max.: 80 °C
- Width: 7,2 mm
- Width: 0.2835 "
- Height: 7,2 mm
- Height: 0.2835 "
- Capac. cond./cond. per 1 m (audio): 50 pF
- Capacity wire/wire at 1 ft. (audio): 15.24 pF
- Capac. cond./shield. per 1 m (audio): 190 pF
- Capacity wire/electic screen at 1 ft. (audio): 57.912 pF
- Impedance: 110 Ω
- Insulation resist. per 1 km: 1 GΩ
- Insulation resist. per 1000 feet: 0.3048 GΩ
- Insulation resist. per 1 km (audio): 1 GΩ
- Insulation resist. per 1000 feet (audio): 0.3048 GΩ
- Conductor resistance per 1 km: 78 Ω
- Conductor resistance per 1000 ft.: 23.7744 Ω
- BPVo-Euroclass: Fca
