Price indicated per 1 meter.
DMX
Advantages:
- AES/EBU- and DMX-conformant, highly flexible

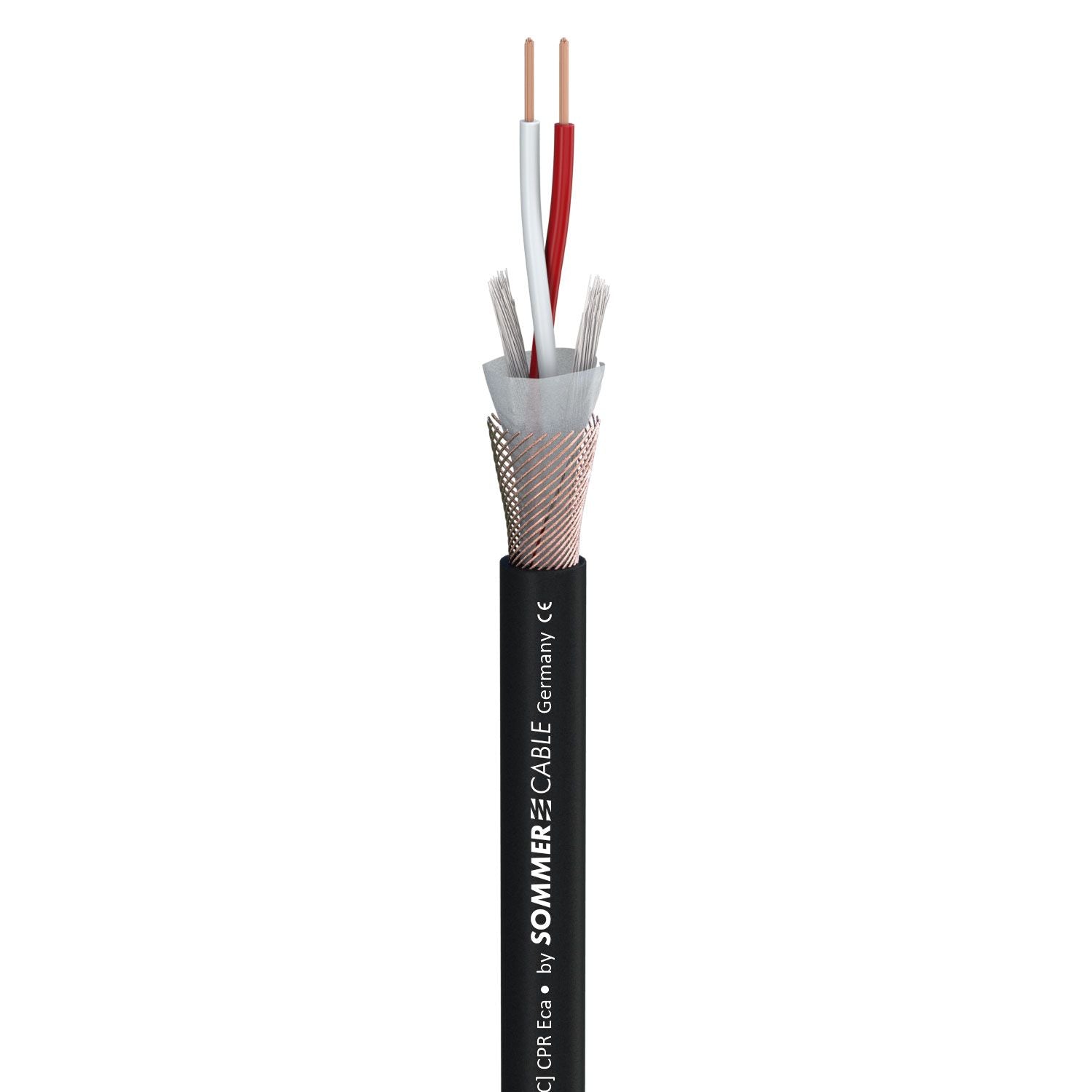

- Very good shielding due to the use of a helical copper mesh screen plus
an aluminium-vaporised fleece - Extremely rugged due to the special tough jacket
- Only a little more expensive than a standard microphone cable
Application:
- Networking of scanners, lighting systems, digital mixing consoles etc.
- For indoor and outdoor installation
- Connection of digital audio amplifiers, DAT recorders etc.
Technical Data:
- Article number: 520-0051

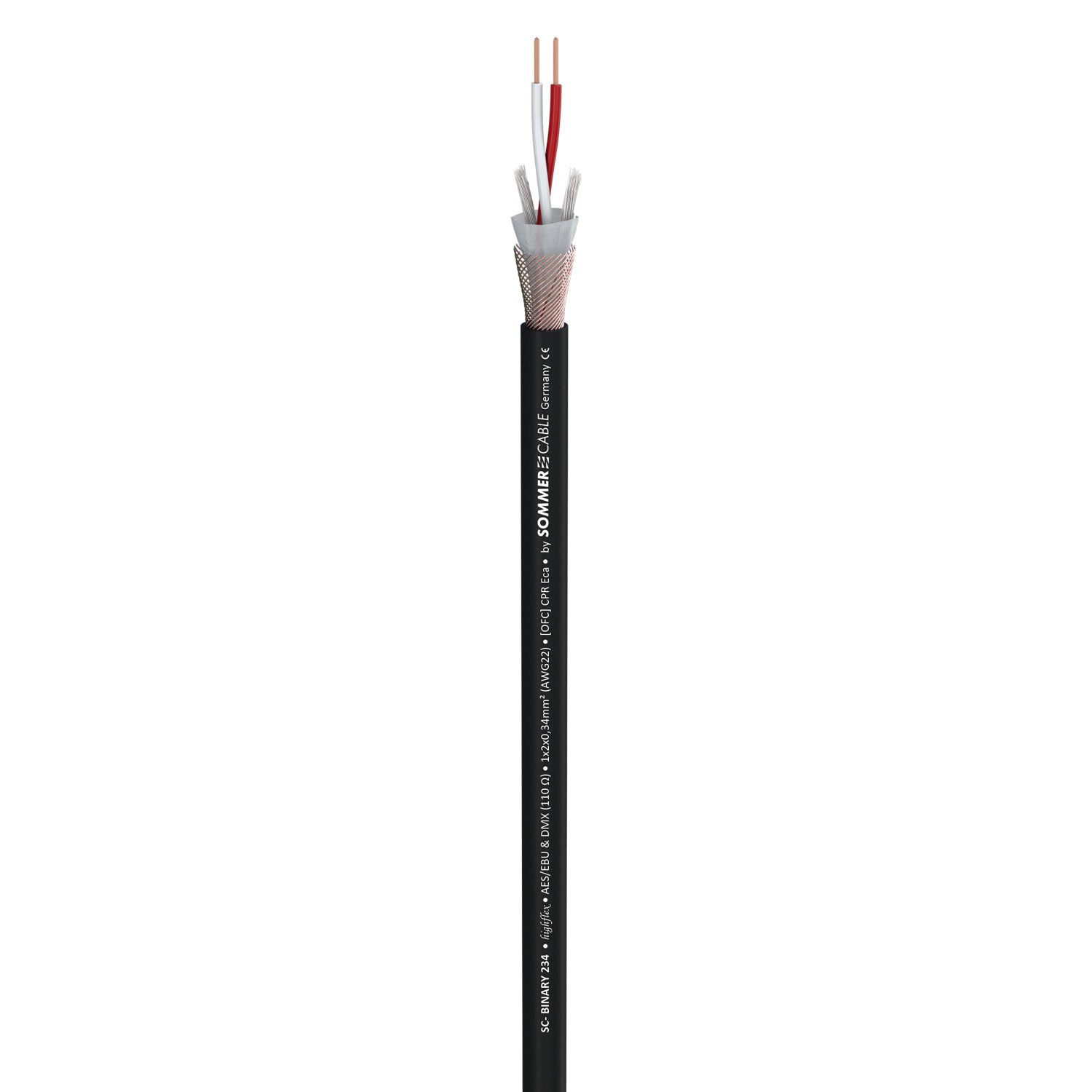

- Name: Binary 234 AES/EBU MKII
- EAN: 4049371002349
- Properties: Analog, Digital 110 Ω AES / EBU, OFC oxygen free copper
- Application area: ELA 100 V, Installation, Mobile outdoor / indoor, Stage / live,
- Studio / Broadcast
- Application: DMX
- Colour: black
- Signal transmission: symmetrical

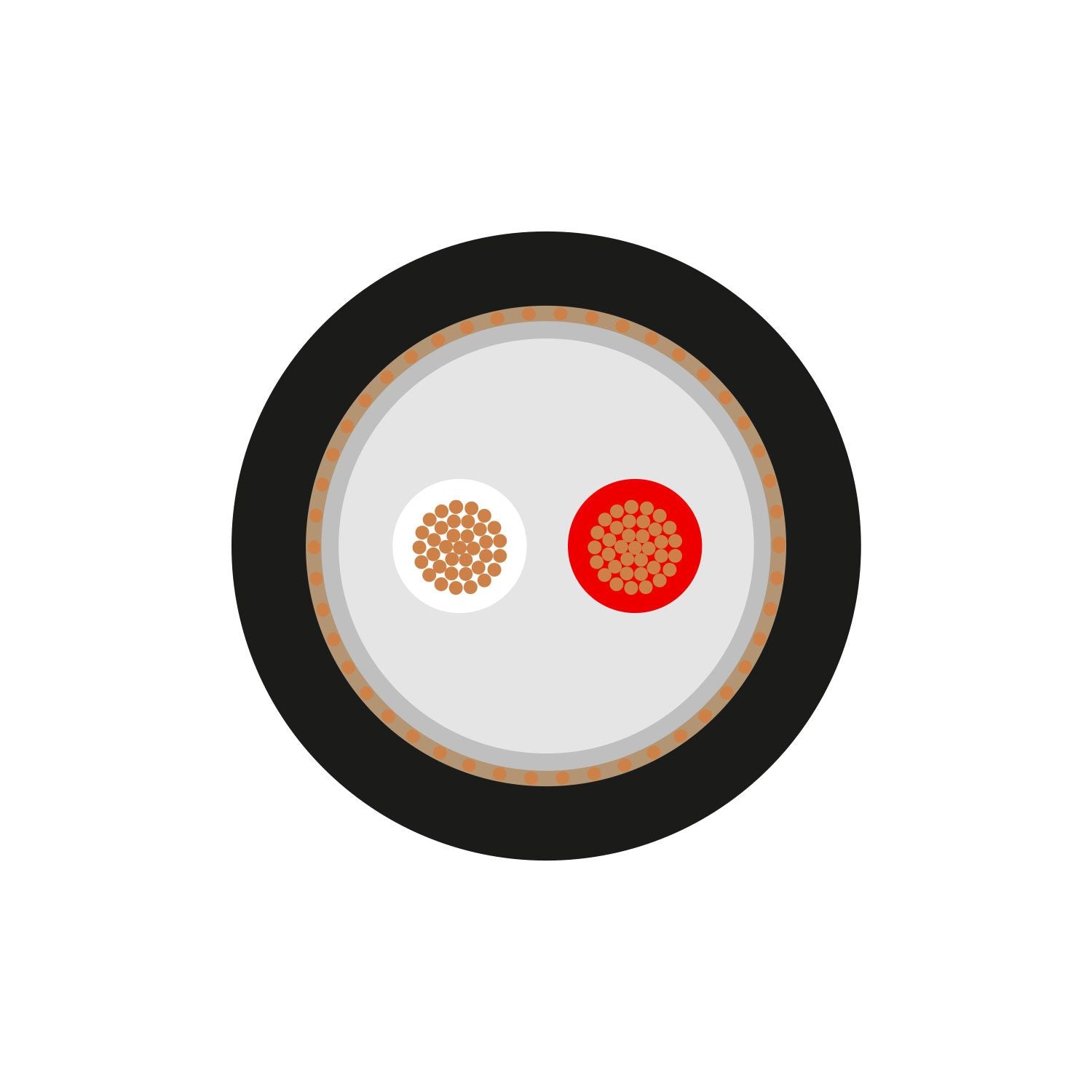

- Construction: (2LI2Y0,34mm²)(ST)DY
- Jacket material: PVC
- Jacket Ø [mm]: 6.20
- Jacket Ø ["]: 0.2441
- Number of Channels (AES/EBU, DMX): 1
- Inner conductor: 2
- Inner conductor (AES/EBU, DMX): 2
- Inner conductor (AES/EBU, DMX) [mm²]: 0,34
- Inner conductor (AES/EBU, DMX) [sqin]: 0.0005
- Inner conductor Ø (AES/EBU, DMX) [mm]: 0,66
- Inner conductor Ø (AES/EBU, DMX) ["]: 0.026
- AWG (AES/EBU, DMX): 22
- Shielding: Copper spiral shielding + aluminum steamed fleece
- Shielding factor [%]: 100
- Copper strands (AES/EBU, DMX): 19
- Copper strand Ø (AES/EBU, DMX) [mm]: 0,15
- Copper strand Ø (AES/EBU, DMX) ["]: 0.0059
- Conductor insulation material: Foam / Skin-PE
- Conductor insulation Ø [mm]: 1,50
- Conductor insulation Ø ["]: 0.0591
- Weight per 1 m [g]: 47.6
- Weight at 1000 ft. [lbs]: 33.6458
- UV resistance: very high
- Fire load per m [kWh]: 0.17
- Style variant: round
- Packing: 100 m spool
- Temperature min. [°C]: -25
- Temperature max. [°C]: 70
- Width [mm]: 6,2
- Width ["]: 0.2441
- Height [mm]: 6,2
- Height ["]: 0.2441
- Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF]: 63
- Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF]: 19.2024
- Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF]: 115
- Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF]: 35.052
- Impedance [Ω]: 110
- Insulation resist. per 1 km [GΩ]: 1
- Insulation resist. per 1000 feet [GΩ]: 0.3048
- Insulation resist. per 1 km (AES/EBU, DMX) [GΩ]: 1
- Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ]: 0.3048
- Conductor resistance per 1 km [Ω]: 53
- Conductor resistance per 1000 ft. [Ω]: 16.1544
- Shield. resistance per 1 km [Ω]: 28
- Shield. resistance per 1000 ft. [Ω]: 8.5344
- BPVo-Euroclass: Fca
